EV3161WB CABLE REEL + WALLBOX FOR CHARGING ELECTRIC VEHICLES ZECA EV3WB SERIES

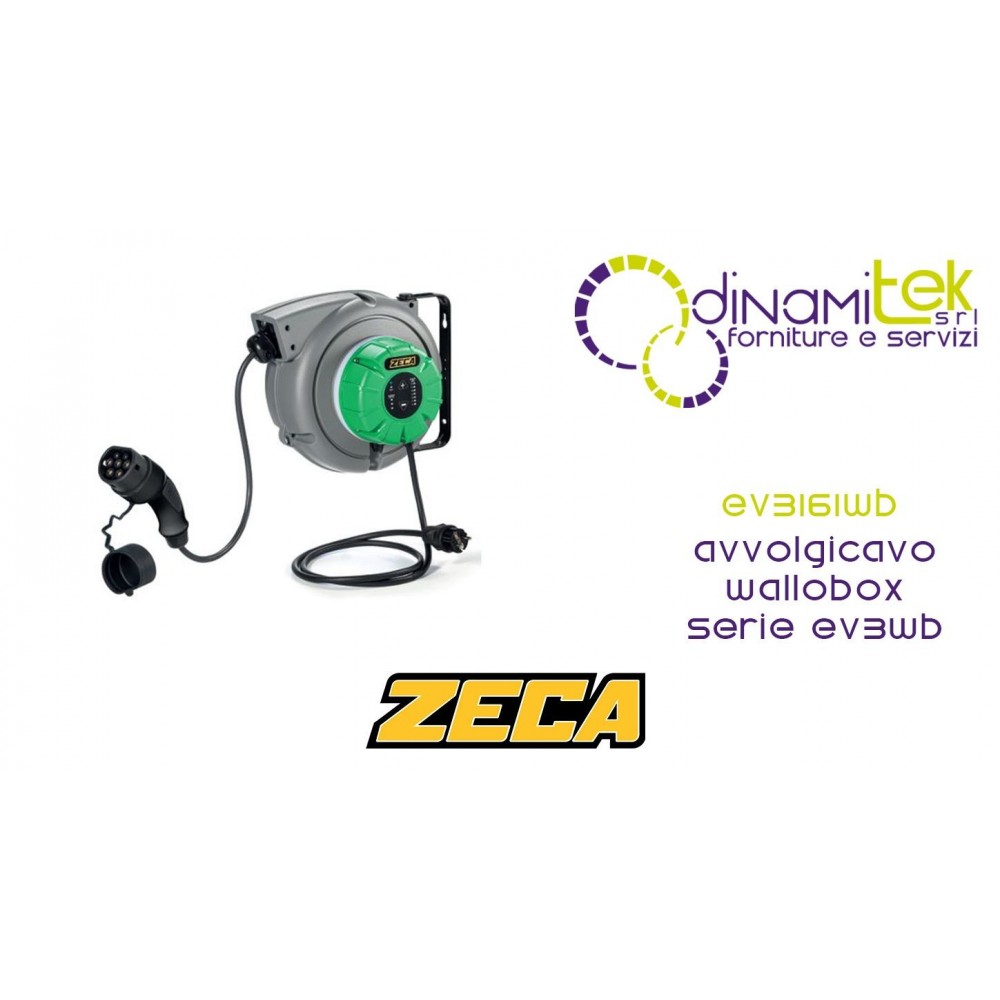

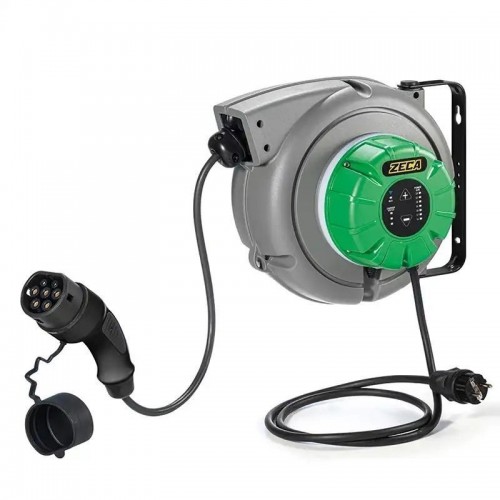

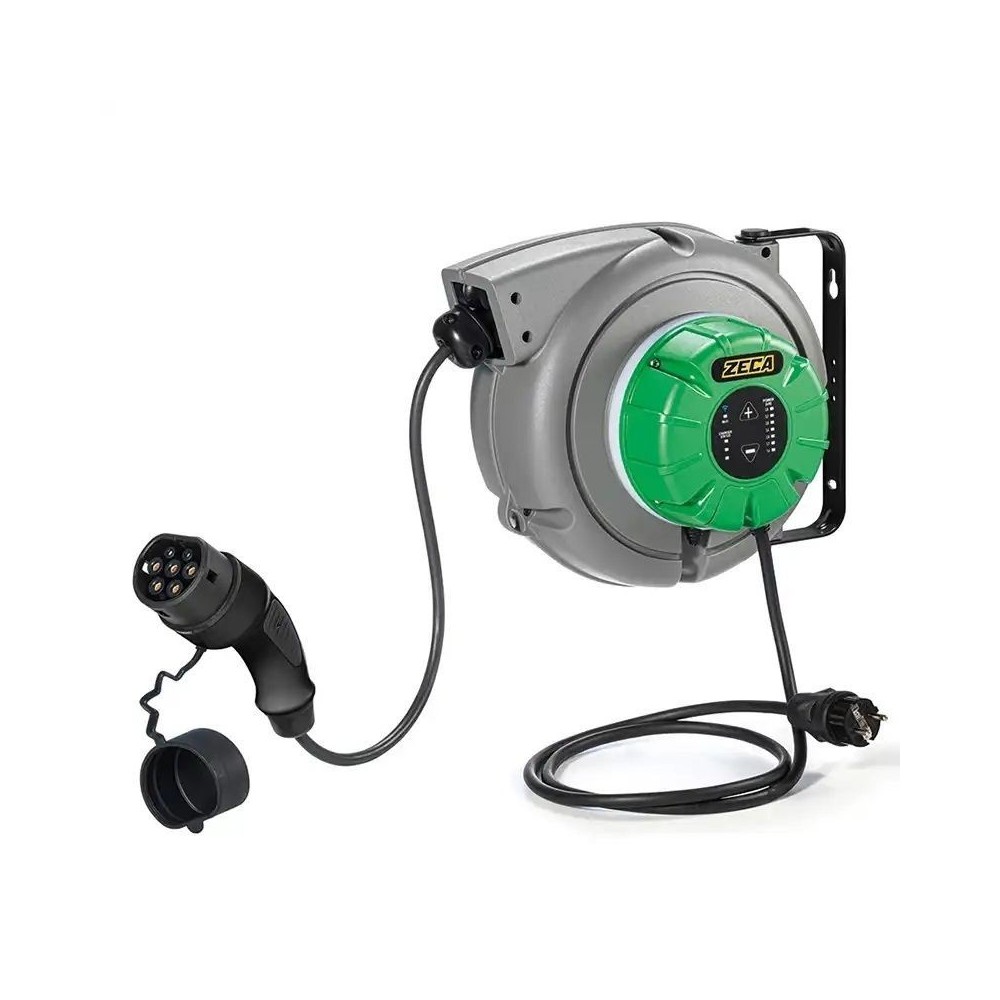

ZECA EV3161WB Wallbox Cable Reel for Electric Cars

The ZECA EV3161WB cable reel, part of the EV3WB Series , offers a practical and compact solution for charging electric vehicles, combining the functionality of a wallbox with the convenience of an automatic cable reel in a single product. This integration was introduced by ZECA for green mobility back in 2019 with the EV Series.

Main Advantages of the ZECA EV3161WB:

• Integrated Wallbox: The design integrates the wallbox directly into the cable reel, offering an “all-in-one” system that reduces clutter and simplifies installation.
• Greater Order and Cleanliness: Helps eliminate tangled cables in the garage, keeping the space organized and clean. Prevents the user from getting dirty or wet hands by collecting the cable after use.
• Cable Protection: The cable is effectively protected from dirt, wear and tear from trampling and improper use, significantly extending its useful life and preserving an expensive component.
• Enhanced Safety: Reduces tripping hazards and prevents direct contact with dirty cables, improving the overall safety of the charging environment. It is important to connect the thermal protector during installation, following the diagrams provided in the package.
• Charging Comfort: Simplifies the operation of connecting to the electric car, optimizing the time required for charging.

Detailed Technical Features:

• Item Model: EV3161WB.
• Series: EV3WB.
• Cable Length: 5 meters.
• Length of the Entrance Piece: 1.5 meters.
• Cable Type: 3G2.5 + 1X0.5.
• Charging Type: Single-phase, 3.8 Kw (16 A @ 230V) .
• Output Plug (vehicle side): Type 1. The Type 1 connector (SAE J1772-2009) is the North American and Japanese standard, and is widely used in vehicles. It only supports single-phase charging and has 5 contacts (3 power contacts: L1, N, PE; 2 communication contacts: PP, CP).
• Integrated Wallbox: Yes. There is no separate input socket on the wallbox side.
• Wi-Fi: No.
• Protection Rating (IP) of the Reel: IP42 . Indicates protection against solid objects greater than 1 mm and protection against falling drops of water at a maximum inclination of 15°.

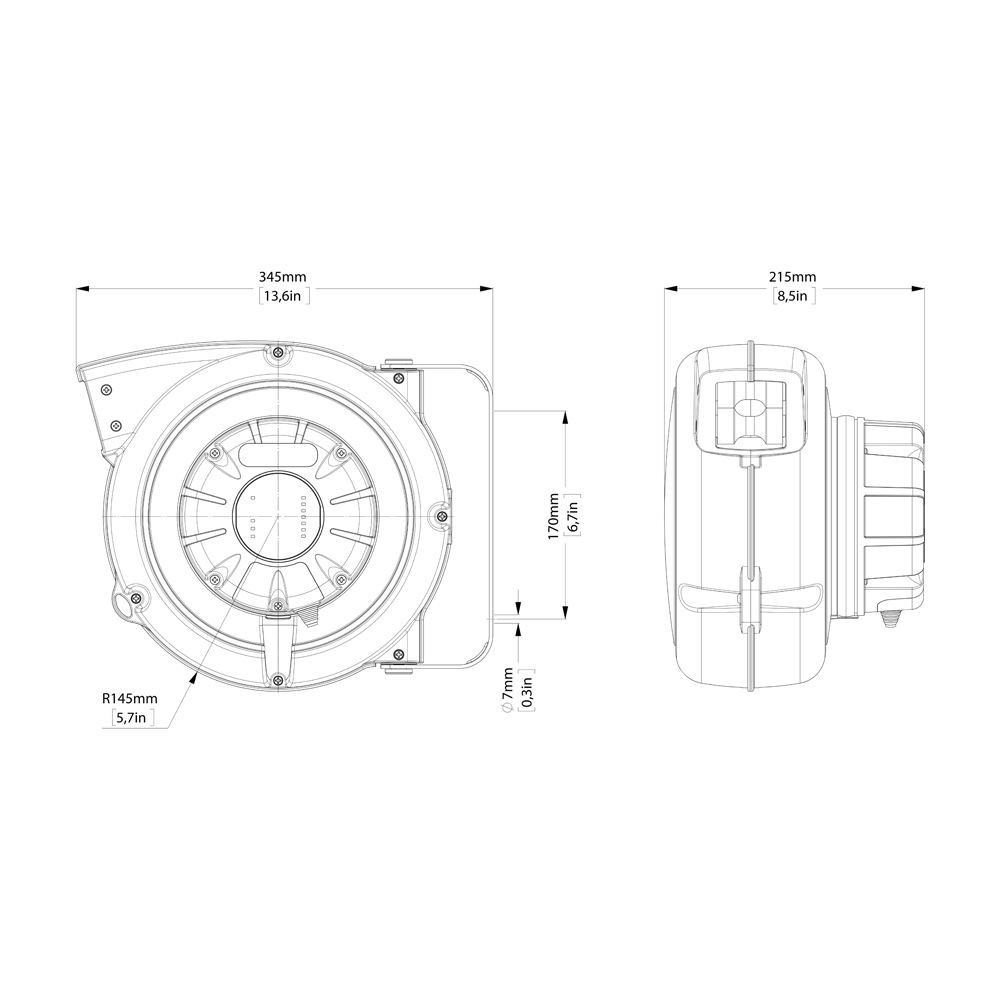

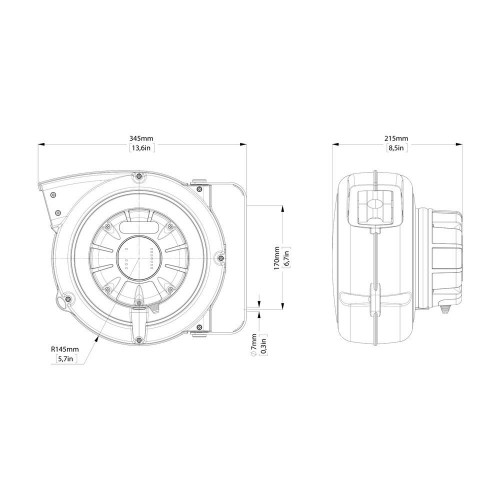

• Dimensions: The main body measures 345 mm wide, 215 mm deep, and 170 mm high from the mounting point, with a radius of 145 mm. The dimensions are also listed as 345 x 300 x 220 mm.
• Weight: 4.5 kg.

Founded in 1929, ZECA has a long history of Italian technical excellence. All ZECA reels are manufactured entirely in-house, with in-house development, comprehensive testing, and plastic molding, ensuring the highest quality.
