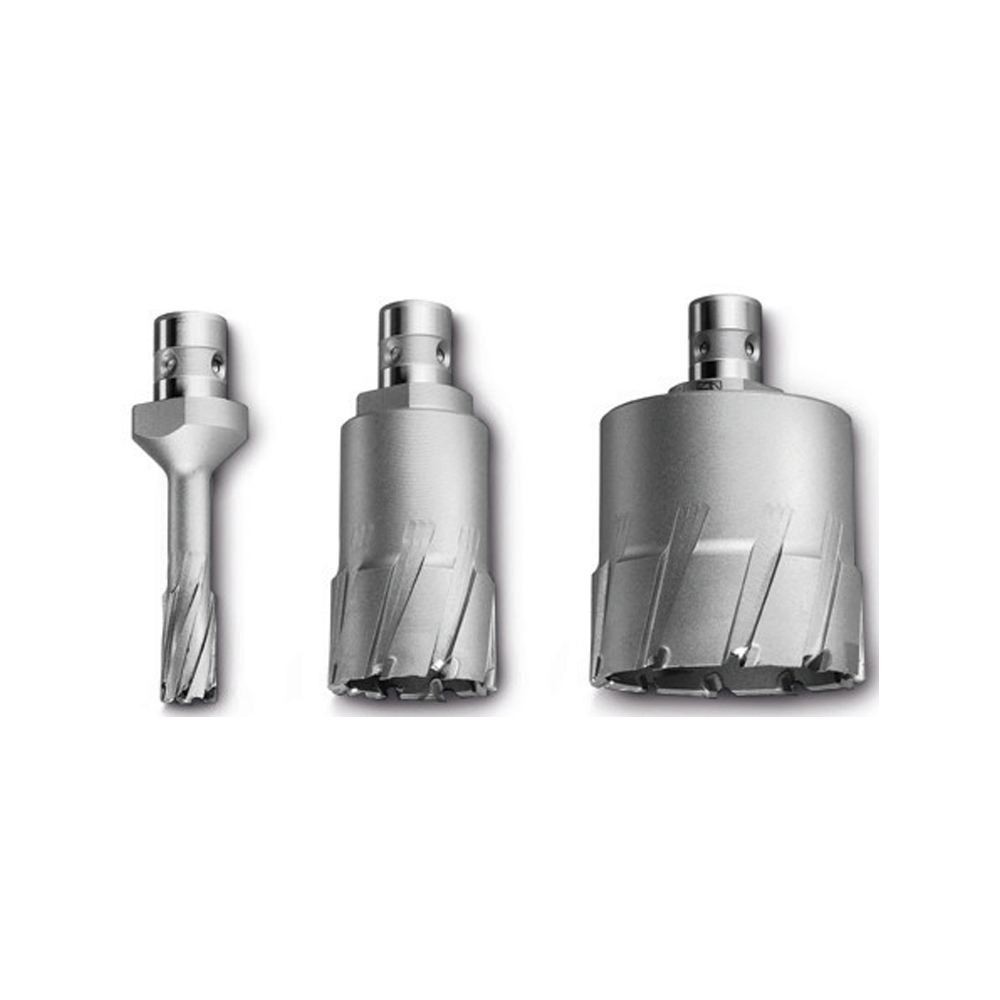

FEIN HM Ultra 35 core drill bit with QuickIN 14x35 mm shank: The pinnacle of professional drilling.
The FEIN Ultra 35 HM Core Bit with QuickIN adapter is the ultimate tool for professionals who demand maximum reliability and performance when drilling metal. This high-quality accessory is engineered to withstand continuous use, ensuring excellent results even under the most demanding conditions.
Distinctive Features and Operational Advantages:
- Unmatched Durability and Strength: The HM ULTRA 35 is specifically designed for continuous use, thanks to its carbide coating which makes it extremely resistant to wear and heat up to 800°C . This feature makes it the perfect choice for series drilling.
- Powerful and Easy Drilling: Allows for trouble-free drilling of even the hardest metals. The conical flute is designed for optimal chip flow , improving efficiency and work cleanliness.
- Superior Longevity: Guarantees exceptional durability, estimated at 400 punctures or 8 metres of total drilling , tested under optimal conditions (Ø18 mm, S235 20 mm).
- Maximum Cost Efficiency: Offers double the life and faster cutting speed than traditional HSS drill bits, helping to significantly reduce costs when drilling large quantities of holes.
- Precision and Silence: Its innovative 3-cut design ensures incredibly quiet and vibration-free operation, for consistently precise drilling results.
- FEIN Historical Expertise: Benefit from decades of experience in core drilling technology, with expertise gained since 1977, to your advantage in everyday practice.
Product Technical Specifications (Ø 14 mm):
- Material: HM (hard metal coated)
- Resistance: 1 450 HV
- Maximum heat resistance: 800°C
- Hole diameter: 14 mm
- Cutting depth: 35 mm
- Overall length: 77 mm
- Crown cutter attachment: QuickIN
- Internal bore Ø: 6.35 mm
Recommended Accessories:
- 100 mm centering pin: Order code 63134998310, request by email at info@dinamitek.com
Compatibility with FEIN machines:
This cutter is compatible with a wide range of FEIN magnetic core drills, both universal and automatic, ensuring versatility of use:
Universal Machines:
- KBM 65 U
- KBU 35 QW Fabricator M12 Tapping-Set 3/4 in Weldon
- KBU 35 QW Structural Steel-Set 3/4 in Weldon
- KBM 65 UQW
- AKBU 35 PMQW AS Construction-Site Set with 3/4 in Weldon connection / HSS NOVA 50
- AKBU 35 PMQW 18 V AS Construction-Site 2x 8 Ah Set with 3/4 in Weldon connection / HSS NOVA 50
- AKBU 35 PMQW 18 V AS Construction-Site 1x 12 Ah Set with 3/4 in Weldon connection / HSS NOVA 50
- AKBU 35 PMQW 18 V AS Set 1x 12 Ah
- AKBU 35 PMQW 18 V AS Set 2x 8 Ah
- AKBU 35 PMQW AS
- AKBU 35 PMQ AS
- KBU 35-2 Q
- KBM 50 Q
- KBM 50 U
- KBU 35 PQ
- KBU 35-2 QW
- KBU 35 MQW
- KBU 35 QW
- KBU 35 MQ
- KBU 35 Q
- KBM 50 UQW
- KBU 35 PQW
Automatic Machines:
- KBM 50 QW car
- KBM 50 cars
