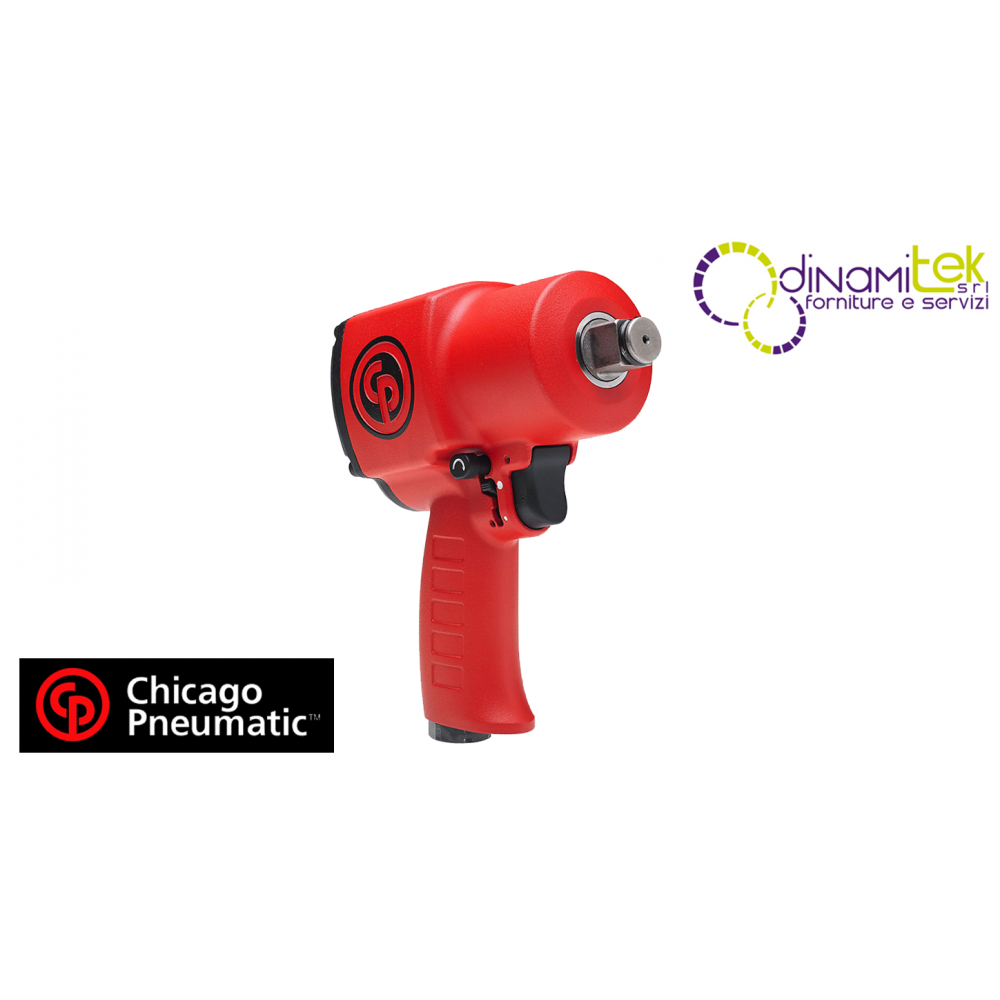

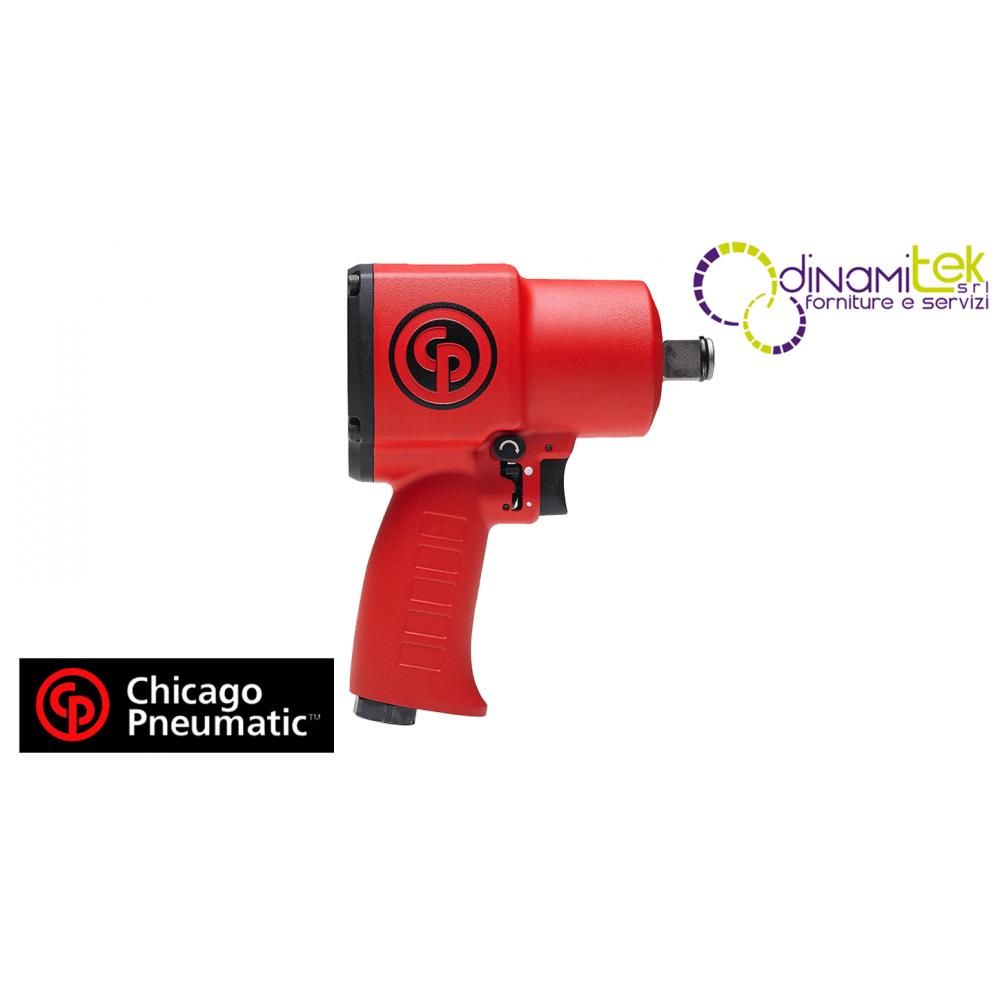

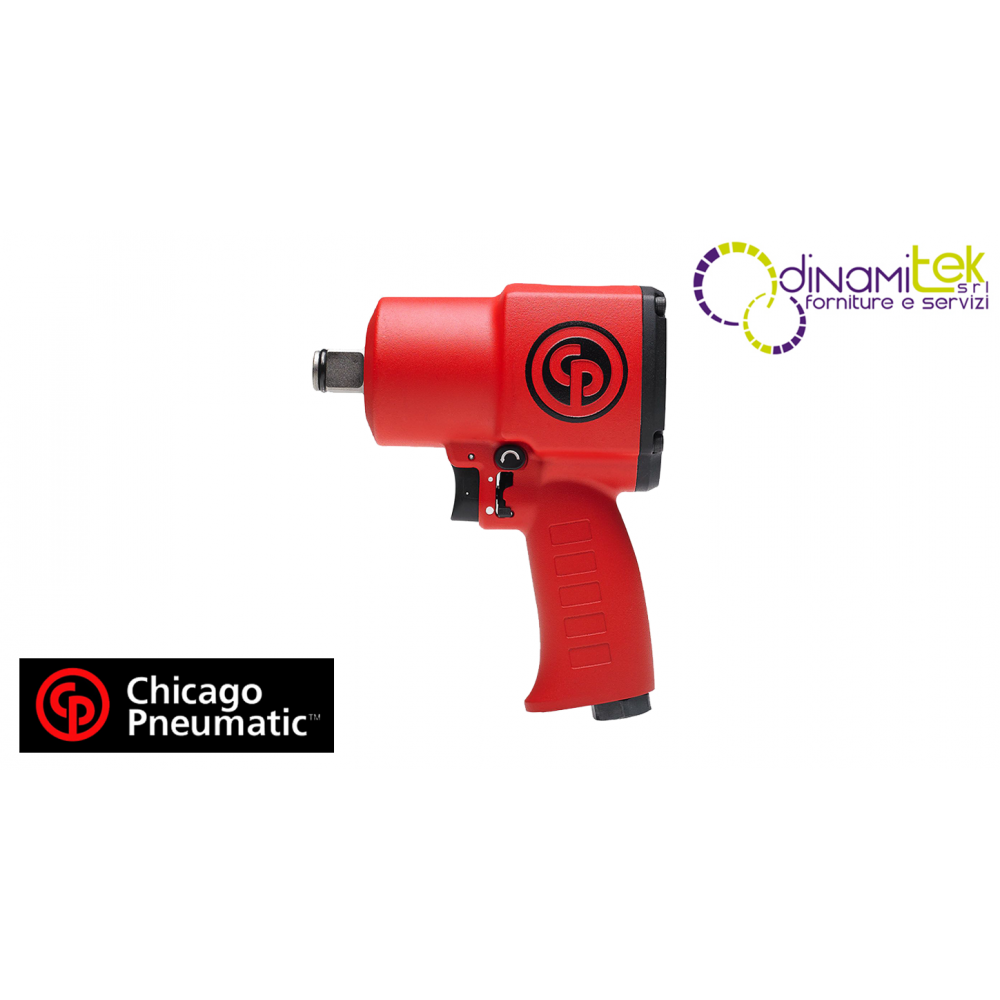

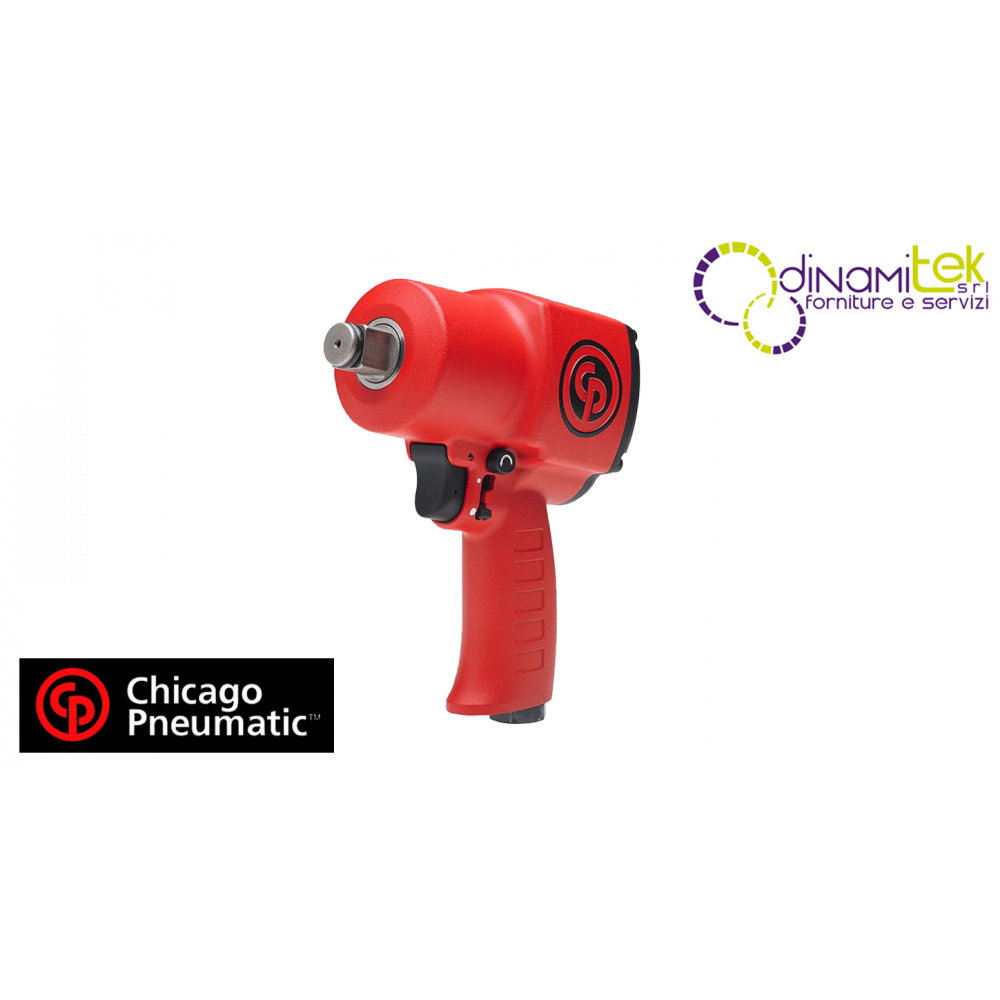

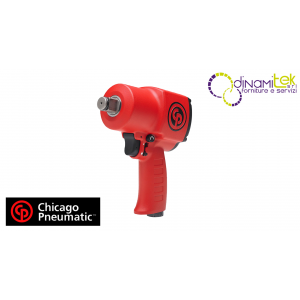

CP7762 - 8941 0776 20 - 3/4" CHICAGO PNEUMATIC IMPACT WRENCH

CP7762 Series: impact wrenches

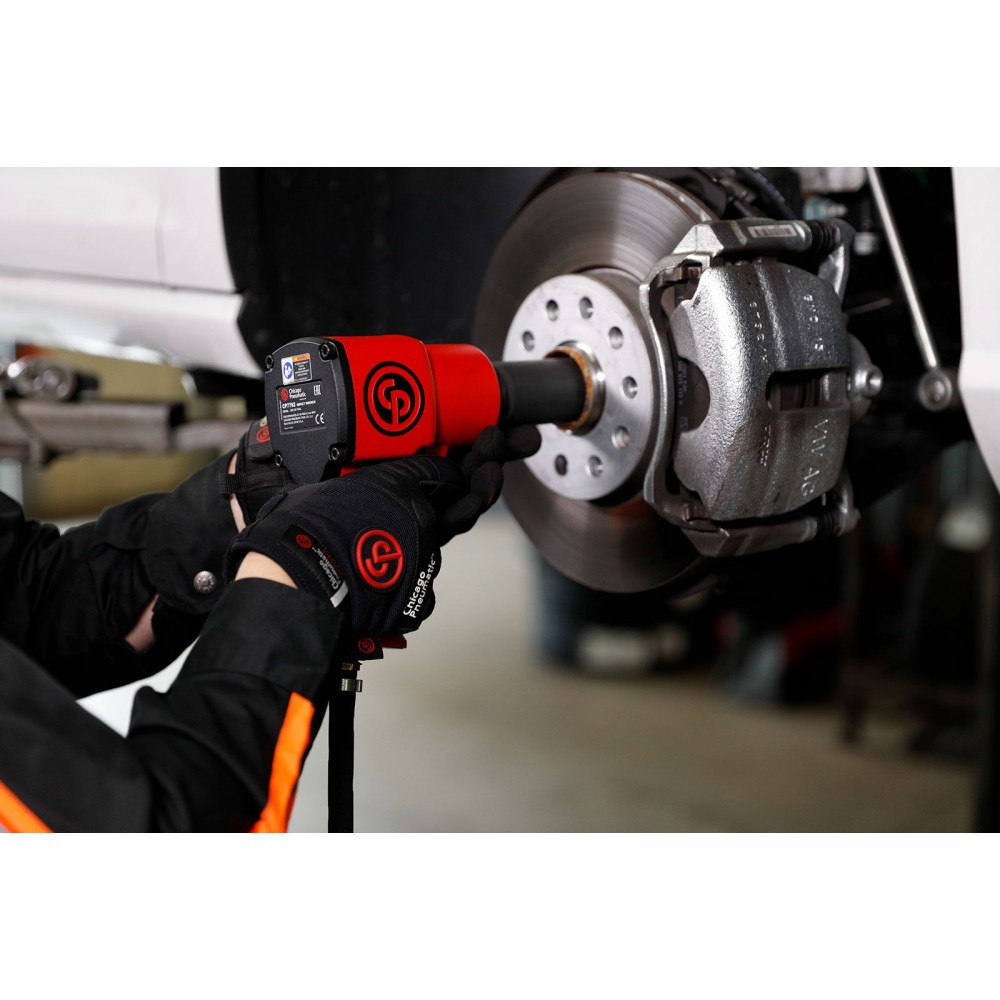

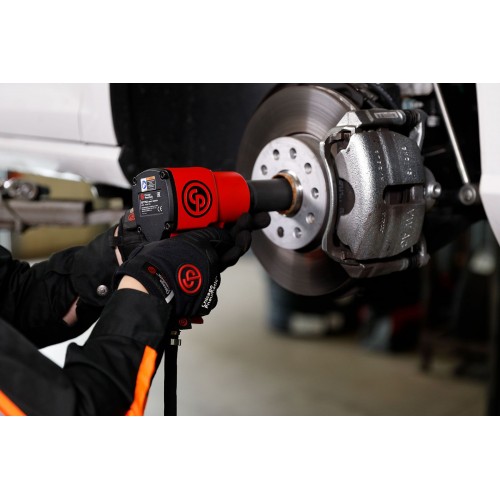

For users in maintenance applications, exposed to fatigue and operating in very confined spaces, the CP7732 3/4" impact wrenches offer ultra-small size and weight.

These ultra-compact 3/4" impact drivers utilize S2S technology for optimal handling. With a maximum torque of 1,420 Nm, the CP7762 series offers an excellent power-to-weight ratio. The double-hammer impact mechanism and metal housing are durable and lightweight.

Design and functions

Impact mechanism: Twin hammer

Output unit size (in): 3/4

From side to center: 42 mm

Handle Type: Pistol

Clutch lubrication type: Grease

Output stop type: Friction ring

System Startup: Trigger

Output drive type: Sq

Blows per minute: 960

Couple

Minimum forward working torque: 201 Nm

Max. reverse torque: 1420 Nm

Limited torque: No

Dimensions and weight

Length (L): 158 mm

Weight: 2.9 kg

Minimum pipe diameter (16 ft pipe length): 0.5 in

Minimum pipe diameter (pipe length 5 m): 13 mm

Material

Body: Aluminum

Clutch Housing: Aluminum

Noise and vibrations

Vibration uncertainty K: 2.8 m/s²

Vibration (m/s**2) : 10.7

Sound pressure: 92.8 dB(A)

Sound power: 103.8 dB(A)

Certificates, regulations and directives

ATEX: No

Speed

Air consumption at free speed: 26 l/s

Free speed: 4850 rpm

Power and battery

Power-to-weight ratio: 480 Nm/kg

Air information

Air Inlet Thread Size (in): 3/8

Maximum pneumatic dynamic working pressure: 6.3 bar
