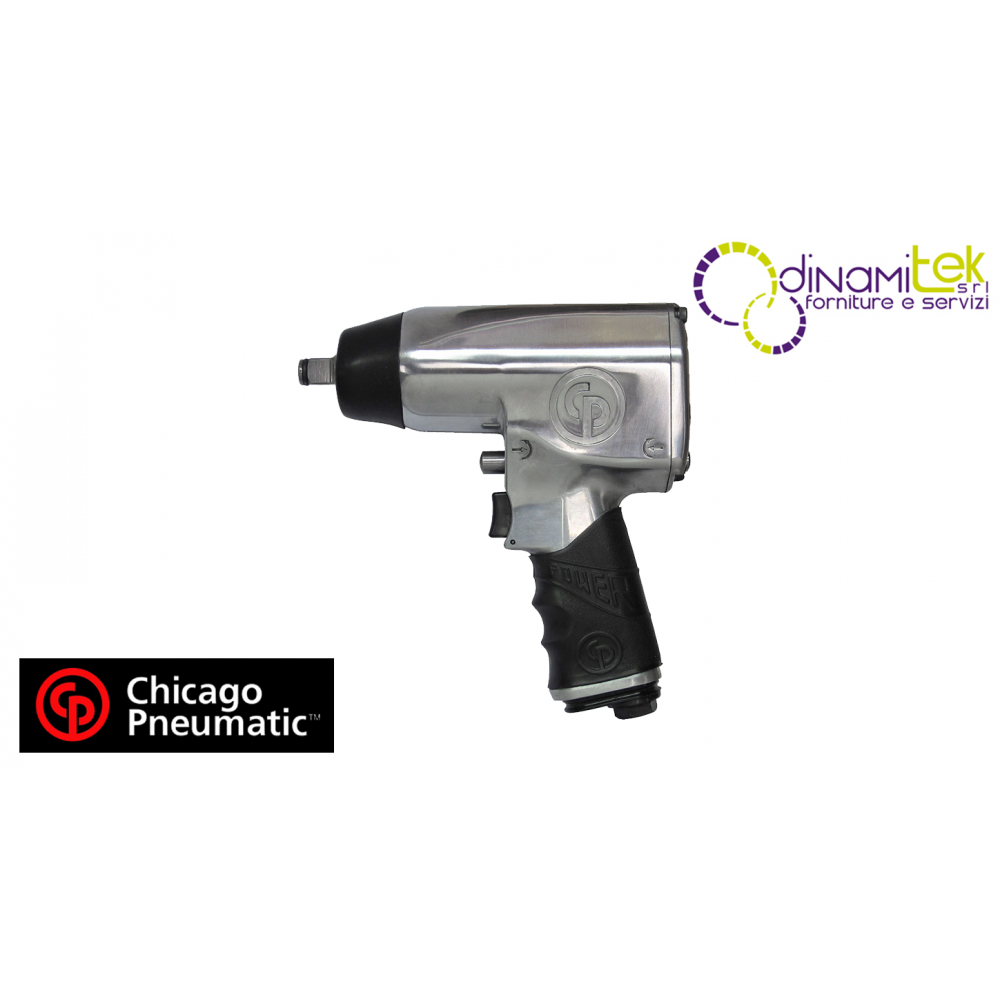

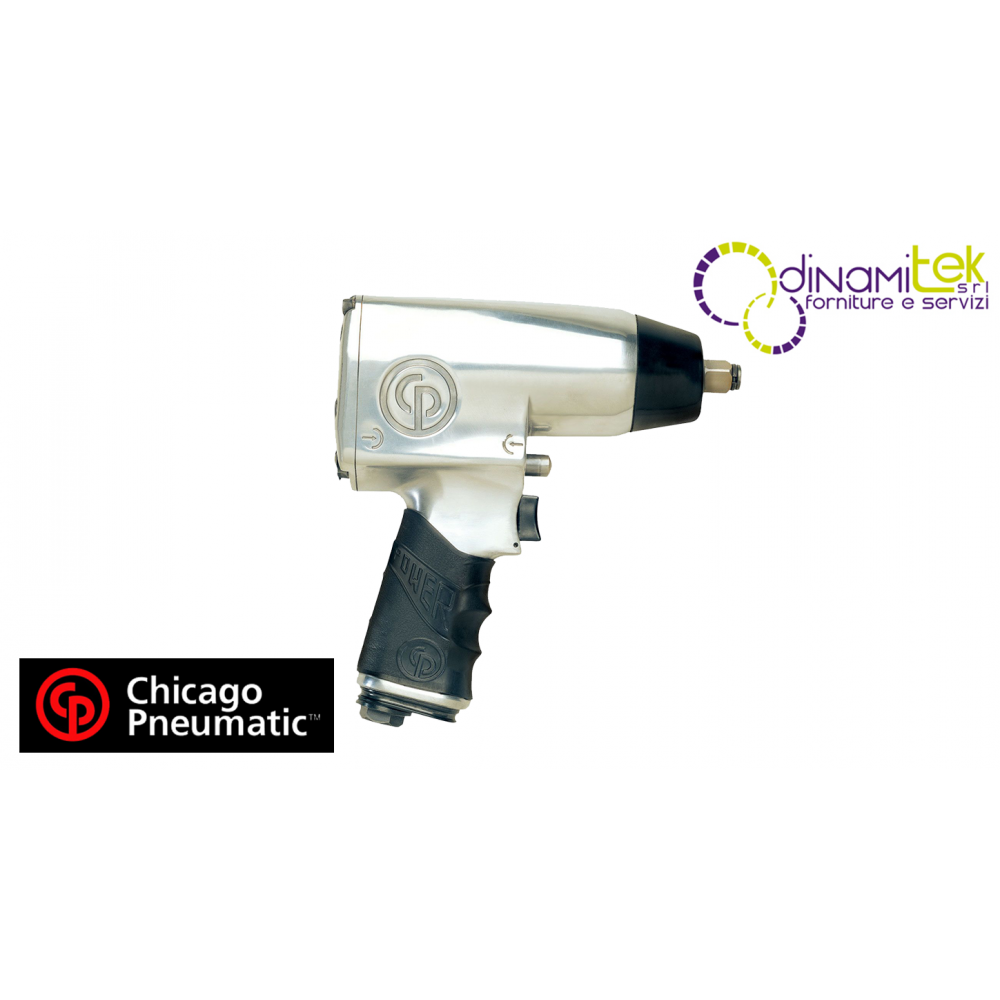

CP734H - T024351 - 1/2" CHICAGO PNEUMATIC IMPACT WRENCH

CP734 series: impact wrenches.

For operators tackling general repair and maintenance applications and looking for high durability and comfort, the popular CP734H Series is the ideal impact driver.

The “classic” benchmark in the 1/2” impact driver range, designed with an oil-immersed pin clutch mechanism and a metal motor housing for high durability.

Design and functions

Impact mechanism: Pin clutch

Output unit size (in): 1/2

Handle Type: Pistol

Clutch lubrication type: Oil bath

Output stop type: Friction ring

System Startup: Trigger

Output drive type: Sq

Blows per minute: 1020

Couple

Minimum forward working torque: 34 Nm

Max. reverse torque: 576 Nm

Limited torque: No

Dimensions and weight

Length (L): 191 mm

Weight: 2.32 kg

Minimum pipe diameter (16 ft pipe length): 0.38 in

Minimum pipe diameter (pipe length 5 m): 10 mm

Material

Body: Aluminum

Clutch Housing: Aluminum

Noise and vibrations

Vibration uncertainty K: 3.3 m/s²

Vibration (m/s**2): 7.2

Sound pressure: 93 dB(A)

Sound power 104 dB(A)

Certificates, regulations and directives

ATEX: No

Speed

Free speed: 8400 rpm

Power and battery

Power-to-weight ratio: 240 Nm/kg

Air information

Air inlet thread size (in): 1/4

Maximum pneumatic dynamic working pressure: 6.3 bar
