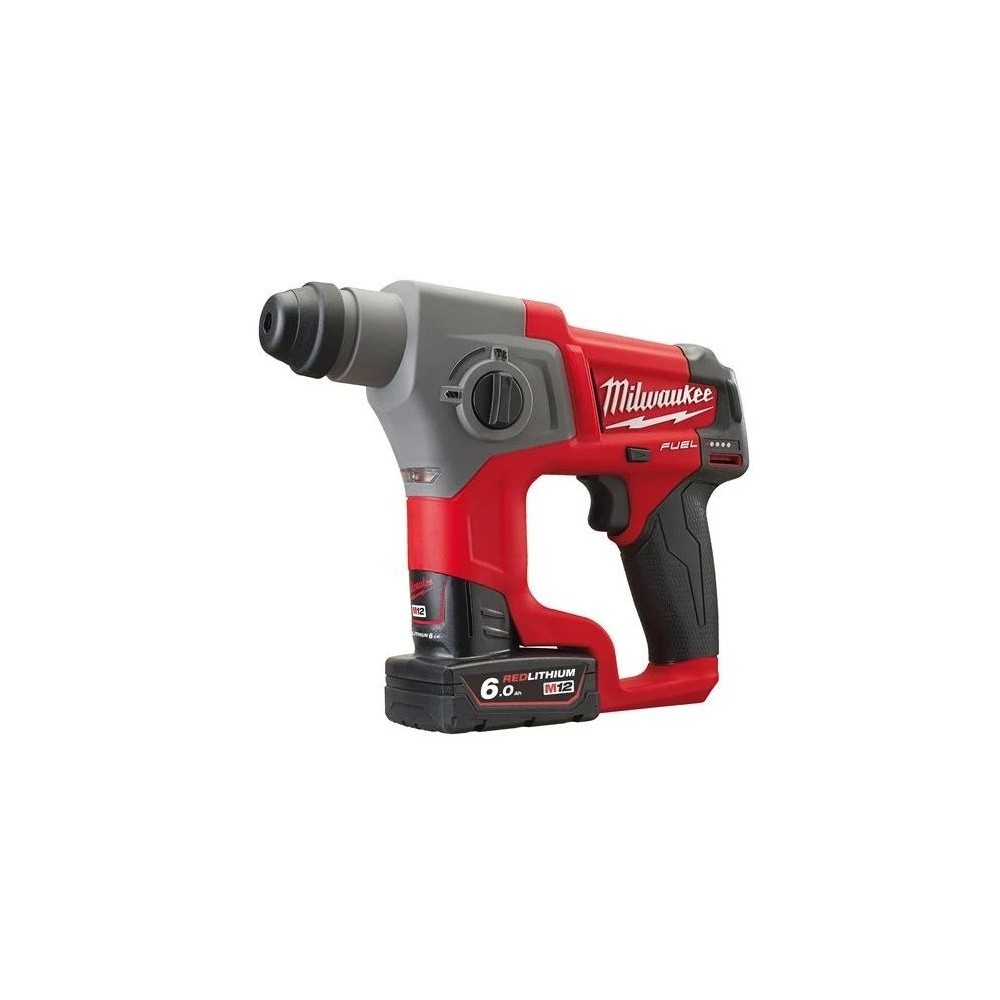

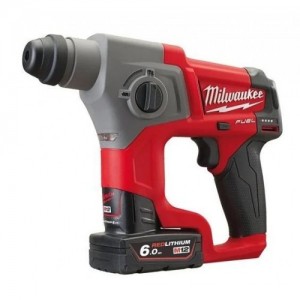

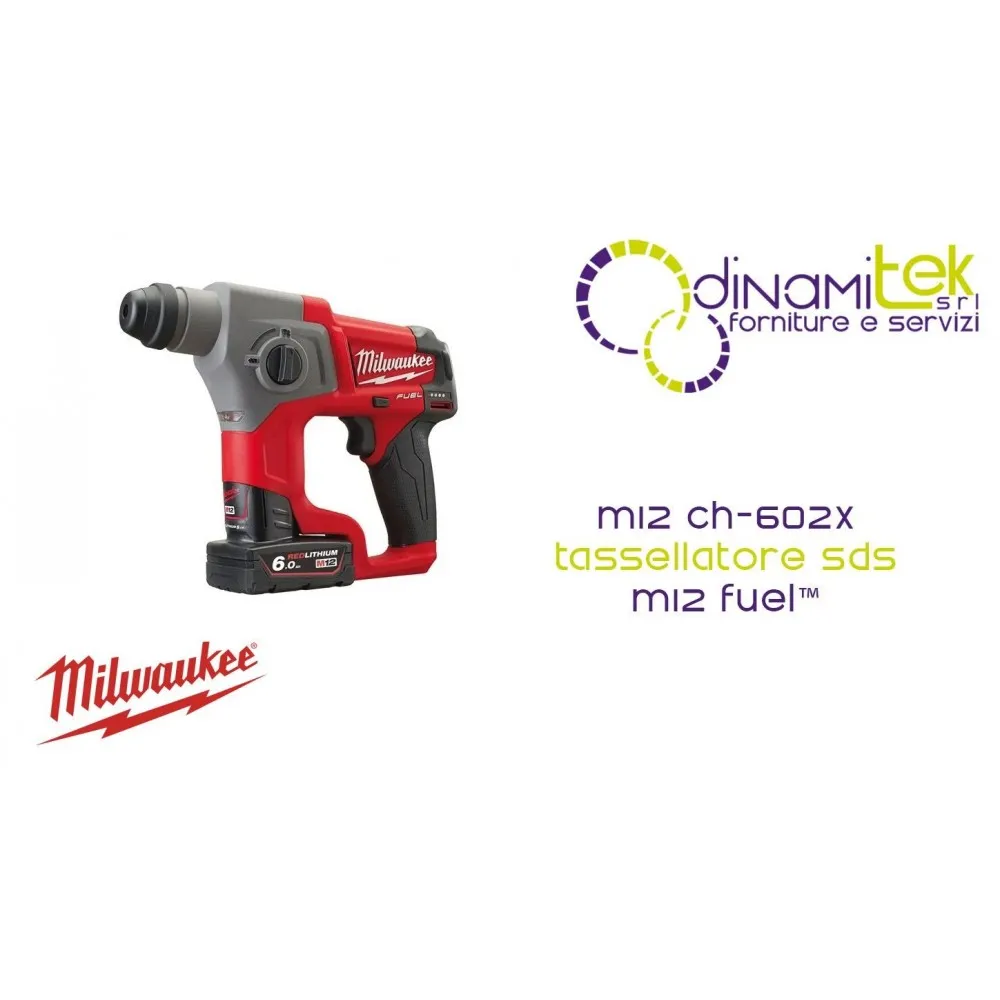

M12 CH-602X SDS M12 FUEL HAMMER DRILL MILWAUKEE

The Hammer Drilling Revolution in M12 Format!

The M12 FUEL™ SDS-Plus compact hammer drill (Code 4933451510) offers surprising performance: it delivers 1.1 J of impact energy (EPTA) and reaches up to 6575 impacts/min.

Ideal for prolonged applications thanks to minimal vibrations of just 4.4 m/s², it can make over 60 holes (6 mm x 50 mm) on a single charge. FUEL™ technology and the two included 6.0 Ah batteries guarantee extreme power and runtime.

Shipping cost: Free for
398,97 €
Tax included

398,97 € Tax excluded

Quantity
Last items in stock

SDS-Plus M12 FUEL™ Compact Hammer Drill

Model M12 CH-602X (Item Code: 4933451510)

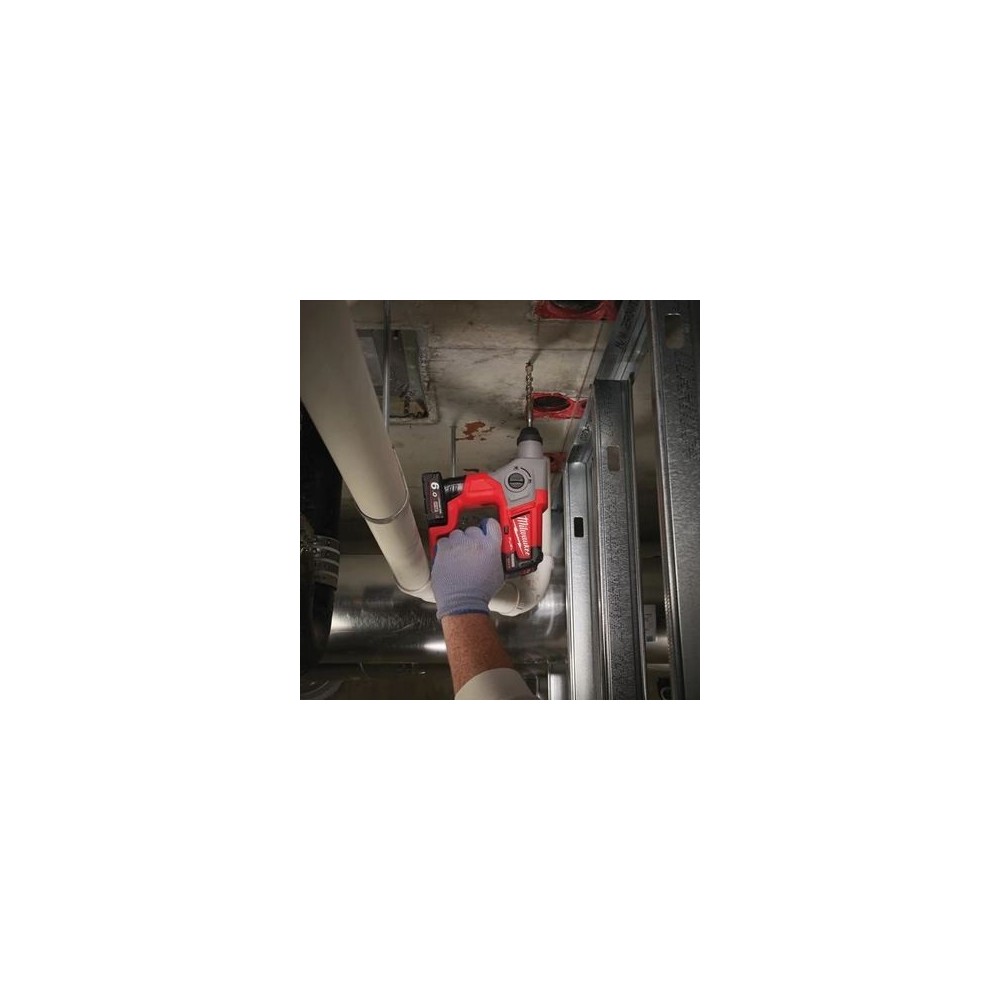

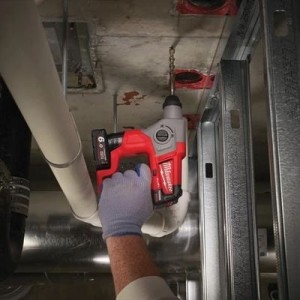

The M12 FUEL™ Compact SDS-Plus Hammer Drill (M12 CH-602X) is the 12V cordless tool that combines the performance of larger models with a handy design, perfect for serial drilling and installation work in tight spaces.

Drilling Performance and Specifications

  • Shot Energy: Delivers a shot energy of 1.1 J (EPTA).
  • Operating Speed: Reaches 0 - 6575 rpm and a no-load speed of 0 - 900 rpm.
  • Attachment: Uses the SDS-Plus attachment.

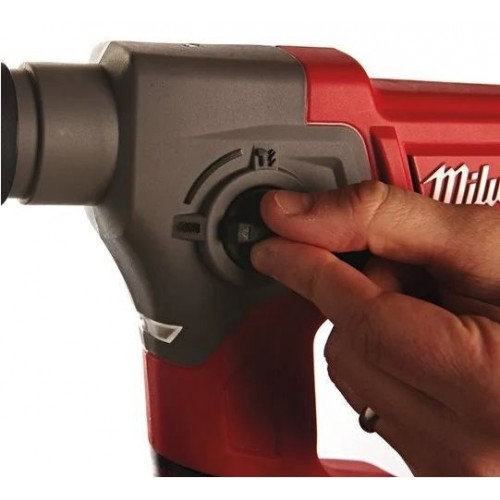

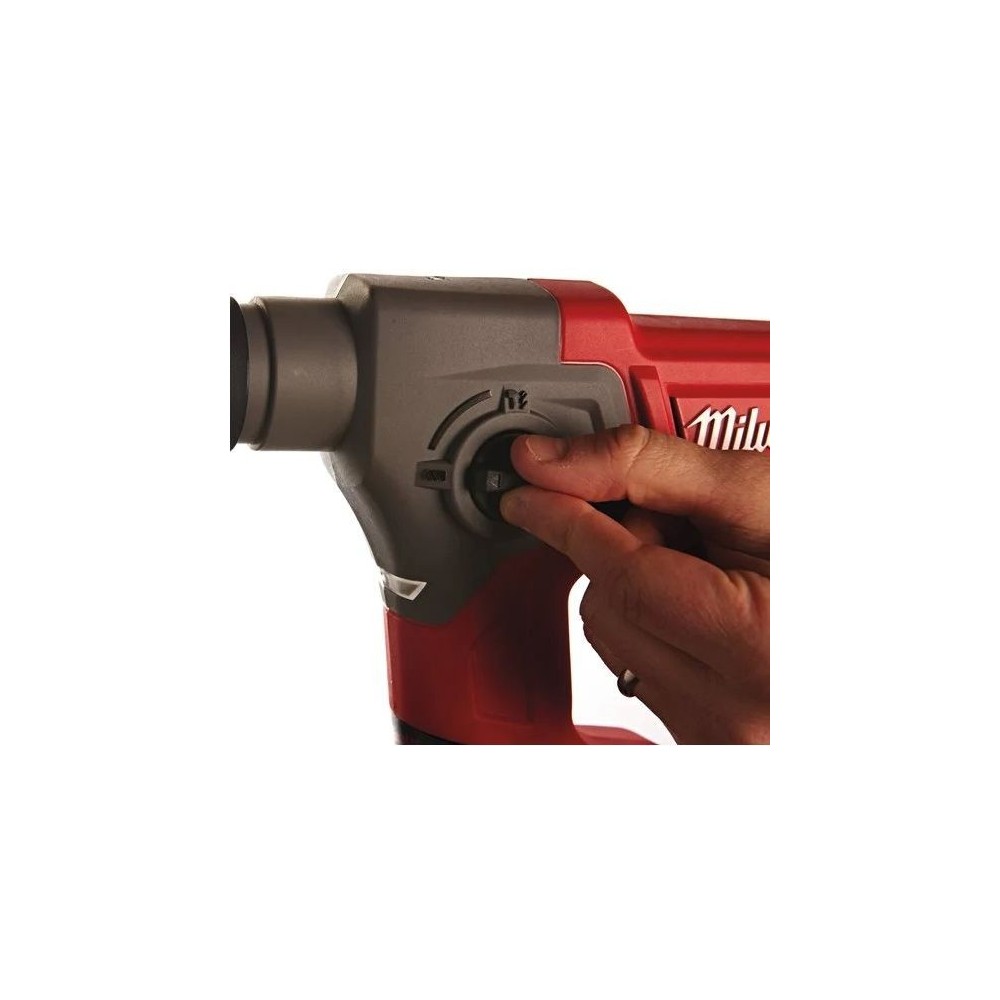

  • Modes: Offers 2 modes of operation: rotation and roto-percussion, for maximum versatility.
  • Optimized Drilling: It is optimized for drilling from 6 to 10 mm (max 13 mm) in concrete. The optimized range is ø 5.5 - 12 mm.
  • Maximum Capacity: Maximum drilling capacity in wood 13 mm, in steel 10 mm and in concrete 13 mm.
  • Vibrations: Low vibrations of 4.4 m/s², ideal for prolonged applications.

FUEL™ Technology and Durability

The M12 CH-602X model incorporates triple FUEL™ technology:

  1. The POWERSTATE™ brushless motor that guarantees up to 3 times longer life and up to 2 times the power of tools with brushes.
  2. Intelligent REDLINK PLUS™ electronics provide digital overload protection for the tool and battery, dramatically improving performance under load.
  3. The REDLITHIUM-ION™ battery (M12 B6) features advanced battery pack construction for consistent performance and longer run time.

The tool works with all MILWAUKEE® M12™ batteries.

Additional Specifications and Kit Contents (4933451510)

  • Battery Life: It can drill more than 60 50mm x 6mm holes on a single battery charge.
  • Collar: Equipped with a 43 mm collar, compatible with the universal M12 DE hammer drill dust collector.
  • Lighting: A convenient LED light illuminates the work area.

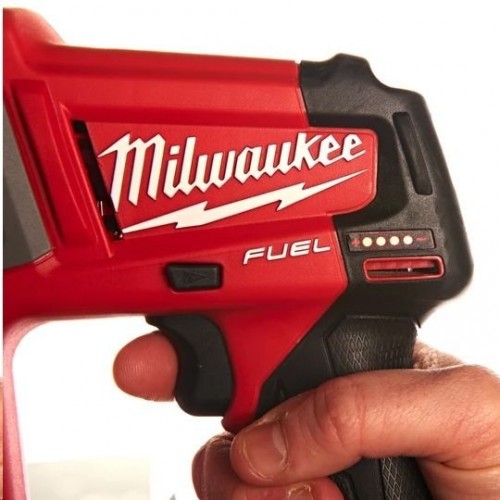

  • Charge Indicator: There is a charge indicator to monitor the remaining power.
  • Weight: The weight with the M12 B6 battery pack is 1.9 kg.

Product code 4933451510 (M12 CH-602X) is supplied in a complete kit:

Product Specifications Amount
SDS-Plus M12 FUEL™ Compact Hammer Drill M12 CH-602X 1
M12™ Li-ion Battery 6.0 Ah (M12 B6) 2
M12™ Charger C12 C 1
Container Heavy Duty Briefcase 1
