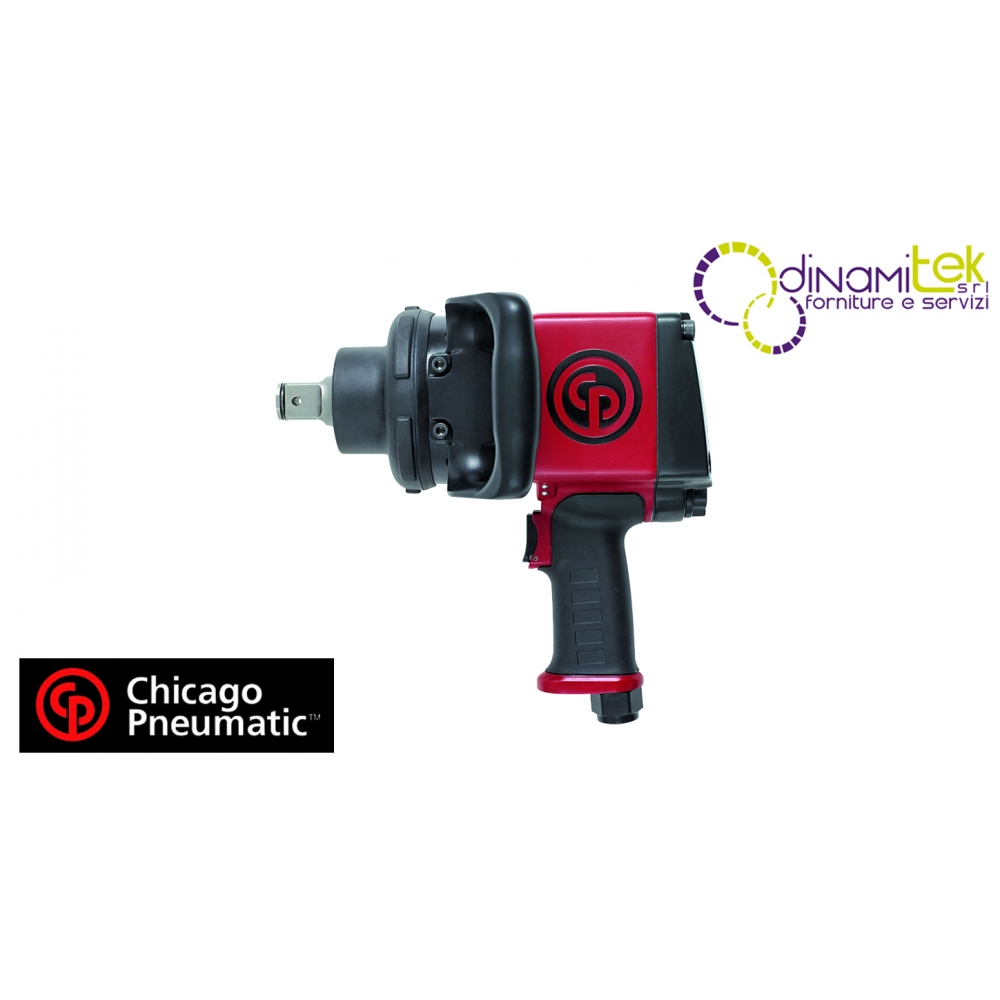

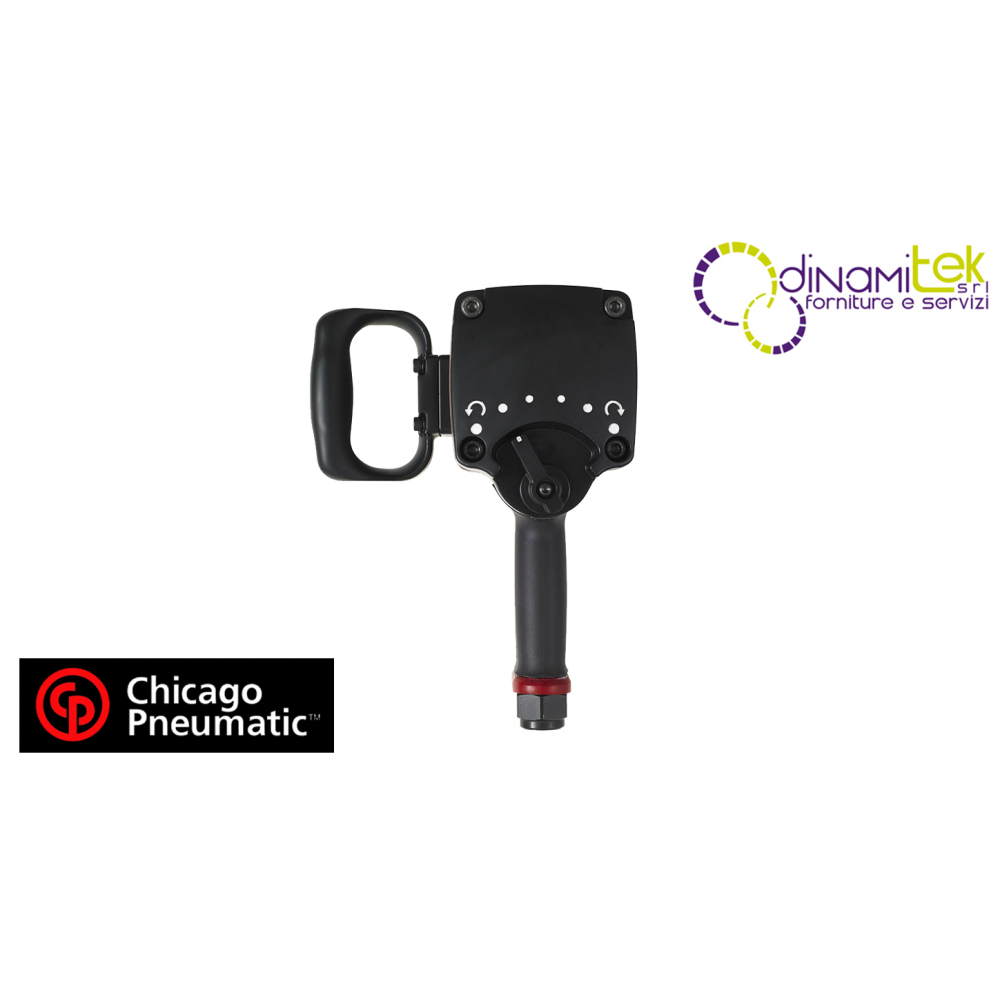

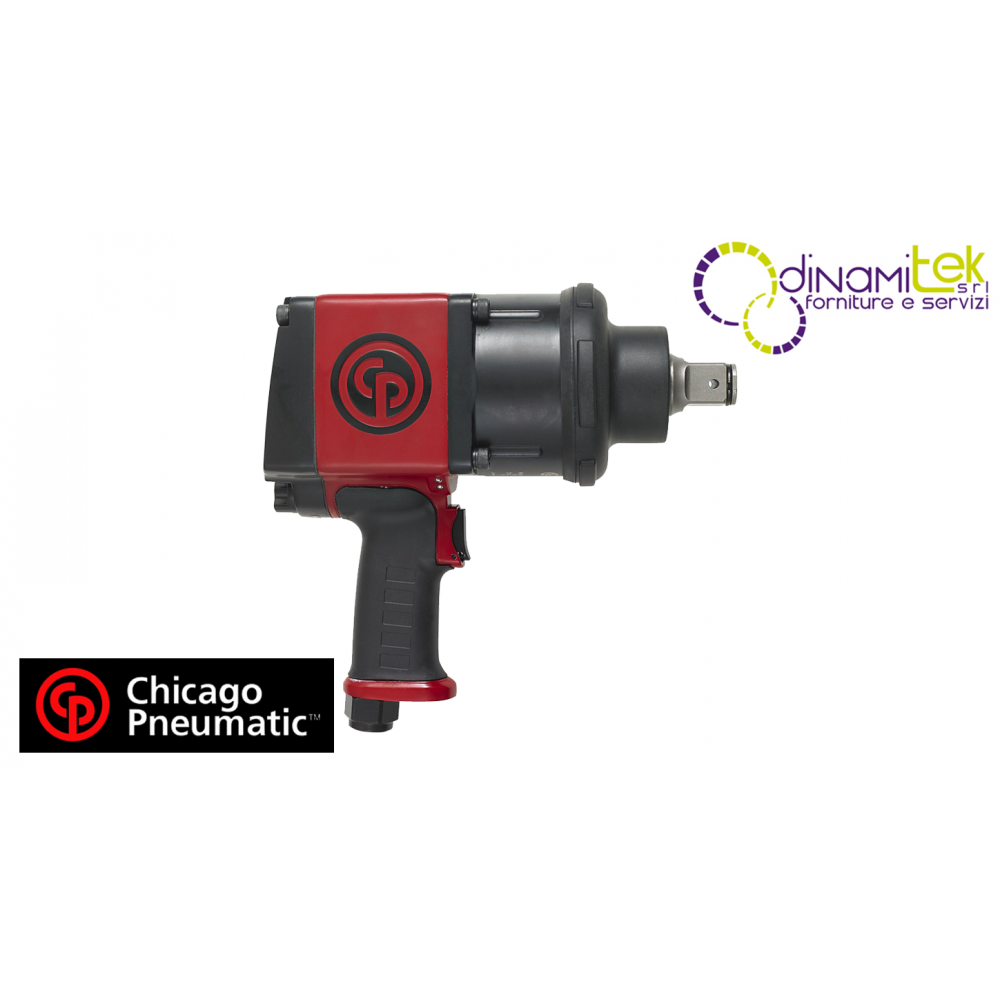

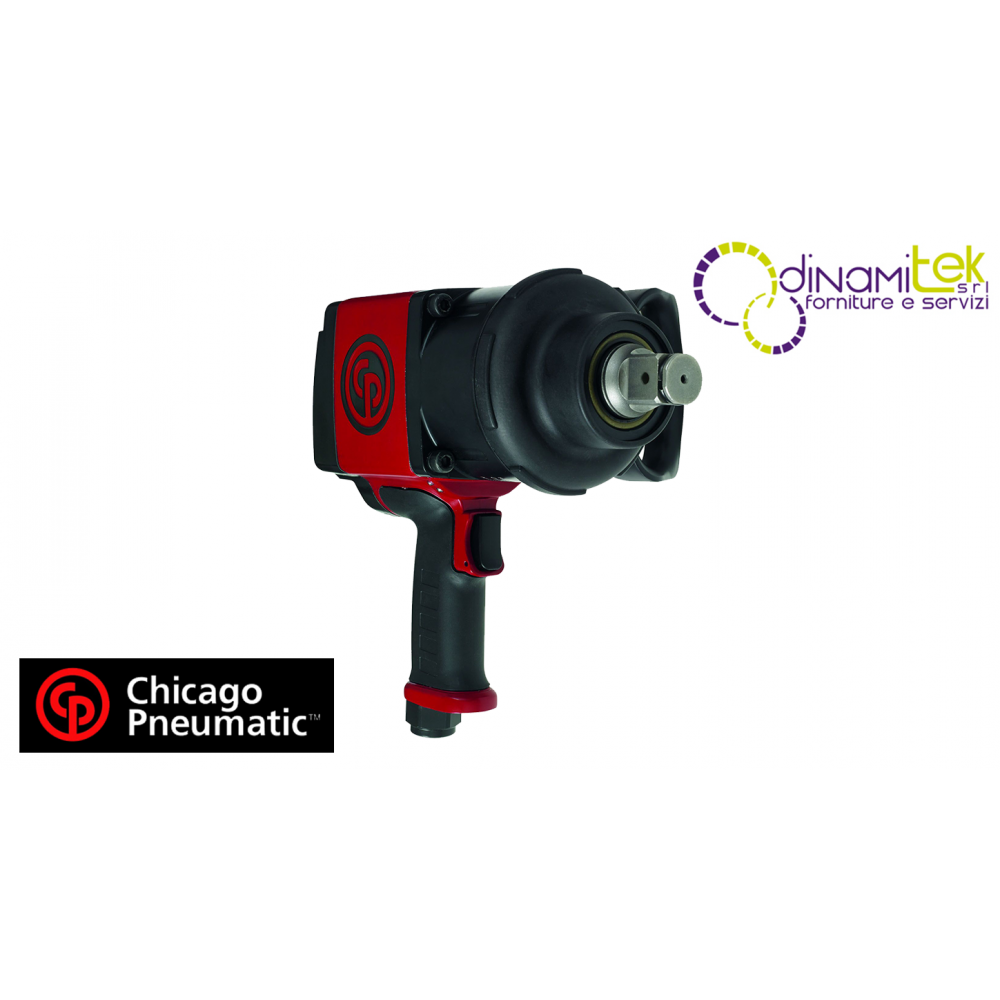

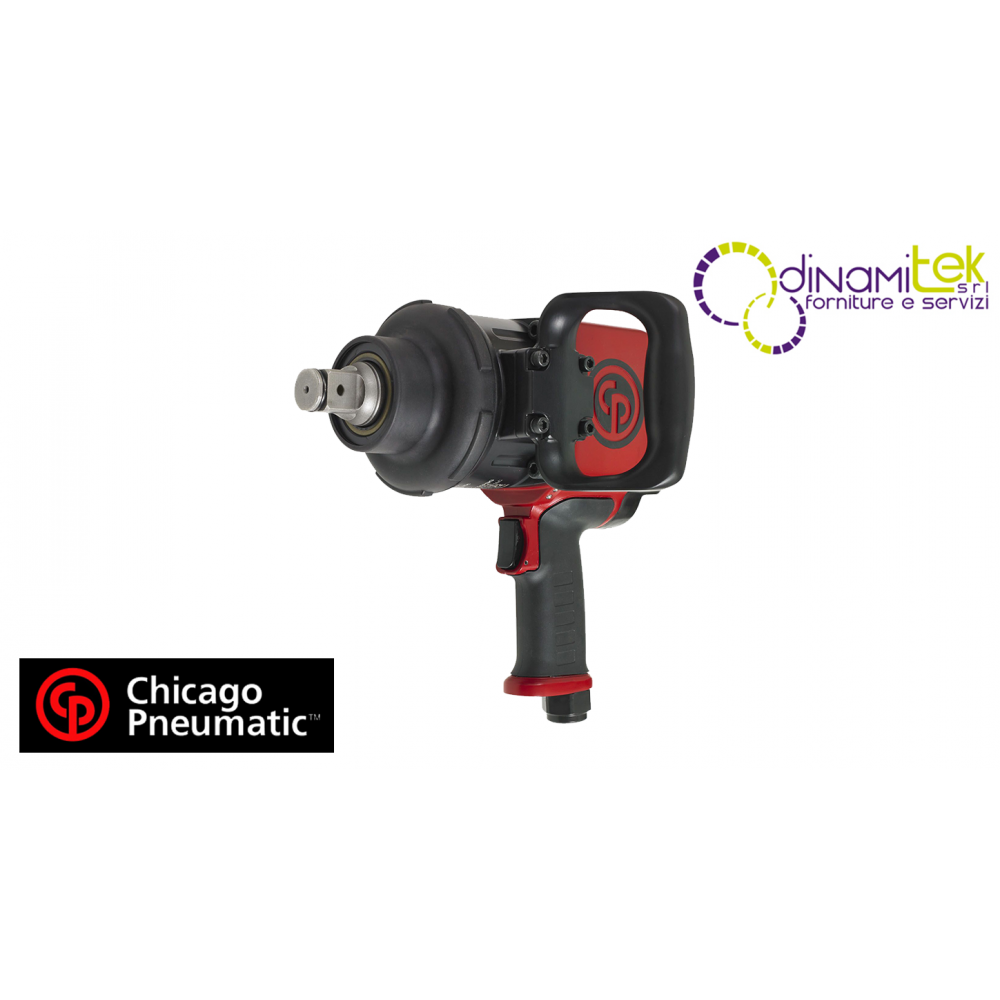

CP7776 - 8941 0777 60 - 1" CHICAGO PNEUMATIC IMPACT WRENCH

CP7776 Series: impact wrenches.

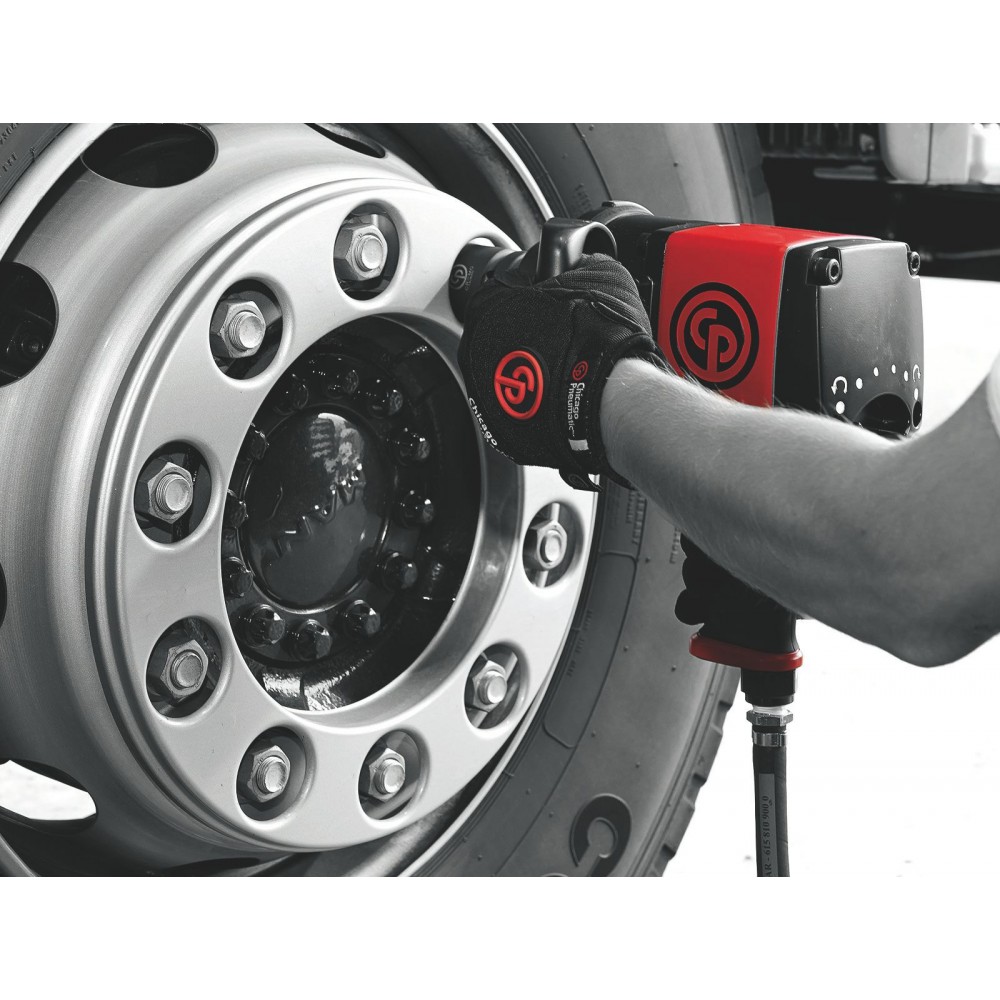

For use in any general maintenance environment, the CP7776 1" impact wrenches are designed for bolting and unbolting applications. High reverse torque up to 2,400 Nm. The reinforced, pinless, sealed oscillating claw impact mechanism and motor housing ensure high durability.

Design and functions

Impact mechanism: Pinless rocking dog

Output unit size (in): 1

From side to center: 109 mm

Handle Type: Pistol

Clutch lubrication type: Grease

Output latch type: Dual

Side handle: Yes

System Startup: Trigger

Output drive type: Sq

Couple

Minimum forward working torque: 955 Nm

Max. reverse torque: 2400 Nm

Limited torque: No

Dimensions and weight

Length (L): 289 mm

Weight: 11.2 kg

Minimum pipe diameter (16 ft pipe length): 0.5 in

Minimum pipe diameter (pipe length 5 m): 13 mm

Material

Body: Aluminum

Clutch housing: Steel

Noise and vibrations

Vibration uncertainty K: 2.8 m/s²

Vibration (m/s**2): 8.7

Sound pressure: 93 dB(A)

Sound power: 104 dB(A)

Certificates, regulations and directives

ATEX: No

Speed

Free speed: 5000 rpm

Power and battery

Power-to-weight ratio: 210 Nm/kg

Air information

Air Inlet Thread Size (in): 1/2

Maximum pneumatic dynamic working pressure: 6.3 bar
