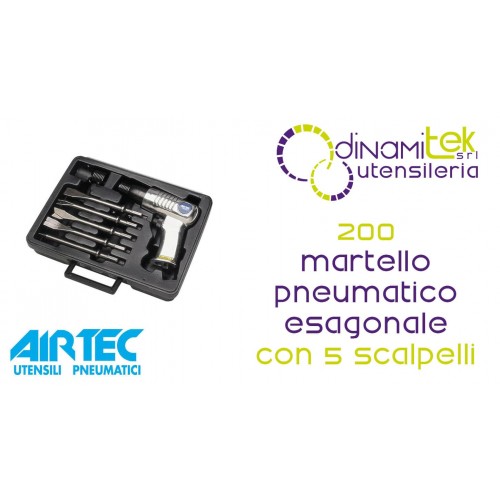

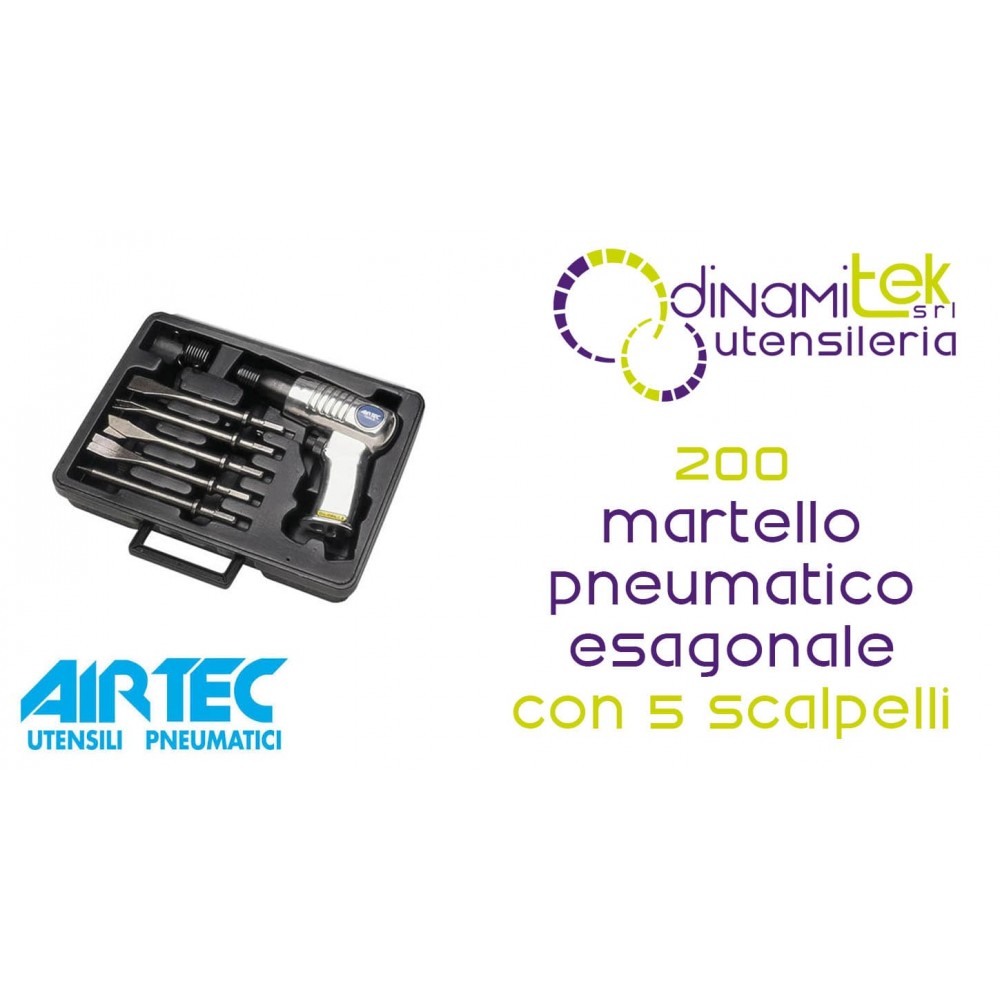

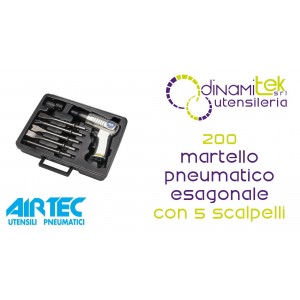

200 PNEUMATIC HEX HAMMER WITH 5-CHISEL KIT AIRTEC

Technical Features and Advantages of the Airtec Mod. 200 Chipping Hammer

Developed by Airtec Srl to ensure high performance and low maintenance costs, the Mod. 200 pneumatic chisel hammer is the ideal solution for those seeking a durable and powerful tool for continuous use. The 10 mm female hex tool holder prevents the chisel from twisting or slipping during impact, ensuring maximum working precision.

Complete Kit in Case and Accessories

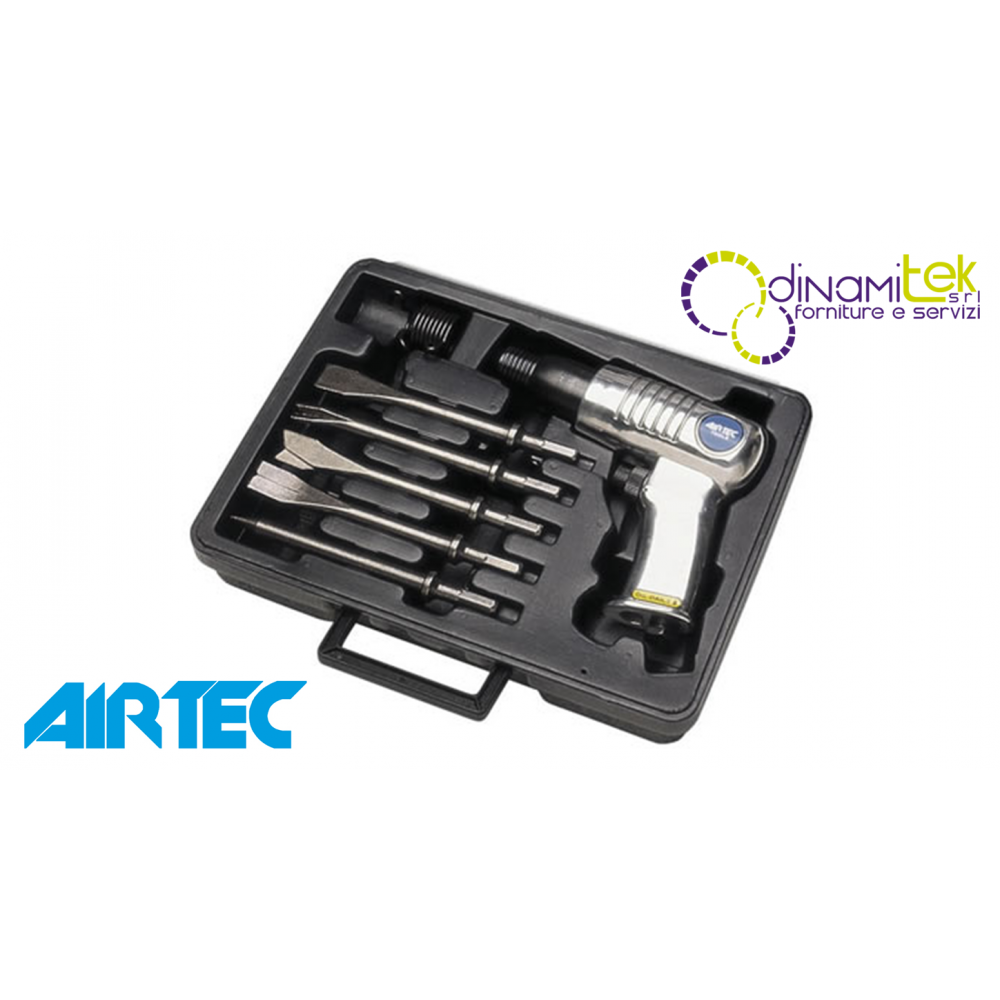

• Ready-to-Use Supply: The hammer is delivered inside a sturdy case containing a kit of 5 different hexagonal chisels, the retaining spring and the tool holder.
• Suction and Ergonomics: Designed with an ergonomic pistol grip, it operates at a recommended air pressure of 6.2 bar and develops 3,000 strokes per minute.

Air Supply Specifications

The tool operates at an average air consumption of 8.3 l/sec (approximately 498 l/min) at 6.2 bar pressure. It has a 1/4" BSPT threaded air connection and requires a supply hose with a recommended internal diameter of 10 mm.

Detailed Technical Data Sheet

• Item Code (SKU): Cod. 14000035
• Model: Mod. 200
• Manufacturer / Brand: Airtec Srl
• Type: Pneumatic chipping hammer with hexagonal attachment
• Impact power: 7.0 Joules
• Stroke rate: 3,000 strokes/min
• Tool holder attachment: 10 mm female hex
• Recommended air pressure: 6.2 bar
• Average air consumption: 8.3 l/sec
• Air connection: 1/4" BSPT
• Recommended tube diameter (internal): 10 mm
• Total length: 185 mm
• Net weight: 1.70 kg
• Sound pressure: 96 ± 3 dB(A)
• Sound power: 110 ± 3 dB(A)
• Vibration level: 5.8 m/sec²
• Equipment included: Case, 5 hexagonal chisels, retaining spring, retainer
