816146 TECHNOLOGY PLASMA 41 XT 230V 1PH PLASMA CUTTING TELWIN

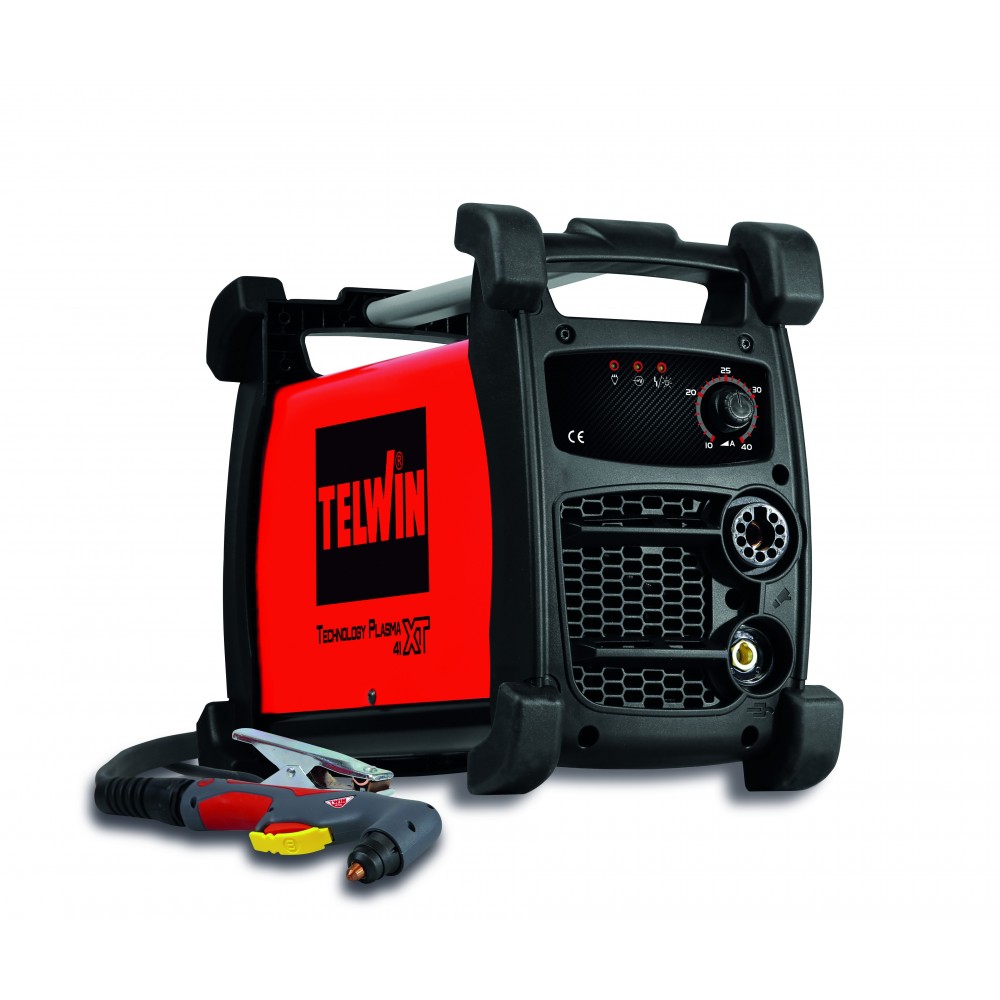

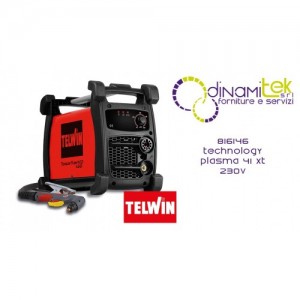

TECHNOLOGY PLASMA 41 XT 230V
code 816146
Compressed air plasma cutting inverter system with contact pilot arc ignition. It allows for fast, deformation-free cutting of all conductive materials such as steel, stainless steel, galvanized steel, aluminum, copper, brass, etc.
Ideal for countless applications and areas, from maintenance to bodywork.
Characteristics:
- robust and shock resistant;
- reduced weight and size;
- ideal for cutting on boxes;
- signaling of presence of voltage in torch, protections;
- automatic torch cooling;
- consumables change notification;
- air pressure display;
- max. cut 15 mm;
- metal cage protecting the pressure gauge;
- thermostatic, overvoltage, undervoltage, overcurrent, air lack protections.
Complete with PH torch.
1 PH 230V
INVERTER
CONTACT TRIGGER
CE MARKING
EAC CERTIFICATION

CODE 816146
YIELD 85%
SINGLE-PHASE MAINS VOLTAGE 230 V
POWER FACTOR (cosphi) 0.7
MAINS FREQUENCY 50 / 60 Hz
MAXIMUM CUTTING THICKNESS 15 mm
CURRENT REGULATION RANGE 10 - 40 A
COMPRESSED AIR FLOW RATE 100 l/min
MAX CURRENT (EN 60974-1)35 @ 30 % A
COMPRESSED AIR PRESSURE 4 - 5 bar
MAX NO LOAD VOLTAGE 313 V
PROTECTION DEGREE IP23
MAXIMUM ABSORBED CURRENT 25 A
DIMENSIONS 47.5 x 18.2 x 29.2 cm
MAX ABSORBED POWER 4 kW
WEIGHT 9 kg
16 A MAINS FUSE
