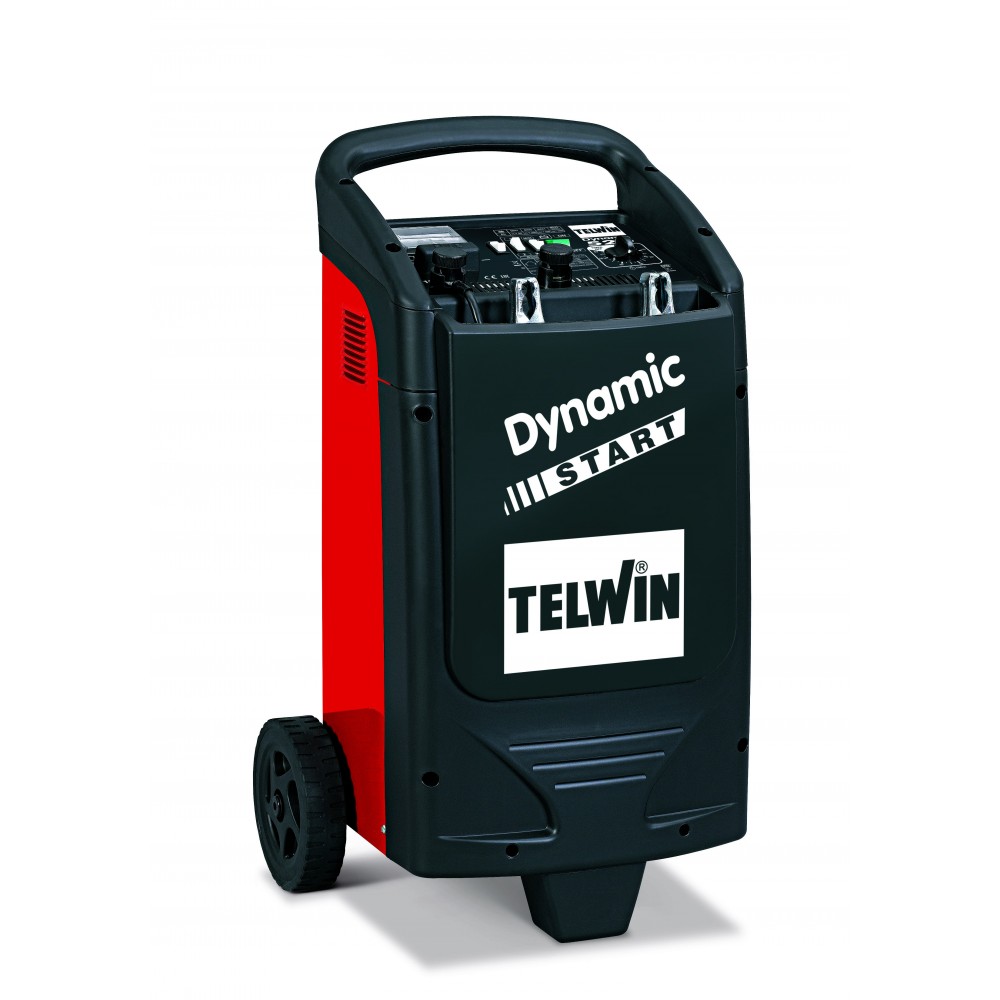

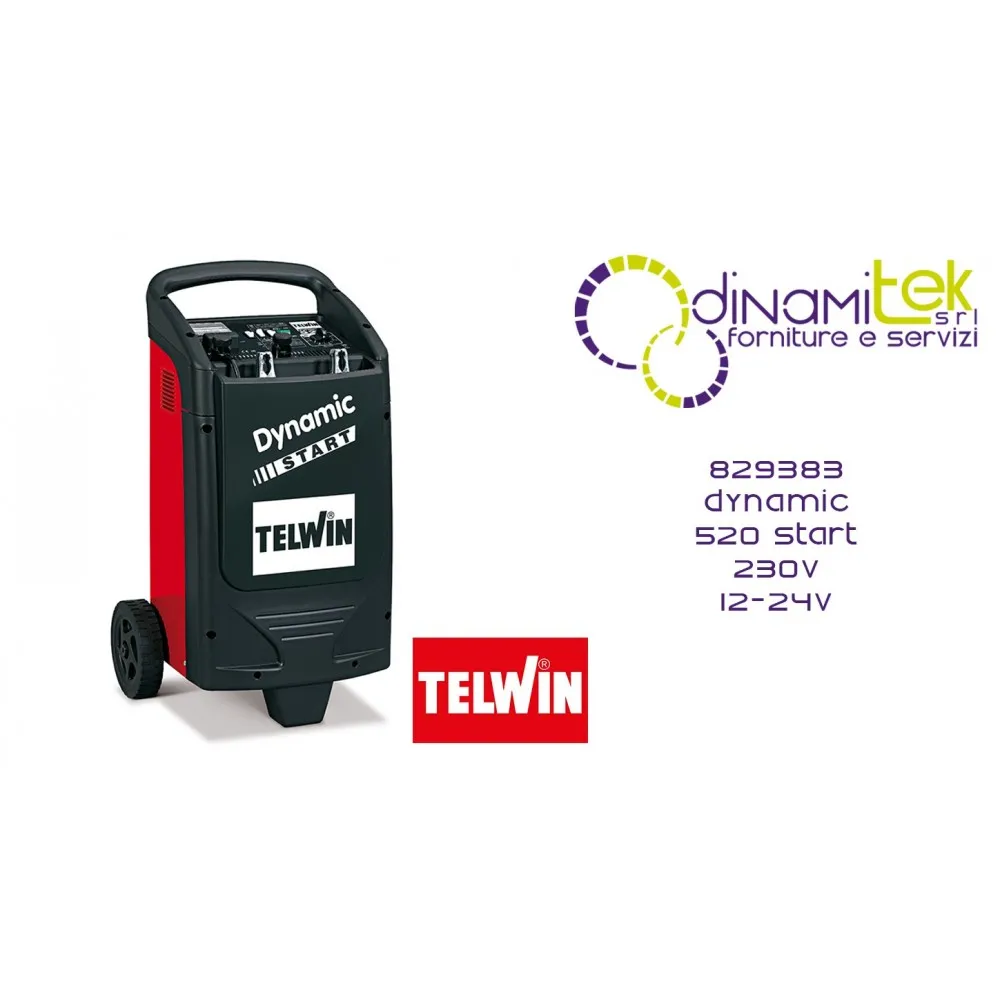

DYNAMIC 520 START 230V 12-24V STARTER TELWIN
DYNAMIC 520 START STARTER 230V 12-24V
Shipping cost: Free
for
DYNAMIC 520 START 230V 12-24V
code 829383
Battery charger and starter for charging free electrolyte (WET) batteries with 12/24V voltage and quick starting of all types of cars, vans and light trucks.
Characteristics:
- normal charge selection, fast charge (BOOST), quick start
- timer for quick charge
- display of charging and starting current
- protection against overloads and polarity reversals.
1 PH 230V
CAR
BOAT
TRACTOR
VAN
TIR
EXCAVATOR
VAN
CE MARKING
EAC CERTIFICATION
TÜV SUD CERTIFICATION
CODE 829383
MAXIMUM STARTING CURRENT 400 A
SINGLE-PHASE MAINS VOLTAGE 230 V
RATED CAPACITY REF. MIN. 20 A
MAINS FREQUENCY 50 / 60 Hz
NOM. CAPACITY REF. MAX 1000 Ah
CHARGING POWER 1.6 KW
ADJUSTMENT POSITIONS 4
STARTING POWER 10 KW
DIMENSIONS 36.5 x 46 x 75.5 cm
CHARGING VOLTAGE 12 / 24 V
WEIGHT 20 kg
EFFECTIVE CHARGING CURRENT 75 A
EAN CODE 800489773285 5
CHARGING CURRENT EN60335-2-29 50 A
PIECES / PALLET 9 pcs/pallet
STARTING CURRENT 1V/C EN60335-2-29 300 A
PIECES / PALLET - B 6 pieces/pallet B
A leading Italian company in welding, plasma cutting and charging and starting systems. Professional solutions for workshops, body shops, construction sites and industry, featuring reliable, high-performance technologies.
TELWIN: ITALIAN WELDING TECHNOLOGY SINCE 1963
Telwin is a long-established Italian brand, specialising in inverter welders, plasma cutters and charging/starting systems for the professional sector. Its solutions are designed for high-intensity environments such as mechanical workshops, automotive workshops, body shops, construction sites and industrial maintenance, where precision and operational continuity are essential.
The range includes MIG/MAG, TIG, MMA, high-precision plasma cutting, smart battery chargers, digital starters and multifunction stations for body shops.
The various product lines are distinguished by power, duty cycle, inverter technology, portability and electronic protection systems, making them suitable for both fixed workstations and mobile applications.
Telwin is recognised for structural reliability, arc stability, certified safety and continuous innovation, supported by in-house research and technological development.
Professionals choose Telwin for consistent performance, weld bead quality, reduced processing times and operational continuity even under demanding conditions.
