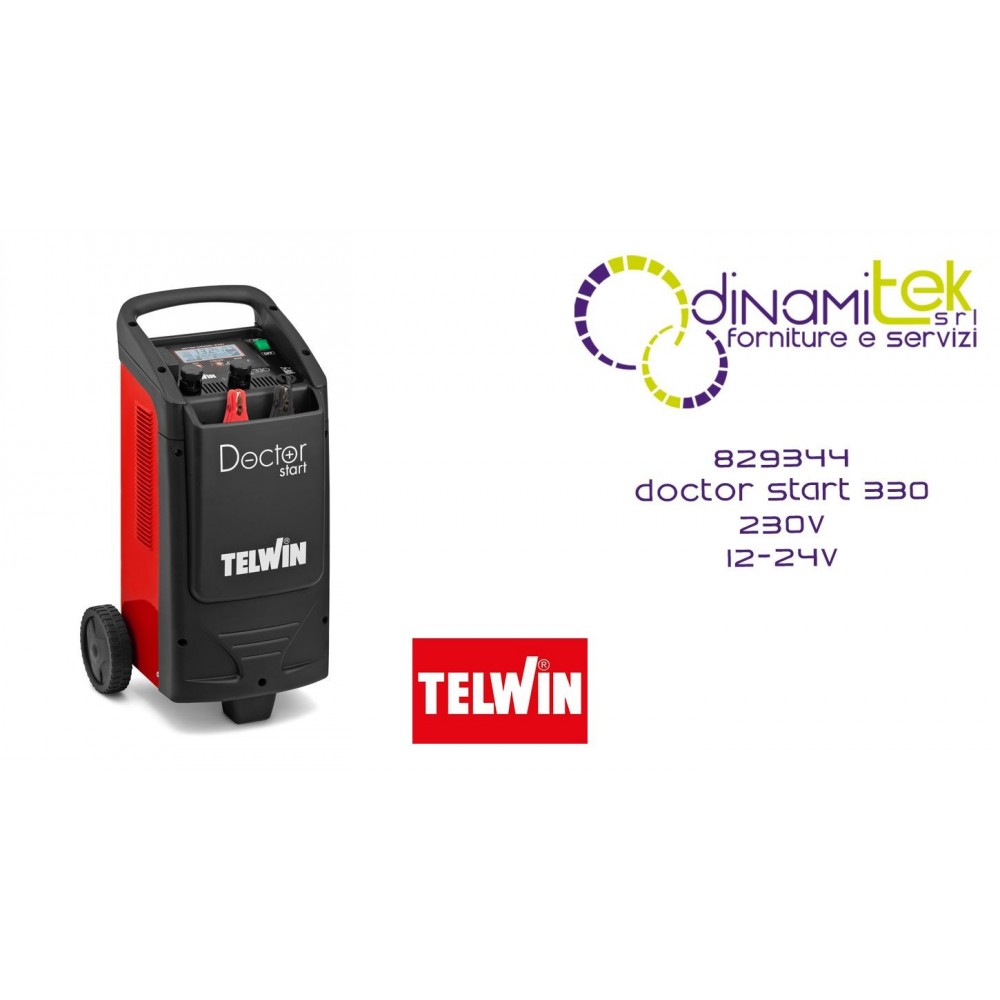

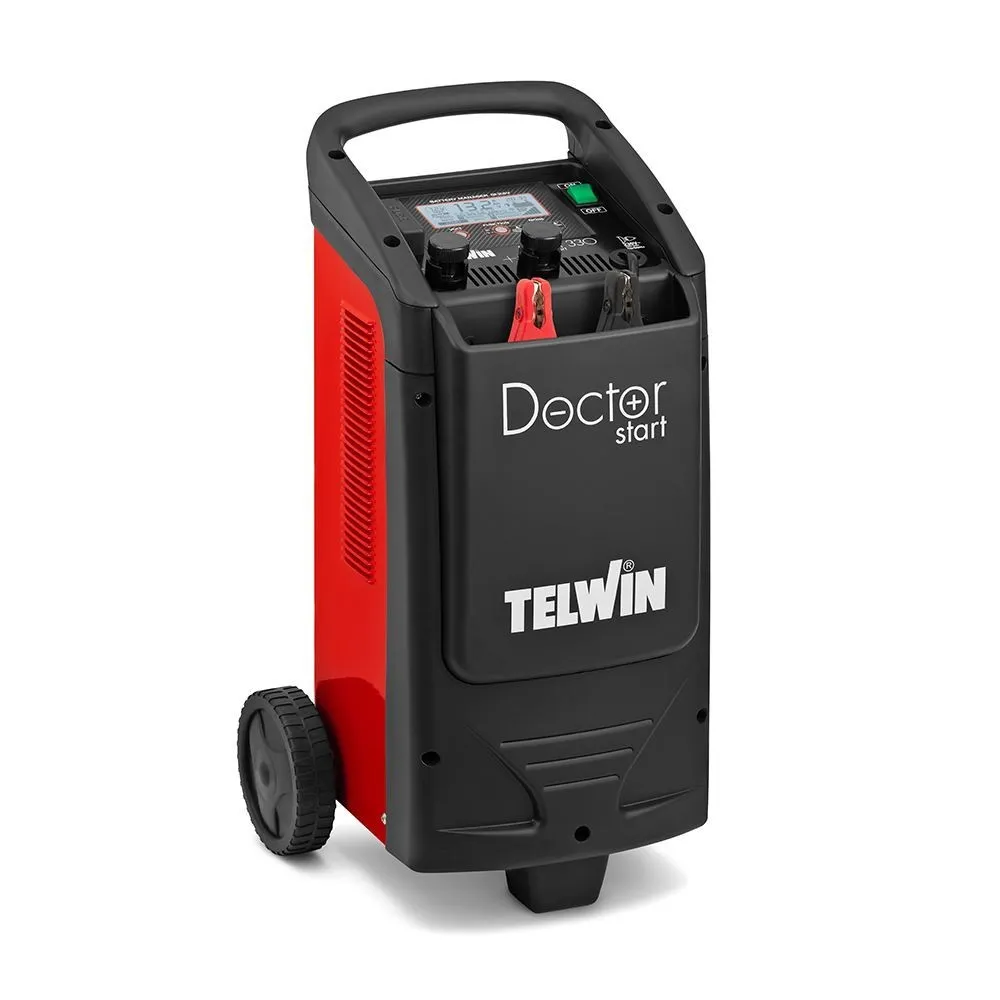

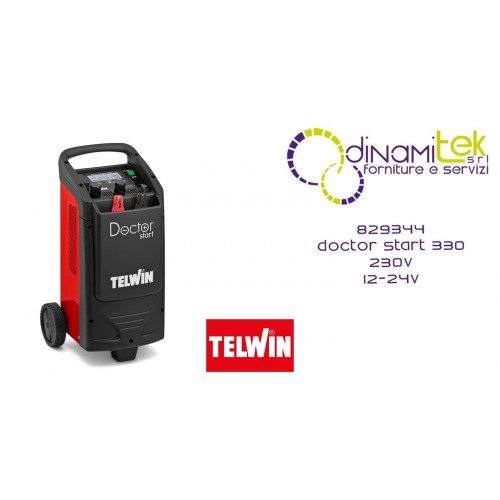

DOCTOR START 330 230V 12-24V TELWIN
Much more than a simple starter: the intelligent manager for your battery's health! The Telwin Doctor Start 330 (code 829344) is a multifunction electronic "Battery Manager" designed for the complete maintenance of 12V and 24V batteries. Thanks to Pulse Tronic technology, it recharges and maintains all types of batteries, including Lithium (Li) , and offers a rapid starting power of up to 300A for cars, vans and light trucks. Equipped with a graphic LCD screen for intuitive use, it is the indispensable tool for testing the alternator, regenerating sulphated batteries and ensuring a stable power supply during battery changes.
Shipping cost: Free
for
Telwin Doctor Start 330: The Ultimate Solution for Charging, Testing, and Starting
The Doctor Start 330 represents cutting-edge technology in the charging and starting sector. This device goes beyond simple charging, but acts as a true battery manager, ideal for workshops and professional users working on a wide range of vehicles.
Pulse Tronic Technology and Advanced Maintenance
The system uses proprietary Pulse Tronic technology, which optimizes charging and maintenance based on the specific technology of the selected battery (WET, GEL, AGM, MF, PbCa, EFB or Li). Its main functions include:
- Regeneration and Recovery: A function dedicated to restoring the operation of batteries that have undergone sulfation processes or deep discharges.
- Supply Function: Transforms the device into a stable power source during battery replacement, safeguarding the vehicle's on-board electronics and memories.
- Integrated Diagnostics: Allows you to perform accurate tests on the voltage at the battery terminals, the starting capacity and the functionality of the vehicle's alternator circuit.
Power and Robustness
With a maximum starting current of 300A , the Doctor Start 330 can easily jump-start various types of engines. Despite its power, the design is designed for mobility thanks to the integrated wheels and a balanced weight of 14.5 kg. Operational safety is guaranteed by protections against overloads, short circuits and polarity reversal.
Main Technical Data
- Product code: 829344.
- Charging and starting voltage: 12 / 24 V.
- MAX starting current: 300 A.
- Supported battery capacity: 10 to 450 Ah.
- Effective charging current: 45 A.
- Dimensions (LxWxH): 30.5 x 36 x 63 cm.
Accessories Included
It comes complete with 10 mm² cable (2 metres long), positive clamp and ground clamp.
A leading Italian company in welding, plasma cutting and charging and starting systems. Professional solutions for workshops, body shops, construction sites and industry, featuring reliable, high-performance technologies.
TELWIN: ITALIAN WELDING TECHNOLOGY SINCE 1963
Telwin is a long-established Italian brand, specialising in inverter welders, plasma cutters and charging/starting systems for the professional sector. Its solutions are designed for high-intensity environments such as mechanical workshops, automotive workshops, body shops, construction sites and industrial maintenance, where precision and operational continuity are essential.
The range includes MIG/MAG, TIG, MMA, high-precision plasma cutting, smart battery chargers, digital starters and multifunction stations for body shops.
The various product lines are distinguished by power, duty cycle, inverter technology, portability and electronic protection systems, making them suitable for both fixed workstations and mobile applications.
Telwin is recognised for structural reliability, arc stability, certified safety and continuous innovation, supported by in-house research and technological development.
Professionals choose Telwin for consistent performance, weld bead quality, reduced processing times and operational continuity even under demanding conditions.
