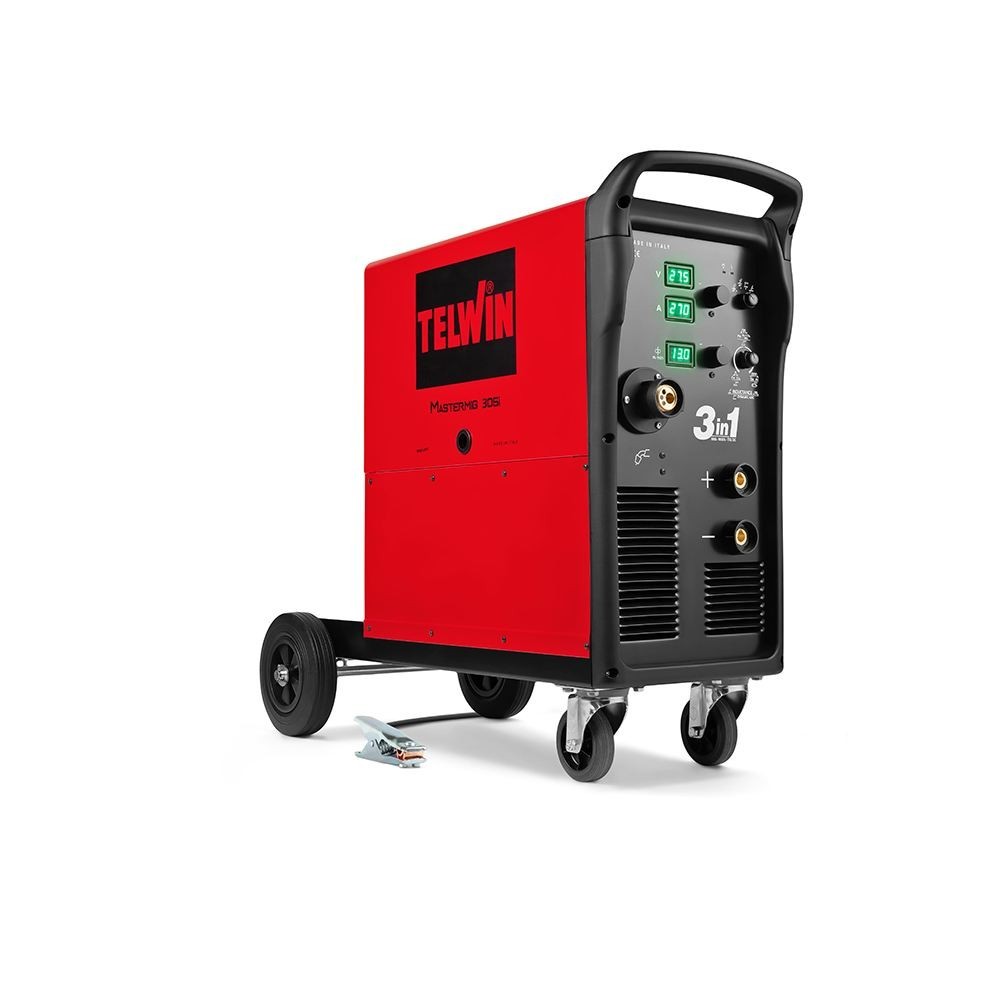

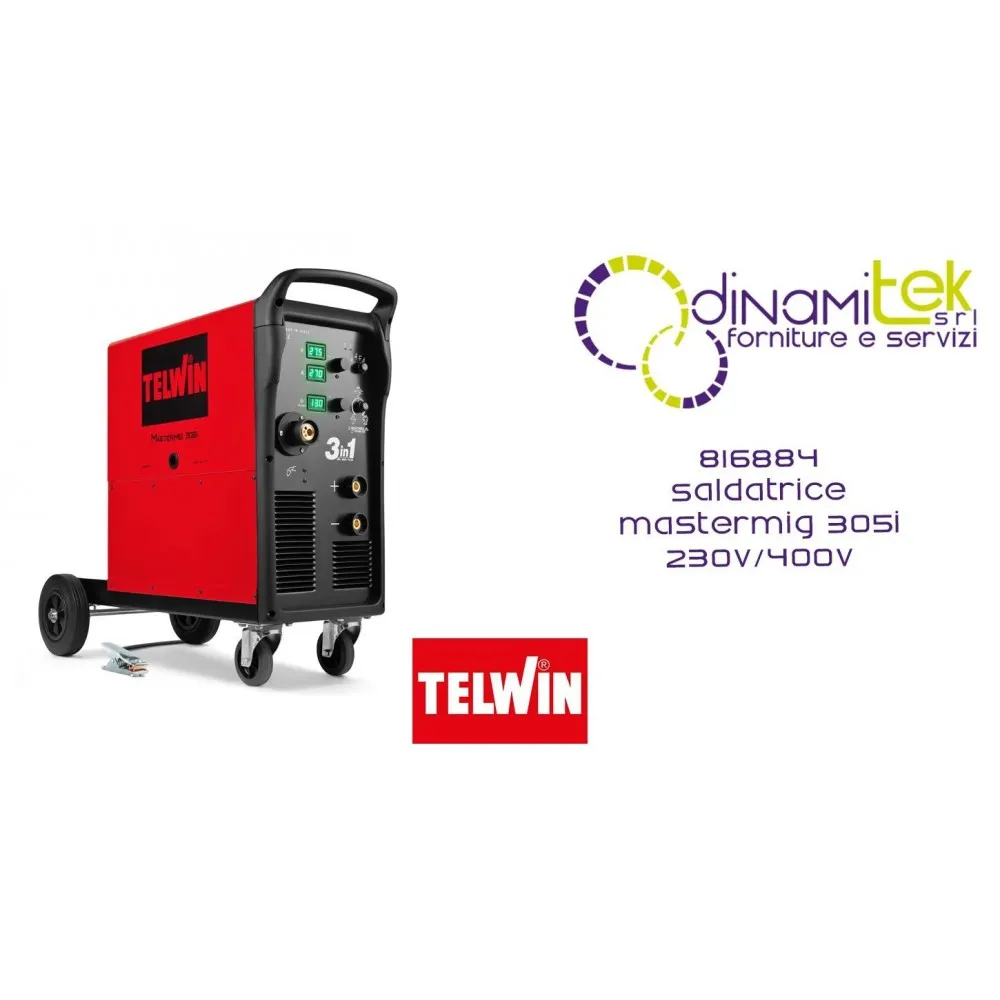

816884 MASTERMIG 305I 230V-400V WELDING MACHINE TELWIN

Superior power and pinpoint precision for advanced industrial welding! The Telwin Mastermig 305i Base (code 816884) is the 270A multi-process inverter power source that redefines the standards of versatility. Thanks to the robust 4-roller wire feeder and dual three-phase power supply (230V/400V), it guarantees perfect wire feed and consistent performance on any material: from steel to aluminum, all the way to brazing. Designed to withstand the harshest environments, it features an exclusive dedicated tunnel ventilation system that isolates the electronics from dust and debris, ensuring unparalleled durability in metalwork and heavy maintenance.

Shipping cost: €50.00 for
2004,07 €
Tax included

1.642,68 € Tax excluded

Quantity
Available product, order it now.

Telwin Mastermig 305i Base: Professional Multiprocess with 4-Roller Wire Feeder

The Mastermig 305i Base belongs to the new generation of Telwin inverter welding machines, designed to offer maximum operational flexibility (MIG-MAG, MMA, TIG DC-Lift) and superior energy efficiency (86%). It is the ideal tool for professionals working on different materials such as stainless steel, high-strength steels, and galvanized sheets.

Fluid Drag and Digital Control

  • 4-Roller Wire Feed Unit: Ensures absolute stability in wire feed, essential for intensive work sessions and for the use of aluminum or flux-cored wires.
  • Dynamic Display: The intuitive interface allows you to view and set all welding parameters with extreme precision in real time.
  • MMA Synergic Regulation: Facilitates arc striking and fluidity thanks to the automatic management of Arc Force and Hot Start based on the type of electrode selected.

Industrial Reliability and Protection

The internal construction follows the "ventilation tunnel" philosophy: the cooling airflow is channeled to avoid direct contact with the circuit boards, preventing failures caused by metal dust. The machine is designed to operate with motor generators and tolerates wide variations in mains voltage (+15% / -25%).

Main Technical Specifications

  • Product code: 816884.
  • Power supply: 230 / 400 V three-phase.
  • Current regulation range: 20 - 270 A.
  • Duty cycle (40°C): 270A @ 40% (at 400V).
  • Wire diameter: 0.6 - 1.2 mm (Steel, Stainless Steel, Aluminum, Flux Cored, Brazing).
  • Usable electrodes: from 1.6 to 6 mm.
  • Dimensions and Weight: 92 x 46 x 80 cm | 42.80 kg.

Accessories included in the BASE version

Supplied ready for set-up with:

  • 4R tow roller 0.6-0.8/0.9 mm and 1.0-1.2 mm.
  • Flashlight hanging hook.
  • 25mm² (3 meter) ground cable with clamp.
A leading Italian company in welding, plasma cutting and charging and starting systems. Professional solutions for workshops, body shops, construction sites and industry, featuring reliable, high-performance technologies.

TELWIN: ITALIAN WELDING TECHNOLOGY SINCE 1963

Telwin is a long-established Italian brand, specialising in inverter welders, plasma cutters and charging/starting systems for the professional sector. Its solutions are designed for high-intensity environments such as mechanical workshops, automotive workshops, body shops, construction sites and industrial maintenance, where precision and operational continuity are essential.

The range includes MIG/MAG, TIG, MMA, high-precision plasma cutting, smart battery chargers, digital starters and multifunction stations for body shops.

The various product lines are distinguished by power, duty cycle, inverter technology, portability and electronic protection systems, making them suitable for both fixed workstations and mobile applications.

Telwin is recognised for structural reliability, arc stability, certified safety and continuous innovation, supported by in-house research and technological development.

Professionals choose Telwin for consistent performance, weld bead quality, reduced processing times and operational continuity even under demanding conditions.
