PCP 28 LCD 400V SPOT WELDER TELWIN

PCP 28 LCD 400V
code 824053

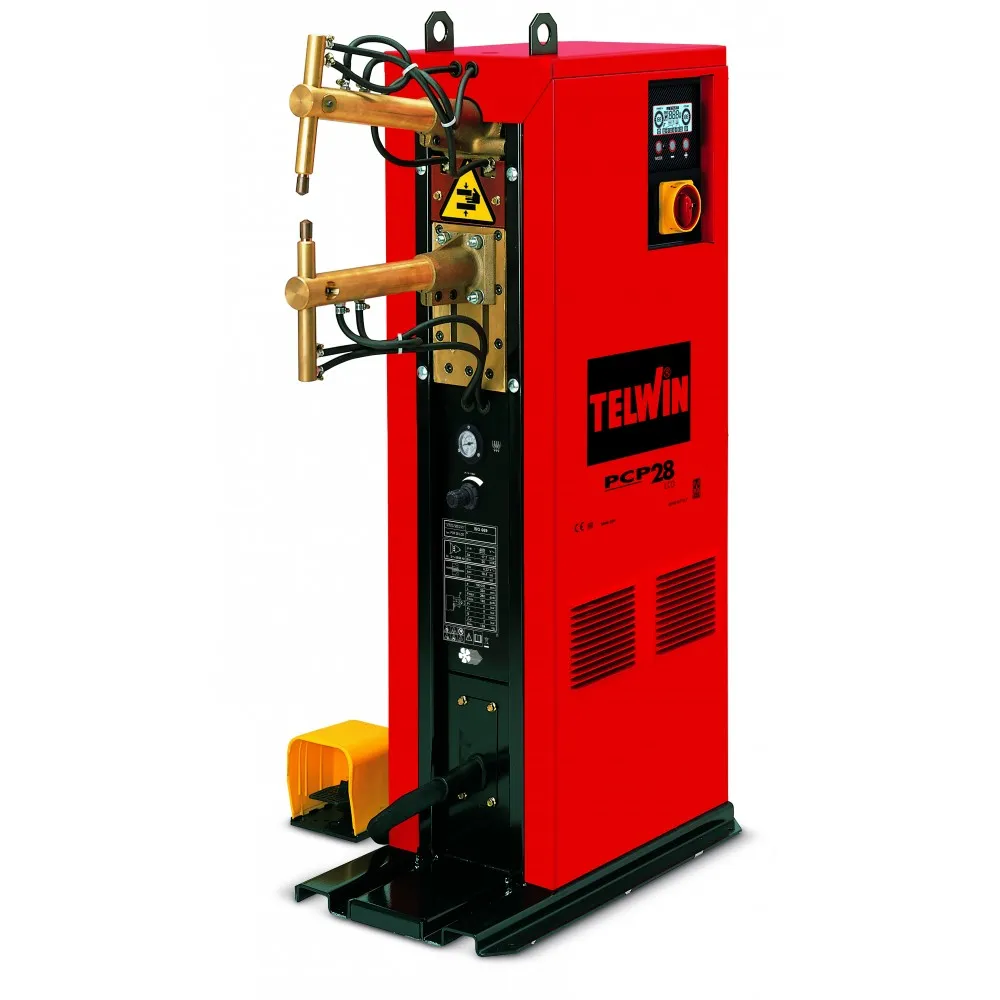

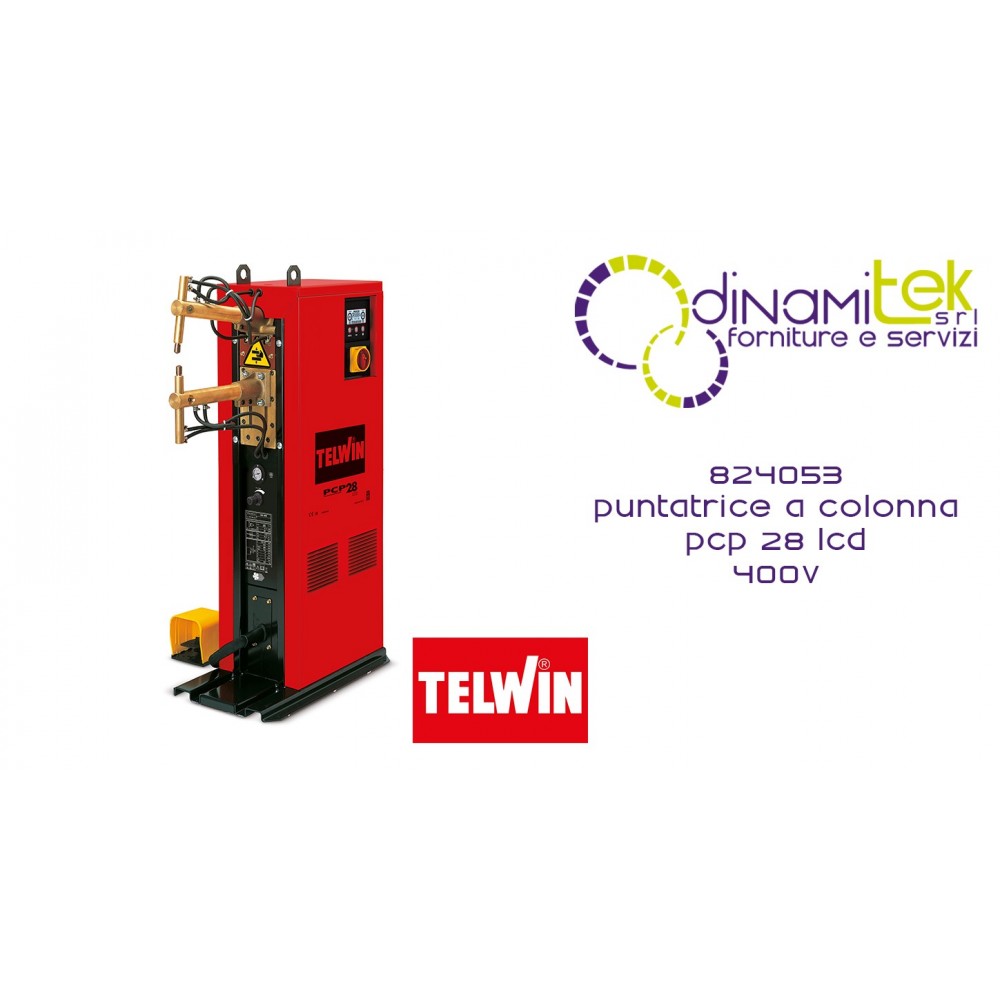

Column-mounted, oscillating-arm resistance spot welder with digital microprocessor control. The multifunction LCD digital panel allows operation in: EASY mode (setting the current and spot welding time); EXPERT mode (setting various spot welding parameters) with the option of saving up to 20 customized programs. Continuous and pulsed operation ensures excellent welds on various types of steel.
Characteristics:
- regulation of spot welding current (%), spot welding time (cycles), pressure and electrode closing speed
- choice of various parameters of the spot welding cycle (approach time, ramp time, welding time, pause time and number of pulses)
- easy-to-read LCD display
- pneumatic drive
- adjustment of the gauge of the arms
- thermal protection with signalling
- air flow regulation to slow down the closing of the arms
The model requires water cooling of the electrodes and arms.
2 PH 400V
CE MARKING
EAC CERTIFICATION

ARM L=350MM 443021
STANDARD STRAIGHT ELECTRODE XP 690035

CODE 824053
MAXIMUM FORCE AT THE ELECTRODES 220 daN
TWO-PHASE MAINS VOLTAGE 400 V
ARM PROJECTION 330 mm
MAINS FREQUENCY 50 / 60 Hz
INTERMITTENCE RATIO 5.5%
MAX SPOT WELDING CURRENT 16400 A
PROTECTION DEGREE IP20
MAX NO LOAD VOLTAGE 4.2 V
DIMENSIONS 79 x 32 x 128 cm
MAX ABSORBED POWER 60 kVA
WEIGHT 148 kg
RATED POWER X=50% 25 VA
EAN CODE 800489797154 4
POWER FACTOR (cosphi) 0.7
PIECES / PALLET 3 pcs/pallet
MAXIMUM THICKNESS OF 2 SIDES 5 + 5 mm
