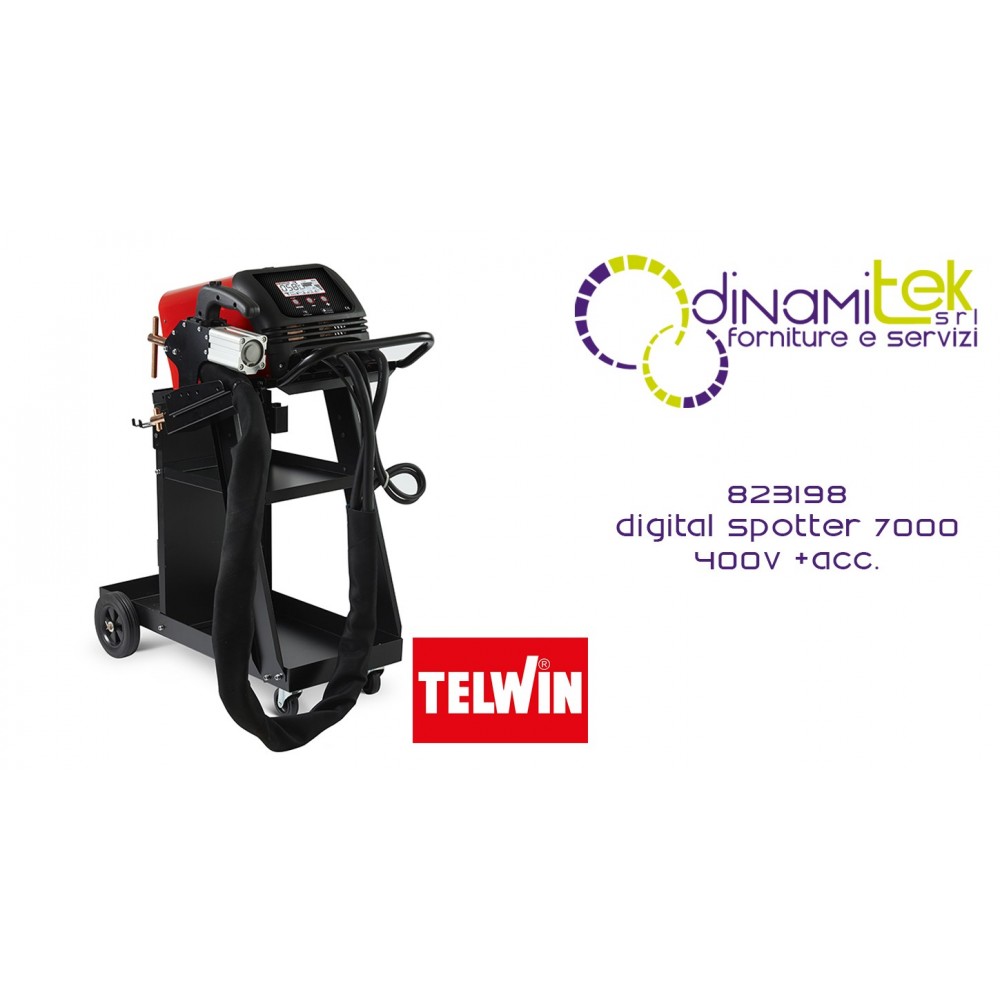

823198 SPOT DIGITAL SPOTTER 7000 400V + ACC. TELWIN Dinamitek 1
  • 823198 SPOT DIGITAL SPOTTER 7000 400V + ACC. TELWIN Dinamitek 1
  • 823198 SPOT DIGITAL SPOTTER 7000 400V + ACC. TELWIN Dinamitek 2

823198 SPOT DIGITAL SPOTTER 7000 400V AND ACC. POINTER TELWIN

SPOT DIGITAL SPOTTER 7000 400V + ACC.

Shipping cost: €50.00 for
2894,77 €
Tax included

2.372,76 € Tax excluded

Quantity
Available product, order it now.


DIGITAL SPOTTER 7000 400V +ACC.
code 823198

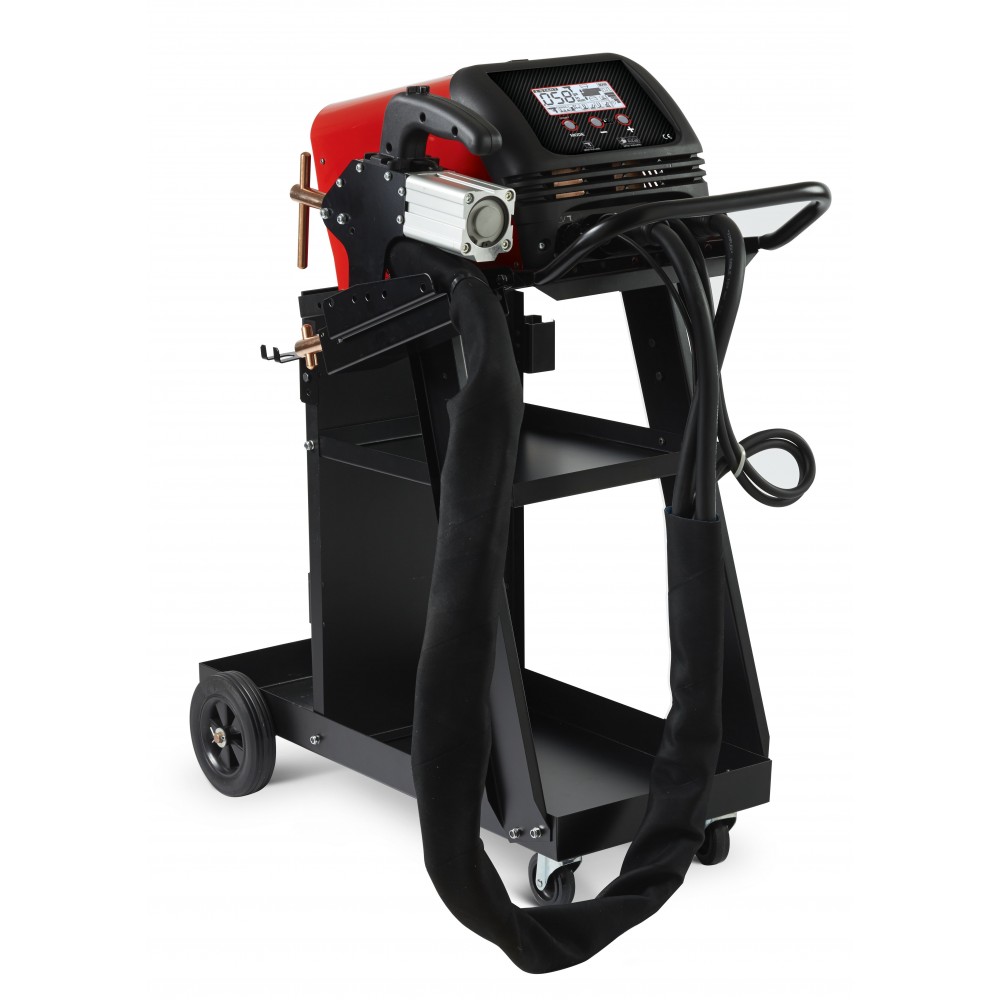

Electronic resistance welder (spot welder), microprocessor-controlled, suitable for bodywork applications.
The multifunctional digital LCD panel allows automatic adjustment of the spot welding parameters based on the chosen tool and the thickness of the sheet metal.
Characteristics:
- automatic recognition of the inserted tool
- mains voltage monitor
- automatic control of the caliper cooling
- backlit LCD display for viewing the controls and set parameters.
Complete with air-cooled pneumatic caliper and trolley.
2 PH 400V
CE MARKING
EAC CERTIFICATION
TÜV SUD CERTIFICATION

ELECTRODE HOLDER ARM L=120MM 690005
PNEUMATIC CLAMP "X" + CABLES 801048
STRAIGHT ELECTRODE L=130MM D.12MM 690047
CART - AMERICA 803084
STRAIGHT ELECTRODE L=50MM D.12MM 690050

CODE 823198
POWER FACTOR (cosphi) 0.7
TWO-PHASE MAINS VOLTAGE 400 V
MAXIMUM THICKNESS OF 2-SIDES WELDING 1.5 + 1.5 mm
MAINS FREQUENCY 50 / 60 Hz
INTERMITTENCE RATIO 3%
MAX SPOT WELDING CURRENT 4500 A
PROTECTION DEGREE IP22
MAX NO LOAD VOLTAGE 8.6 V
DIMENSIONS 52 x 38 x 88.5 cm
MAX ABSORBED POWER 27.3 kW
WEIGHT 50 kg
RATED POWER X=50% 6.7 kW
EAN CODE 800489793849 3
A leading Italian company in welding, plasma cutting and charging and starting systems. Professional solutions for workshops, body shops, construction sites and industry, featuring reliable, high-performance technologies.

TELWIN: ITALIAN WELDING TECHNOLOGY SINCE 1963

Telwin is a long-established Italian brand, specialising in inverter welders, plasma cutters and charging/starting systems for the professional sector. Its solutions are designed for high-intensity environments such as mechanical workshops, automotive workshops, body shops, construction sites and industrial maintenance, where precision and operational continuity are essential.

The range includes MIG/MAG, TIG, MMA, high-precision plasma cutting, smart battery chargers, digital starters and multifunction stations for body shops.

The various product lines are distinguished by power, duty cycle, inverter technology, portability and electronic protection systems, making them suitable for both fixed workstations and mobile applications.

Telwin is recognised for structural reliability, arc stability, certified safety and continuous innovation, supported by in-house research and technological development.

Professionals choose Telwin for consistent performance, weld bead quality, reduced processing times and operational continuity even under demanding conditions.



823198
