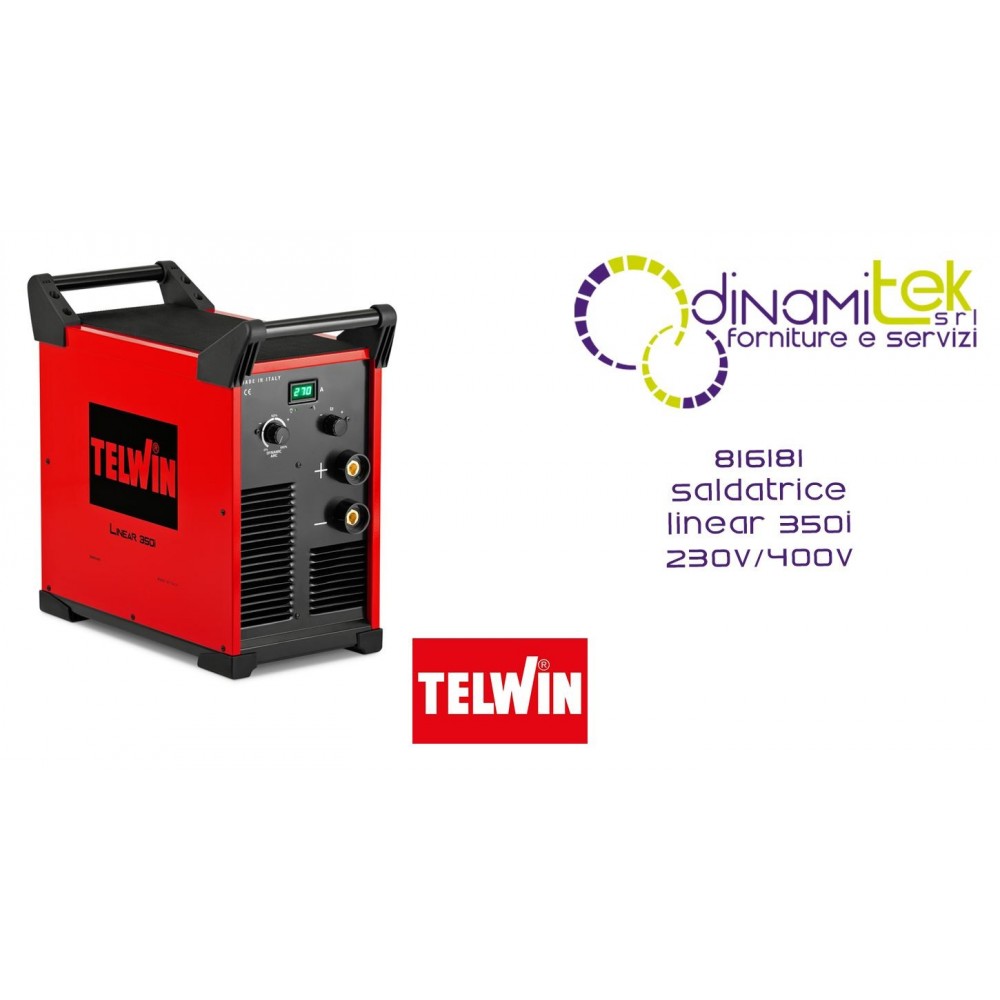

TELWIN 816181 LINEAR 350i 230V/400V Dinamitek 1
  • TELWIN 816181 LINEAR 350i 230V/400V Dinamitek 1

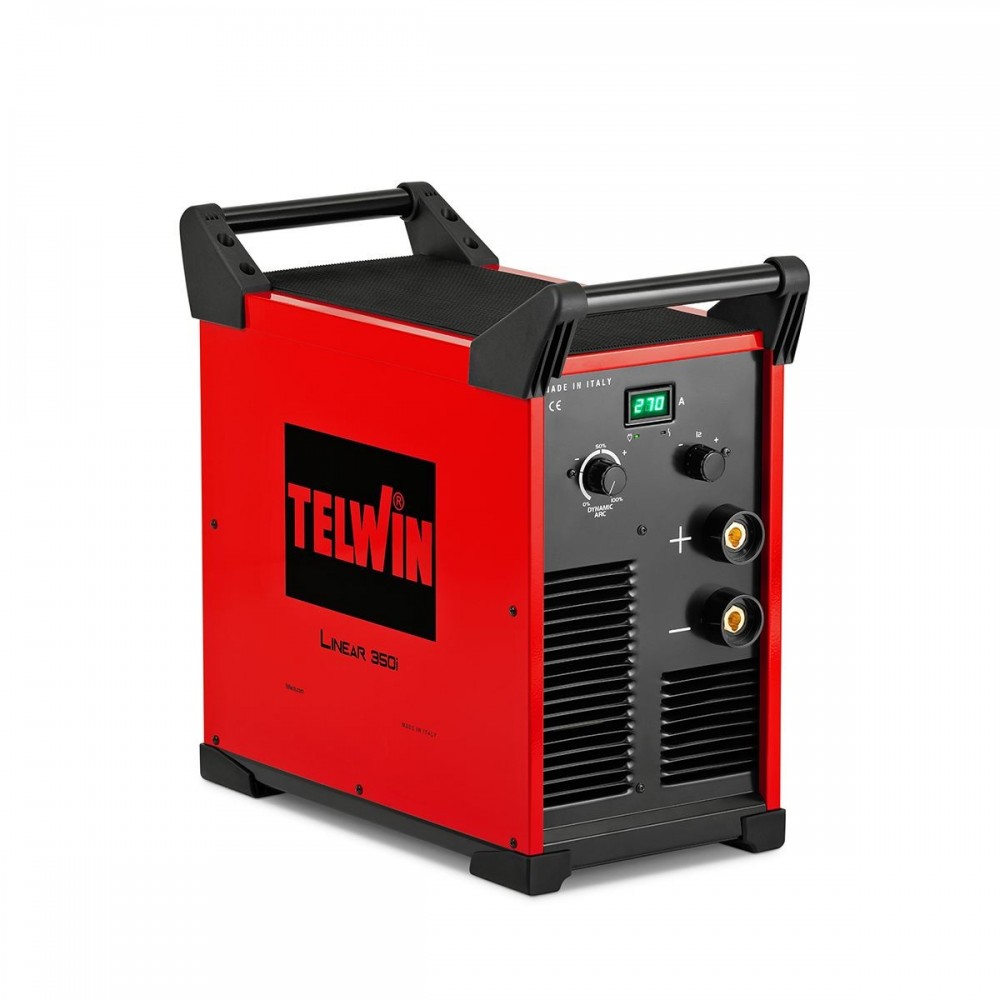

  • TELWIN 816181 LINEAR 350i 230V/400V Dinamitek 2

816181 LINEAR 350I WELDER 230V-400V TELWIN

Uncompromising inverter power for the toughest industrial challenges! The Telwin Linear 350i (code 816181) is the 270A direct current (DC) MMA inverter welder, designed to ensure extreme reliability on construction sites and in the workshop. Thanks to its exclusive dedicated tunnel ventilation system, the electronic components are protected from dust and dirt, ensuring a long service life even in harsh environments. Ideal for use with motor generators thanks to an exceptional power tolerance (-25% / +15%), this robust and versatile machine handles electrodes up to 6 mm and is already set up for gouging operations.

Shipping cost: Free for
1280,38 €
Tax included

1.049,49 € Tax excluded

Quantity
Available product, order it now.

Telwin Linear 350i: Inverter Robustness and Professional Precision

The Linear 350i represents the technological evolution of electrode welders for industrial use. It combines the power of traditional systems with the flexibility and reduced consumption of inverter technology, offering superior arc stability even in the presence of strong fluctuations in the electrical network.

Advanced Protection and Long-Lasting Durability

The strength of this model is its internal construction: an intelligent ventilation system channels air through a dedicated tunnel, preventing dust and metal debris from coming into direct contact with the electronic boards. The structure is designed to resist impacts and features an IP23 protection rating, making it suitable for outdoor use.

Versatility and Three-Phase Power Supply

  • Multi-voltage: Works with both 230V and 400V three-phase power supplies, adapting to different workshop configurations.
  • Large Diameter Electrodes: Allows the use of rutile, basic, stainless steel and cast iron electrodes with diameters from 1.6 up to 6 mm .
  • Total Stability: Guarantees constant performance even with undervoltages up to -25% or overvoltages up to +15%, a feature that makes it the ideal companion for those who work with generators.
  • Gouging: The machine is already set up for the gouging process, expanding the possibilities for intervention on heavy carpentry.

Main Technical Specifications

  • Product code: 816181.
  • Current regulation range: 20 - 270 A.
  • Maximum current (EN60974-1): 270 @ 40% A.
  • Energy efficiency: 88%.
  • Weight and Dimensions: 19.2 kg | 54.6 x 27.4 x 50 cm.
A leading Italian company in welding, plasma cutting and charging and starting systems. Professional solutions for workshops, body shops, construction sites and industry, featuring reliable, high-performance technologies.

TELWIN: ITALIAN WELDING TECHNOLOGY SINCE 1963

Telwin is a long-established Italian brand, specialising in inverter welders, plasma cutters and charging/starting systems for the professional sector. Its solutions are designed for high-intensity environments such as mechanical workshops, automotive workshops, body shops, construction sites and industrial maintenance, where precision and operational continuity are essential.

The range includes MIG/MAG, TIG, MMA, high-precision plasma cutting, smart battery chargers, digital starters and multifunction stations for body shops.

The various product lines are distinguished by power, duty cycle, inverter technology, portability and electronic protection systems, making them suitable for both fixed workstations and mobile applications.

Telwin is recognised for structural reliability, arc stability, certified safety and continuous innovation, supported by in-house research and technological development.

Professionals choose Telwin for consistent performance, weld bead quality, reduced processing times and operational continuity even under demanding conditions.
