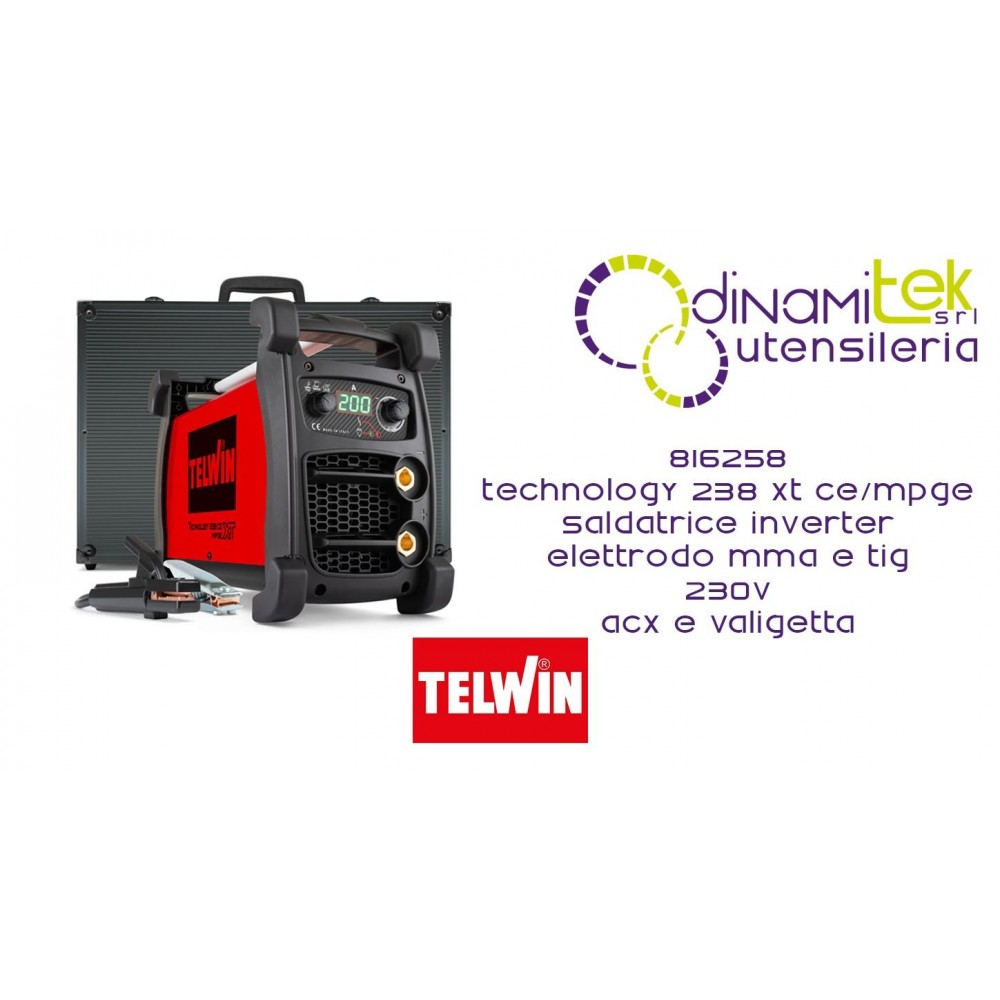

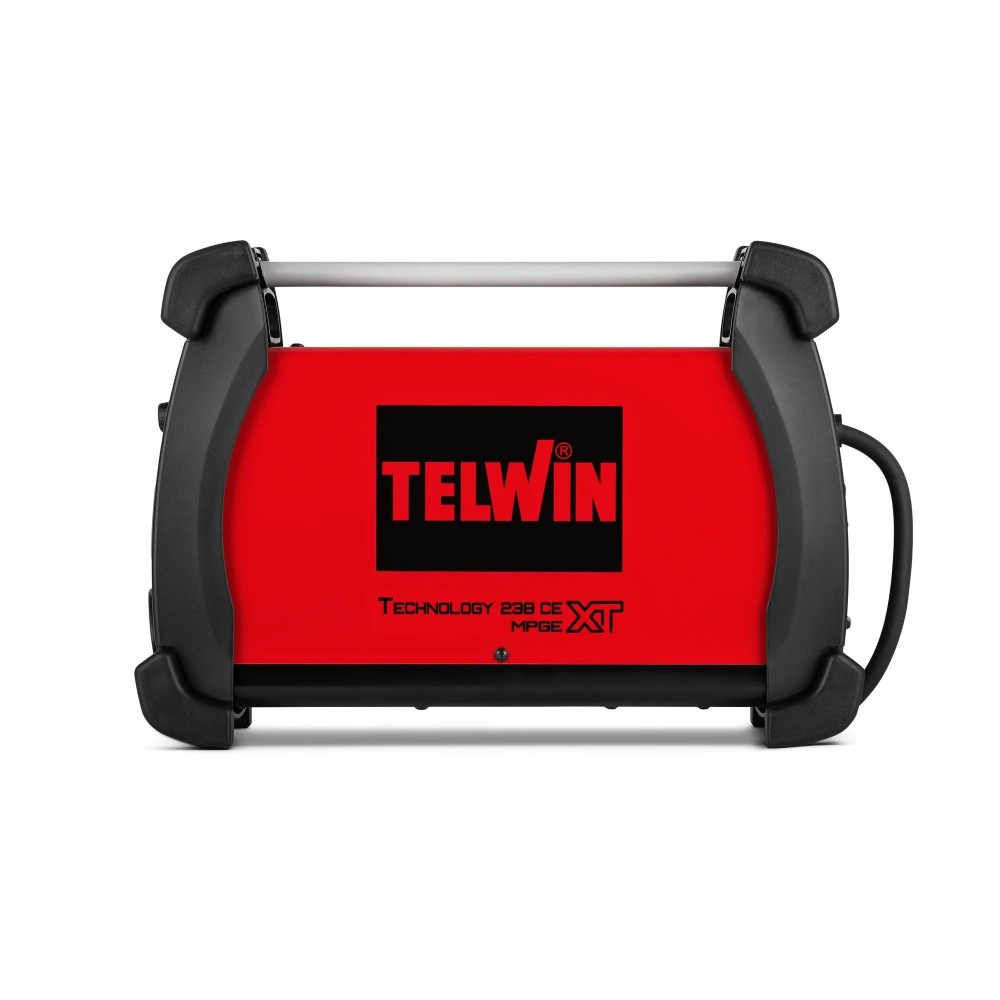

816258 TECHNOLOGY 238 XT CE/MPGE INVERTER WELDING MACHINE, MMA AND TIG ELECTRODE, 230V ACX, AND CASE TELWIN

The unstoppable force of the professional inverter, ready to challenge any construction site! The Telwin Technology 238 XT CE/MPGE (code 816258) is the 200A MMA and TIG inverter welder designed for those who work in critical conditions. Thanks to the exclusive MPGE protection system, it guarantees stable and safe performance even when powered by motor generators or electrical networks subject to voltage fluctuations. Part of the eXtra Tough line, it stands out for its ultra-robust shock-resistant structure and the ability to weld any type of electrode, including cellulosic . In this complete package, you will receive high-quality accessories and a durable aluminum case for professional and safe transport.

Shipping cost: Free for
575,24 €
Tax included

471,51 € Tax excluded

Quantity
Available product, order it now.

Telwin Technology 238 XT CE/MPGE: Maximum Protection and Cellulose Versatility

The Technology 238 XT is a high-performance single-phase (230V) inverter power source, designed for MMA electrode welding and the TIG process in direct current (DC) with scratch striking. It is the ultimate tool for professionals who need a powerful machine (200A) capable of operating in remote or heavy-duty industrial sites.

MPGE System: The Motor Generator Specialist

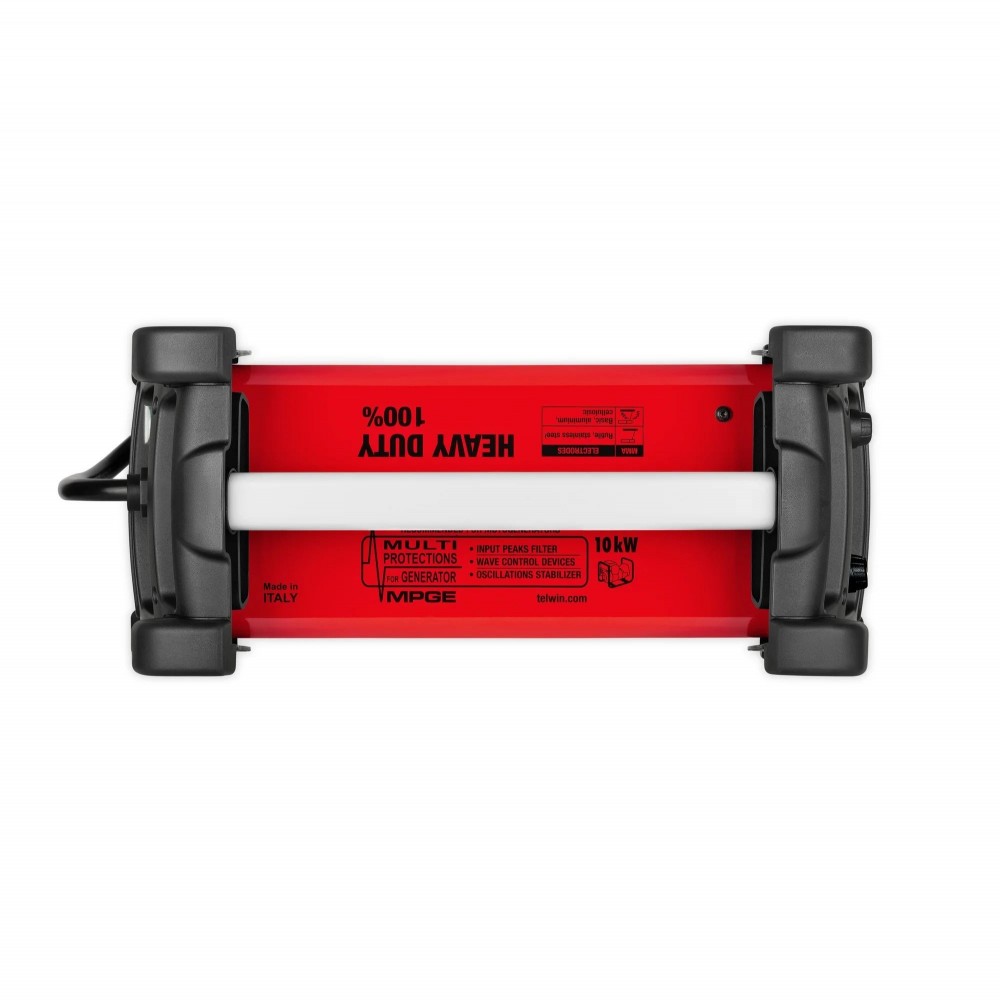

The MPGE (Multi Protection for Generator) acronym identifies an advanced multiple protection system: it includes a waveform control device, an input peak filter, and an oscillation stabilizer. These features ensure maximum reliability of the electronic components even with unstable power supplies, making it ideal for use with generator sets.

"eXtra Tough" Professional Performance

  • Cellulose Electrodes: Unlike many standard models, the 238 XT allows the optimal use of cellulose electrodes, as well as rutile, basic, stainless steel and cast iron, with diameters up to 4 mm .
  • XT Construction: Reinforced, impact-resistant construction featuring a solid metal handle and 50mm quick connectors to ensure optimal power flow.
  • Advanced Arc Control: Features Arc Force and Hot Start systems adjustable according to the electrode, as well as Anti-Stick protection.

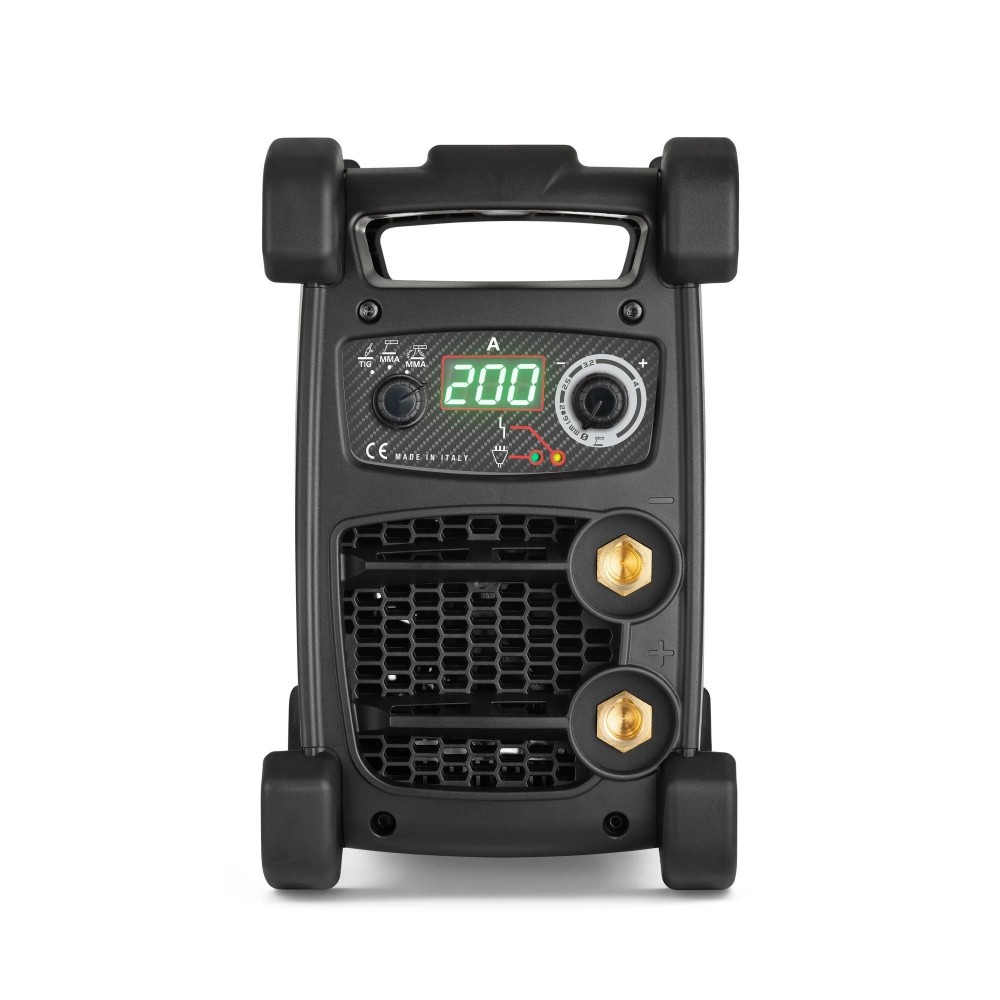

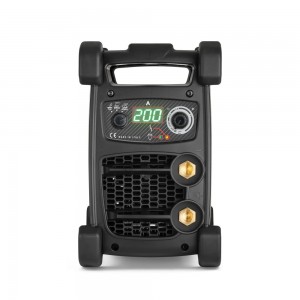

  • Digital Interface: The integrated display allows for millimetric adjustment and immediate reading of the welding current.

Main Technical Specifications

  • Product code: 816258.
  • Current regulation range: 5 - 200 A.
  • Maximum current (EN60974-1): 200 @ 35% A.
  • Max open circuit voltage: 80V (excellent for triggering).
  • Energy efficiency: 87% with inverter technology.
  • Degree of protection: IP23 (resistant to rain and dust).
  • Dimensions and Weight: 37.5 x 50 x 22 cm | 10.55 kg (complete kit).

Accessories Included in the Case

The welder is supplied ready to use with:

  • 25 mm² cable (3 m) and 25 mm² cable (2 m) with Atlas connectors.
  • TOLEDO 300 mass clamp.
  • DALLAS 300 electrode holder (300A).
  • Sturdy aluminum case .
A leading Italian company in welding, plasma cutting and charging and starting systems. Professional solutions for workshops, body shops, construction sites and industry, featuring reliable, high-performance technologies.

TELWIN: ITALIAN WELDING TECHNOLOGY SINCE 1963

Telwin is a long-established Italian brand, specialising in inverter welders, plasma cutters and charging/starting systems for the professional sector. Its solutions are designed for high-intensity environments such as mechanical workshops, automotive workshops, body shops, construction sites and industrial maintenance, where precision and operational continuity are essential.

The range includes MIG/MAG, TIG, MMA, high-precision plasma cutting, smart battery chargers, digital starters and multifunction stations for body shops.

The various product lines are distinguished by power, duty cycle, inverter technology, portability and electronic protection systems, making them suitable for both fixed workstations and mobile applications.

Telwin is recognised for structural reliability, arc stability, certified safety and continuous innovation, supported by in-house research and technological development.

Professionals choose Telwin for consistent performance, weld bead quality, reduced processing times and operational continuity even under demanding conditions.



816258
