816259 TECHNOLOGY 236 XT INVERTER WELDING MACHINE, MMA AND TIG ELECTRODE, 230V ACX, AND CASE TELWIN

Power and "eXtra Tough" robustness in a complete kit ready for the construction site! The Telwin Technology 236 XT (code 816259) is the 200A MMA and TIG inverter welder designed for those who demand maximum resistance and performance [1]. Part of the XT line, it stands out for its reinforced shock-resistant structure, solid metal handle and practical digital display for millimetric control of the current. Capable of handling electrodes up to 4 mm , it is supplied in this exclusive package complete with welding accessories and a robust aluminium case , making it the ultimate and easily transportable tool for the professional on the go.

Shipping cost: Free for
528,85 €
Tax included

433,49 € Tax excluded

Quantity
Available product, order it now.

Telwin Technology 236 XT: The Professional Strength of the "XT" Range

The Technology 236 XT is an extremely versatile single-phase (230V) inverter power source, designed for MMA electrode welding and the TIG process in direct current (DC) with scratch striking. Thanks to its "eXtra Tough" design, this machine is built to withstand knocks, impacts and harsh conditions of use in the workshop or on the construction site.

Robustness and Industrial Design

  • XT Structure: The body is specially reinforced for superior protection of internal components.
  • Premium Components: Equipped with a solid metal handle for a secure grip and 50mm quick connectors (socket) to ensure optimal power flow without overheating.

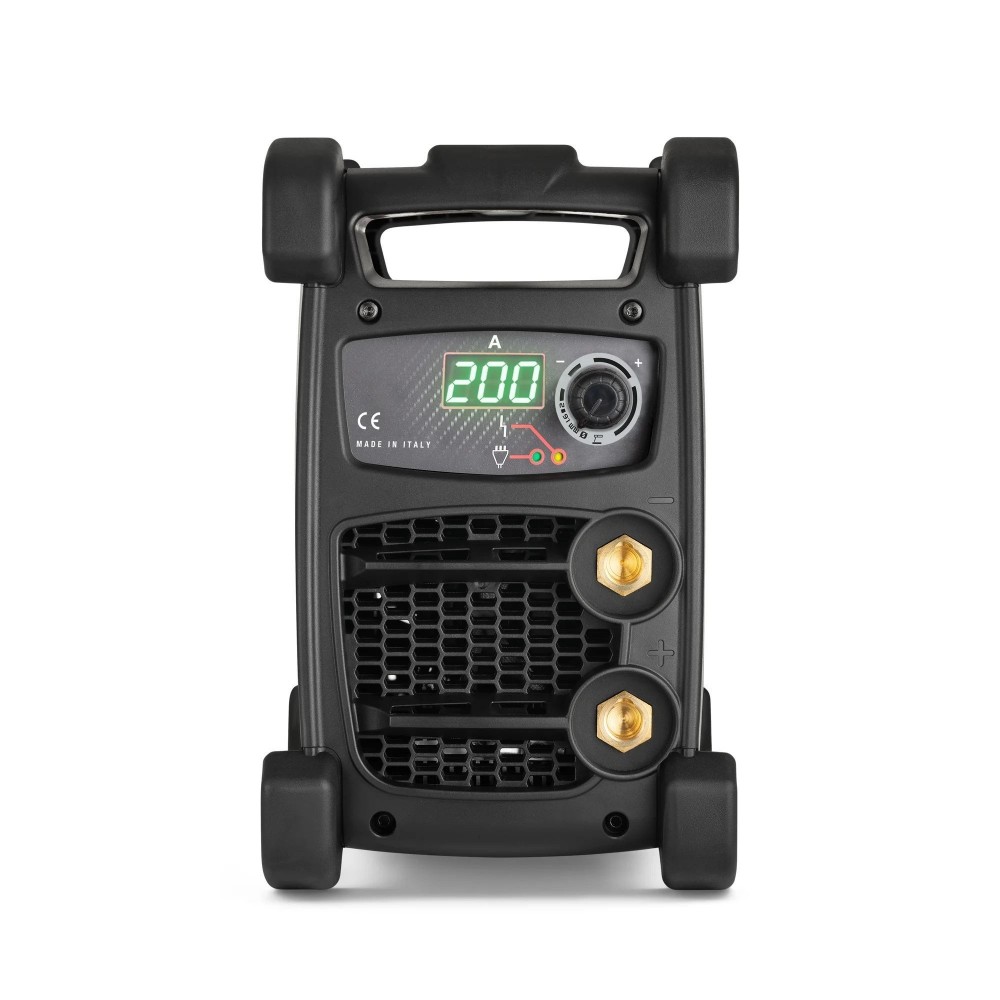

  • Digital Interface: The front display allows an immediate view of the welding current, facilitating precise and repeatable settings.

Smart Electronics and Versatility

  • Arc Control: Integrates advanced devices such as Arc Force, Hot Start and Anti-Stick , which improve arc stability, facilitate electrode striking and prevent it from sticking to the workpiece.
  • Welding Capacity: Allows the use of rutile, basic, stainless steel and cast iron electrodes with diameters from 1.6 to 4 mm with extreme fluidity.
  • Energy Efficiency: Achieves an efficiency of 89%, ensuring low consumption thanks to modern inverter technology.

Total Safety and Reliability

The machine guarantees high welding current stability even in the presence of mains voltage fluctuations. It is fully compatible with generators (tolerance ± 15%) and features thermostatic, overvoltage, undervoltage, and overcurrent protection.

Main Technical Specifications

  • Product code: 816259.
  • Current regulation range: 5 - 200 A.
  • Maximum current (EN60974-1): 200 @ 35% A.
  • Degree of protection: IP23.
  • Weight and Dimensions: 10.55 kg | 37.5 x 50 x 22 cm.

Accessories Included in the Kit

The product is supplied ready to use with the following professional accessories:

  • 25 mm² cable (3 m) with Atlas connector.
  • 25 mm² cable (2 m) with Atlas connector.
  • TOLEDO 300 mass clamp.
  • DALLAS 300 electrode holder (300A).
  • Aluminum case (dark gray color).
A leading Italian company in welding, plasma cutting and charging and starting systems. Professional solutions for workshops, body shops, construction sites and industry, featuring reliable, high-performance technologies.

TELWIN: ITALIAN WELDING TECHNOLOGY SINCE 1963

Telwin is a long-established Italian brand, specialising in inverter welders, plasma cutters and charging/starting systems for the professional sector. Its solutions are designed for high-intensity environments such as mechanical workshops, automotive workshops, body shops, construction sites and industrial maintenance, where precision and operational continuity are essential.

The range includes MIG/MAG, TIG, MMA, high-precision plasma cutting, smart battery chargers, digital starters and multifunction stations for body shops.

The various product lines are distinguished by power, duty cycle, inverter technology, portability and electronic protection systems, making them suitable for both fixed workstations and mobile applications.

Telwin is recognised for structural reliability, arc stability, certified safety and continuous innovation, supported by in-house research and technological development.

Professionals choose Telwin for consistent performance, weld bead quality, reduced processing times and operational continuity even under demanding conditions.
