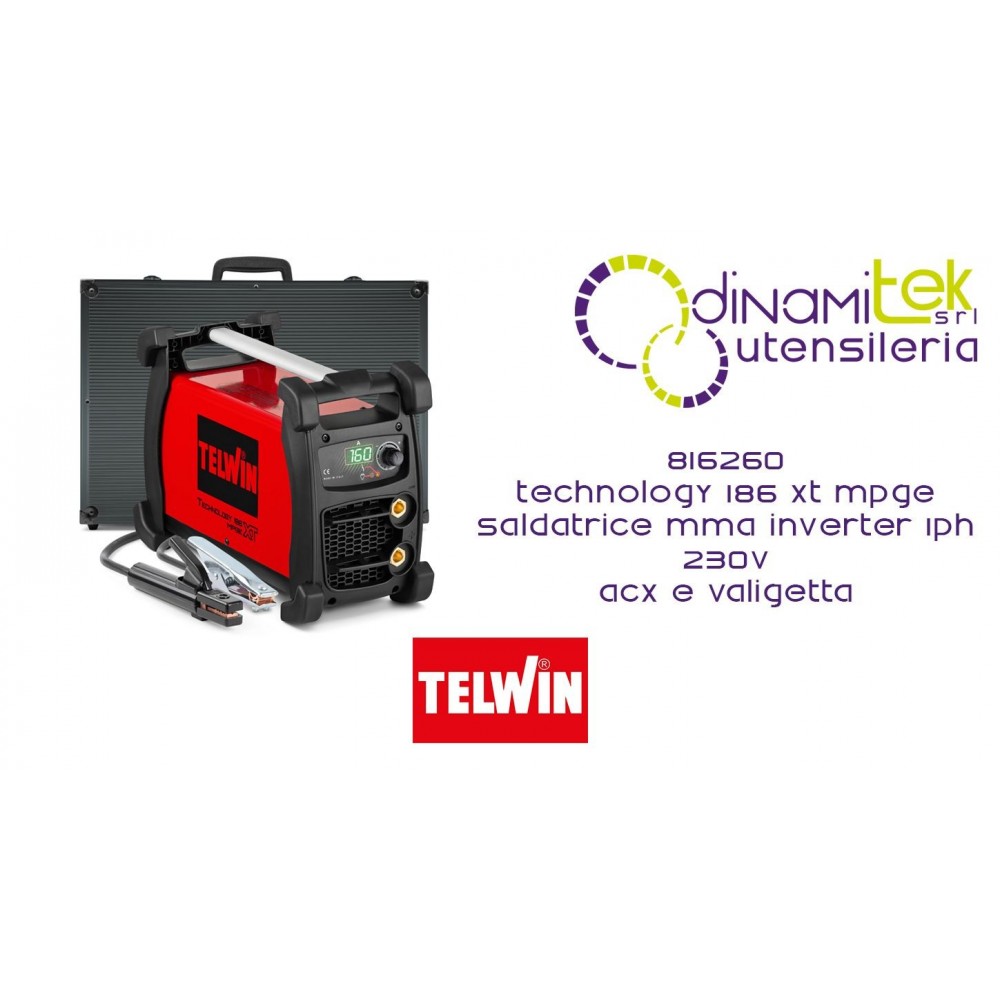

816260 TECHNOLOGY 186 XT MPGE MMA INVERTER WELDER 1PH 230V ACX AND CASE TELWIN

The power of the XT series in a complete kit, ready for any challenge on the construction site! The Telwin Technology 186 XT MPGE + Case (code 816260) is the 160A inverter welding system designed for those who work on the move and do not want to compromise on protection. Thanks to the MPGE device, this model is the specialist for use with motor generators, ensuring stability and safety against voltage surges. Extremely robust and compliant with "eXtra Tough" standards, it comes with a solid aluminum case and professional accessories, allowing you to handle electrodes up to 4 mm with maximum precision in both MMA and TIG DC-Lift.

Shipping cost: Free for
473,18 €
Tax included

387,86 € Tax excluded

Quantity
Available product, order it now.

Telwin Technology 186 XT MPGE: Maximum Protection and Mobility XT

Model 816260 is the full-featured configuration of the Technology 186 XT, a microprocessor-based inverter welder designed to operate in the most demanding environments. The XT acronym identifies the "eXtra Tough" series of Telwin, characterized by a reinforced, impact-resistant structure and superior ergonomics thanks to the metal handle .

MPGE Device: The Shield for Your Work

The MPGE (Multi Protection for Generator) system is a technological innovation essential for powering unstable sources. It ensures high performance through:

  • Waveform Control: For a consistently smooth arc.
  • Input surge filter: Protects internal circuitry from damaging surges.
  • Electronic stabilization: neutralizes mains voltage fluctuations.

Versatility and Advanced Control

The machine excels at MMA welding with rutile, basic, stainless steel, and cast iron electrodes, but also allows for precision TIG DC-Lift welding with scratch striking. The Arc Force, Hot Start, and Anti-Stick devices actively intervene to facilitate electrode striking and prevent sticking, ensuring professional results even for less experienced users.

Main Technical Specifications

  • Product code: 816260.
  • Power supply: 230 V single phase.
  • Current regulation range: 5 - 160 A.
  • Maximum current (EN 60974-1): 160 @ 35% A.
  • Ø MMA electrodes: from 1.6 to 4 mm.
  • Minimum generator power: 7 kW.
  • Degree of protection: IP23.

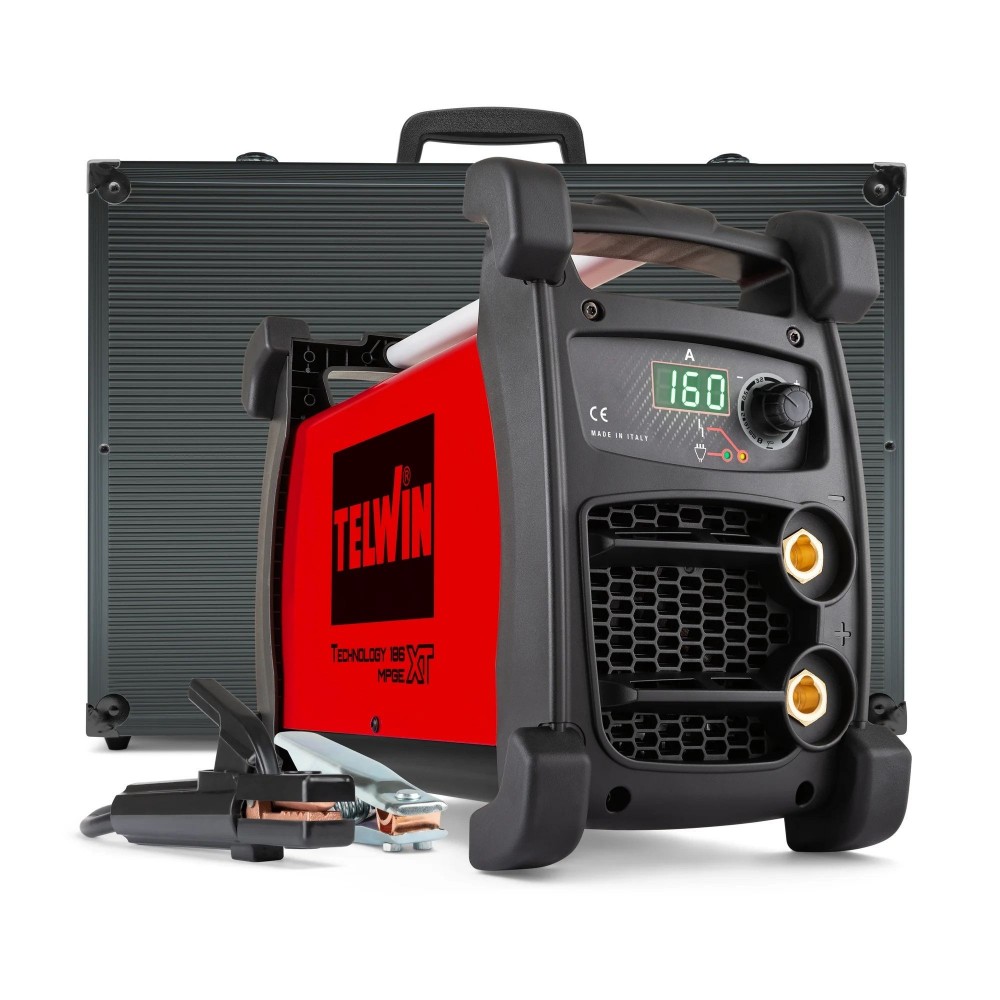

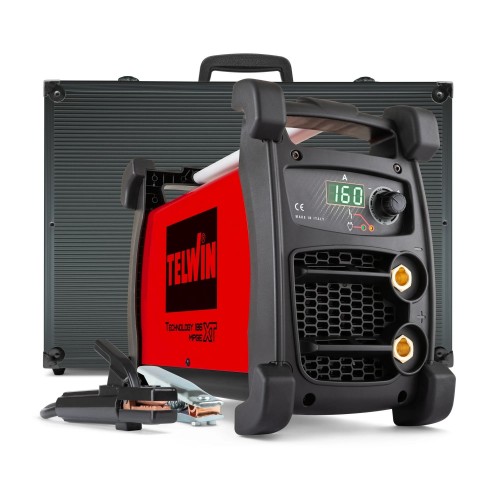

Complete Professional Equipment

This configuration comes ready to use with the following original Telwin components:

  • Generator: Technology 186 XT MPGE.
  • Ground clamp: Model Toledo 250A.
  • Electrode holder: Model Dallas 300A.
  • Welding cables: Atlas cable 50mm² (3m + 2m)].
  • Transport: Sturdy dark grey aluminium case.
A leading Italian company in welding, plasma cutting and charging and starting systems. Professional solutions for workshops, body shops, construction sites and industry, featuring reliable, high-performance technologies.

TELWIN: ITALIAN WELDING TECHNOLOGY SINCE 1963

Telwin is a long-established Italian brand, specialising in inverter welders, plasma cutters and charging/starting systems for the professional sector. Its solutions are designed for high-intensity environments such as mechanical workshops, automotive workshops, body shops, construction sites and industrial maintenance, where precision and operational continuity are essential.

The range includes MIG/MAG, TIG, MMA, high-precision plasma cutting, smart battery chargers, digital starters and multifunction stations for body shops.

The various product lines are distinguished by power, duty cycle, inverter technology, portability and electronic protection systems, making them suitable for both fixed workstations and mobile applications.

Telwin is recognised for structural reliability, arc stability, certified safety and continuous innovation, supported by in-house research and technological development.

Professionals choose Telwin for consistent performance, weld bead quality, reduced processing times and operational continuity even under demanding conditions.
