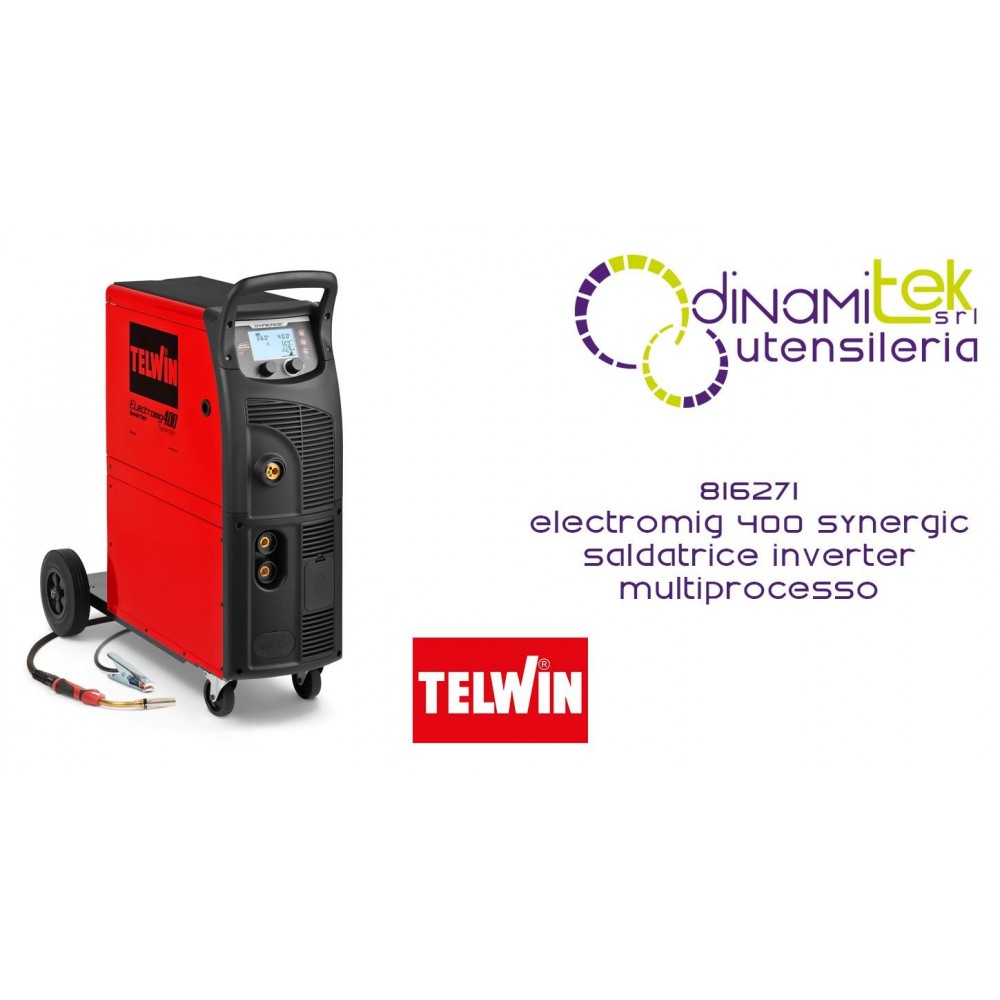

816271 ELECTROMIG 400 SYNERGIC MULTIPROCESS INVERTER WELDER TELWIN

Industrial Power and OneTouch Precision: The Ultimate Multi-Process Solution

The Electromig 400 Synergic is the multiprocess inverter welder (MIG-MAG/FLUX/BRAZING/MMA/TIG DC-Lift) designed for the most demanding industrial challenges. With a power of 400A and a 4-roller wire feed unit, it guarantees high performance and unprecedented ease of use thanks to OneTouch Synergy technology. Ideal for those seeking versatility on any material and thickness.

Shipping cost: Free for
2950,44 €
Tax included

2.418,39 € Tax excluded

Quantity
Available product, order it now.

Versatility and Advanced Control for Metal Carpentry

The Telwin Electromig 400 Synergic represents technological excellence in multi-process welding. Thanks to its flexibility for use with various materials (steel, stainless steel, aluminum, galvanized sheet metal) and its large LCD display, it is the ideal tool for industrial settings, installations, and mechanical construction.

Exclusive Benefits and Technologies

  • OneTouch Synergy: Simply set the material thickness to automatically adjust the parameters. Includes 40 preset synergy curves.
  • ATC (Advanced Thermal Control) technology: Facilitates welding on thin thicknesses, ensuring perfect seams and reducing sheet metal deformations.
  • Integrated 4-Roller Wire Feeder: Ensures smooth and precise wire feed, essential for spools up to 15kg.
  • Energy Efficiency: High efficiency (89%) with optimised consumption.

Fields of Application and Examples of Use

This machine is designed for intensive work cycles in:

  • Heavy Industry and Carpentry: Thanks to the adjustment range 20 - 400 A and compatibility with electrodes up to 8 mm.
  • Maintenance and Assembly: Robust and shock-resistant structure with IP23 protection rating].
  • Precision Machining: Brazing of galvanized sheet metal in automotive repair and stainless steel machining.

Complete Technical Table

Technical Data Value
Product Code 816271
Three-Phase Mains Voltage 230 / 400 V
Network Frequency 50 / 60 Hz
Max DC Current (EN60974-1) 400 @ 30% A
DC Current Regulation Range 20 - 400 A
Current at 60% / 100% DC 270 A / 210 A
Max Absorbed Current 25 A
Max DC Open Circuit Voltage 73 V
Gamma V Out MIG 9 - 34 V
Max Absorbed Power 16.5 kW
Mains Fuse 16 A
Efficiency / Power Factor 89% / 0.9
MMA Electrode Diameter 1.6 - 8 mm
Type of Towing Integrated (4 reels)
Wire Speed Range 1.5 - 20 m/min
Degree of Protection / Regulation IP23 / EN 60974-1 /-5 /-10

Wire Diameter Compatibility

  • Steel: 0.6 - 1.6 mm
  • Stainless steel: 0.8 - 1.6 mm
  • Aluminum: 0.8 - 1.6 mm
  • Animated (Flux): 0.8 - 1.2 mm
  • Brazing (CuSi3/CuAl8): 0.8 - 1.2 mm

Dimensions and Weight

  • Dimensions (LxWxH): 86.5 x 39 x 91.5 cm
  • Weight: 42 kg
  • Power cable length: 2.50 m

Equipment Included

The system is supplied ready to use with MIG-MAG torch MT36 (3 meters), cable and earth clamp.
A leading Italian company in welding, plasma cutting and charging and starting systems. Professional solutions for workshops, body shops, construction sites and industry, featuring reliable, high-performance technologies.

TELWIN: ITALIAN WELDING TECHNOLOGY SINCE 1963

Telwin is a long-established Italian brand, specialising in inverter welders, plasma cutters and charging/starting systems for the professional sector. Its solutions are designed for high-intensity environments such as mechanical workshops, automotive workshops, body shops, construction sites and industrial maintenance, where precision and operational continuity are essential.

The range includes MIG/MAG, TIG, MMA, high-precision plasma cutting, smart battery chargers, digital starters and multifunction stations for body shops.

The various product lines are distinguished by power, duty cycle, inverter technology, portability and electronic protection systems, making them suitable for both fixed workstations and mobile applications.

Telwin is recognised for structural reliability, arc stability, certified safety and continuous innovation, supported by in-house research and technological development.

Professionals choose Telwin for consistent performance, weld bead quality, reduced processing times and operational continuity even under demanding conditions.
