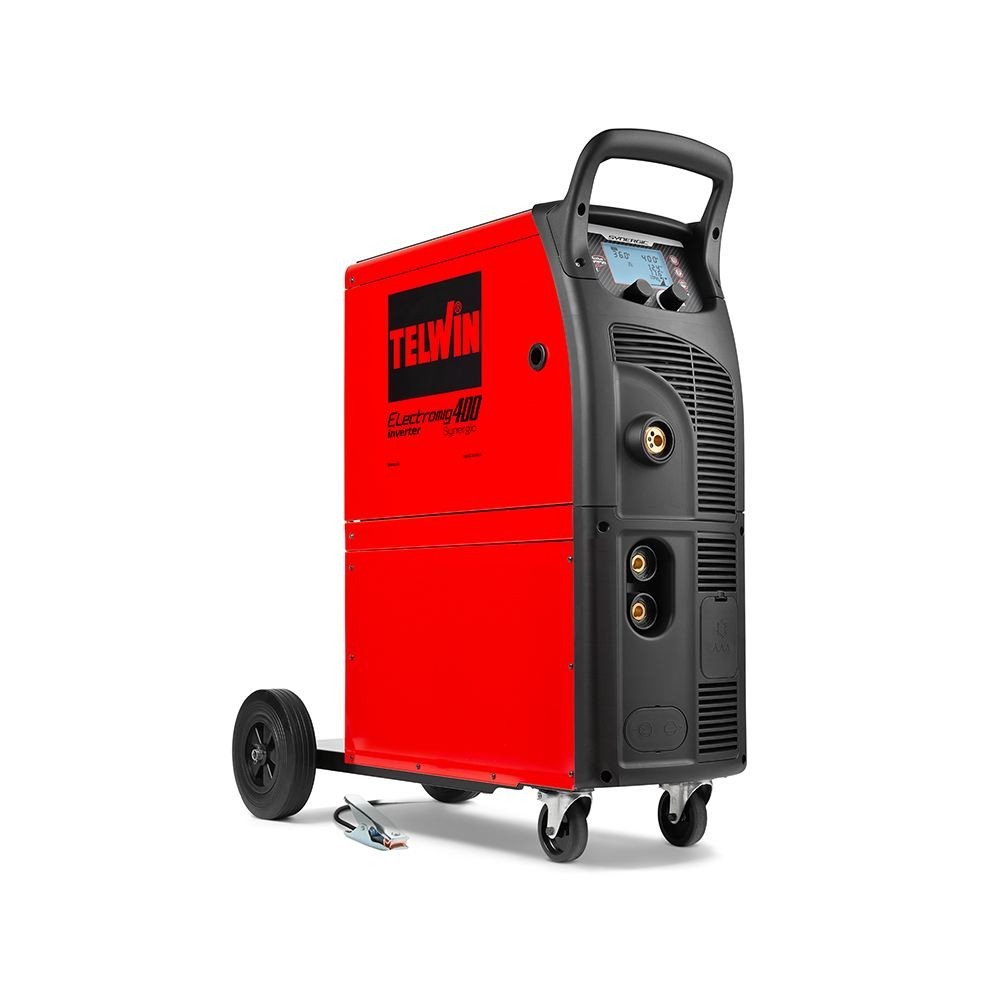

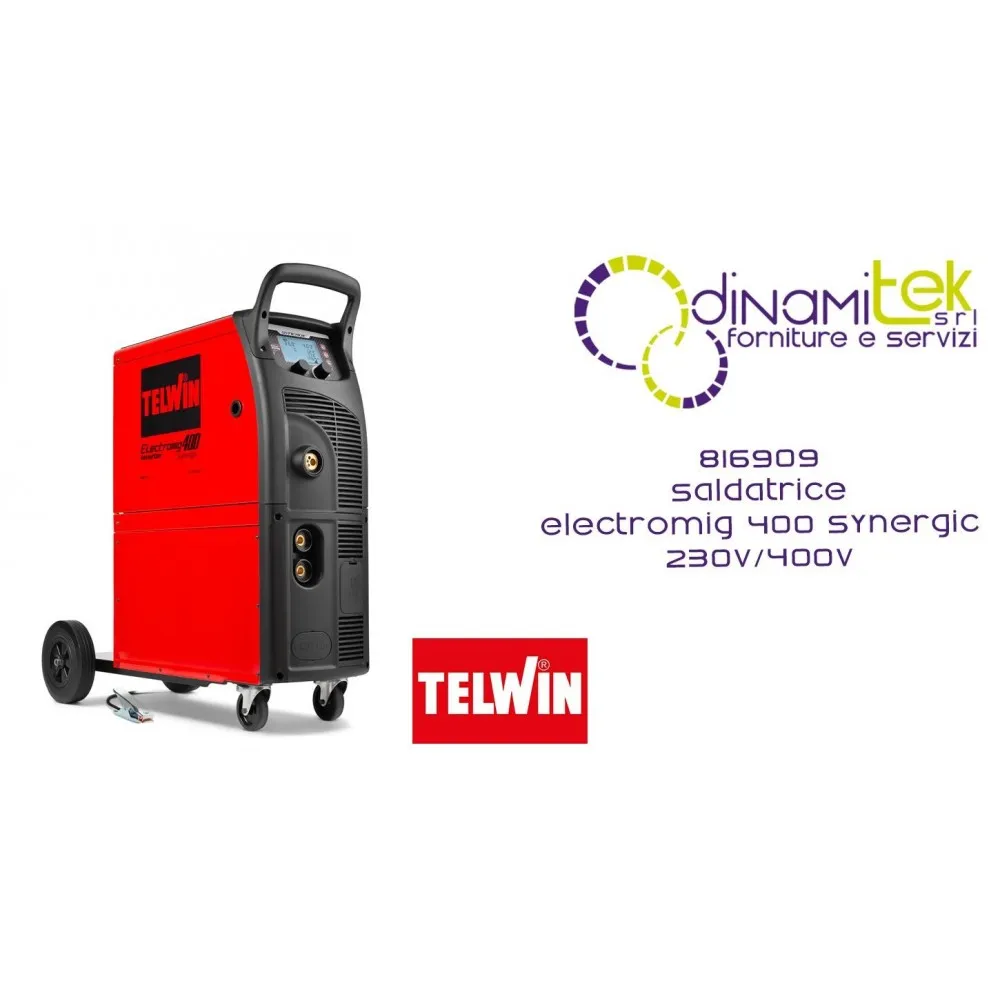

816909 ELECTROMIG 400 SYNERGIC 230V-400V WELDING MACHINE TELWIN

Extreme power and industrial flexibility for the most demanding welding challenges! The Telwin Electromig 400 Synergic Base (code 816909) is the 400A multi-process inverter power source designed to guarantee superior performance in industrial and heavy carpentry environments. Thanks to One Touch Synergy technology and 40 preset synergic curves, configuration is immediate and precise on any material. Equipped with a robust 4-roller wire feeder and flexible three-phase power supply (230V/400V), this trolley-mounted machine offers total control of the arc and impeccable results even on thin thicknesses thanks to ATC technology.

Shipping cost: €50.00 for
2839,1 €
Tax included

2.327,13 € Tax excluded

Quantity
Available product, order it now.

Telwin Electromig 400 Synergic Base: Multiprocess Excellence for Industry

The Electromig 400 Synergic Base represents a technologically advanced solution for professionals working in sectors such as installation, maintenance, and metal construction. This three-phase inverter system allows for maximum efficiency in MIG-MAG, MMA, TIG DC-Lift, and brazing, adapting with extreme flexibility to various materials (steel, stainless steel, aluminum, and galvanized sheet metal).

Intelligent Control and ATC Technology

  • OneTouch Synergic Adjustment: The system dramatically simplifies the operator's work. Once the material thickness is set, the machine automatically calibrates all welding parameters, while still allowing manual adjustments to customize the bead shape.
  • Advanced Thermal Control (ATC): This exclusive Telwin technology ensures excellent welds on thin thicknesses, reducing heat input and minimizing workpiece deformations.
  • 4-Roller Wire Feeder: The integrated wire feeder unit ensures smooth and consistent wire feed, essential for using wires up to 1.6 mm in intensive work cycles.

Power Flexibility and Safety

The machine stands out for its ability to operate with dual three-phase mains voltage (230V or 400V), delivering a maximum current of 400A (at 30%) at 400V. The LCD graphic display allows for clear reading of all parameters in real time, while the trolley structure facilitates movement in the workshop.

Main Technical Data

  • Product code: 816909.
  • Current regulation range (400V): 20 - 400 A.
  • Usable wire diameter: Steel (0.6-1.6mm), Stainless steel (0.8-1.6mm), Aluminium (0.8-1.6mm).
  • Dimensions and Weight: 86.5 x 39 x 91.5 cm | 42 kg.
  • Degree of protection: IP23.

Accessories Included in the BASIC Version

  • 4R drive roller for 0.6-0.8-0.9 mm wires.
  • Flashlight hanging hook.
  • Ground clamp complete with 35mm² cable (3 meters).
A leading Italian company in welding, plasma cutting and charging and starting systems. Professional solutions for workshops, body shops, construction sites and industry, featuring reliable, high-performance technologies.

TELWIN: ITALIAN WELDING TECHNOLOGY SINCE 1963

Telwin is a long-established Italian brand, specialising in inverter welders, plasma cutters and charging/starting systems for the professional sector. Its solutions are designed for high-intensity environments such as mechanical workshops, automotive workshops, body shops, construction sites and industrial maintenance, where precision and operational continuity are essential.

The range includes MIG/MAG, TIG, MMA, high-precision plasma cutting, smart battery chargers, digital starters and multifunction stations for body shops.

The various product lines are distinguished by power, duty cycle, inverter technology, portability and electronic protection systems, making them suitable for both fixed workstations and mobile applications.

Telwin is recognised for structural reliability, arc stability, certified safety and continuous innovation, supported by in-house research and technological development.

Professionals choose Telwin for consistent performance, weld bead quality, reduced processing times and operational continuity even under demanding conditions.



816909
