816230 TECHNOLOGY 186 XT MPGE MMA INVERTER WELDER 1PH 230V TELWIN

The strength of the XT range meets MPGE protection for limitless performance, even with a generator! The Telwin Technology 186 XT MPGE (code 816230) is the 160A inverter welder designed to tackle the toughest jobs. Extremely robust and impact-resistant, it easily handles electrodes up to 4 mm thanks to the advanced arc control devices (Arc Force, Hot Start, Anti-Stick). Its real strong point is the MPGE system, which makes it the ideal tool for those working with unstable power supplies or generators, guaranteeing total protection and excellent welding stability in both MMA and TIG DC.

Shipping cost: Free for
389,68 €
Tax included

319,41 € Tax excluded

Quantity
Available product, order it now.

Telwin Technology 186 XT MPGE: Multiprocess Power and EnduranceXT

The Technology 186 XT MPGE is a microprocessor-based inverter welding station that combines the versatility of multiprocess (MMA and TIG DC-Lift) with an "eXtra Tough" structure, designed to withstand the impacts and stresses typical of industrial environments and construction sites. With an efficiency of 90% , it offers professional performance while maintaining low energy consumption.

MPGE Protection for Unstable Power Supplies

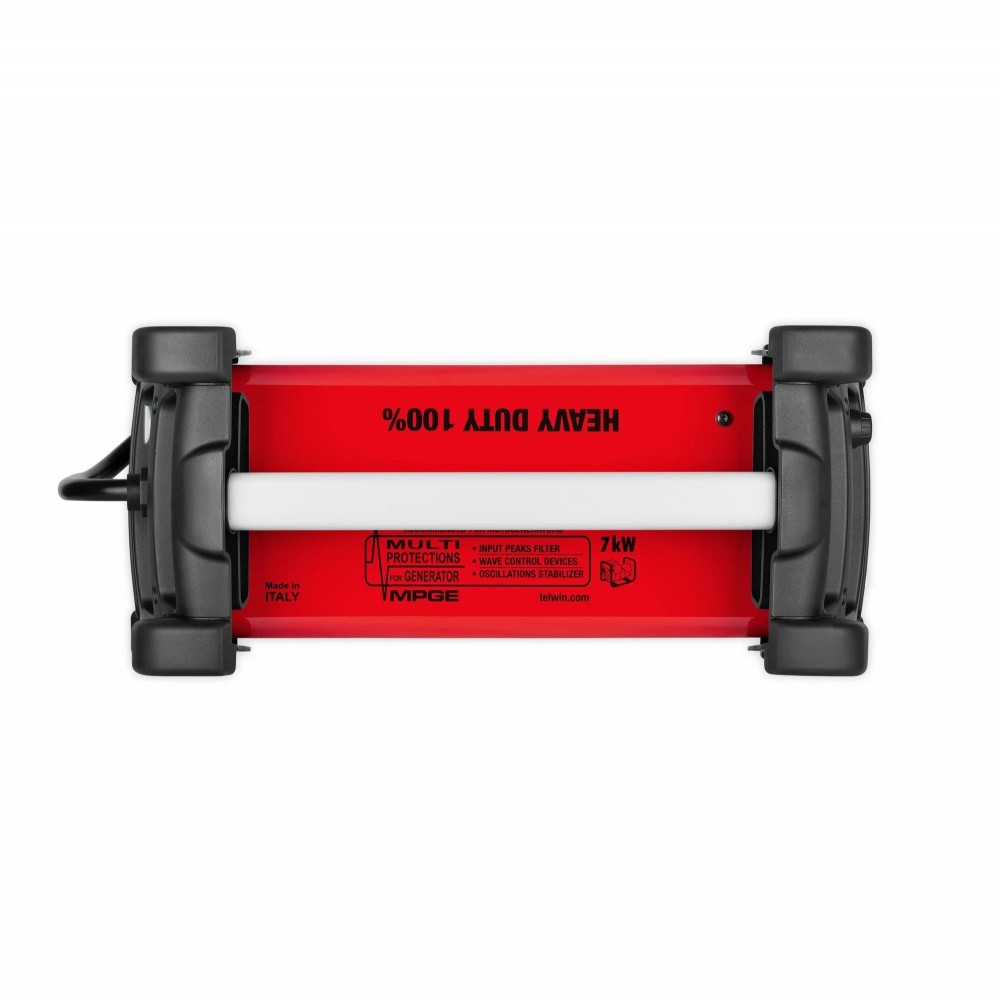

The MPGE (Multi Protection for Generator) device is essential for those who operate with unstable power supplies or via motor generators [1, 2]. This system guarantees high performance thanks to:

  • Waveform Control: Keeps the arc smooth and stable despite voltage variations.
  • Input Surge Filter: Protects internal components from damaging surges.
  • Oscillation stabilization: ensures constant welding current for uniform seams.

Advanced Bow Control

To ensure high-quality welding on various materials such as steel, stainless steel and cast iron, the machine is equipped with:

  • Arc Force, Hot Start and Anti-Stick: devices that facilitate electrode ignition and prevent it from sticking, improving arc dynamics.
  • Electrode Flexibility: Supports rutile, basic, stainless steel and cast iron electrodes with diameters from 1.6 up to 4 mm .
  • TIG DC-Lift: allows TIG welding with scratch striking in direct current, ideal for maintenance and finishing work.

Ergonomics and Portability

Despite its 160A power, the generator is compact and easily transportable thanks to its sturdy metal handle and light weight. It features a practical digital display for instant current readings and 50mm quick-connect connectors for secure cable connections.

Main Technical Specifications

  • Product code: 816230.
  • Power supply: 230 V single phase.
  • Maximum current (EN 60974-1): 160 @ 35% A.
  • Current regulation range: 5 - 160 A.
  • Minimum generator power: 7 kW].
  • Dimensions and Weight: 42 x 18.2 x 29.2 cm | 6.52 kg.
  • Degree of protection: IP23.
A leading Italian company in welding, plasma cutting and charging and starting systems. Professional solutions for workshops, body shops, construction sites and industry, featuring reliable, high-performance technologies.

TELWIN: ITALIAN WELDING TECHNOLOGY SINCE 1963

Telwin is a long-established Italian brand, specialising in inverter welders, plasma cutters and charging/starting systems for the professional sector. Its solutions are designed for high-intensity environments such as mechanical workshops, automotive workshops, body shops, construction sites and industrial maintenance, where precision and operational continuity are essential.

The range includes MIG/MAG, TIG, MMA, high-precision plasma cutting, smart battery chargers, digital starters and multifunction stations for body shops.

The various product lines are distinguished by power, duty cycle, inverter technology, portability and electronic protection systems, making them suitable for both fixed workstations and mobile applications.

Telwin is recognised for structural reliability, arc stability, certified safety and continuous innovation, supported by in-house research and technological development.

Professionals choose Telwin for consistent performance, weld bead quality, reduced processing times and operational continuity even under demanding conditions.
