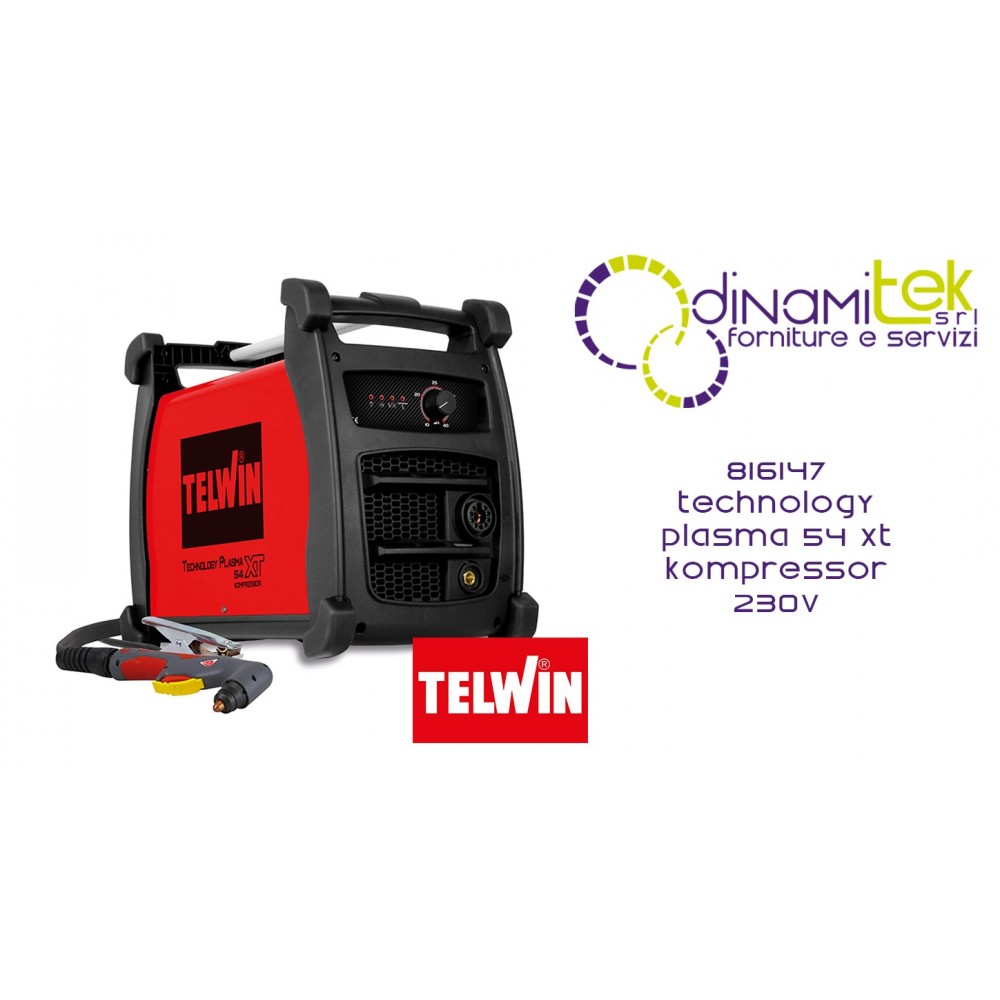

816147 TECHNOLOGY PLASMA 54 XT KOMPRESSOR 230V TELWIN Dinamitek 1
  • 816147 TECHNOLOGY PLASMA 54 XT KOMPRESSOR 230V TELWIN Dinamitek 1

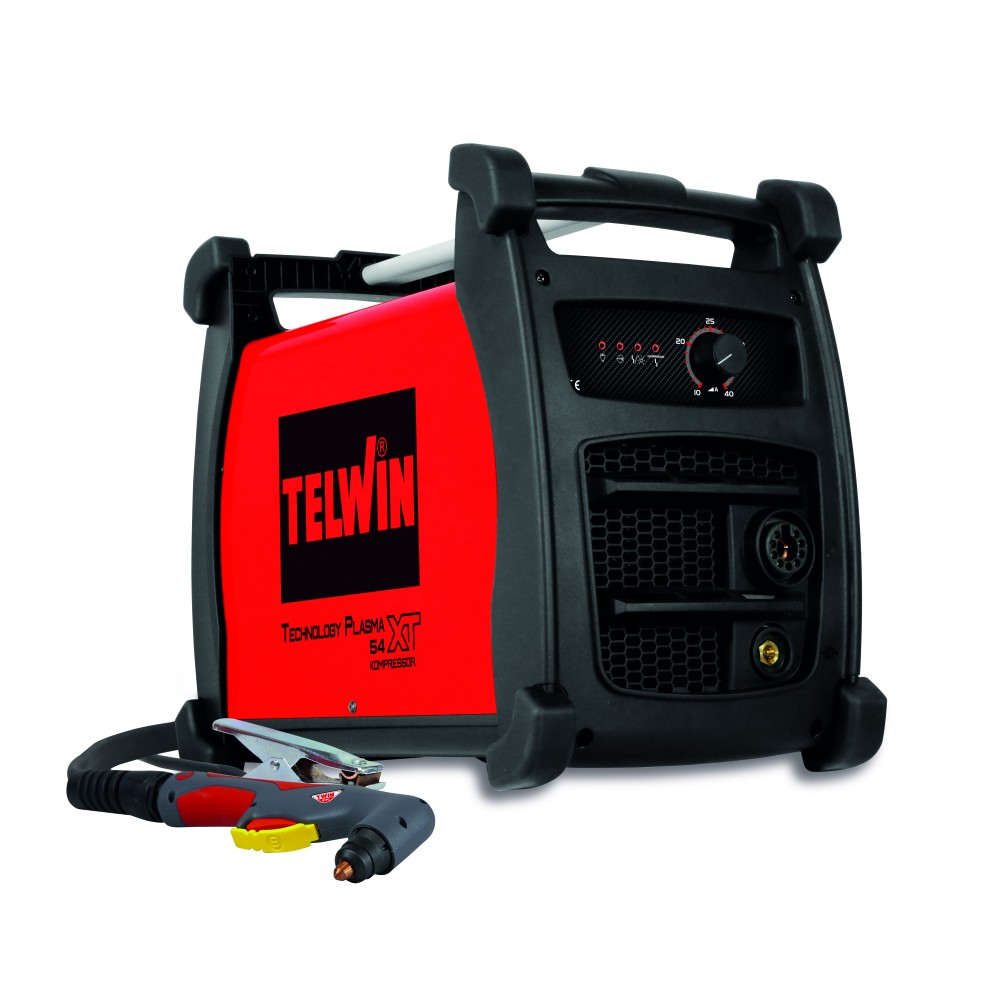

  • 816147 TECHNOLOGY PLASMA 54 XT KOMPRESSOR 230V TELWIN Dinamitek 2

816147 TECHNOLOGY PLASMA 54 XT KOMPRESSOR 230V 1PH PLASMA CUTTING TELWIN

TECHNOLOGY PLASMA 54 XT KOMPRESSOR 230V

Shipping cost: Free for
1223 €
Tax included

1.002,46 € Tax excluded

Quantity
Available product, order it now.


TECHNOLOGY PLASMA 54 XT K 230V
code 816147
Compressed air plasma cutting inverter system, with contact ignition of the pilot arc.
It allows fast cutting without deformation of all conductive materials such as steel, stainless steel, galvanized steel, aluminum, copper, brass, etc.
The model is equipped with a compressor and does not require connection to an external compressed air source.
Characteristics:
- robust and shock resistant;
- reduced weight and size;
- signaling of presence of voltage in torch, protections;
- consumables change notification;
- automatic torch cooling;
- thermostatic, overvoltage, undervoltage, overcurrent, air lack protections.
Complete with PK torch.
1 PH 230V
CONTACT TRIGGER
CE MARKING
EAC CERTIFICATION

CODE 816147
16 A MAINS FUSE
SINGLE-PHASE MAINS VOLTAGE 230 V
YIELD 82%
MAINS FREQUENCY 50 / 60 Hz
POWER FACTOR (cosphi) 0.7
CURRENT REGULATION RANGE 10 - 40 A
MAXIMUM CUTTING THICKNESS 12 mm
MAX CURRENT (EN 60974-1)35 @ 30 % A
PROTECTION DEGREE IP23
MAX NO LOAD VOLTAGE 313 V
DIMENSIONS 47 x 26 x 37.8 cm
MAXIMUM ABSORBED CURRENT 27.5 A
WEIGHT 17.8 kg
MAX ABSORBED POWER 4.5 kW
A leading Italian company in welding, plasma cutting and charging and starting systems. Professional solutions for workshops, body shops, construction sites and industry, featuring reliable, high-performance technologies.

TELWIN: ITALIAN WELDING TECHNOLOGY SINCE 1963

Telwin is a long-established Italian brand, specialising in inverter welders, plasma cutters and charging/starting systems for the professional sector. Its solutions are designed for high-intensity environments such as mechanical workshops, automotive workshops, body shops, construction sites and industrial maintenance, where precision and operational continuity are essential.

The range includes MIG/MAG, TIG, MMA, high-precision plasma cutting, smart battery chargers, digital starters and multifunction stations for body shops.

The various product lines are distinguished by power, duty cycle, inverter technology, portability and electronic protection systems, making them suitable for both fixed workstations and mobile applications.

Telwin is recognised for structural reliability, arc stability, certified safety and continuous innovation, supported by in-house research and technological development.

Professionals choose Telwin for consistent performance, weld bead quality, reduced processing times and operational continuity even under demanding conditions.
