816145 INFINITY PLASMA 40 230V 1PH PLASMA CUTTING TELWIN

INFINITY PLASMA 40 230V

Shipping cost: Free for
659 €
Tax included

540,16 € Tax excluded

Quantity
Available product, order it now.


INFINITY PLASMA 40 230V
code 816145

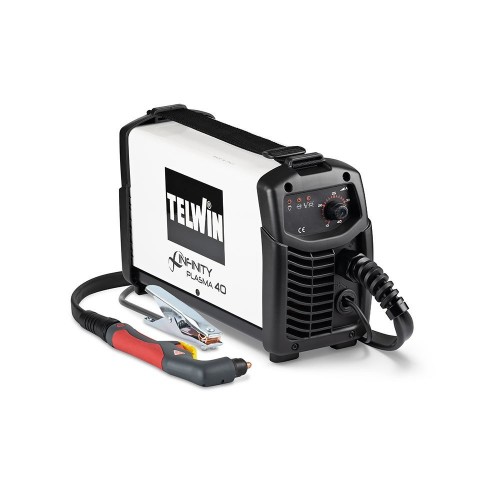

Compressed air plasma cutting inverter system, with contact ignition of the pilot arc.
It allows fast cutting without deformation of all conductive materials such as steel, stainless steel, galvanized steel, aluminum, copper, brass, etc.
Characteristics:
- reduced weight and size;
- signaling of presence of voltage in torch, protections;
- automatic torch cooling;
- consumables change notification;
- air pressure display;
- thermostatic, overvoltage, undervoltage, overcurrent protection.
Complete with torch.
1 PH 230V
CONTACT TRIGGER
CE MARKING
EAC CERTIFICATION

CODE 816145
POWER FACTOR (cosphi) 0.7
SINGLE-PHASE MAINS VOLTAGE 230 V
MAXIMUM CUTTING THICKNESS 15 mm
MAINS FREQUENCY 50 / 60 Hz
COMPRESSED AIR FLOW RATE 100 l/min
CURRENT REGULATION RANGE 10 - 40 A
COMPRESSED AIR PRESSURE 4 - 5 bar
MAX CURRENT (EN 60974-1)40 @ 20 % A
PROTECTION DEGREE IP23
MAX NO LOAD VOLTAGE 313 V
DIMENSIONS 55 x 14.5 x 24 cm
MAXIMUM ABSORBED CURRENT 29 A
WEIGHT 6.48 kg
MAX ABSORBED POWER 4 kW
EAN CODE 8056151812476
16 A MAINS FUSE
YIELD 85%
A leading Italian company in welding, plasma cutting and charging and starting systems. Professional solutions for workshops, body shops, construction sites and industry, featuring reliable, high-performance technologies.

TELWIN: ITALIAN WELDING TECHNOLOGY SINCE 1963

Telwin is a long-established Italian brand, specialising in inverter welders, plasma cutters and charging/starting systems for the professional sector. Its solutions are designed for high-intensity environments such as mechanical workshops, automotive workshops, body shops, construction sites and industrial maintenance, where precision and operational continuity are essential.

The range includes MIG/MAG, TIG, MMA, high-precision plasma cutting, smart battery chargers, digital starters and multifunction stations for body shops.

The various product lines are distinguished by power, duty cycle, inverter technology, portability and electronic protection systems, making them suitable for both fixed workstations and mobile applications.

Telwin is recognised for structural reliability, arc stability, certified safety and continuous innovation, supported by in-house research and technological development.

Professionals choose Telwin for consistent performance, weld bead quality, reduced processing times and operational continuity even under demanding conditions.



816145
