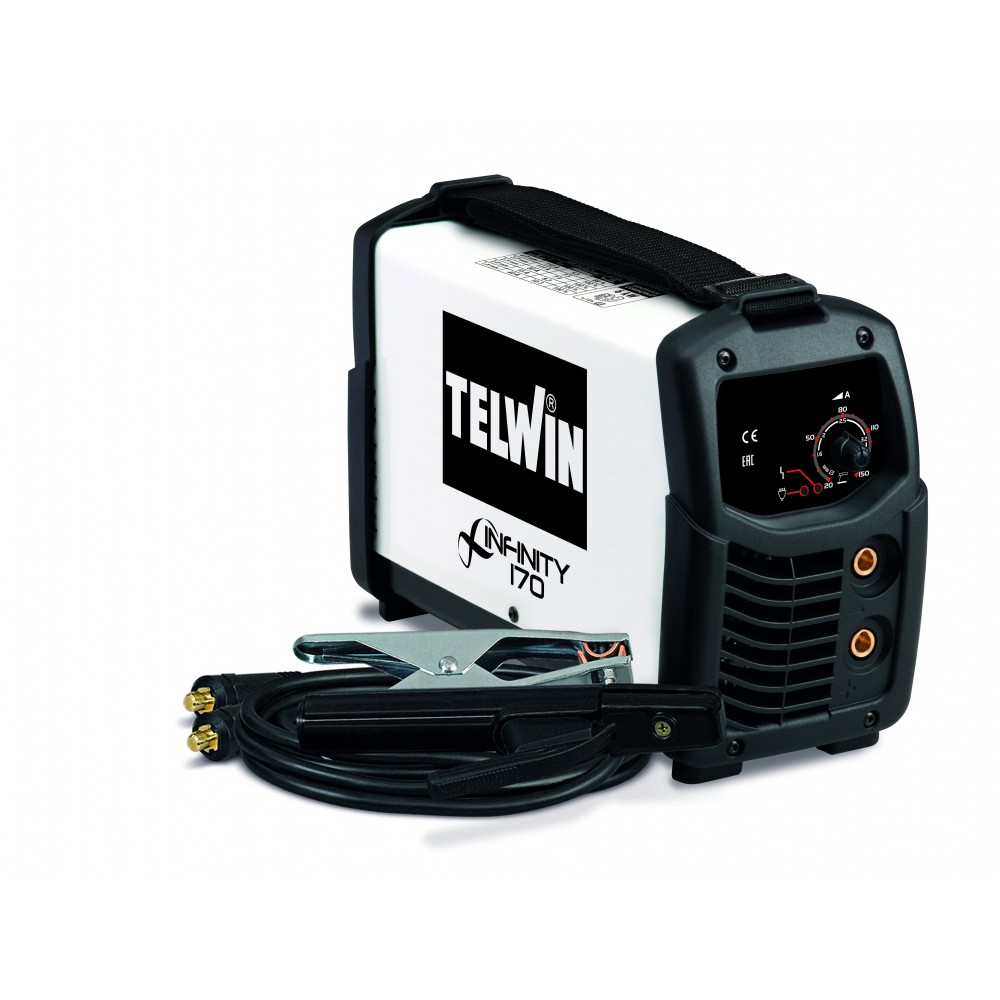

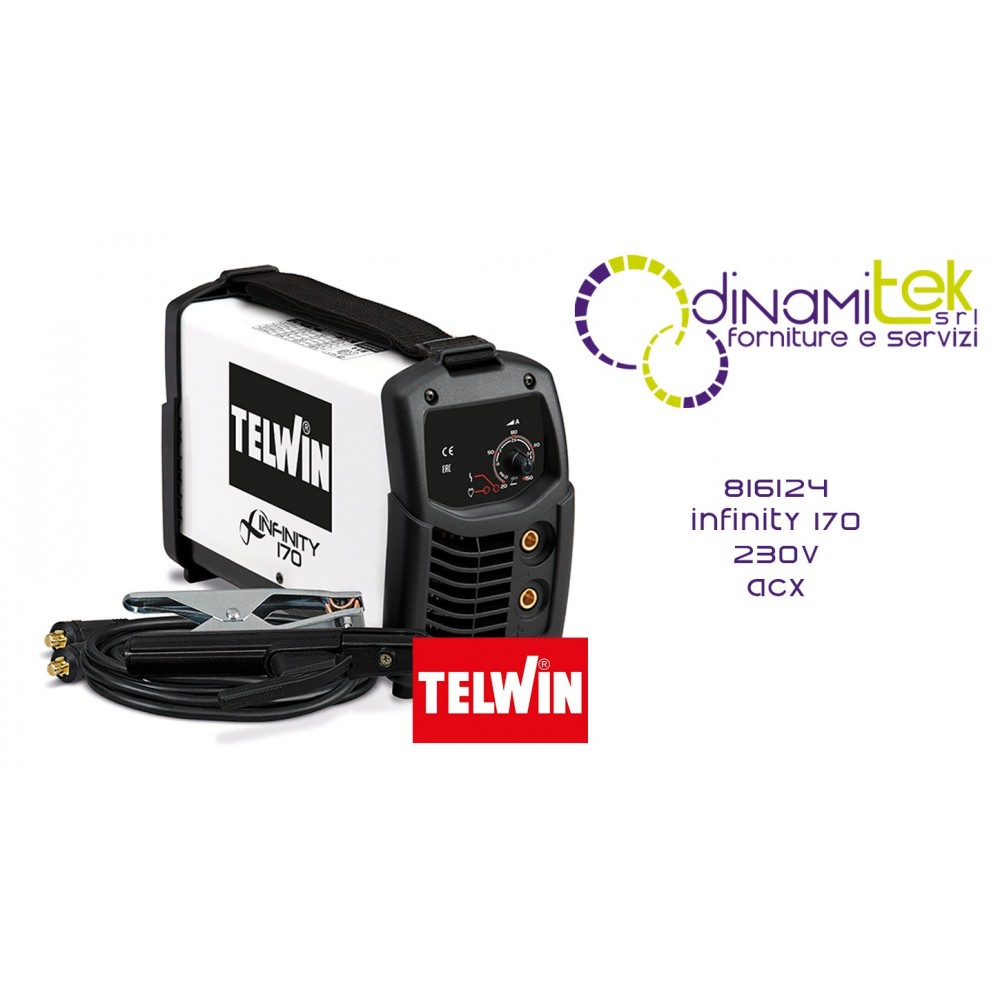

INFINITY 170 230V ACX MMA INVERTER 1PH WELDER TELWIN

INFINITY 170 WELDER 230V ACC.

Shipping cost: Gratis for
262 €
Tax included

214,75 € Tax excluded

Quantity
Available product, order it now.


INFINITY 170 230V ACC.
code 816124
MMA and TIG electrode inverter welder in direct current (DC) with scratch striking.
Flexibility of use with the most varied types of electrodes: rutile, basic, stainless steel, cast iron, etc.
Characteristics:
- compact and lightweight
- high stability of the welding current in the event of variations in the supply voltage
- arc force, hot start, anti-stick devices
- thermostatic, overvoltage, undervoltage, overcurrent, motor generator protection (+/- 15%).
Complete with welding accessories.
MMA DC
CE MARKING
1 PH 230V
EAC CERTIFICATION

CABLE 16 MMQ 1.8 M - ATLAS PLUG 25 124508
DALLAS 300 ELECTRODE HOLDER CLAMP 300A 712260
TOLEDO 250 GROUND CLAMP 250A 712030

CODE 816124
MINIMUM POWER OF MOTOR GENERATOR 6 kW
SINGLE-PHASE MAINS VOLTAGE 230 V
16 A MAINS FUSE
MAINS FREQUENCY 50 / 60 Hz
YIELD 87%
CURRENT REGULATION RANGE 20 - 150 A
POWER FACTOR (cosphi) 0.7
MAX DC CURRENT (EN 60974-1)140 @ 25 % A
D. ELECTRODES USABLE IN DC 1.6 - 4 mm
DC CURRENT 80 A
PROTECTION DEGREE IP23
MAX NO LOAD VOLTAGE 75 V
DIMENSIONS 35.5 x 14.5 x 24 cm
MAXIMUM ABSORBED CURRENT 28 A
WEIGHT 4.94 kg
CURRENT ABSORBED AT 60% - MAX 14 A
EAN CODE 800489712224 3
MAX ABSORBED POWER 4.5 kW
PIECES / PALLET 56 pcs/pallet
POWER CONSUMPTION AT 60% 2 kW
PIECES / PALLET - B48 pieces/pallet B
A leading Italian company in welding, plasma cutting and charging and starting systems. Professional solutions for workshops, body shops, construction sites and industry, featuring reliable, high-performance technologies.

TELWIN: ITALIAN WELDING TECHNOLOGY SINCE 1963

Telwin is a long-established Italian brand, specialising in inverter welders, plasma cutters and charging/starting systems for the professional sector. Its solutions are designed for high-intensity environments such as mechanical workshops, automotive workshops, body shops, construction sites and industrial maintenance, where precision and operational continuity are essential.

The range includes MIG/MAG, TIG, MMA, high-precision plasma cutting, smart battery chargers, digital starters and multifunction stations for body shops.

The various product lines are distinguished by power, duty cycle, inverter technology, portability and electronic protection systems, making them suitable for both fixed workstations and mobile applications.

Telwin is recognised for structural reliability, arc stability, certified safety and continuous innovation, supported by in-house research and technological development.

Professionals choose Telwin for consistent performance, weld bead quality, reduced processing times and operational continuity even under demanding conditions.
