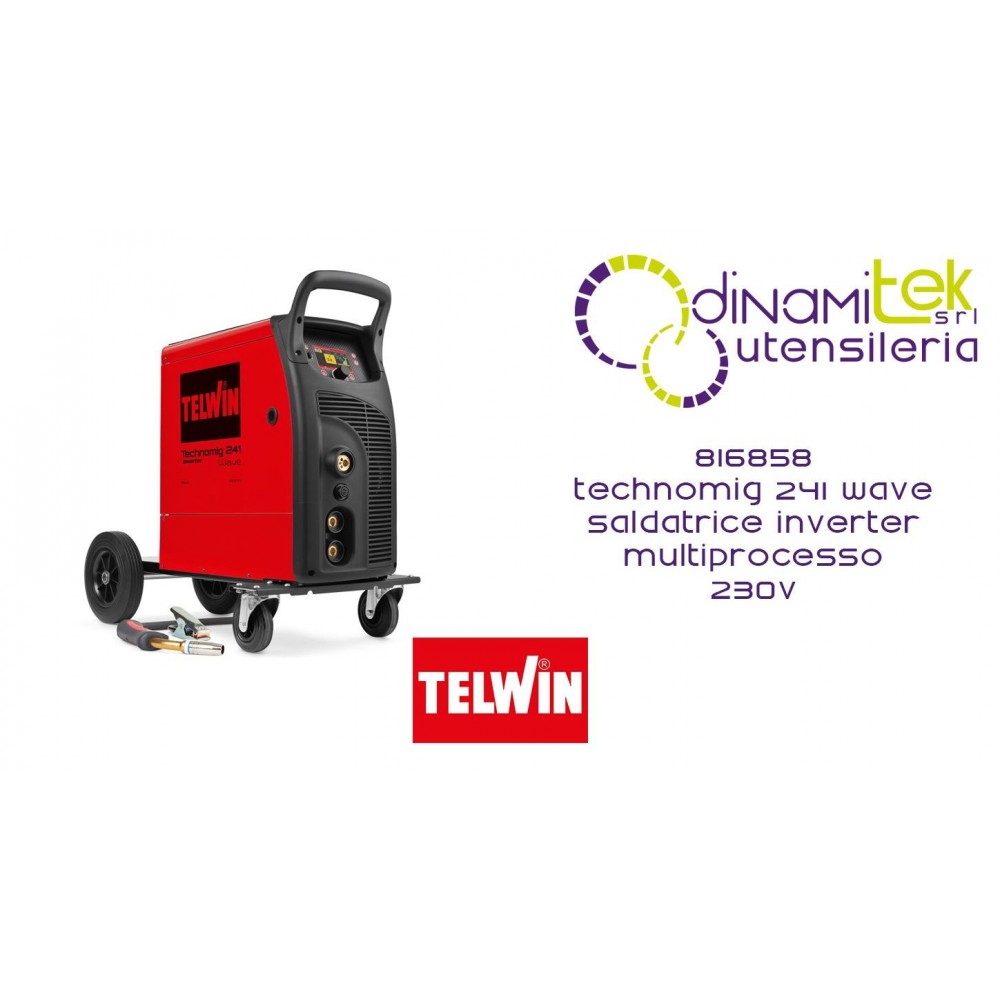

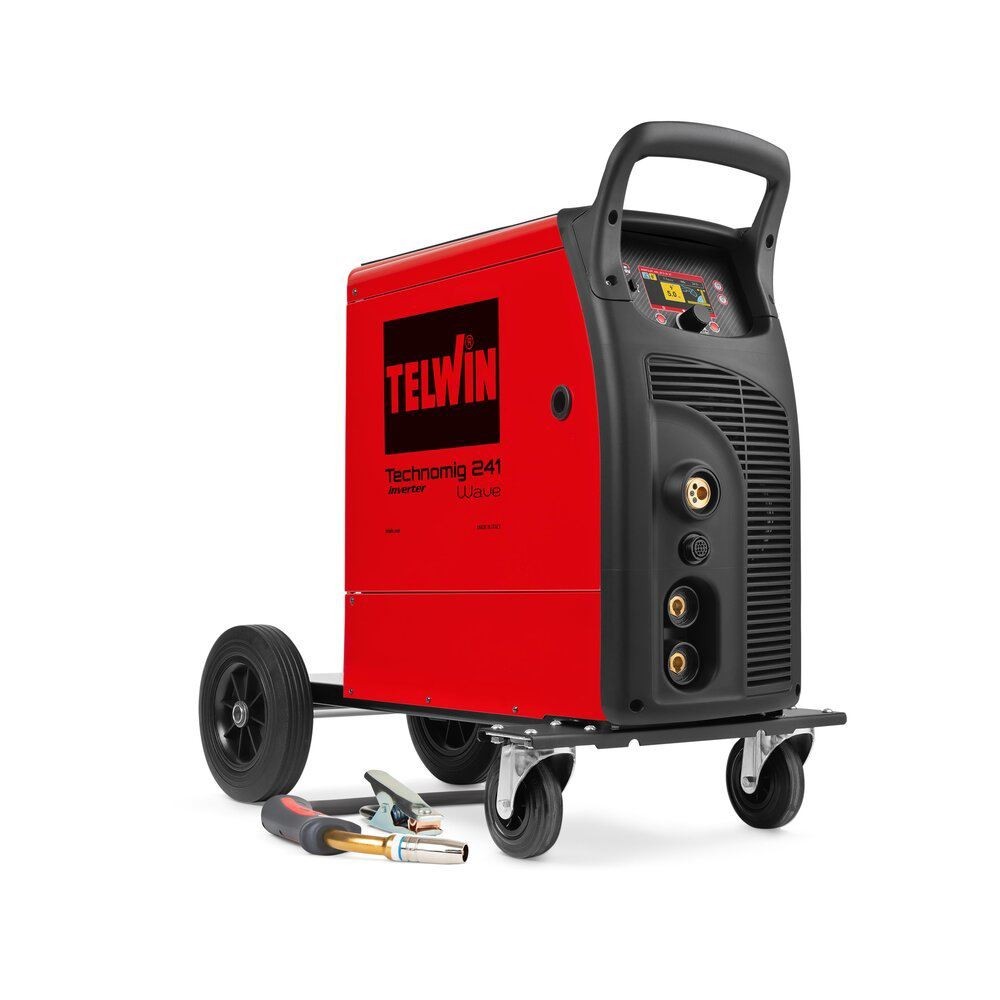

816858 TECHNOMIG 241 WAVE MULTI-PROCESS INVERTER WELDER 230V TELWIN

The intelligence of the Wave OS system applied to maximum multi-process versatility! The Telwin Technomig 241 Wave (code 816858) is the 220A inverter welder designed to bring your workshop into the era of Industry 4.0. Thanks to the Wave OS interface with color TFT display, you will have complete control over 55 customizable programs and can track every weld via USB for quality analysis. Specializing in pulsed processes for aluminum and galvanized sheet metal (AB Pulse) and equipped with ATC technology for thin wall thicknesses, this mobile station on wheels is the ultimate tool for those seeking superior performance and impeccable aesthetic results on any material.

Shipping cost: Free for
2365,92 €
Tax included

1.939,28 € Tax excluded

Quantity
Available product, order it now.

Telwin Technomig 265 Dual Synergic: Multiprocess Power and Advanced Thermal Control

The Technomig 265 is a microprocessor-based inverter welding station designed for maximum operational flexibility. Thanks to its multi-process capability, it can perform MIG-MAG, FLUX, BRAZING, MMA, and TIG DC-Lift welding with a single 250A power source. It is the ideal solution for sectors ranging from metal fabrication to installation, and even specialized bodywork work on materials such as steel, stainless steel, aluminum, and galvanized sheet metal.

The Secret of Thin Sheet Metal: ATC Technology

The real distinctive element of this model is the ATC (Advanced Thermal Control) technology, a "Made in Telwin" patent designed to solve the critical issues of welding on extremely reduced thicknesses.

  • Advanced Arc Control: The electronics instantly intervene on the arc dynamics to stabilize it, ensuring smooth welding even when heat input needs to be minimal.
  • Protection of Sensitive Materials: Specifically designed for thicknesses between 0.5 and 0.8 mm , typical of the automotive sector. By drastically reducing heat input, it minimizes the risk of deformation or punctures caused by high temperatures.
  • Superior Aesthetic Quality: Allows you to obtain excellent, clean and structurally sound welding seams, minimizing post-weld finishing operations.

OneTouch LCD Synergy Intelligence

Ease of use is guaranteed by ONE TOUCH LCD technology. The operator simply sets the material thickness: the machine will automatically load one of 29 preset synergic curves , adjusting wire speed, voltage, and current. More experienced welders can still manually adjust the arc length to customize the bead shape based on their style or joint specifications.

MMA Safety and Industrial Robustness

In MMA mode, the Technomig 265 integrates the VRD (Voltage Reduction Device) , essential for safety in hazardous work environments such as mines or shipyards, as it reduces the output voltage when the machine is turned on but not in use. The structure is designed for maximum productivity: it accommodates coils weighing up to 15 kg (Ø 200/300 mm) and, despite its industrial power, the compact design on wheels makes it easy to move around the workshop.

Main Technical Specifications

  • Product code: 816819.
  • Current regulation range: 20 - 250 A.
  • Maximum current (EN 60974-1): 220 A @ 20%.
  • MMA electrode diameter: 1.6 to 4 mm.
  • Wire diameter: Steel (0.6-1.2 mm), Stainless Steel and Aluminium (0.8-1 mm), Animated (0.8-1.2 mm).
  • Dimensions and Weight: 79.5 x 37.5 x 73 cm | 29.8 kg.

Equipment Included

The machine is supplied ready for use with MIG-MAG MT25 torch (3 metres), Toledo 250 earth cable and clamp and feed roller for 0.6-0.8 mm steel wire.
A leading Italian company in welding, plasma cutting and charging and starting systems. Professional solutions for workshops, body shops, construction sites and industry, featuring reliable, high-performance technologies.

TELWIN: ITALIAN WELDING TECHNOLOGY SINCE 1963

Telwin is a long-established Italian brand, specialising in inverter welders, plasma cutters and charging/starting systems for the professional sector. Its solutions are designed for high-intensity environments such as mechanical workshops, automotive workshops, body shops, construction sites and industrial maintenance, where precision and operational continuity are essential.

The range includes MIG/MAG, TIG, MMA, high-precision plasma cutting, smart battery chargers, digital starters and multifunction stations for body shops.

The various product lines are distinguished by power, duty cycle, inverter technology, portability and electronic protection systems, making them suitable for both fixed workstations and mobile applications.

Telwin is recognised for structural reliability, arc stability, certified safety and continuous innovation, supported by in-house research and technological development.

Professionals choose Telwin for consistent performance, weld bead quality, reduced processing times and operational continuity even under demanding conditions.



816858
