816234 MAXIMA 230 SYNERGIC 230V WELDING MACHINE TELWIN

Maximum flexibility, professional results! The Telwin MAXIMA 230 SYNERGIC is the 220A wheeled multi-process inverter welder that redefines ease of use. Thanks to the intelligent synergic adjustment , simply set the material thickness to start welding with impeccable precision on steel, stainless steel and aluminum. Sturdy, equipped with wheels and designed for large spools, it is the ultimate "all-in-one" solution for those seeking power and versatility in the workshop or during installation.

Shipping cost: Free for
898,01 €
Tax included

736,07 € Tax excluded

Quantity
Available product, order it now.

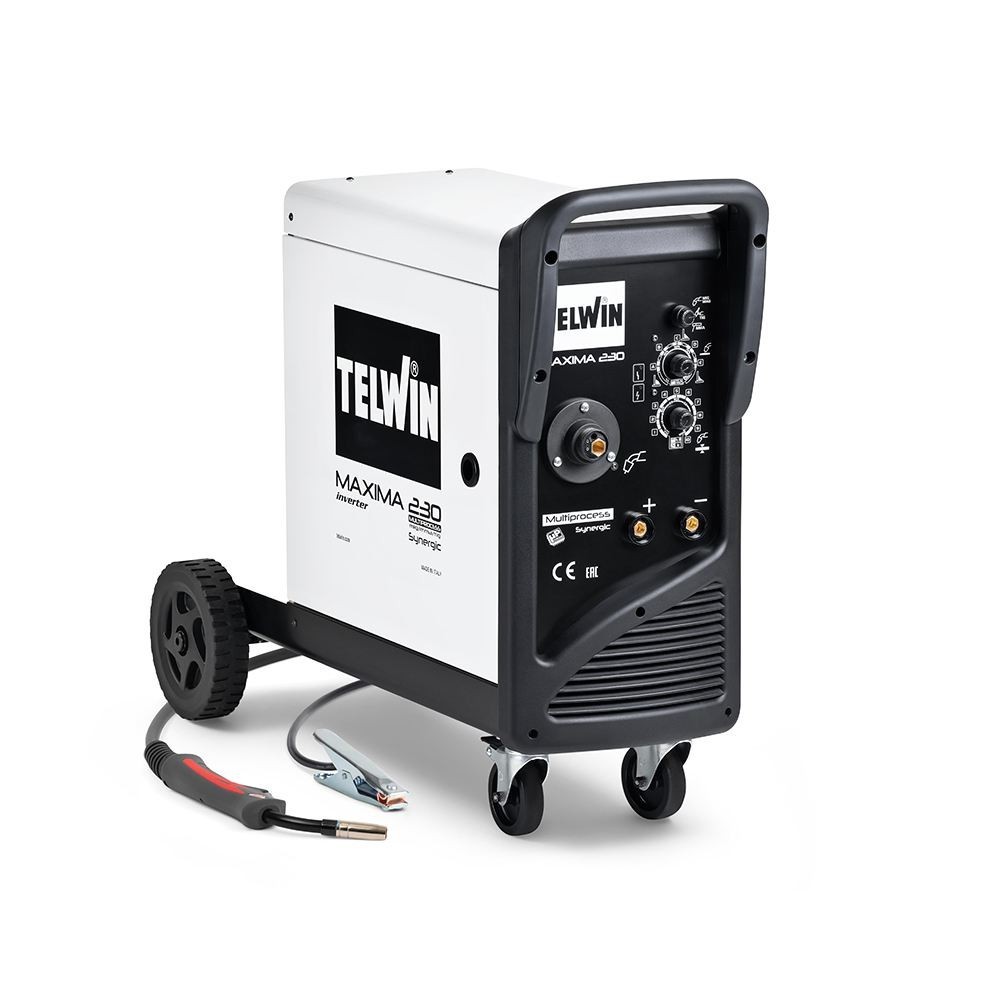

MAXIMA 230 SYNERGIC: The Multiprocess Trolley for Every Material

The MAXIMA 230 SYNERGIC (code 816234) is part of the Telwin Elements line, designed to offer craftsmen, installers, and DIY experts a powerful, reliable, and incredibly intuitive tool. It is a wire-fed inverter welder (MIG-MAG/BRAZING) that also allows for excellent results in MMA and TIG DC-LIFT.

Applications and Materials

Thanks to its great versatility, this model ensures high performance on a wide range of metals:

  • Steel and Stainless Steel
  • Aluminum
  • Galvanized sheets (through brazing)

In MMA mode, it is compatible with rutile and basic electrodes up to 3.2 mm in diameter.

Technological Advantages

  • One-Touch Synergic Control: An intuitive control panel lets you manage everything in just 3 steps: process selection, desired bead shape, and material thickness. This ensures perfect results even for less experienced operators.
  • Sturdy Industrial Design: The frame features oversized rear wheels and front swivel wheels, as well as a dedicated rear compartment for storing the gas cylinder.
  • Superior Capacity: It is designed to accommodate wire spools up to 15 kg (300 mm in diameter), reducing downtime for consumable changes.
  • Total Control: Includes Arc-force adjustment in MMA mode for consistently stable ignition and a centralized torch attachment for quick maintenance.

For body shops and workshops

From thin-walled bodywork repairs to heavy-duty maintenance in the workshop, the MAXIMA 230 delivers with precision. Its compatibility with generators (230V +/- 15%) makes it the ideal tool for jobsites or remote locations where grid stability is unreliable.

Technical Specifications

  • Product Code: 816234
  • Mains voltage: 230 V
  • Current regulation range: 20 - 220 A
  • Max current: 180 A @ 20%
  • Dimensions: 82.5 x 36 x 67 cm
  • Weight: 21.0 kg

Accessories included: MIG-MAG torch MT15 (3m), earth cable with Toledo 250A clamp.
A leading Italian company in welding, plasma cutting and charging and starting systems. Professional solutions for workshops, body shops, construction sites and industry, featuring reliable, high-performance technologies.

TELWIN: ITALIAN WELDING TECHNOLOGY SINCE 1963

Telwin is a long-established Italian brand, specialising in inverter welders, plasma cutters and charging/starting systems for the professional sector. Its solutions are designed for high-intensity environments such as mechanical workshops, automotive workshops, body shops, construction sites and industrial maintenance, where precision and operational continuity are essential.

The range includes MIG/MAG, TIG, MMA, high-precision plasma cutting, smart battery chargers, digital starters and multifunction stations for body shops.

The various product lines are distinguished by power, duty cycle, inverter technology, portability and electronic protection systems, making them suitable for both fixed workstations and mobile applications.

Telwin is recognised for structural reliability, arc stability, certified safety and continuous innovation, supported by in-house research and technological development.

Professionals choose Telwin for consistent performance, weld bead quality, reduced processing times and operational continuity even under demanding conditions.
