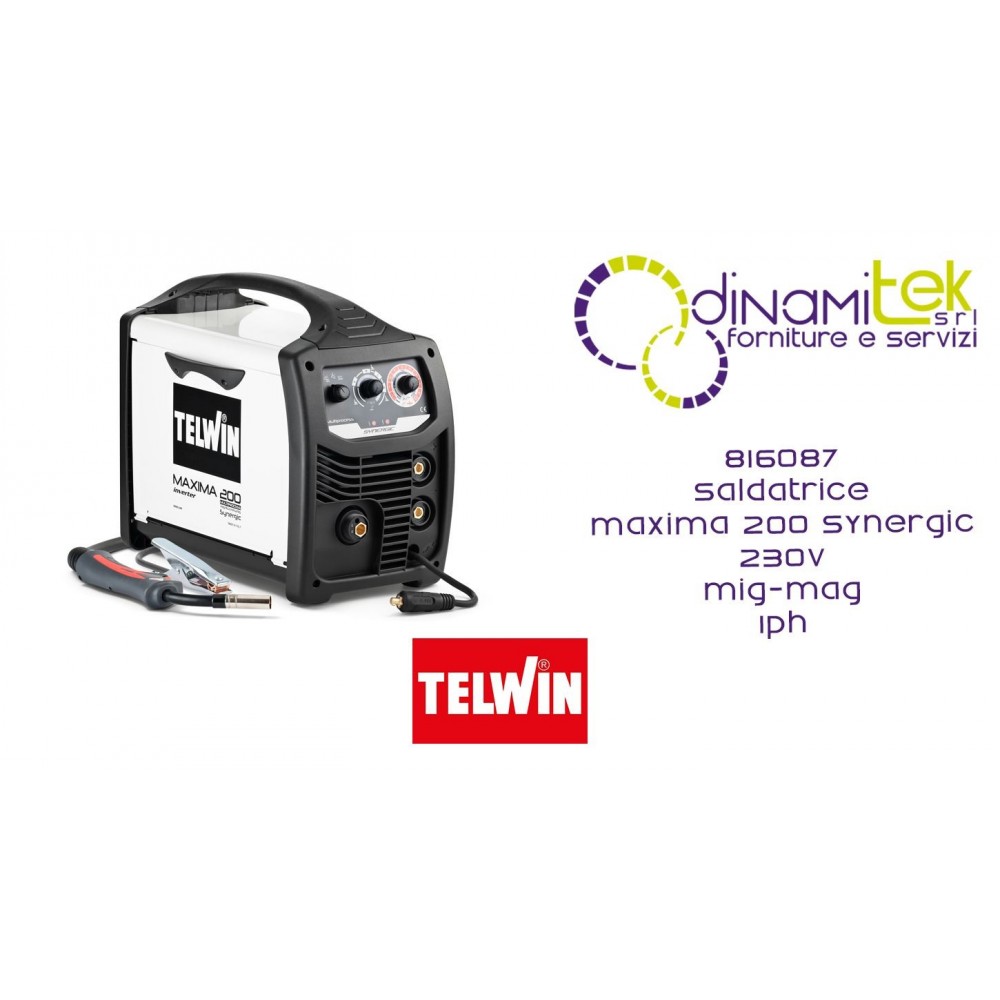

TELWIN 816087 SALDATRICE MAXIMA 200 SYNERGIC 230V MIG-MAG 1PH Dinamitek 1
  • TELWIN 816087 SALDATRICE MAXIMA 200 SYNERGIC 230V MIG-MAG 1PH Dinamitek 1
  • TELWIN 816087 SALDATRICE MAXIMA 200 SYNERGIC 230V MIG-MAG 1PH Dinamitek 2

MAXIMA 200 SYNERGIC 230V MIG-MAG 1PH WELDING MACHINE TELWIN

MAXIMA 200 SYNERGIC 230V WELDER

Shipping cost: Free for
667 €
Tax included

546,72 € Tax excluded

Quantity
Available product, order it now.

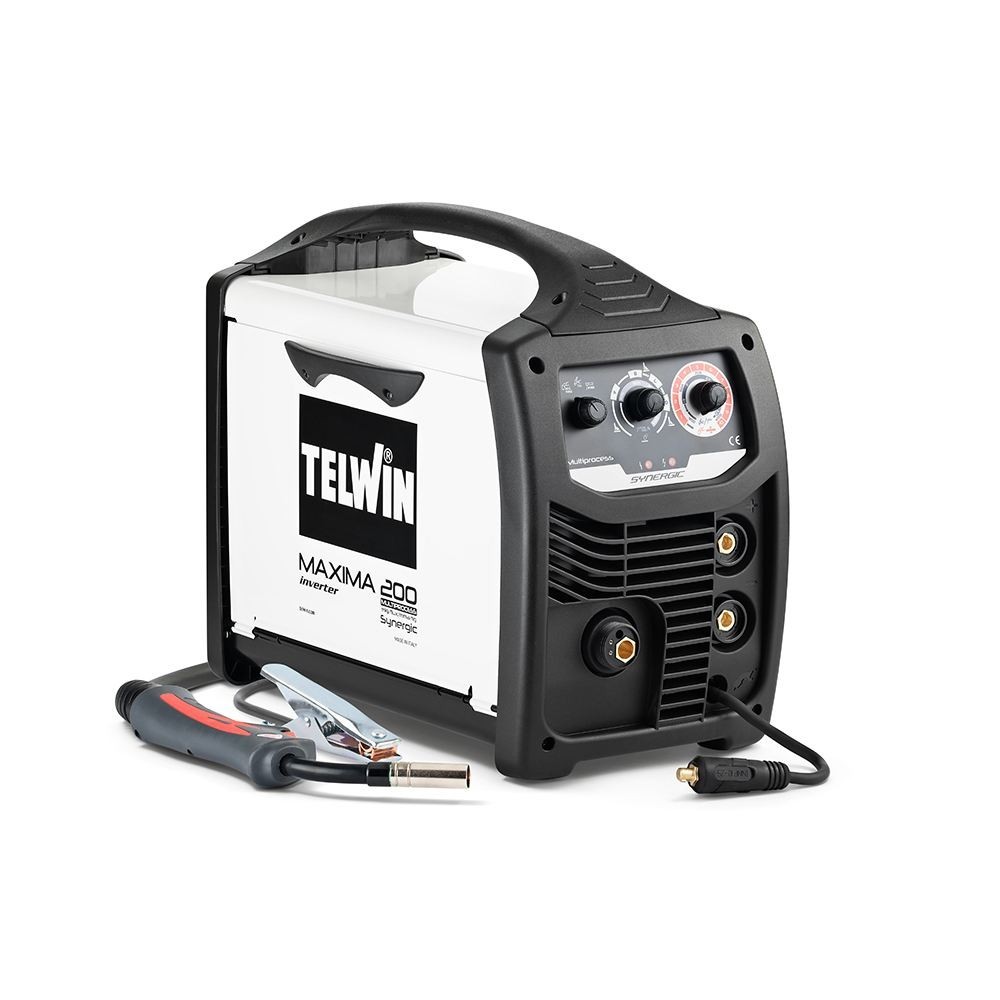

MAXIMA 200 SYNERGIC 230V
code 816087
Microprocessor-controlled MIG-MAG/FLUX/BRAZING/MMA/TIG DC-LIFT wire inverter welder.
It ensures great versatility in the use of different welded materials (steel, stainless steel, aluminum) and in possible applications, from maintenance to installation.
The SYNERGIC adjustment of the welding parameters makes the product simple to use and guarantees an always excellent result even for the less experienced operator.
Lightweight and compact, it can be easily transported to all internal and external intervention sites.
Characteristics:
- Polarity change for GAS MIG-MAG/BRAZING welding;
- Thermostatic, overvoltage, undervoltage, overcurrent, motor generator protection (+/- 15%);
- Arc-force regulation in MMA;
- Centralized torch attachment.
Complete with MIG-MAG torch, cable and earth clamp.
MMA TIG DC LIFT
MIG-MAG FLUX
1 PH 230V
5 kg REEL
CE MARKING
EAC CERTIFICATION

CABLE TW05V-A 1X025 L=1.80M PLUG 124589
MT15 MIG TORCH 3M (RED) 742180
TOLEDO 250 GROUND CLAMP 250A 712030

CODE 816087
YIELD 86%
SINGLE-PHASE MAINS VOLTAGE 230 V
POWER FACTOR (cosphi) 0.7
MAINS FREQUENCY 50 / 60 Hz
D. ELECTRODES USABLE IN DC 1.6 - 3.2 mm
CURRENT REGULATION RANGE 20 - 170 A
D. STEEL WELDING WIRE 0.6 - 0.8 mm
MAX DC CURRENT (EN 60974-1) 140 @ 20% A
D. STAINLESS STEEL WELDING WIRE 0.8 mm
DC CURRENT 80 A
D. ALUMINUM WELDING WIRE 0.8 - 1 mm
MAX NO LOAD VOLTAGE 44 V
D. 0.8 - 1.2 mm COOLED WELDING WIRE
MAXIMUM ABSORBED CURRENT 22 A
D. BRAZING WIRE 0.8 mm
CURRENT ABSORBED AT 60% - MAX 11 A
PROTECTION DEGREE IP23
MAX ABSORBED POWER 3.2 kW
DIMENSIONS 45 X 23.5 X 37 cm
POWER CONSUMPTION AT 60% 1.6 kW
WEIGHT 11 kg
16 A MAINS FUSE
EAN CODE 800489798712 5
A leading Italian company in welding, plasma cutting and charging and starting systems. Professional solutions for workshops, body shops, construction sites and industry, featuring reliable, high-performance technologies.

TELWIN: ITALIAN WELDING TECHNOLOGY SINCE 1963

Telwin is a long-established Italian brand, specialising in inverter welders, plasma cutters and charging/starting systems for the professional sector. Its solutions are designed for high-intensity environments such as mechanical workshops, automotive workshops, body shops, construction sites and industrial maintenance, where precision and operational continuity are essential.

The range includes MIG/MAG, TIG, MMA, high-precision plasma cutting, smart battery chargers, digital starters and multifunction stations for body shops.

The various product lines are distinguished by power, duty cycle, inverter technology, portability and electronic protection systems, making them suitable for both fixed workstations and mobile applications.

Telwin is recognised for structural reliability, arc stability, certified safety and continuous innovation, supported by in-house research and technological development.

Professionals choose Telwin for consistent performance, weld bead quality, reduced processing times and operational continuity even under demanding conditions.



816087
