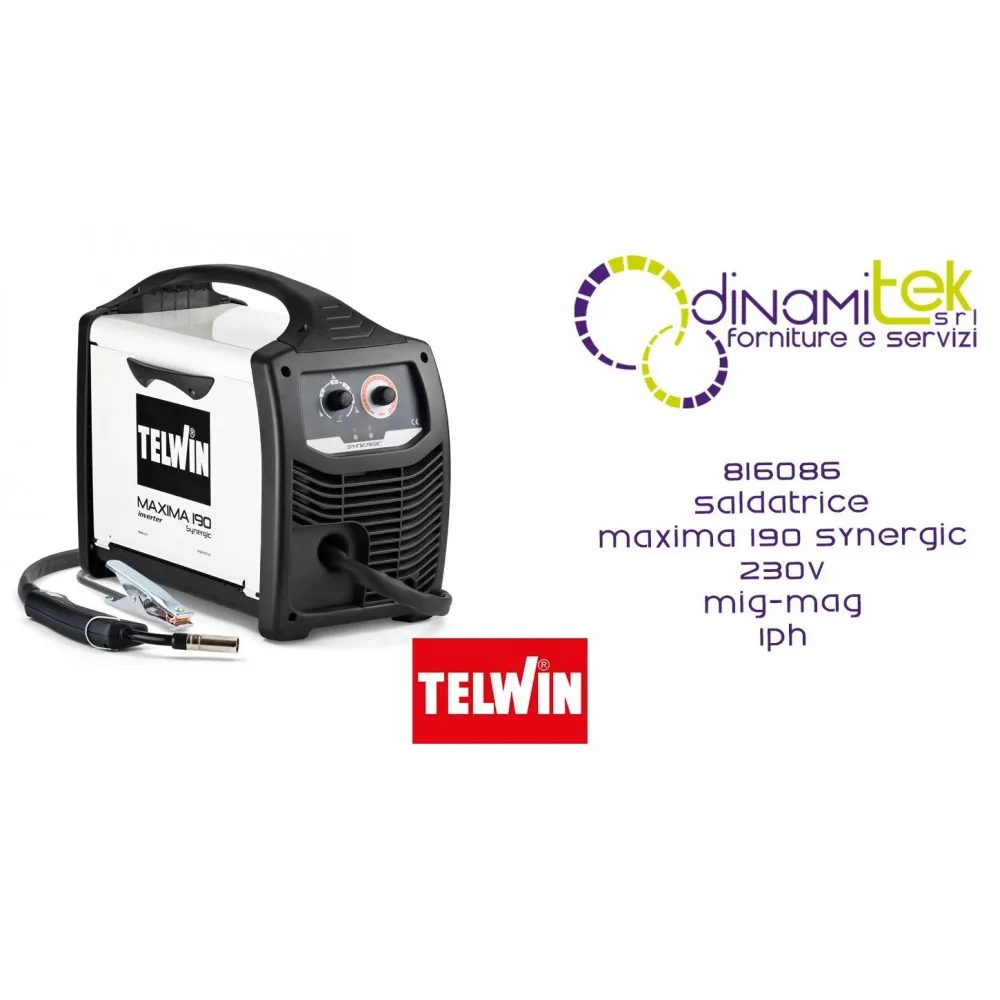

TELWIN 816086 SALDATRICE MAXIMA 190 SYNERGIC 230V MIG-MAG 1PH Dinamitek 1
  • TELWIN 816086 SALDATRICE MAXIMA 190 SYNERGIC 230V MIG-MAG 1PH Dinamitek 1
  • TELWIN 816086 SALDATRICE MAXIMA 190 SYNERGIC 230V MIG-MAG 1PH Dinamitek 2

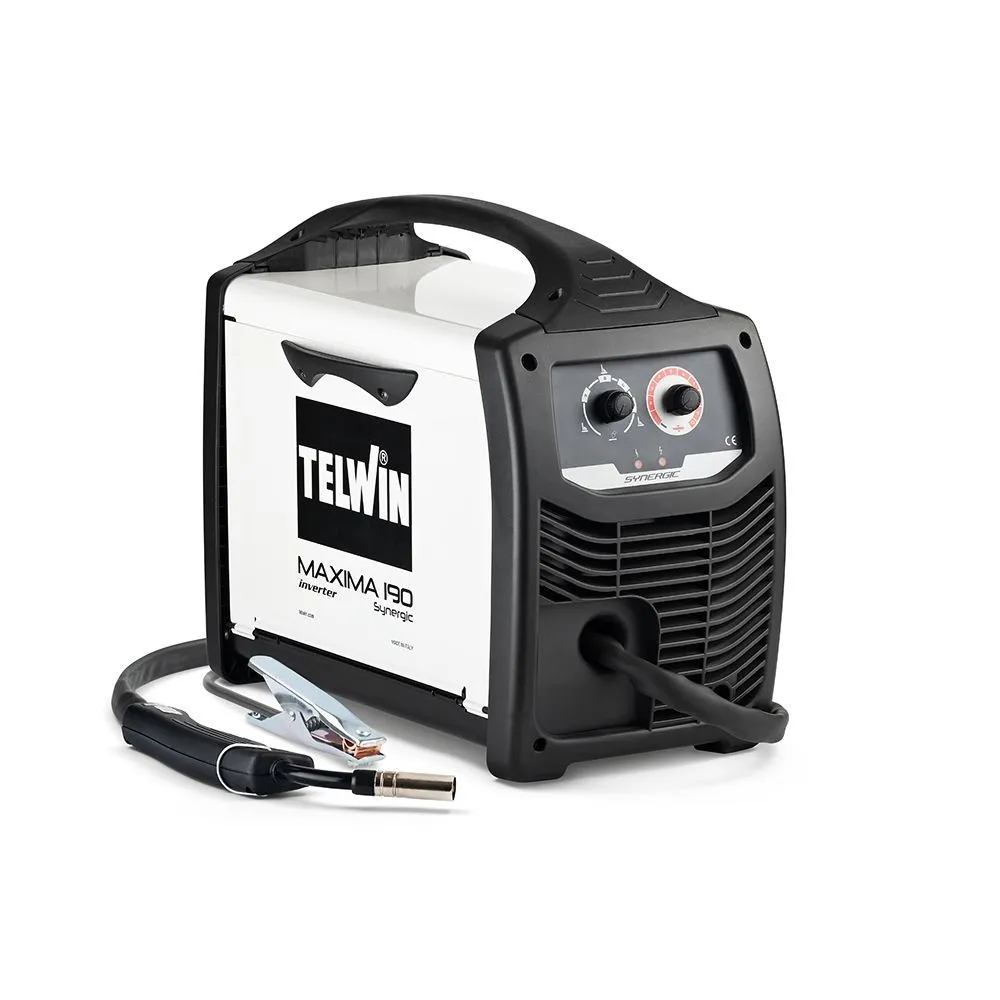

MAXIMA 190 SYNERGIC 230V MIG-MAG 1PH WELDING MACHINE TELWIN

MAXIMA 190 SYNERGIC 230V WELDER

Shipping cost: Free for
600 €
Tax included

491,80 € Tax excluded

Quantity
Available product, order it now.


MAXIMA 190 SYNERGIC 230V
code 816086
Microprocessor-controlled MIG-MAG/FLUX/BRAZING wire inverter welder. It offers great versatility when welding different materials (steel, stainless steel, aluminum) and can be used for a wide range of applications, from maintenance to installation.
The SYNERGIC adjustment of the welding parameters makes the product simple to use and guarantees an always excellent result even for the less experienced operator.
Lightweight and compact, it can be easily transported to all internal and external intervention sites.
Characteristics:
- Polarity change for GAS MIG-MAG/BRAZING welding
- Thermostatic, overvoltage, undervoltage, overcurrent, motor generator protection (+/- 15%).
Prepared for NO GAS/Flux welding, convertible to MIG-MAG with optional kit.
Complete with MIG-MAG torch, cable and earth clamp.
MIG-MAG FLUX
1 PH 230V
5 kg REEL
CE MARKING
EAC CERTIFICATION

CABLE 16 MMQ 1.8 M 124502
TW180 MIG TORCH 2.5M 742605
TOLEDO 250 GROUND CLAMP 250 A 712030

CODE 816086
POWER FACTOR (cosphi) 0.7
SINGLE-PHASE MAINS VOLTAGE 230 V
D. STEEL WELDING WIRE 0.6 - 0.8 mm
MAINS FREQUENCY 50 / 60 Hz
D. STAINLESS STEEL WELDING WIRE 0.8 mm
CURRENT REGULATION RANGE 20 - 170 A
D. ALUMINUM WELDING WIRE 0.8 - 1 mm
MAX DC CURRENT (EN 60974-1) 140 @ 20% A
D. 0.8 - 1.2 mm COOLED WELDING WIRE
DC CURRENT 80 A
D. BRAZING WIRE 0.8 mm
MAX NO LOAD VOLTAGE 44 V
PROTECTION DEGREE IP23
MAXIMUM ABSORBED CURRENT 22 A
DIMENSIONS 45 X 23.5 X 37 cm
CURRENT ABSORBED AT 60% - MAX 11 A
WEIGHT 9.91 kg
MAX ABSORBED POWER 3.2 kW
EAN CODE 800489797600 6
POWER CONSUMPTION AT 60% 1.6 kW
PIECES / PALLET 18 pcs/pallet
16 A MAINS FUSE
PIECES / PALLET - B12 pieces/pallet B
YIELD 86%
A leading Italian company in welding, plasma cutting and charging and starting systems. Professional solutions for workshops, body shops, construction sites and industry, featuring reliable, high-performance technologies.

TELWIN: ITALIAN WELDING TECHNOLOGY SINCE 1963

Telwin is a long-established Italian brand, specialising in inverter welders, plasma cutters and charging/starting systems for the professional sector. Its solutions are designed for high-intensity environments such as mechanical workshops, automotive workshops, body shops, construction sites and industrial maintenance, where precision and operational continuity are essential.

The range includes MIG/MAG, TIG, MMA, high-precision plasma cutting, smart battery chargers, digital starters and multifunction stations for body shops.

The various product lines are distinguished by power, duty cycle, inverter technology, portability and electronic protection systems, making them suitable for both fixed workstations and mobile applications.

Telwin is recognised for structural reliability, arc stability, certified safety and continuous innovation, supported by in-house research and technological development.

Professionals choose Telwin for consistent performance, weld bead quality, reduced processing times and operational continuity even under demanding conditions.



816086

You might also like

54290 SHOES WELDER ALMAR Dinamitek 1
  • On sale!

54290 SHOES WELDER ALMAR

Shoe Almar 54290 reinforced on the forefoot to ensure an incredible strength. UNTIL THE EXHAUSTION OF STOCKS, THE LAST NUMBERS!!!
Regular price €36.60 Price €10.00
Last items in stock
722563 ST9V DX25 TIG TORCH 4 M TELWIN Dinamitek 1

722563 ST9V TIG TORCH DX25 4 M TELWIN

ST9V TIG TORCH DX25 4M Precision and total control for your TIG welding! The Telwin ST9V torch (722563) is the ideal tool for those seeking reliability and ease of handling. Equipped with a 4-meter cable and AX25 connector, it stands out for its practical handwheel on the handle that allows for manual and precise adjustment of the gas flow. Designed for...
Price €92.78
Last items in stock
802037 STAINLESS STEEL WELDING KIT DIAM. 0.8 MM TELWIN Dinamitek 1

802037 STAINLESS STEEL WELDING KIT DIAM. 0.8 MM TELWIN

Impeccable results on stainless steel! The original Telwin kit (code 802037) is the complete and professional set designed for those who want to achieve clean and resistant welds on stainless steel using 0.8 mm wire. Forget about dragging problems and incorrect setups: this "all-inclusive" package provides every necessary component—from the specific...
Price €47.10
Available product, order it now.
802062 ALUMINUM WIRE COIL 0.8 MM 0.45 KG TELWIN Dinamitek 1

802062 SPOOL OF ALUMINUM WIRE 0.8 MM 0.45 KG TELWIN

Durable, high-quality aluminum welding! The original Telwin wire spool (code 802062) in AlMg5 alloy is the professional solution for MIG welding aluminum and its alloys. With a diameter of 0.8 mm and a handy 0.45 kg format, this wire guarantees excellent fluidity and high mechanical resistance. Designed for use with Argon shielding gas, it is the ideal...
Price €27.00
Last items in stock
802147 STEEL WELDING KIT DISPOSABLE CYLINDER TELWIN Dinamitek 1

802147 TELWIN DISPOSABLE CYLINDER STEEL WELDING KIT

Everything you need to weld steel with maximum convenience! The original Telwin kit (code 802147) is the complete solution designed for those who use disposable cylinders and want professional results on steel. This all-in-one set includes a spool of 0.6 mm wire and all the necessary components—from the pressure regulator to the contact tubes—to set up...
Price €59.95
Available product, order it now.
802222 KIT 10 WAXED TUNGSTEN ELECTRODES DIAM. 1.6 MM TELWIN Dinamitek 1

802222 KIT OF 10 CERIATED TUNGSTEN ELECTRODES,...

Excellent quality and environmentally friendly! The original Telwin kit (code 802222) offers 10 1.6 mm ceriated tungsten electrodes (grey) , the ideal solution for those seeking superior TIG welding performance. Thanks to their non-toxic, "green" composition, these electrodes guarantee flawless ignition and long life, allowing you to work with precision...
Price €23.56
Available product, order it now.

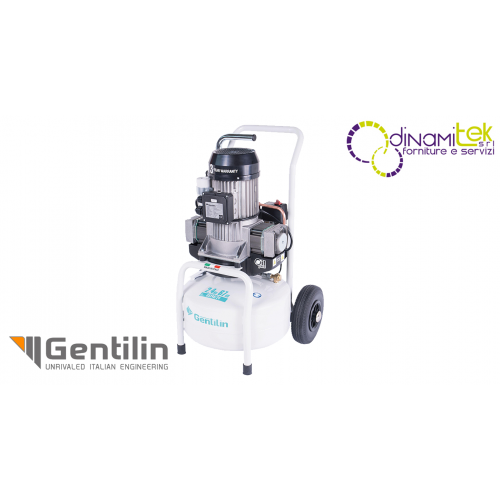

SILENCED COMPRESSOR: THE POWER AND SILENCE YOU ARE LOOKING FOR CSK240/24 GENTILIN Dinamitek 1
