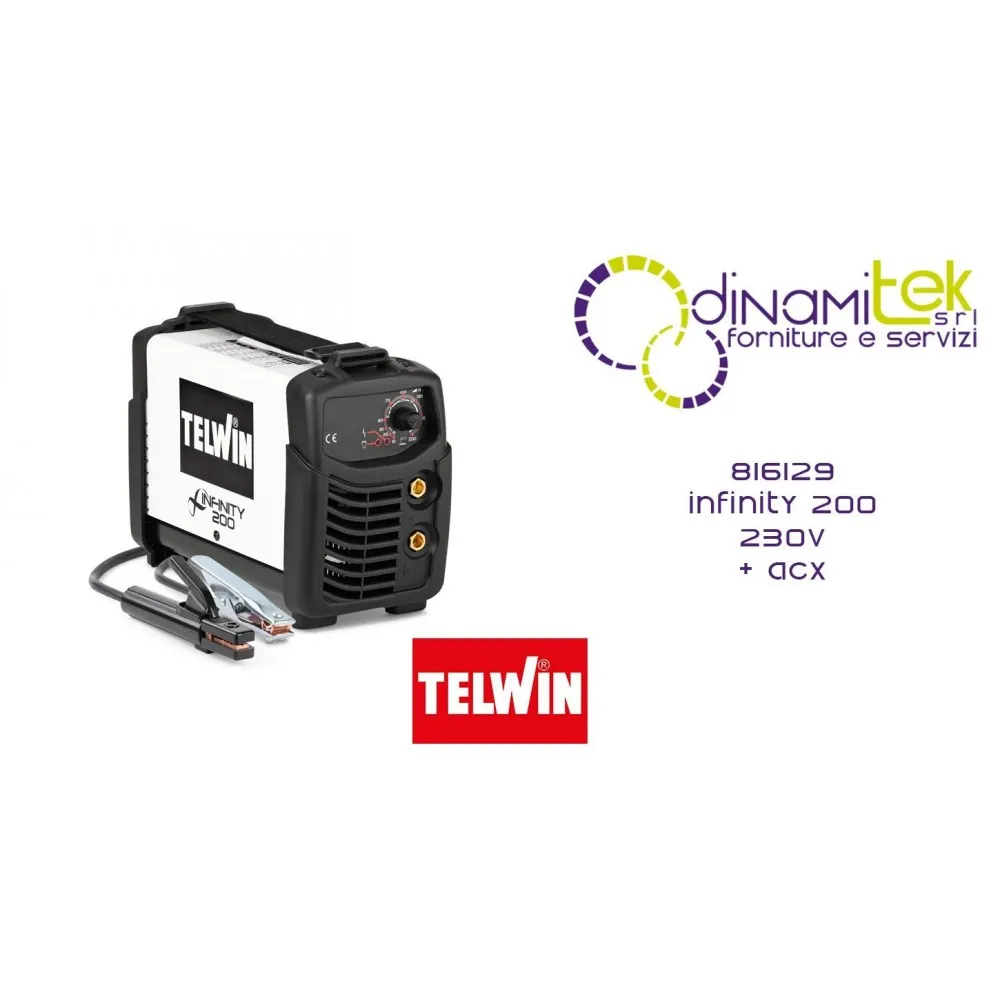

TELWIN 816129 INFINITY 200 230V ACX Dinamitek 1
  • TELWIN 816129 INFINITY 200 230V ACX Dinamitek 1

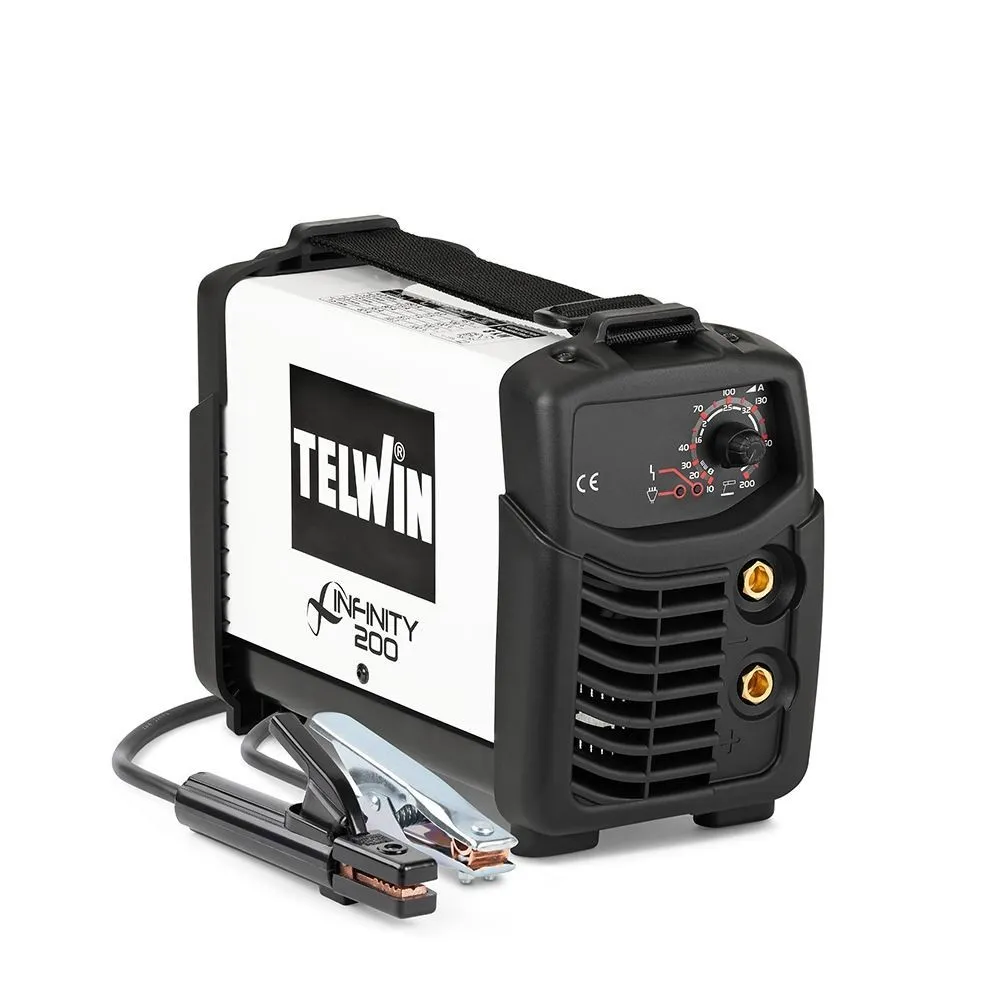

  • TELWIN 816129 INFINITY 200 230V ACX Dinamitek 2

816129 INFINITY 200 230V ACX TELWIN

Unlimited power and maximum portability for your professional welding! The Telwin Infinity 200 (code 816129) is the 200A MMA and TIG inverter welder designed for those seeking an unbeatable power-to-weight ratio. Weighing just 3.6 kg , it packs technology capable of handling electrodes up to 4 mm with exceptional arc stability, even in the presence of mains voltage fluctuations. Perfect for use in the workshop or on construction sites with generators, the Infinity 200 guarantees low consumption and impeccable results on steel, stainless steel, and cast iron, making every welding challenge simple and precise.

Shipping cost: Free for
264,42 €
Tax included

264,42 € Tax excluded

Quantity
Available product, order it now.

Telwin Infinity 200: Inverter Technology and Multiprocess Flexibility

The Infinity 200 represents the benchmark in Telwin's range of portable welding machines for those who need high welding current without sacrificing maneuverability. It is a direct current (DC) inverter generator designed for MMA electrode welding and the TIG process with scratch striking.

Advanced Control and Operational Stability

Thanks to sophisticated electronics, the machine offers total control of the melting bath:

  • Arc Force, Hot Start and Anti-Stick devices: integrated systems that facilitate ignition, prevent the arc from extinguishing and prevent the electrode from sticking to the workpiece.
  • Current Stability: Output remains constant despite fluctuations in supply voltage, ensuring a uniform weld bead.
  • Electrode Versatility: Work with maximum efficiency using rutile, basic, stainless steel and cast iron electrodes with diameters from 1.6 to 4 mm.

Safety and Protection on the Construction Site

Designed to withstand the most demanding work environments, the Infinity 200 boasts an IP23 protection rating. It integrates multiple protections (thermostatic, overvoltage, undervoltage, overcurrent) and is perfectly compatible with motor generators , withstanding voltage variations of +/- 15%. With an efficiency of 86%, it ensures high performance with low energy consumption.

Equipment Included

The welder is supplied complete with accessories for MMA welding:

  • Toledo 250A ground clamp.
  • Dallas 300A electrode holder.
  • 16mm² cable with plug.

Main Technical Specifications

  • Product code: 816129.
  • Current regulation range: 10 - 200 A.
  • Duty cycle (%USE at 20°C): 95% at 180A.
  • Max. no-load voltage: 82 V.
  • Minimum generator power: 8 kW.
  • Featherweight: Only 3.65 kg.
  • Compact size: 12 x 5.4 x 8.4 inches.
A leading Italian company in welding, plasma cutting and charging and starting systems. Professional solutions for workshops, body shops, construction sites and industry, featuring reliable, high-performance technologies.

TELWIN: ITALIAN WELDING TECHNOLOGY SINCE 1963

Telwin is a long-established Italian brand, specialising in inverter welders, plasma cutters and charging/starting systems for the professional sector. Its solutions are designed for high-intensity environments such as mechanical workshops, automotive workshops, body shops, construction sites and industrial maintenance, where precision and operational continuity are essential.

The range includes MIG/MAG, TIG, MMA, high-precision plasma cutting, smart battery chargers, digital starters and multifunction stations for body shops.

The various product lines are distinguished by power, duty cycle, inverter technology, portability and electronic protection systems, making them suitable for both fixed workstations and mobile applications.

Telwin is recognised for structural reliability, arc stability, certified safety and continuous innovation, supported by in-house research and technological development.

Professionals choose Telwin for consistent performance, weld bead quality, reduced processing times and operational continuity even under demanding conditions.
