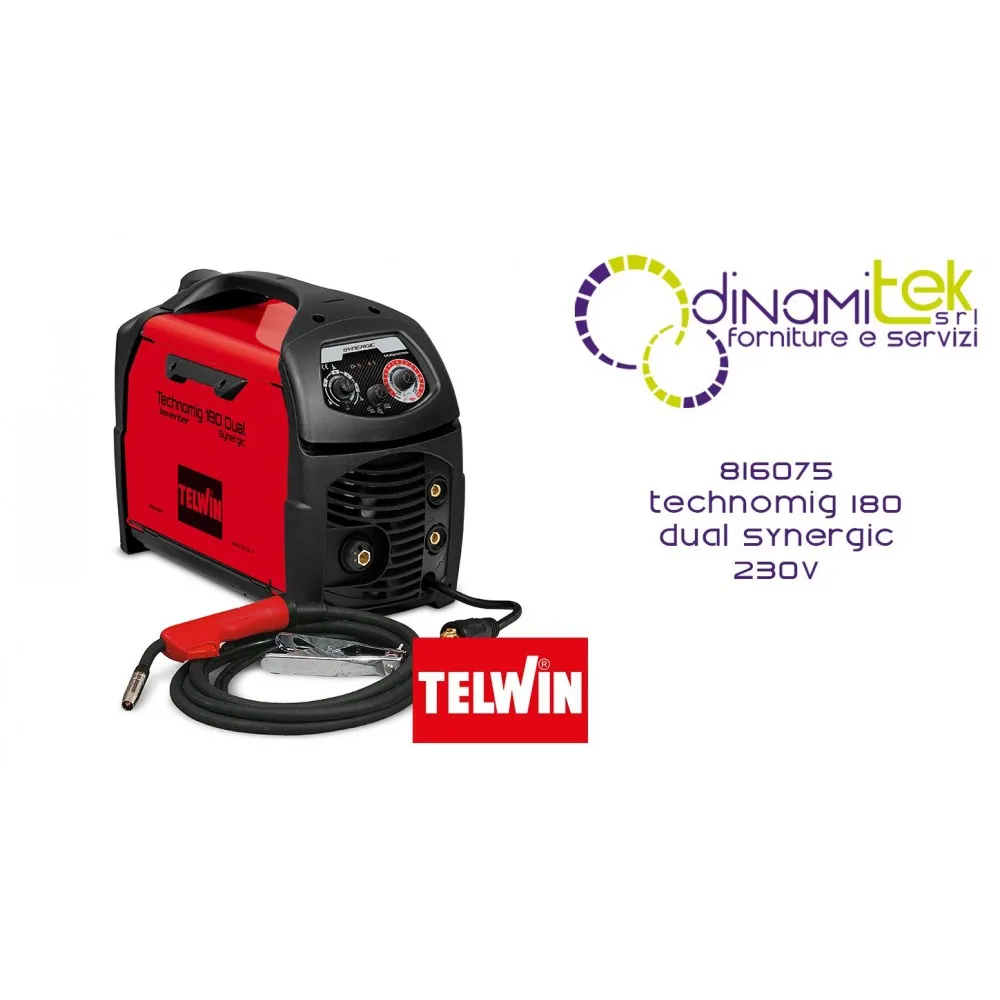

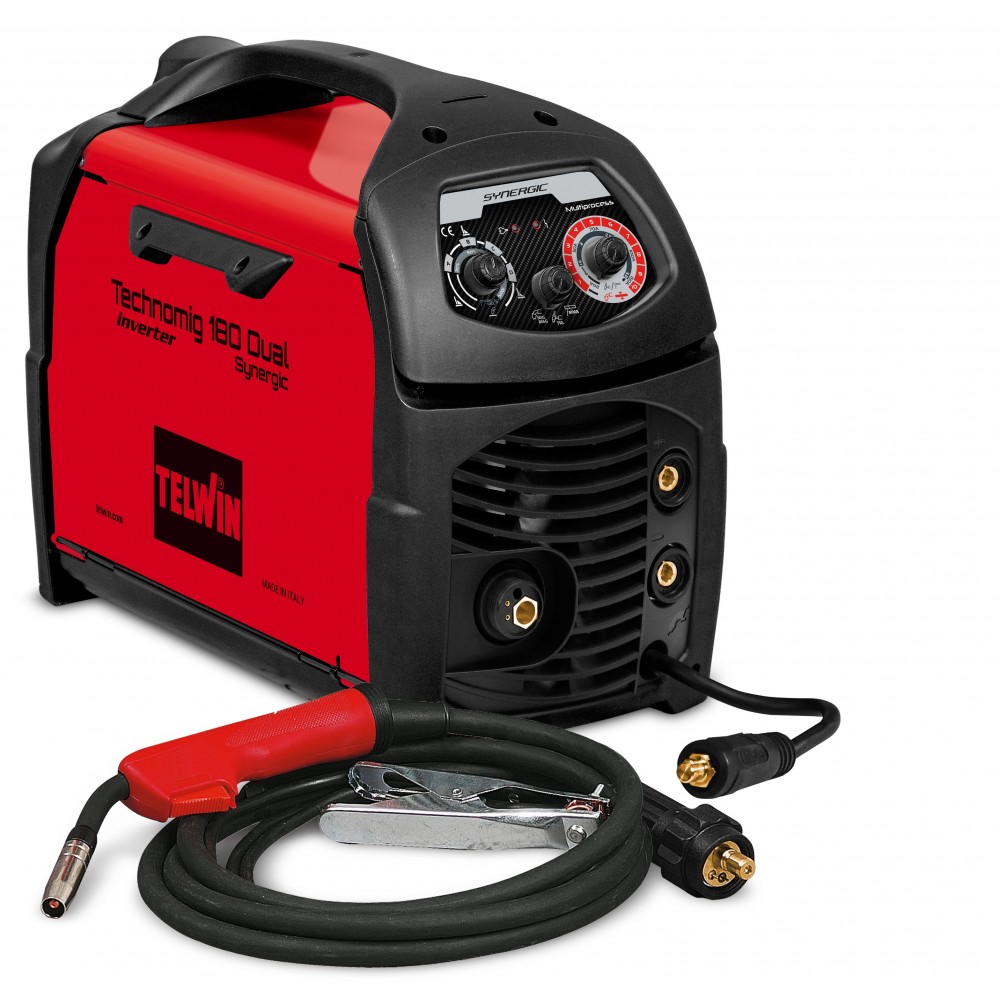

816075 TECHNOMIG 180 DUAL SYNERGIC 230V WELDING MACHINE TELWIN

The multi-process welding revolution at your fingertips! The Telwin Technomig 180 Dual Synergic (code 816075) is the ultimate 170A inverter power source for those seeking total versatility and ease of use. Thanks to OneTouch technology, simply set the material thickness to start welding: the on-board intelligence automatically adjusts the arc for professional results on steel, stainless steel, and aluminum. Compact, lightweight, and microprocessor-controlled, it is the ideal solution for maintenance, installation, and bodywork, ensuring high performance both in the workshop and on the construction site.

Shipping cost: Free for
695 €
Tax included

569,67 € Tax excluded

Quantity
Last items in stock

Telwin Technomig 180 Dual Synergic: Multiprocess Versatility and Intelligent Control

The Technomig 180 Dual Synergic is one of the most flexible tools in the Telwin range, capable of handling MIG-MAG, FLUX, BRAZING, MMA, and TIG DC-Lift processes. This versatility makes it indispensable for working on a wide variety of materials, including carbon steels, stainless steel, and aluminum alloys.

OneTouch Technology and Synergistic Regulation

The strong point of this model is the speed of setup guaranteed by the OneTouch system. The machine has 9 pre-set synergic curves : the operator simply selects the thickness of the piece and the intelligent control will manage the stability of the arc instantaneously. It is also possible to manually adjust the arc length to customize the shape of the bead based on your welding style.

Technical and Operational Features

  • Power and Precision: An adjustment range from 20 to 170A allows you to work with millimetric precision on different thicknesses.
  • Coil Management: Supports coils up to 5 kg with diameters of 100 and 200 mm.
  • No-Gas Welding (FLUX): Prepared for welding with flux-cored wire, ideal for outdoor work where a gas cylinder cannot be used.
  • Advanced MMA Devices: Integrates Arc Force, Hot Start and Anti-Stick functions to facilitate the use of the electrode.
  • Safety and Protection: Equipped with thermostatic, overvoltage, undervoltage, and overcurrent protection systems. It is also protected for use with motor generators (+/- 15%) .

Equipment and Dimensions

The machine stands out for its compact design and weight of only 11 kg , making it easy to transport to any site. It comes complete with:

  • MIG torch MT15 (3 meters).
  • Toledo 250A ground cable with clamp.
  • Power cord with plug.

Welding Specifications (Wire Diameters)

  • Steel: 0.6 - 0.8 mm.
  • Stainless steel: 0.8 mm.
  • Aluminum: 0.8 - 1.0 mm.
  • Cored wire: 0.8 - 1.2 mm.
  • Brazing: 0.8 mm.
A leading Italian company in welding, plasma cutting and charging and starting systems. Professional solutions for workshops, body shops, construction sites and industry, featuring reliable, high-performance technologies.

TELWIN: ITALIAN WELDING TECHNOLOGY SINCE 1963

Telwin is a long-established Italian brand, specialising in inverter welders, plasma cutters and charging/starting systems for the professional sector. Its solutions are designed for high-intensity environments such as mechanical workshops, automotive workshops, body shops, construction sites and industrial maintenance, where precision and operational continuity are essential.

The range includes MIG/MAG, TIG, MMA, high-precision plasma cutting, smart battery chargers, digital starters and multifunction stations for body shops.

The various product lines are distinguished by power, duty cycle, inverter technology, portability and electronic protection systems, making them suitable for both fixed workstations and mobile applications.

Telwin is recognised for structural reliability, arc stability, certified safety and continuous innovation, supported by in-house research and technological development.

Professionals choose Telwin for consistent performance, weld bead quality, reduced processing times and operational continuity even under demanding conditions.
