816064 SALDATRICE ELECTROMIG 330 WAVE 400V BASE TELWIN Dinamitek 1
  • 816064 SALDATRICE ELECTROMIG 330 WAVE 400V BASE TELWIN Dinamitek 1
  • 816064 SALDATRICE ELECTROMIG 330 WAVE 400V BASE TELWIN Dinamitek 2

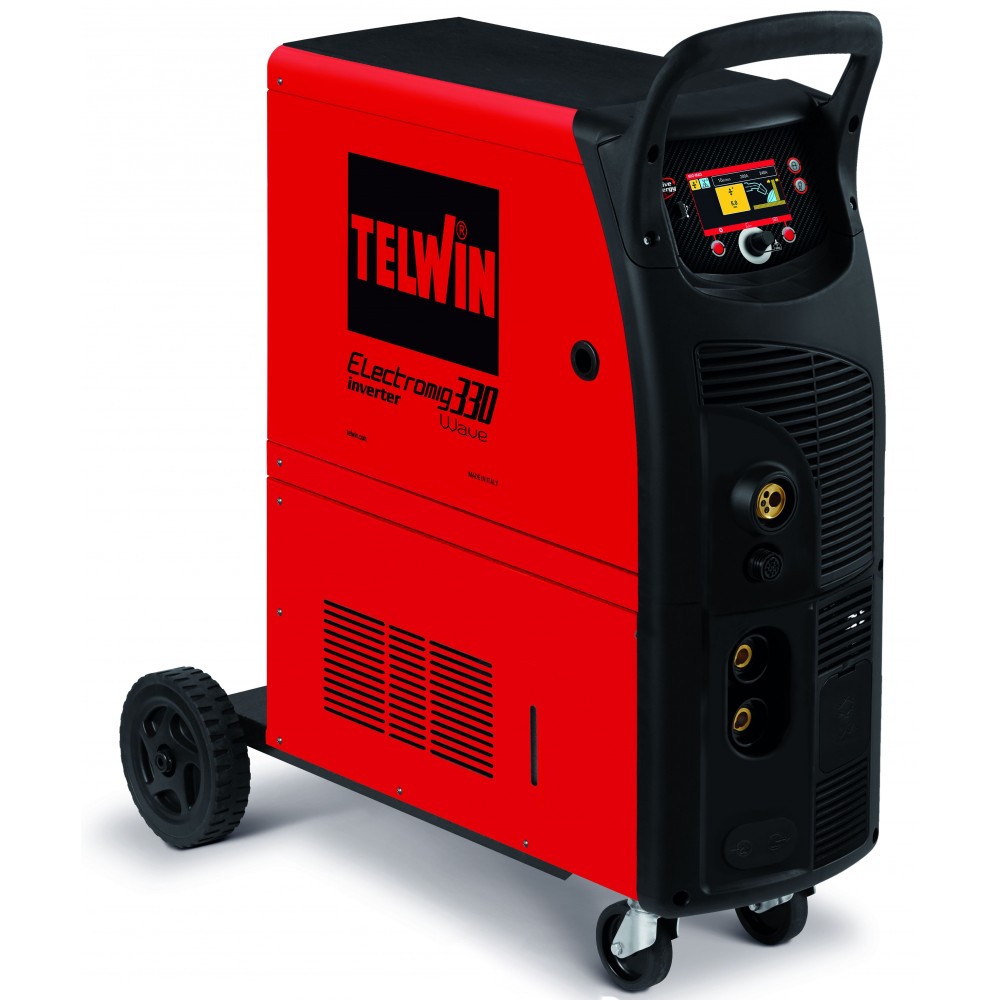

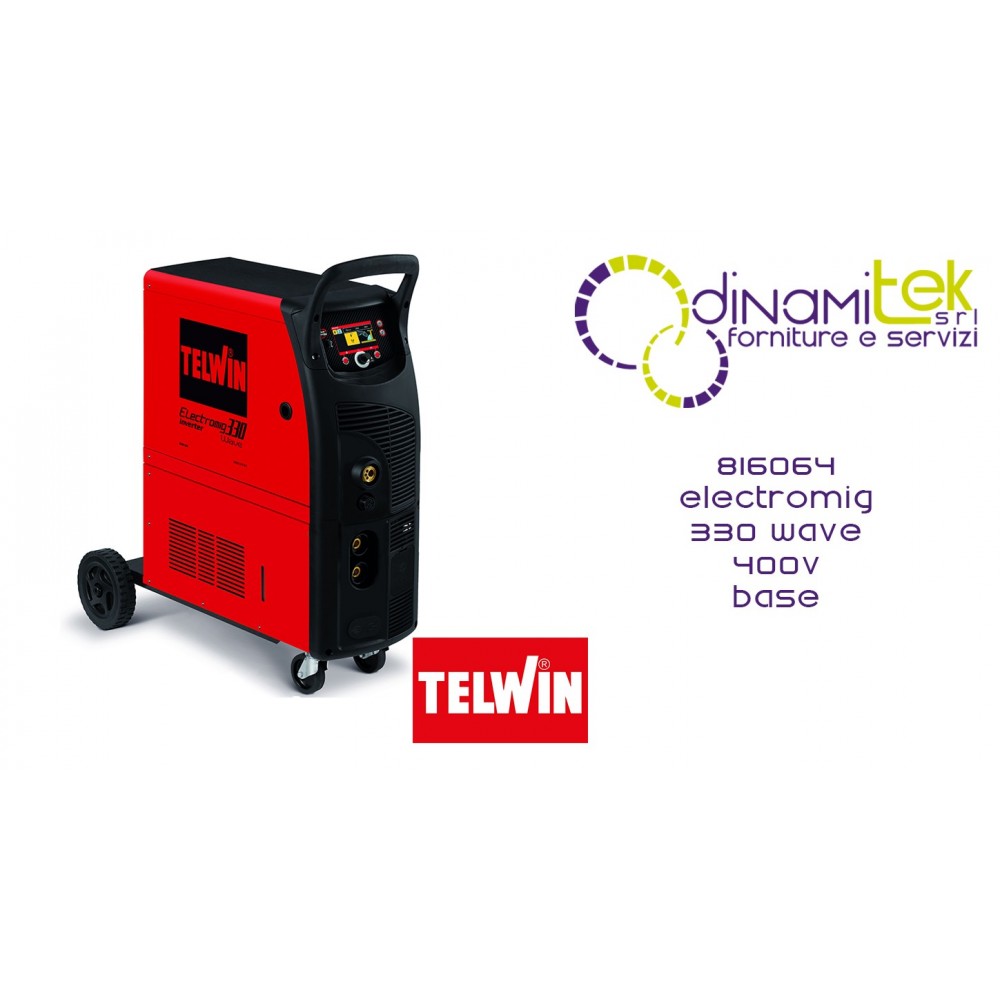

816064 ELECTROMIG 330 WAVE 400V BASE MIG-MAG 3-PH WELDING MACHINE TELWIN

ELECTROMIG 330 WAVE 400V BASE WELDER

Shipping cost: €50.00 for
2876,21 €
Tax included

2.357,55 € Tax excluded

Quantity
Available product, order it now.


ELECTROMIG 330 WAVE 400V BASE
code 816064
Inverter welding machine, with continuous and pulsed operation, multi-process MIG-MAG/FLUX/BRAZING/MMA/TIG DC-Lift controlled by microprocessor.
The WAVE OS system makes welding operations: customizable based on the user's needs; traceable and analyzable, through data saving via USB; simplified, thanks to the SYNERGIC adjustment of the parameters.
Maximum flexibility of use for a wide variety of fields of application, from maintenance to installation to bodywork interventions.
It is possible to operate on various welded materials (steel, stainless steel, aluminum), brazed materials (galvanized and zinc-plated sheets) with specific low heat input welding processes, ROOT-MIG and ATC, and specific processes for aluminum and AB PULSE and AB PoP braze welding.
Intelligent and automatic control of the arc, instant by instant, will maintain high welding performance in all working conditions, with different materials and/or gases.
Complete with VRD device.
The multiple stored welding programs offer the ability to save, track and export numerous custom programs.
Complete with MIG-MAG torch, earth cable and clamp and BASE cooling unit.
MMA TIG DC LIFT
SPOOL GUN
MIG-MAG FLUX
15 kg REEL
3 PH 400V
CE MARKING
VENTILATED
EAC CERTIFICATION
MICROPROCESSOR
TÜV SUD CERTIFICATION

TORCH HANGING HOOK 645704
MT500 MIG TORCH 3M BASE 722625
25MMQ 3M CABLE - GROUND CLAMP - RH 50 713192

CODE 816064
90% YIELD
THREE-PHASE MAINS VOLTAGE 400 V
POWER FACTOR (cosphi) 0.9
MAINS FREQUENCY 50 / 60 Hz
D. ELECTRODES USABLE IN DC 1.6 - 6 mm
CURRENT REGULATION RANGE 20 - 300 A
D. STEEL WELDING WIRE 0.6 - 1.2 mm
MAX DC CURRENT (EN 60974-1)270 @ 30% A
D. STAINLESS STEEL WELDING WIRE 0.8 - 1.2 mm
DC CURRENT 205 A
D. ALUMINUM WELDING WIRE 0.8 - 1.2 mm
MAX NO LOAD VOLTAGE 63 V
D. 0.8 - 1.2 mm COOLED WELDING WIRE
MAXIMUM ABSORBED CURRENT 16 A
D. BRAZING WIRE 0.8 - 1.2 mm
CURRENT ABSORBED AT 60% - MAX 10.5 A
DEGREE OF PROTECTION
IP23
MAX ABSORBED POWER 9.2 kW
DIMENSIONS 86.5 x 39 x 91.5 cm
POWER CONSUMPTION AT 60% 6.7 kW
WEIGHT 49 kg
16 A MAINS FUSE
A leading Italian company in welding, plasma cutting and charging and starting systems. Professional solutions for workshops, body shops, construction sites and industry, featuring reliable, high-performance technologies.

TELWIN: ITALIAN WELDING TECHNOLOGY SINCE 1963

Telwin is a long-established Italian brand, specialising in inverter welders, plasma cutters and charging/starting systems for the professional sector. Its solutions are designed for high-intensity environments such as mechanical workshops, automotive workshops, body shops, construction sites and industrial maintenance, where precision and operational continuity are essential.

The range includes MIG/MAG, TIG, MMA, high-precision plasma cutting, smart battery chargers, digital starters and multifunction stations for body shops.

The various product lines are distinguished by power, duty cycle, inverter technology, portability and electronic protection systems, making them suitable for both fixed workstations and mobile applications.

Telwin is recognised for structural reliability, arc stability, certified safety and continuous innovation, supported by in-house research and technological development.

Professionals choose Telwin for consistent performance, weld bead quality, reduced processing times and operational continuity even under demanding conditions.



816064

You might also like

54290 SHOES WELDER ALMAR Dinamitek 1
  • On sale!

54290 SHOES WELDER ALMAR

Shoe Almar 54290 reinforced on the forefoot to ensure an incredible strength. UNTIL THE EXHAUSTION OF STOCKS, THE LAST NUMBERS!!!
Regular price €36.60 Price €10.00
Last items in stock
802034 TELWIN NAILING KIT Dinamitek 1

802034 NAILING KIT TELWIN

Transform your welder into a professional body shop tool! The Telwin Nailing Kit (802034) is the essential original accessory for those who need to perform precision repairs and straighten sheet metal. Designed for MIG-MAG welders, this complete kit allows you to perform special welds in any position with extreme ease. It's the ideal "ready-to-use"...
Price €179.85
Last items in stock
802037 STAINLESS STEEL WELDING KIT DIAM. 0.8 MM TELWIN Dinamitek 1

802037 STAINLESS STEEL WELDING KIT DIAM. 0.8MM TELWIN

Impeccable results on stainless steel! The original Telwin kit (code 802037) is the complete and professional set designed for those who want to obtain clean and strong welds on stainless steel using 0.8 mm wire. Forget about drag problems and incorrect setups: this "all-inclusive" package provides every necessary component—from the specific roller to the...
Price €50.68
Available product, order it now.
802062 ALUMINUM WIRE COIL 0.8 MM 0.45 KG TELWIN Dinamitek 1

802062 0.8 MM 0.45 KG ALUMINUM WIRE SPOOL TELWIN

Durable, high-quality aluminum welds! The original Telwin wire spool (code 802062) in AlMg5 alloy is the professional solution for MIG welding aluminum and its alloys. With a diameter of 0.8 mm and a handy 0.45 kg format, this wire guarantees excellent fluidity and high mechanical strength. Designed for use with Argon shielding gas, it is the ideal...
Price €27.00
Last items in stock
802396 STEEL WIRE COIL 0.8 MM 5 KG TELWIN Dinamitek 1

802396 0.8 MM 5 KG STEEL WIRE COIL TELWIN

Reliability and superior quality for your steel welding! The original Telwin wire spool (code 802396) is the professional choice for those seeking a stable arc and a clean bead. With a diameter of 0.8 mm and a convenient 5 kg format, this copper-coated wire is designed for MIG-MAG welding with gas shielding, ensuring excellent performance on carbon...
Price €25.00
Available product, order it now.
01.000.168IMP COPPIA ATTACCHI RAPIDI PER HF01234yf, CON RUBINETTO IMPORTATI SPIN MARCO TOOLS Dinamitek 1

01.000.168IMP PAIR OF QUICK COUPLINGS FOR HF01234YF...

The professional solution for the maintenance of modern A/C systems. The pair of Spin quick couplings (Code 01.000.168IMP) is specifically designed to operate on latest-generation vehicles equipped with HFO1234yf refrigerant. Thanks to the integrated manual taps , these connectors offer total flow control, ensuring safe, hermetic and gas-waste-free...
Price €71.98
Available product, order it now.

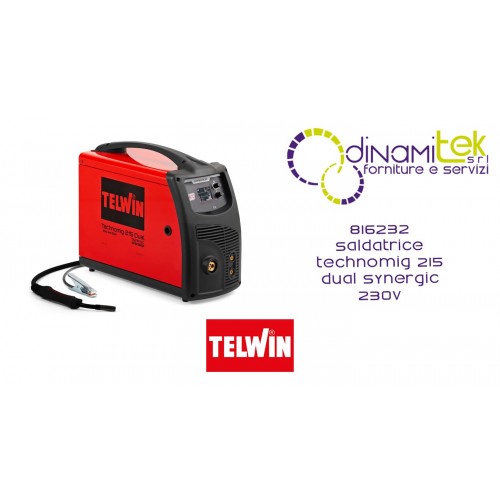

816232 TECHNOMIG 215 DUAL SYNERGIC 230V WELDING MACHINE TELWIN

816232 TECHNOMIG 215 DUAL SYNERGIC 230V WELDING...

The ultimate synergic intelligence for the modern professional! The Telwin Technomig 215 Dual Synergic (code 816232) is the 220A multi-process inverter welder that will revolutionize the way you work. Thanks to OneTouch LCD technology, you simply set the material thickness to start welding: the electronics will manage the arc in real time for flawless...
Price €1,040.00
Available product, order it now.

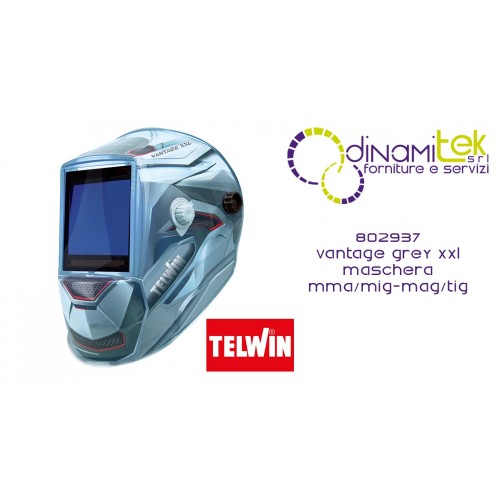

MMA / MIG-MAG / TIG MASK VANTAGE GREY XXL TELWIN Dinamitek 1
