816062 SALDATRICE ELECTROMIG 330 WAVE 400V AQUA TELWIN Dinamitek 1
  • 816062 SALDATRICE ELECTROMIG 330 WAVE 400V AQUA TELWIN Dinamitek 1
  • 816062 SALDATRICE ELECTROMIG 330 WAVE 400V AQUA TELWIN Dinamitek 2

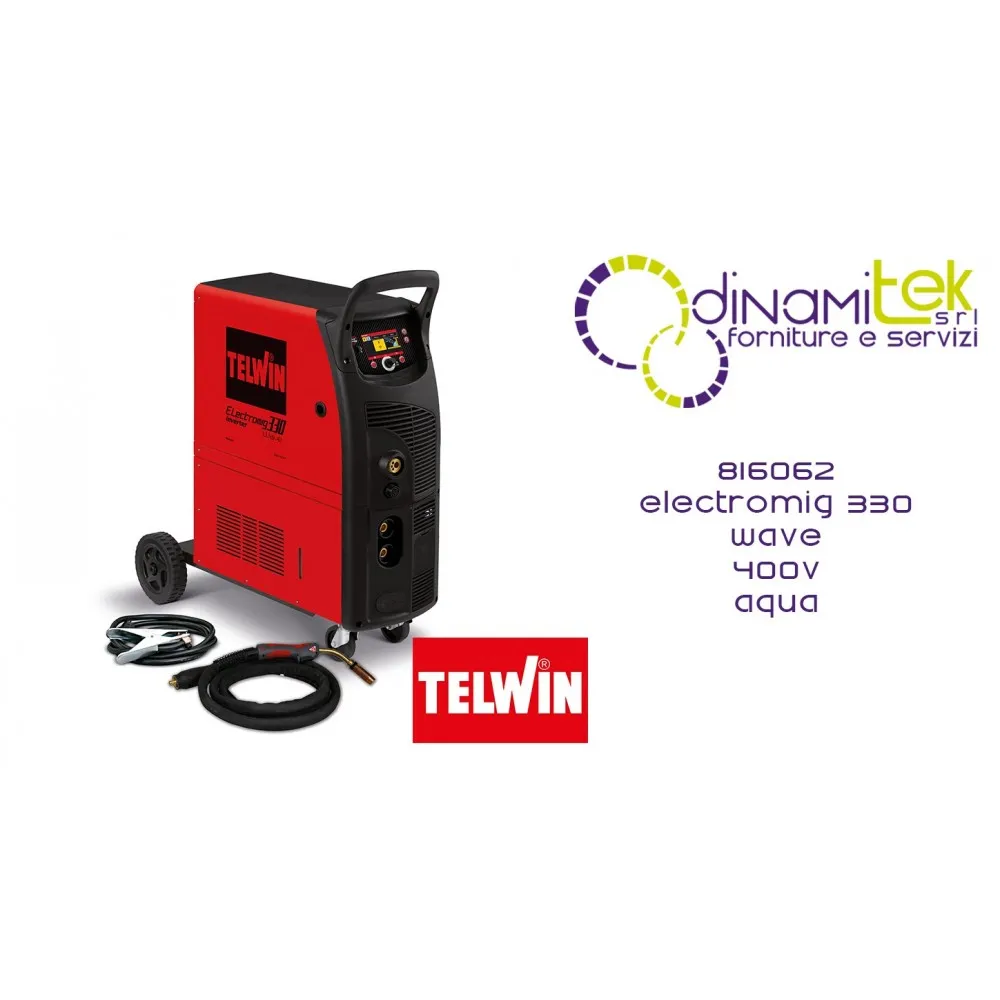

816062 ELECTROMIG 330 WAVE 400V AQUA MIG-MAG 3-PH WELDING MACHINE TELWIN

ELECTROMIG 330 WAVE 400V AQUA WELDER

Shipping cost: €50.00 for
3961,75 €
Tax included

3.247,34 € Tax excluded

Quantity
Available product, order it now.


ELECTROMIG 330 WAVE 400V AQUA
code 816062
Inverter welding machine, with continuous and pulsed operation, multi-process MIG-MAG/FLUX/BRAZING/MMA/TIG DC-Lift controlled by microprocessor.
The WAVE OS system makes welding operations: customizable based on the user's needs; traceable and analyzable, through data saving via USB; simplified, thanks to the SYNERGIC adjustment of the parameters.
Maximum flexibility of use for a wide variety of fields of application, from maintenance to installation to bodywork interventions.
It is possible to operate on various welded materials (steel, stainless steel, aluminum), brazed materials (galvanized and zinc-plated sheets) with specific low heat input welding processes, ROOT-MIG and ATC, and specific processes for aluminum and AB PULSE and AB PoP braze welding.
Intelligent and automatic control of the arc, instant by instant, will maintain high welding performance in all working conditions, with different materials and/or gases.
Complete with VRD device.
The multiple stored welding programs offer the ability to save, track and export numerous custom programs.
Complete with MIG-MAG torch, earth cable and clamp and AQUA cooling unit.
MMA TIG DC LIFT
SPOOL GUN
MIG-MAG FLUX
15 kg REEL
3 PH 400V
CE MARKING
VENTILATED
EAC CERTIFICATION
MICROPROCESSOR
TÜV SUD CERTIFICATION

TORCH HANGING HOOK 645704
MT500 MIG TORCH 3M AQUA 722625
25MMQ 3M CABLE - GROUND CLAMP - RH 50 713192
GRA 3300 WATER COOLING UNIT 230V 802942

CODE 816062
90% YIELD
THREE-PHASE MAINS VOLTAGE 400 V
POWER FACTOR (cosphi) 0.9
MAINS FREQUENCY 50 / 60 Hz
D. ELECTRODES USABLE IN DC 1.6 - 6 mm
CURRENT REGULATION RANGE 20 - 300 A
D. STEEL WELDING WIRE 0.6 - 1.2 mm
MAX DC CURRENT (EN 60974-1)270 @ 30% A
D. STAINLESS STEEL WELDING WIRE 0.8 - 1.2 mm
DC CURRENT 205 A
D. ALUMINUM WELDING WIRE 0.8 - 1.2 mm
MAX NO LOAD VOLTAGE 63 V
D. 0.8 - 1.2 mm COOLED WELDING WIRE
MAXIMUM ABSORBED CURRENT 16 A
D. BRAZING WIRE 0.8 - 1.2 mm
CURRENT CONSUMPTION AT 60% - MAX 10.5 A
DEGREE OF PROTECTION
IP23
MAX ABSORBED POWER 9.2 kW
DIMENSIONS 86.5 x 39 x 91.5 cm
POWER CONSUMPTION AT 60% 6.7 kW
WEIGHT 49 kg
16 A MAINS FUSE
EAN CODE 800489793430 3
A leading Italian company in welding, plasma cutting and charging and starting systems. Professional solutions for workshops, body shops, construction sites and industry, featuring reliable, high-performance technologies.

TELWIN: ITALIAN WELDING TECHNOLOGY SINCE 1963

Telwin is a long-established Italian brand, specialising in inverter welders, plasma cutters and charging/starting systems for the professional sector. Its solutions are designed for high-intensity environments such as mechanical workshops, automotive workshops, body shops, construction sites and industrial maintenance, where precision and operational continuity are essential.

The range includes MIG/MAG, TIG, MMA, high-precision plasma cutting, smart battery chargers, digital starters and multifunction stations for body shops.

The various product lines are distinguished by power, duty cycle, inverter technology, portability and electronic protection systems, making them suitable for both fixed workstations and mobile applications.

Telwin is recognised for structural reliability, arc stability, certified safety and continuous innovation, supported by in-house research and technological development.

Professionals choose Telwin for consistent performance, weld bead quality, reduced processing times and operational continuity even under demanding conditions.
