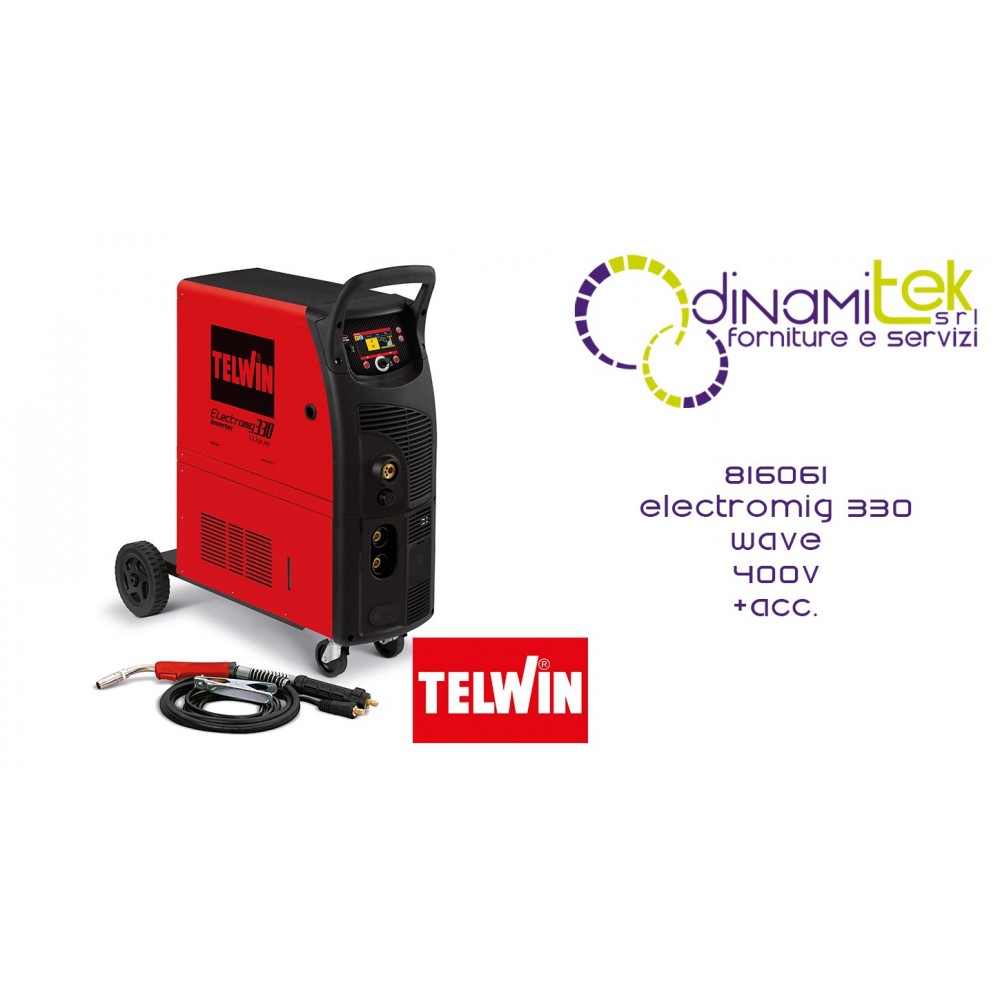

816061 SALDATRICE ELECTROMIG 330 WAVE 400V + ACC. TELWIN Dinamitek 1
  • 816061 SALDATRICE ELECTROMIG 330 WAVE 400V + ACC. TELWIN Dinamitek 1
  • 816061 SALDATRICE ELECTROMIG 330 WAVE 400V + ACC. TELWIN Dinamitek 2

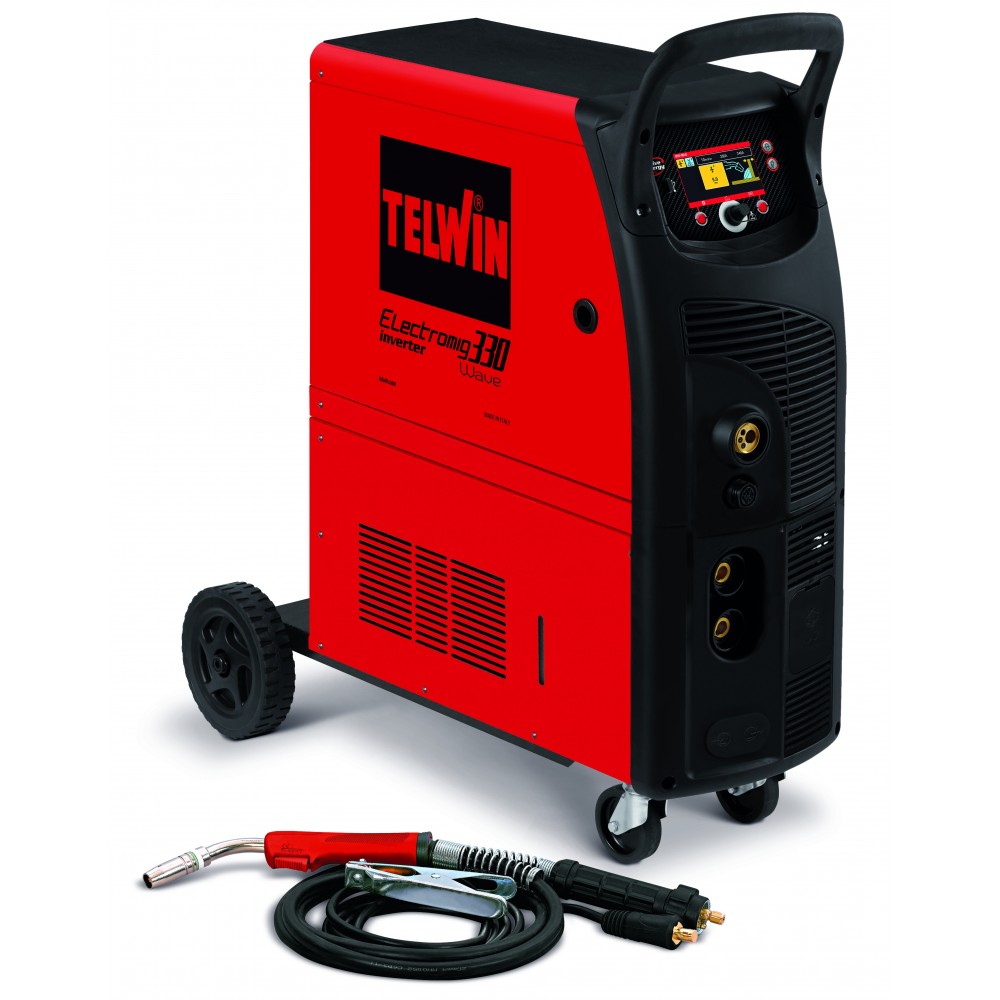

816061 ELECTROMIG 330 WAVE 400V WELDER AND MIG-MAG 3-PH ACC. TELWIN

ELECTROMIG 330 WAVE WELDER 400V + ACC.

Shipping cost: €50.00 for
2978,28 €
Tax included

2.441,21 € Tax excluded

Quantity
Available product, order it now.


ELECTROMIG 330 WAVE 400V + ACC.
code 816061
Inverter welding machine, with continuous and pulsed operation, multi-process MIG-MAG/FLUX/BRAZING/MMA/TIG DC-Lift controlled by microprocessor.
The WAVE OS system makes welding operations: customizable based on the user's needs; traceable and analyzable, through data saving via USB; simplified, thanks to the SYNERGIC adjustment of the parameters.
Maximum flexibility of use for a wide variety of fields of application, from maintenance to installation to bodywork interventions.
It is possible to operate on various welded materials (steel, stainless steel, aluminum), brazed (galvanized and zinc-plated sheets) with specific low heat input welding processes, ROOT-MIG and ATC, and specific processes for aluminum and AB PULSE and AB PoP braze welding.
Intelligent and automatic control of the arc, instant by instant, will maintain high welding performance in all working conditions, with different materials and/or gases.
Complete with VRD device.
The multiple stored welding programs offer the ability to save, track and export numerous custom programs.
Complete with MIG-MAG torch, cable and earth clamp.
MMA TIG DC LIFT
MIG-MAG FLUX
3 PH 400V
MICROPROCESSOR
SPOOL GUN
15 kg REEL
CE MARKING
EAC CERTIFICATION
TÜV SUD CERTIFICATION

TORCH HANGING HOOK 645704
MT25 MIG TORCH 3M 742183
25MMQ 3M CABLE - GROUND CLAMP - RH 50 713192

CODE 816061
90% YIELD
THREE-PHASE MAINS VOLTAGE 400 V
POWER FACTOR (cosphi) 0.9
MAINS FREQUENCY 50 / 60 Hz
D. ELECTRODES USABLE IN DC 1.6 - 6 mm
CURRENT REGULATION RANGE 20 - 300 A
D. STEEL WELDING WIRE 0.6 - 1.2 mm
MAX DC CURRENT (EN 60974-1)270 @ 30% A
D. STAINLESS STEEL WELDING WIRE 0.8 - 1.2 mm
DC CURRENT 205 A
D. ALUMINUM WELDING WIRE 0.8 - 1.2 mm
MAX NO LOAD VOLTAGE 63 V
D. 0.8 - 1.2 mm COOLED WELDING WIRE
MAXIMUM ABSORBED CURRENT 15 A
D. BRAZING WIRE 0.8 - 1.2 mm
CURRENT ABSORBED AT 60% - MAX 10 A
PROTECTION DEGREE IP23
MAX ABSORBED POWER 9 kW
DIMENSIONS 86.5 x 39 x 91.5 cm
POWER CONSUMPTION AT 60% 6.5 kW
WEIGHT 39 kg
16 A MAINS FUSE
EAN CODE 800489792609 4
A leading Italian company in welding, plasma cutting and charging and starting systems. Professional solutions for workshops, body shops, construction sites and industry, featuring reliable, high-performance technologies.

TELWIN: ITALIAN WELDING TECHNOLOGY SINCE 1963

Telwin is a long-established Italian brand, specialising in inverter welders, plasma cutters and charging/starting systems for the professional sector. Its solutions are designed for high-intensity environments such as mechanical workshops, automotive workshops, body shops, construction sites and industrial maintenance, where precision and operational continuity are essential.

The range includes MIG/MAG, TIG, MMA, high-precision plasma cutting, smart battery chargers, digital starters and multifunction stations for body shops.

The various product lines are distinguished by power, duty cycle, inverter technology, portability and electronic protection systems, making them suitable for both fixed workstations and mobile applications.

Telwin is recognised for structural reliability, arc stability, certified safety and continuous innovation, supported by in-house research and technological development.

Professionals choose Telwin for consistent performance, weld bead quality, reduced processing times and operational continuity even under demanding conditions.



816061
