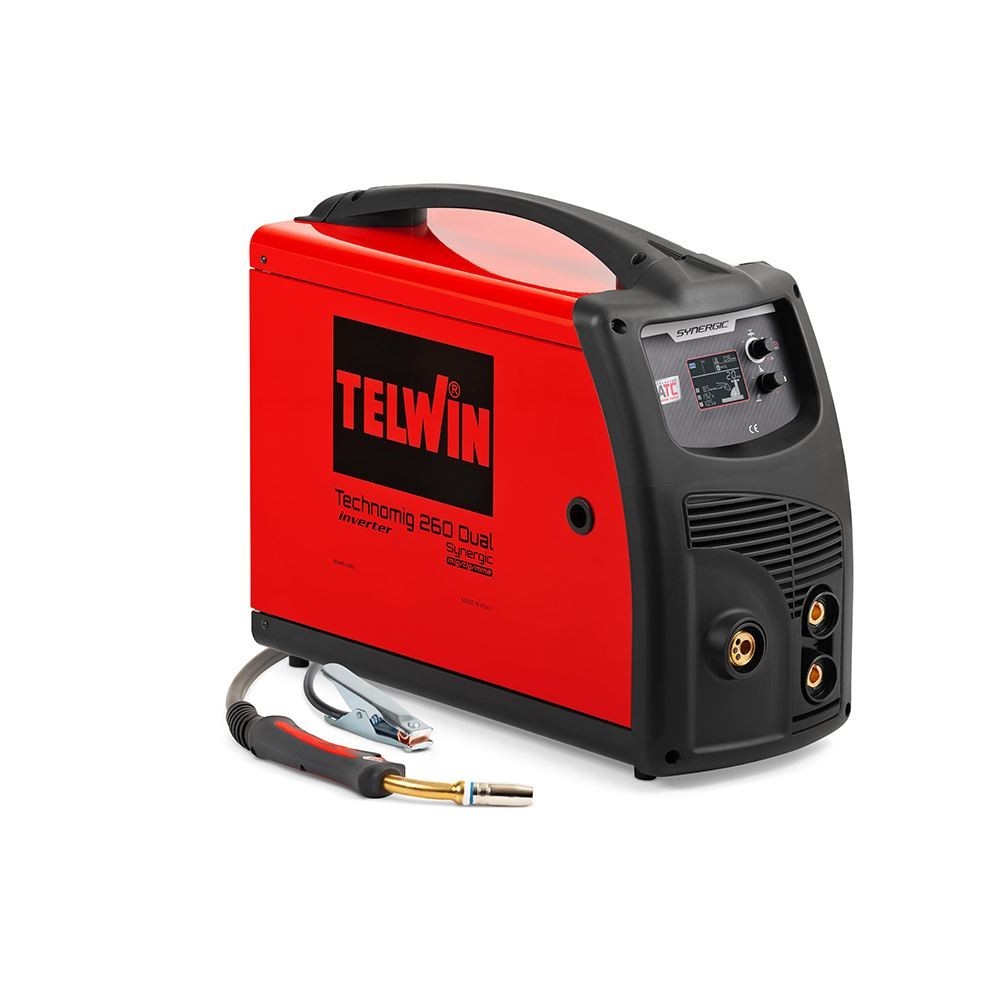

TECHNOMIG 260 DUAL SYNERGIC 230V
code 816056
Microprocessor-controlled MIG-MAG/FLUX/BRAZING/MMA/TIG DC-Lift multi-process inverter welding machine.
The flexibility of use and the different welded materials (steel, stainless steel, aluminium) or brazed (galvanised sheets) confirm Technomig Dual Synergic as an excellent solution in a wide variety of fields of application, from maintenance to installation to bodywork interventions.
The rapid SYNERGIC adjustment of the welding parameters, thanks to the ONE TOUCH LCD SYNERGY technology, makes the product very simple to use.
Intelligent and automatic control of the arc, instant by instant, will maintain high welding performance in all working conditions, with different materials and/or gases.
It is also possible to manually adjust the arc length: this adjustment will allow you to modify the shape of the welding bead based on the welder's style.
The ONE TOUCH LCD graphic display allows for better reading of all welding parameters.
Low weight and maximum compactness also ensure easy transportability to all intervention sites, both indoors and outdoors.
Characteristics:
- polarity change for NO GAS/Flux, MIG-MAG/BRAZING welding;
- 29 synergic curves pre-set;
- LCD display of voltage, current, welding speed;
- adjustments: wire ramp, electronic reactance, final wire burn-back time, post-gas;
- 2/4-stroke operation selection, spot;
- thermostatic, overvoltage, undervoltage, overcurrent, motor generator protection (+/- 15%).
Complete with MIG-MAG torch, cable and earth clamp.
MMA TIG DC LIFT
MIG-MAG FLUX
1 PH 230V
15 kg REEL
CE MARKING
EAC CERTIFICATION

CABLE 124887
MT25 MIG TORCH 3M 742183
TOLEDO 300 GROUND CLAMP 712231

SINGLE-PHASE MAINS VOLTAGE 230 V
POWER FACTOR (cosphi) 0.7
MAINS FREQUENCY 50 / 60 Hz
D. ELECTRODES USABLE IN DC 1.6 - 4 mm
CURRENT REGULATION RANGE 20 - 250 A
D. STEEL WELDING WIRE 0.6 - 1.2 mm
MAX DC CURRENT (EN 60974-1) 220 @ 20% A
D. STAINLESS STEEL WELDING WIRE 0.8 - 1 mm
DC CURRENT 130 A
D. ALUMINUM WELDING WIRE 0.8 - 1 mm
MAX NO LOAD VOLTAGE 60 V
D. 0.8 - 1.2 mm COOLED WELDING WIRE
MAXIMUM ABSORBED CURRENT 39 A
D. BRAZING WIRE 0.8 - 1 mm
CURRENT ABSORBED AT 60% - MAX 22 A
PROTECTION DEGREE IP23
MAX ABSORBED POWER 6.3 kW
DIMENSIONS 62 x 26 x 49 cm
POWER CONSUMPTION AT 60% 3.3 kW
WEIGHT 22 kg
YIELD 87%
