804210 AIRLITE PAPR MMA MIG-MAG TIG MASK TELWIN

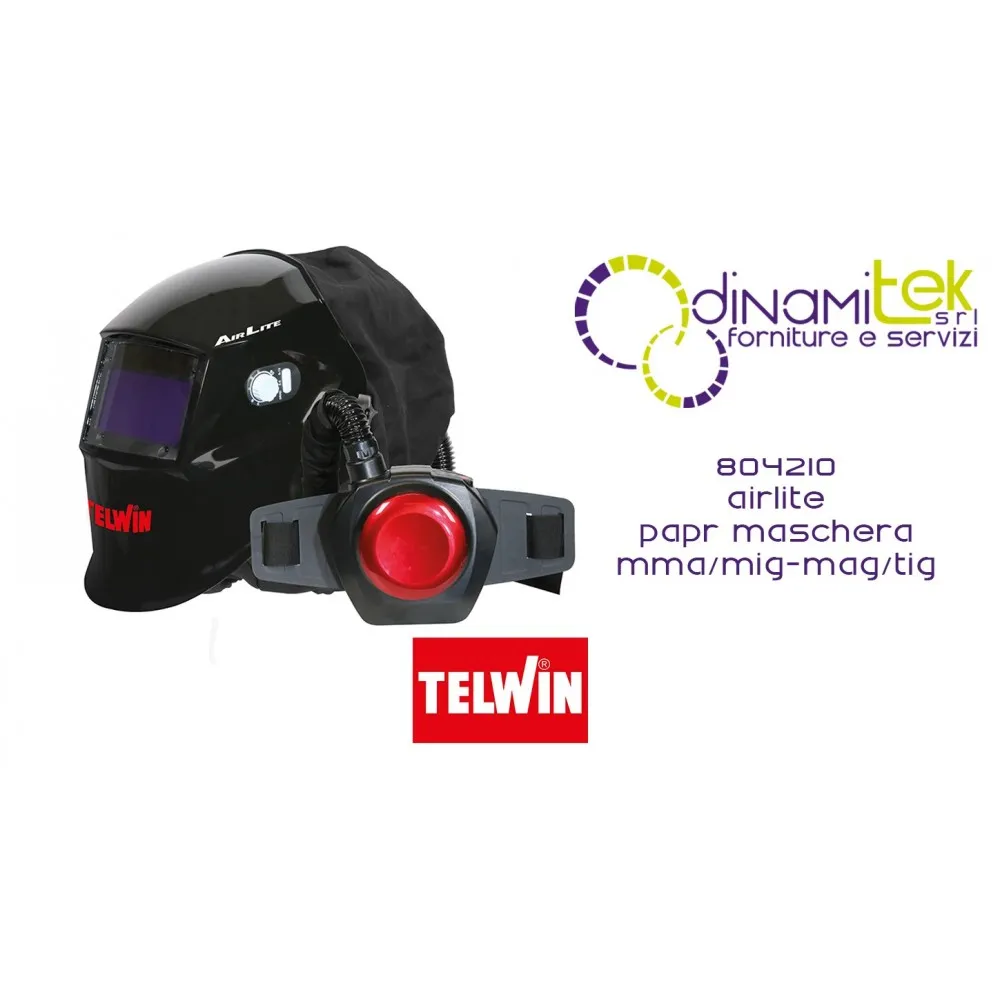

AIRLITE PAPR MMA/MIG-MAG/TIG MASK
code 804210
Automatic helmet mask with powered air-purifying respirator (PAPR) suitable for MMA, MIG-MAG and TIG welding with shade adjustment DIN 4/5 ÷ 8/9÷13).
The LCD liquid crystal filter automatically darkens when the welding arc is struck and quickly returns to clear when the arc is turned off, eliminating the need to raise and lower the mask during each work break and thus allowing hands-free operation.
In addition to adjusting the filter sensitivity according to the welding process, there is also the option of adjusting the delay time for the transition from the dark state to the light state, after the arc has been interrupted, according to the brightness of the piece.
This mask guarantees total visual protection and filters the external air to make it purified and breathable for the operator.
The respirator, thanks to the integrated filter (TH2), ensures high air quality.
It is possible to adjust (2 speeds) the flow of filtered air inside the mask depending on the work being done.
The respirator is powered by a lithium battery that ensures its long-lasting operation. The battery charge level, indicated by dedicated LEDs, can be viewed directly on the front of the respirator at all times to monitor its performance. An audible alarm alerts the wearer both when the battery is low and when the mask filter is blocked.
Supplied with a practical bag, for transport or storage after each use, it is accompanied by numerous accessories.
Characteristics:
- adjustable auto-darkening filter;
- double dimming adjustment scale;
- large viewing area;
- 4 sensors
- sensitivity adjustment and dark-light delay;
- TIG >5 A;
- grinding mode;
- solar cell operation,
- light and comfortable.

RESPIRATOR
- TH2 filter;
- 2-speed airflow: normal and high;
- rechargeable lithium battery;
- display of the charge status;
- audible alarm to signal filter blockage or low battery.

OPTIONAL:
External glass protection 98x123mm Kit 2 pcs cod.804216
Internal glass protection 58x107mm Kit 2 pcs cod.804215
Sweatband Kit 2 pcs code 804099.
CE MARKING

CODE 804210
OPTICAL CLASS 1/1/1/2
TIG MASK > 5 A
USE TEMPERATURE (MIN-MAX) -5 - 55 °C
MIG-MAG MASK*
AIR FLOW 150 LPM / 180 LPM
MMA MASK*
STANDARD AIR FILTER TH2
4 DIN LIGHT STATION
4 NR SENSORS
VARIABLE STATE 5-8/9-13 DIN
VIEWING AREA 98x55 mm
LIGHT-DARK TRANSITION TIME <0.1 ms
BATTERY LIFE 6-8 / 4-6 ]h
DARK-LIGHT DELAY 0.1 - 0.8 s
WEIGHT 4 kg
