9006 GROUNDING CABLE REEL - OPTIONAL ZECA CLAMP

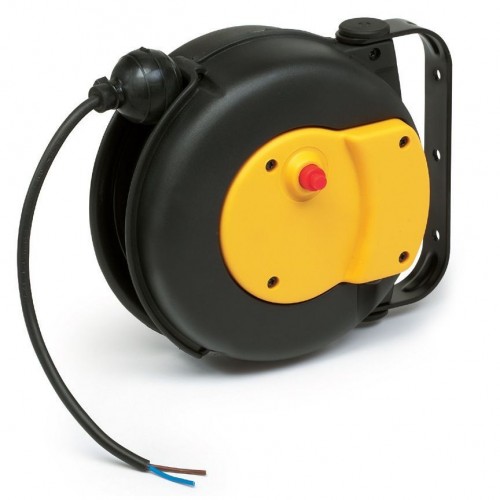

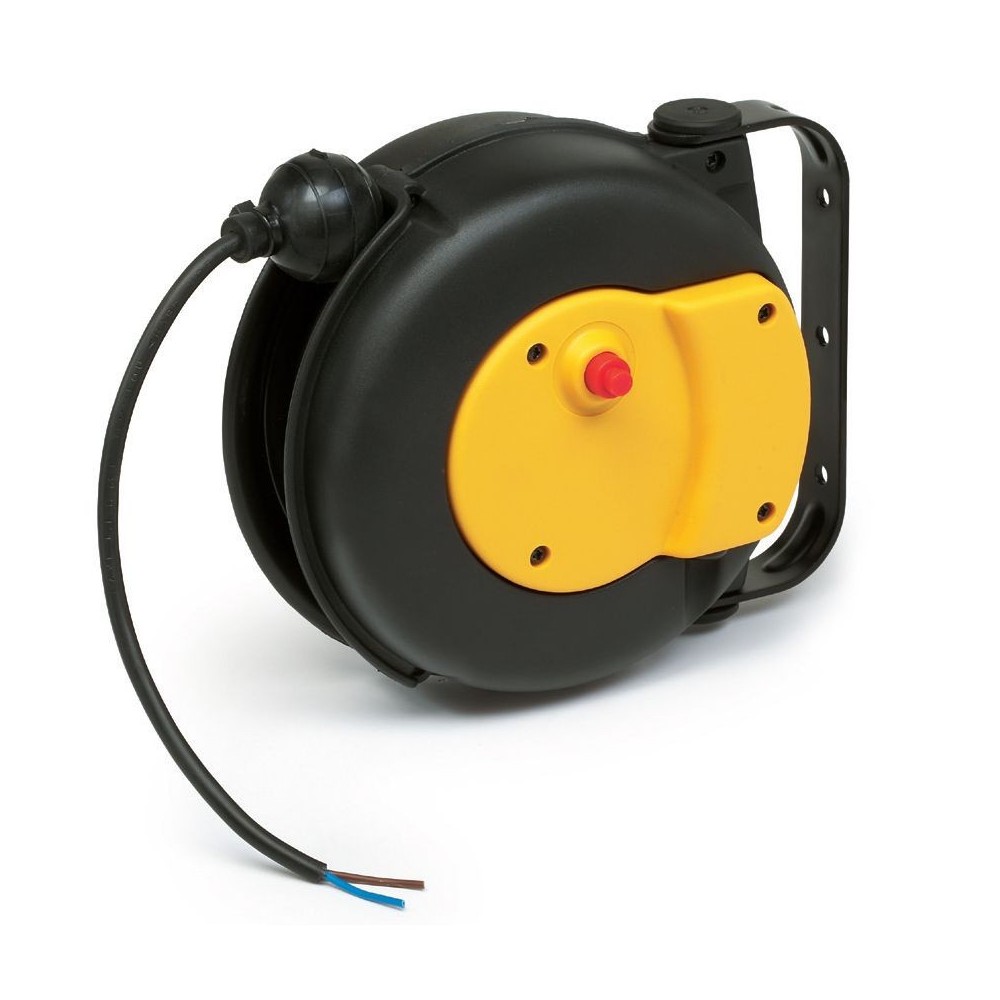

ZECA 9006 SERIES 9000 INDUSTRIAL CABLE REEL

This industrial cable reel is highly appreciated for its small size.
It's incredibly easy to use. A ratchet cable stop device can be inserted every 50 cm to keep the cable in the most convenient position for comfortable and safe working. If you need the cable to be kept under constant tension, simply remove the safety device.

This is a very durable tool, with a shock-resistant plastic body. The cable reel features sliding contacts with a collector ring and brushes.

For maximum safety, the 9006 cable reel is equipped with a double earth contact.

This model is supplied without a power side section.

Evaluate the cable reel's technical features to determine if it's right for your needs. All other models in the range are also available; click here to see the entire 9000 series.

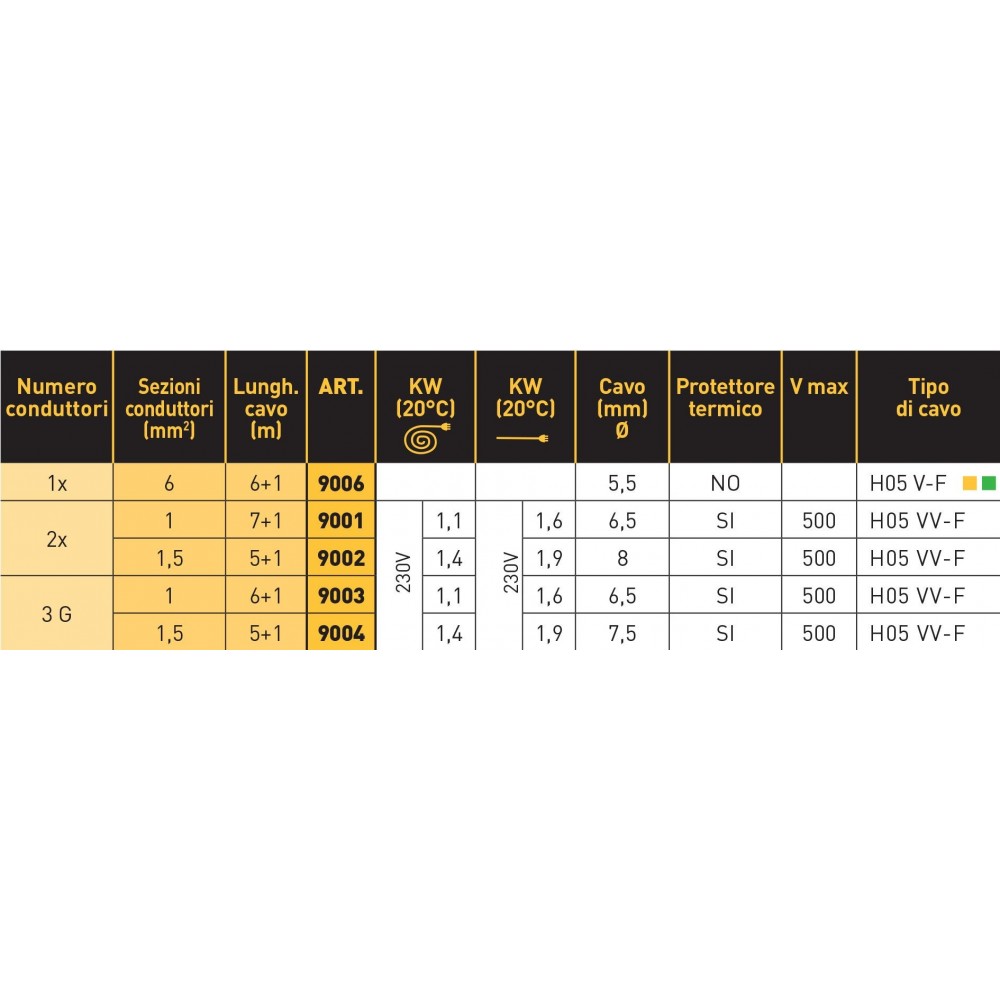

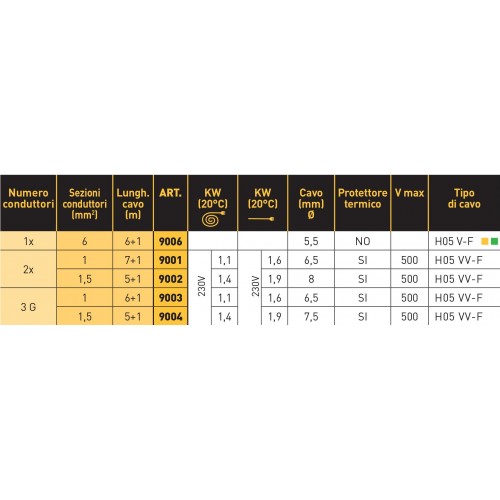

TECHNICAL CHARACTERISTICS

• Number of conductors 1 X
• Conductor section 6
• Cable length (m) 6+1
• Cable type H05V-F yellow-green
• Cable diameter (mm) 5.5
• Ambient operating temperature: -5°C/+50°C.
• Degree of protection IP42: protected against access with a wire and protected against dripping water at a maximum inclination of 15 degrees.
• Collector insulation voltage 2.5 KV.
• CE marking EN 61242 EN 60355-1 2014/35/UE 2006/42/CE 2011/65/CE
