GSR 12 V-15 0.601.868.10F SCREWDRIVER WITH ACCESSORIES BOSCH
GSR 12V-15 Professional: The Best-Selling Drill Driver for Compactness and Performance
The GSR 12V-15 Professional is the cordless drill/driver that offers the best performance-to-compactness ratio in the Bosch 12 V category. Despite its small size (length 169 mm, width 53 mm), it delivers a maximum torque of 30 Nm (hard materials).
This variant is a complete set that includes two 2.0 Ah batteries and a quick charger, ensuring continuous operation. It is the #1 best-selling tool in its category.
GSR 12V-15 Professional – Cordless Drill Driver (12 V)
The GSR 12V-15 Professional cordless drill driver (order code 0 601 868 10F) is a compact and lightweight tool (weighs 0.95 kg including battery) that offers optimum performance, ideal for jobs that require ease of handling and precision, such as those carried out by electricians, carpenters and metalwork professionals.
Main Features and Benefits
- Performance: Despite belonging to the 12V category, the tool offers a tightening torque of up to 30 Nm in hard materials and 15 Nm in soft materials.
- Speed: It works on 2 speeds, with an idle speed ranging from 0 – 400 rpm (1st speed) to 0 – 1,300 rpm (2nd speed).
- Compactness: Its small dimensions (length 169 mm, width 53 mm, height 178 mm) make it an extremely handy tool.
- Working Diameter: The maximum drilling diameter in wood is 19 mm, and it can tighten screws up to 7 mm in diameter.
Complete Technical Data
| Identifiers and General Specifications | |
|---|---|
| Ordering code (Variant): | 0 601 868 10F |
| EAN Code: | 3165140895248 |
| Product name: | GSR 12V-15 (Cordless Drill Driver) |
| Battery voltage: | 12.0 V |
| Tightening torque (soft/hard/max. material): | 15/30/- Nm |
| No-load speed (1st speed/2nd speed): | 0 – 400 / 0 – 1,300 rpm |
| Ø screws, max.: | 7 mm |
| Weight incl. battery: | 0.95 kg |
| Chuck clamping range, min./max.: | 1 / 10 mm |
| Dimensions and Noise | |
|---|---|
| Tool dimensions (length): | 169 mm |
| Tool dimensions (width): | 53 mm |
| Tool dimensions (height): | 178 mm |
| Package dimensions (LxWxH): | 245 x 320 x 115 mm |
| Noise (typical Pressure/Power): | 70 dB(A) / 80 dB(A) (Uncertainty K= 3 dB) |

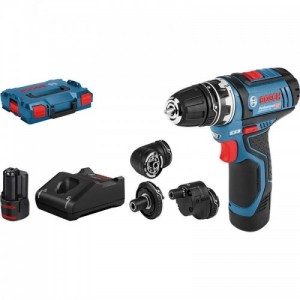

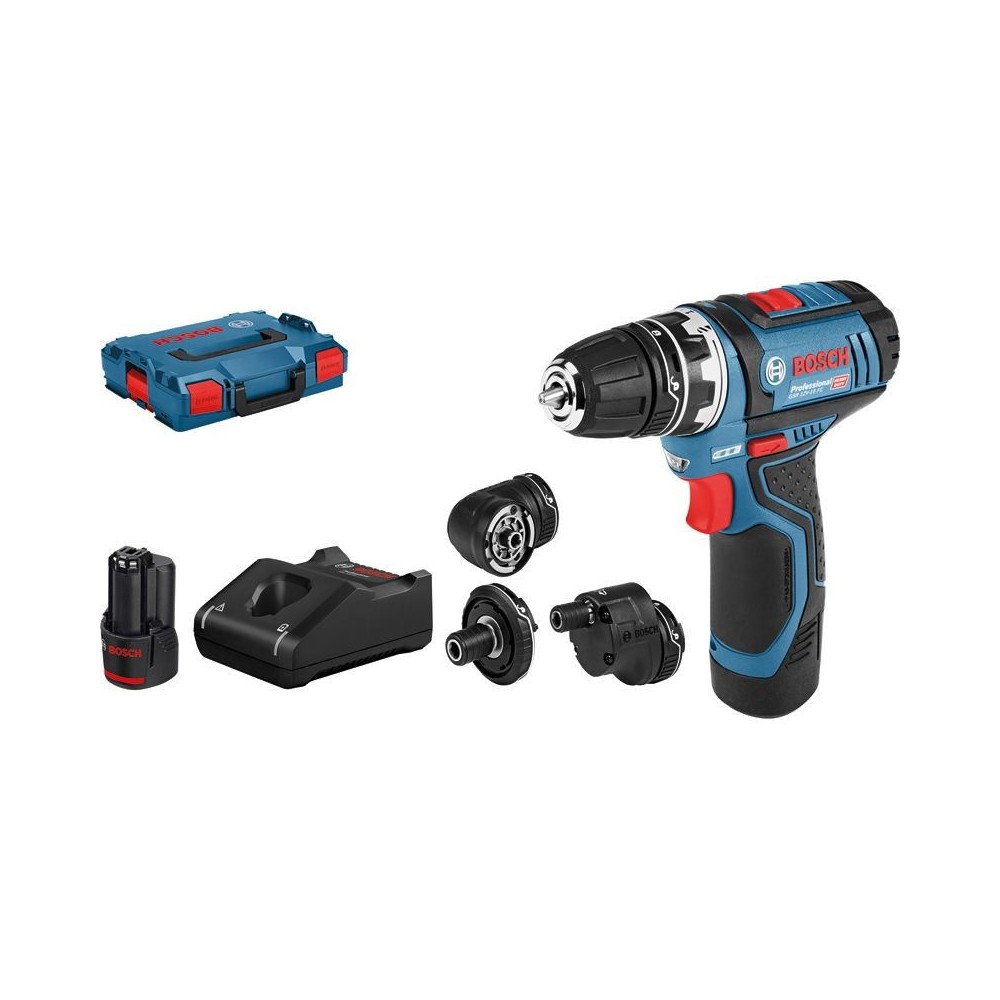

Scope of delivery (Variant 0 601 868 10F)
This variant is sold with 2 x 2.0Ah lithium batteries and a fast charger and includes the following components:
- 2 GBA 12V 2.0Ah batteries (Order code: 1 600 Z00 02X).
- GAL 12V-20 Professional battery charger.
- 1/2 L-BOXX case insert for tool and charger (Code: 1 600 A00 2V2).
- 1/2 thermoformed L-BOXX case for accessories (Code: 1 600 A00 2WY).
BOSCH: TECNOLOGIA TEDESCA PER LAVORI PROFESSIONALI DAL 1886
Bosch Professional è uno dei marchi più autorevoli al mondo negli elettroutensili professionali, progettati per garantire precisione, durata e prestazioni costanti nei settori edilizia, impiantistica, carpenteria, meccanica e industria. Le soluzioni Bosch sono sviluppate per utilizzi intensivi, con tecnologie proprietarie e standard qualitativi elevati.
La gamma professionale Bosch comprende trapani, avvitatori, smerigliatrici, martelli perforatori, seghe, strumenti di misura, oltre alla piattaforma Professional 18V System, compatibile con decine di utensili e progettata per offrire potenza, autonomia e flessibilità in ogni applicazione.
Le diverse linee si distinguono per potenza, ergonomia, elettronica di protezione, sistemi antivibrazione, durata delle batterie e motori brushless, così da adattarsi a cantieri, officine e manutenzione industriale. Bosch integra sistemi di sicurezza certificata, gestione termica avanzata e tecnologie di controllo elettronico per garantire continuità operativa.
Bosch è riconosciuta per affidabilità, precisione tedesca e innovazione continua, supportata da ricerca interna e sviluppo tecnologico. I professionisti scelgono Bosch per prestazioni costanti, lunga vita utile degli utensili e soluzioni integrate per ogni mestiere.
GSR 12 V-15
