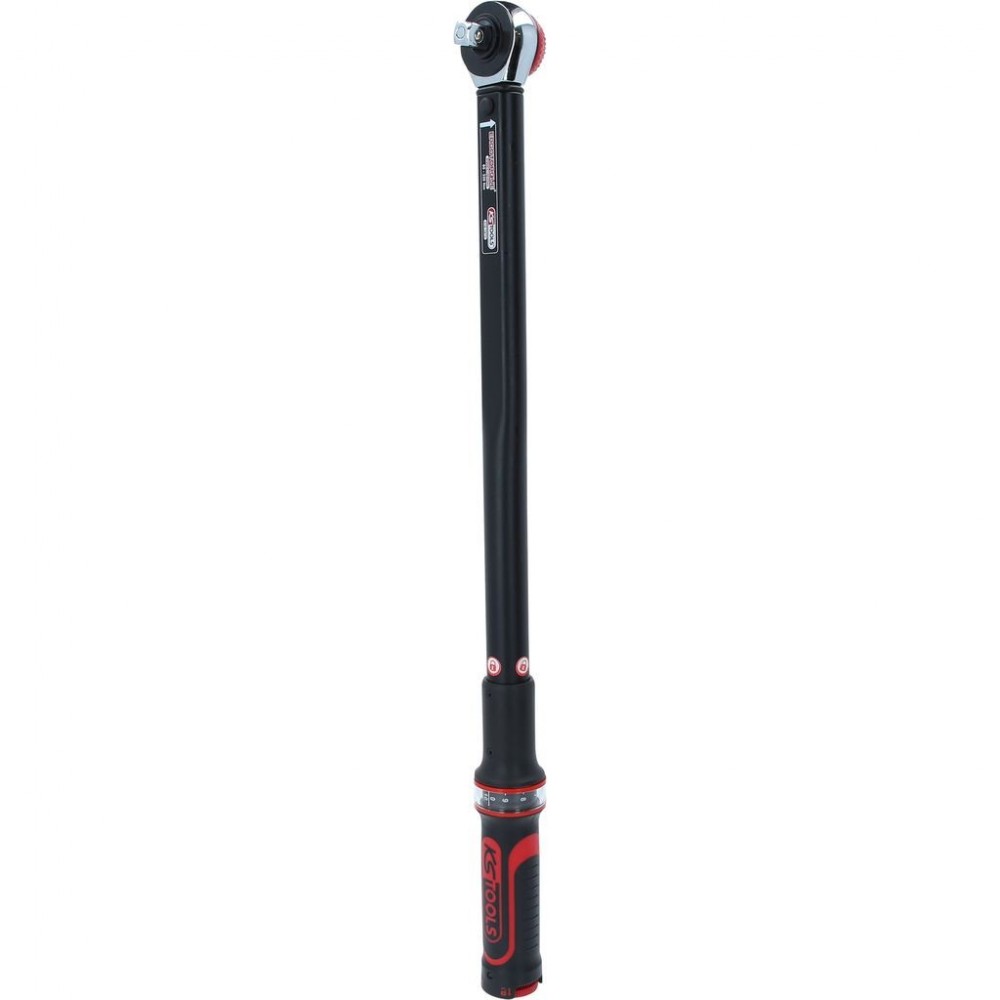

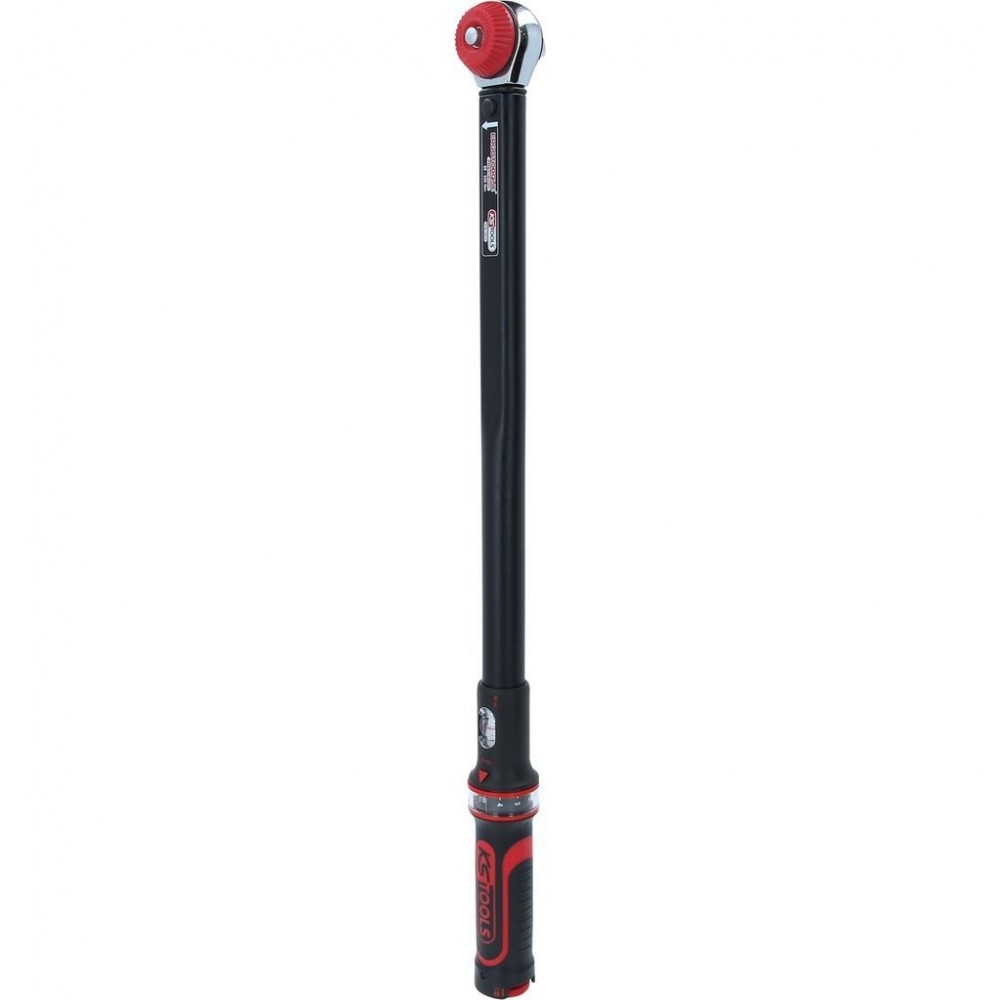

516.1472 1/2" SLIDING SQUARE TORQUE WRENCH 60-320 NM ERGOTORQUE®PRECISION KS TOOLS

Technical Features and Advantages of the KS Tools 516.1472 Torque Wrench

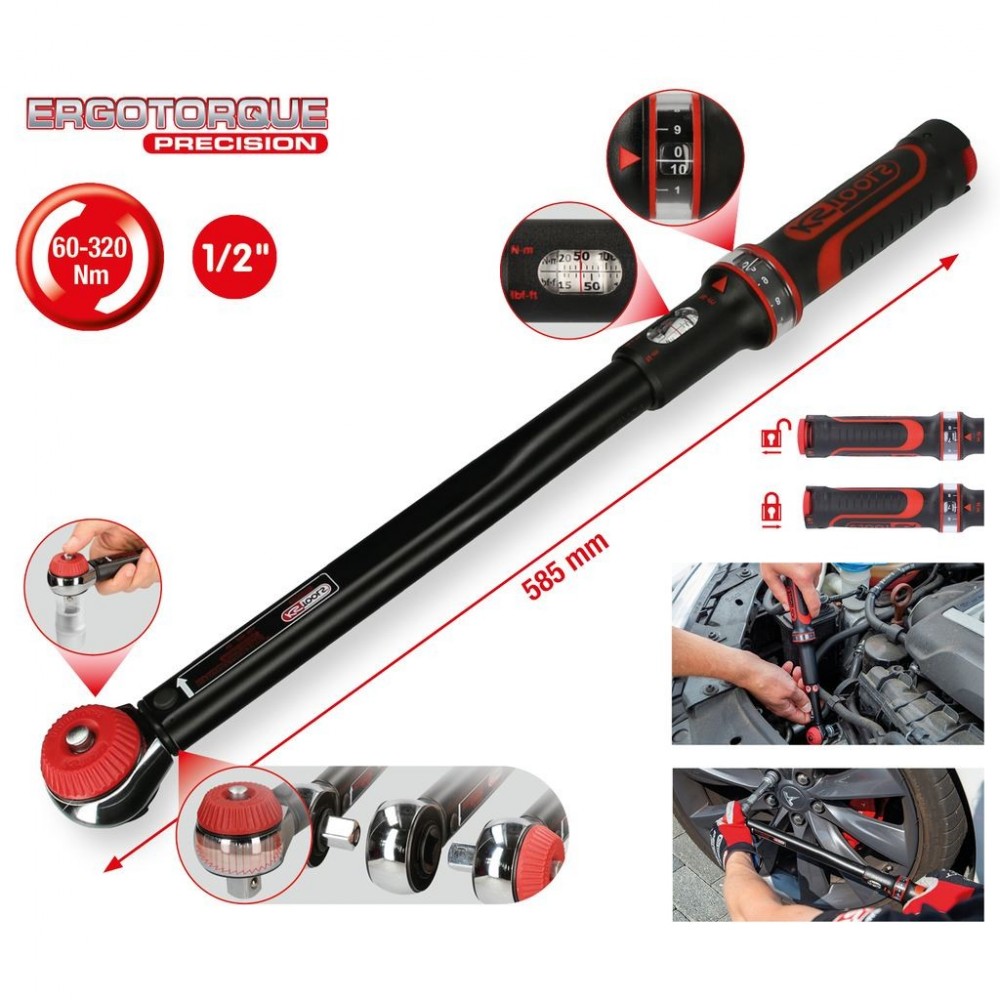

Developed to ensure reliability and maximum holding power during high-torque tightening operations on cars, light commercial vehicles, and industrial machinery, the KS Tools 516.1472 ERGOTORQUE® precision torque wrench combines a reinforced 585 mm length with quick torque adjustment. The ergonomic two-component handle ensures an excellent grip and effective leverage without excessive operator strain.

Quick Adjustment and Safe Use

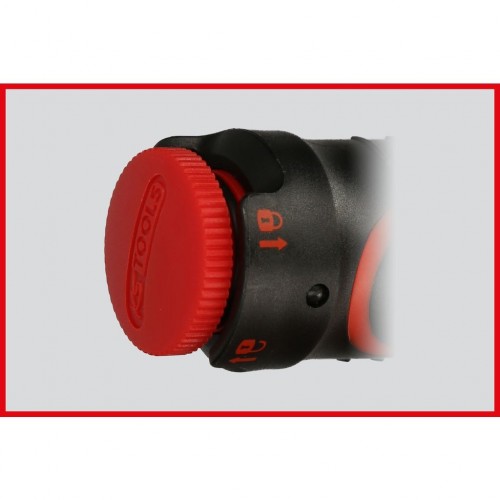

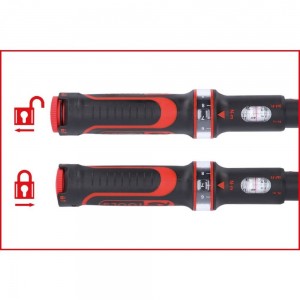

• Torque Adjustment and Locking: Torque is set quickly and safely using the wheel slider integrated into the handle, complete with a safety lock button.

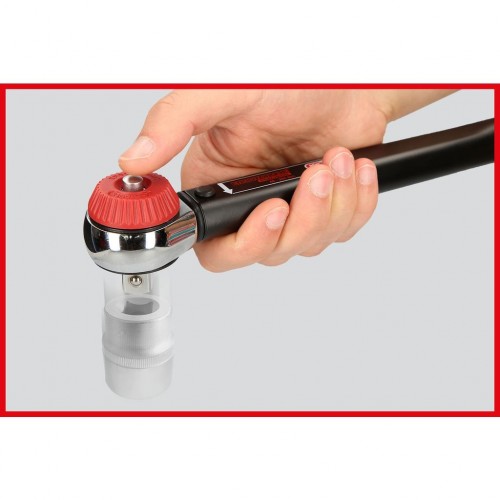

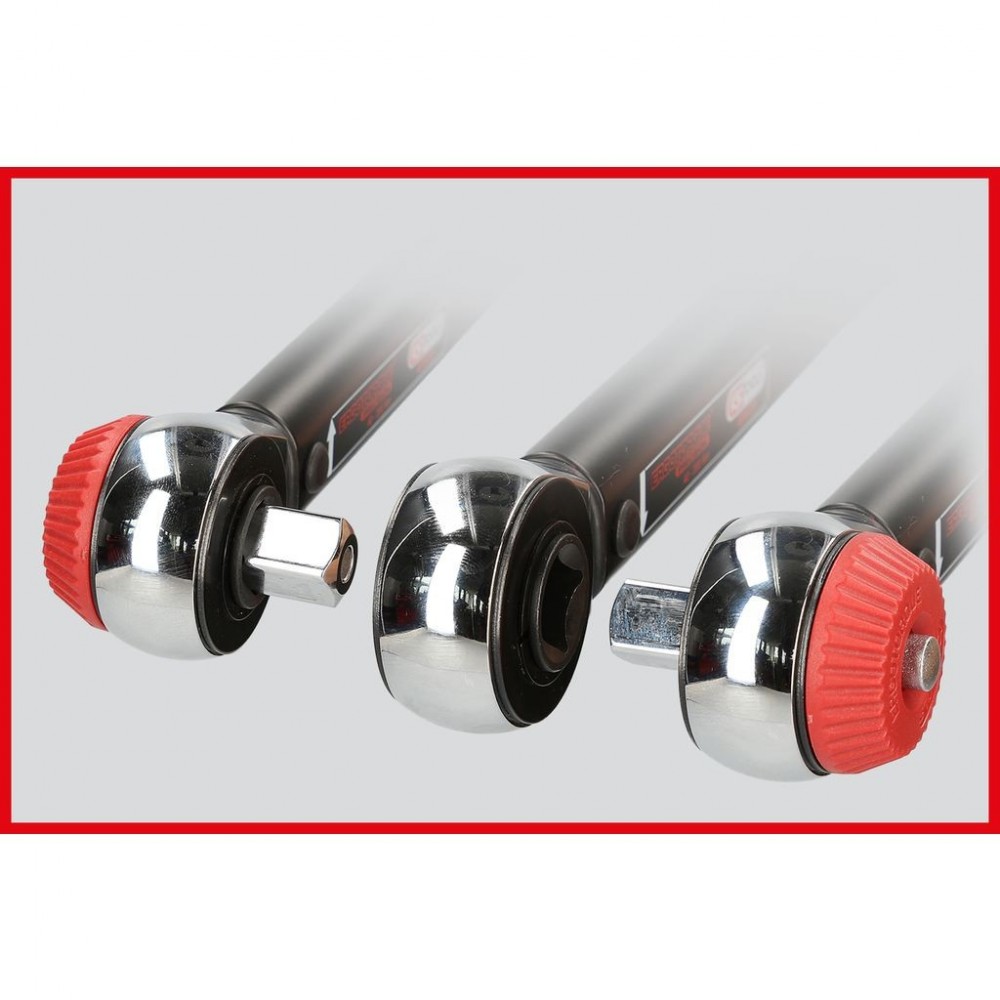

• Sliding Square and Quick Release: The DIN 3120 / ISO 1174 compliant square drive with ball lock allows for reversing by pushing the attachment to the opposite side and is equipped with a quick release button for the socket on the head.
• Certification and Traceability: Each instrument is marked with an individual engraved serial number and is supplied with a calibration conformity certificate according to DIN EN ISO 6789-1:2017(E).

Detailed Technical Data Sheet

• Item Code (SKU): 516.1472
• Manufacturer / Brand: KS Tools
• Series: ERGOTORQUE®precision
• Output square drive: 1/2" Sq>
• Torque range: 60 - 320 Nm (45 - 236 lbf ft)
• Scale resolution (Subdivision): 1.0 Nm
• Deviation tolerance: ±3%

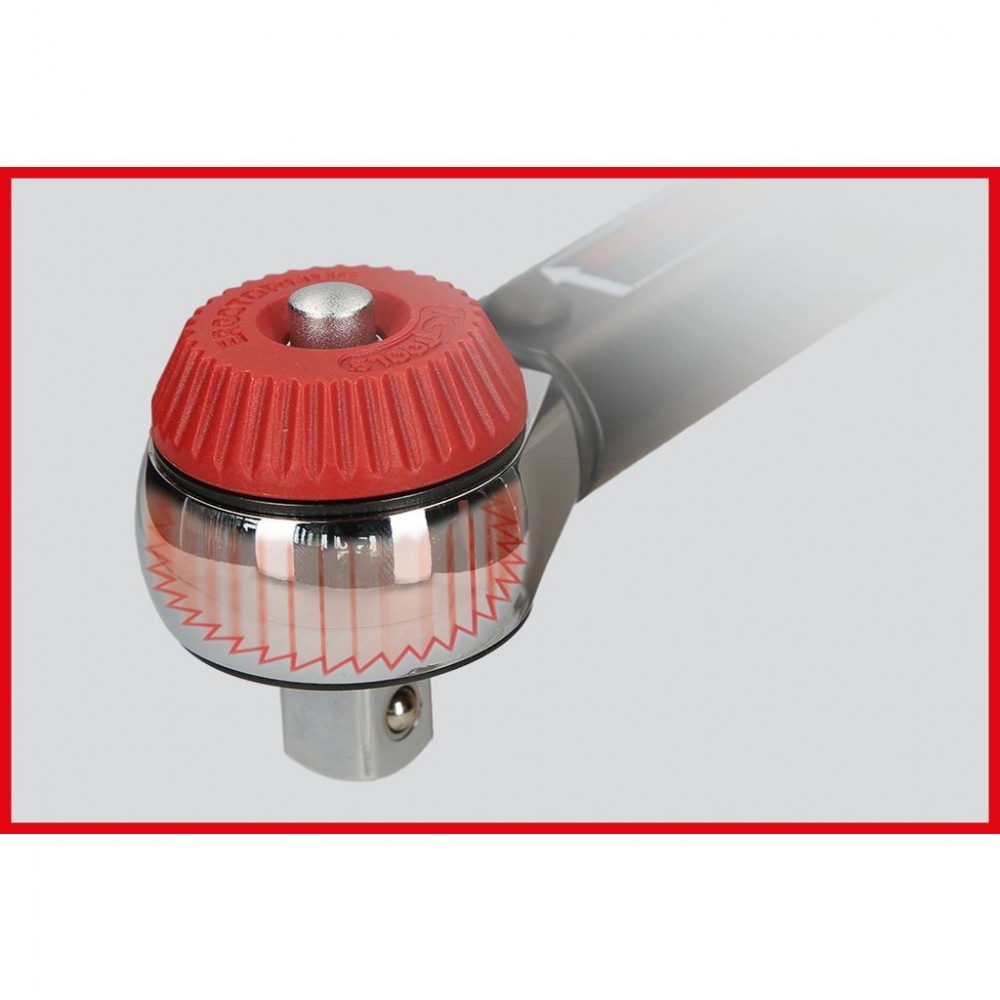

• Ratchet mechanism: 30 teeth
• Head shape: Mushroom head / Rounded ratchet with sliding square
• Handle: Ergonomic two-component
• Total length (L): 585 mm
• Head diameter (D): 45 mm
• Head height (H): 23 mm
• Net weight: 1,450 g (1.45 kg)
• Reference standards: DIN 3120, ISO 1174, DIN EN ISO 6789-1:2017(E)
