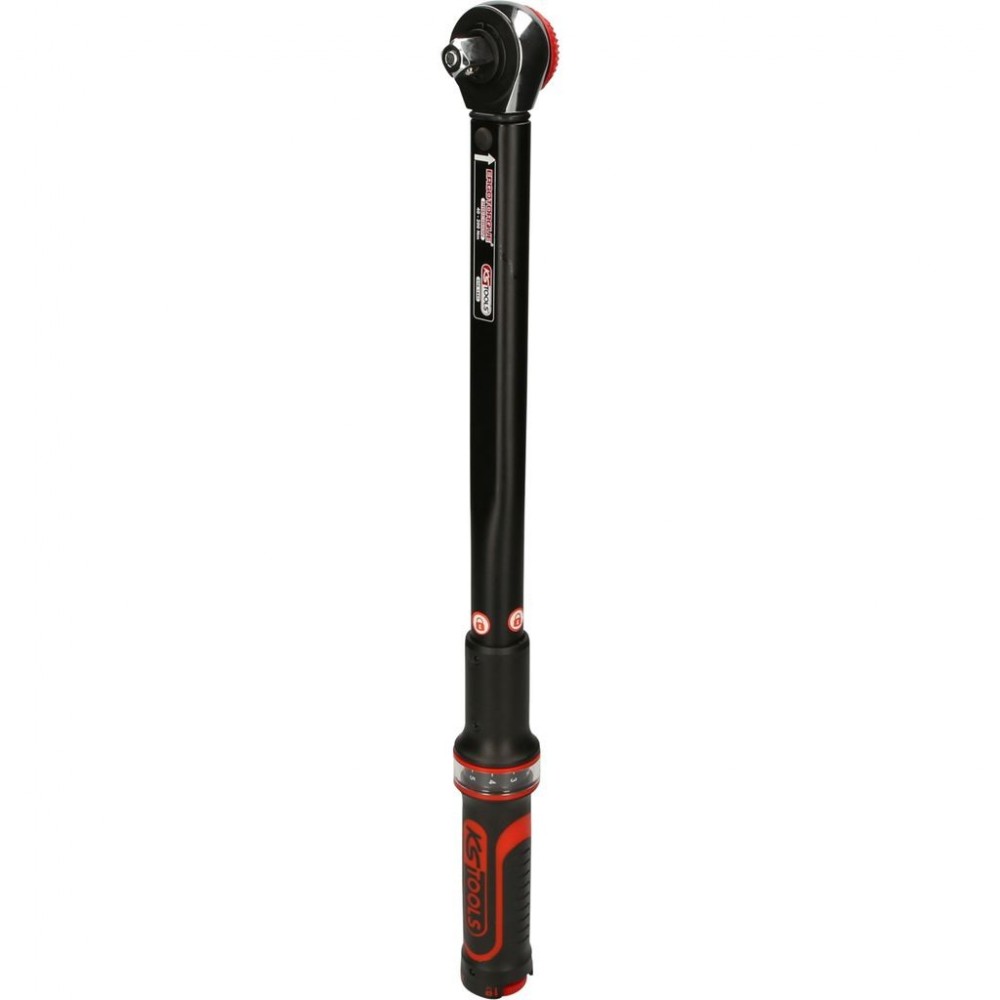

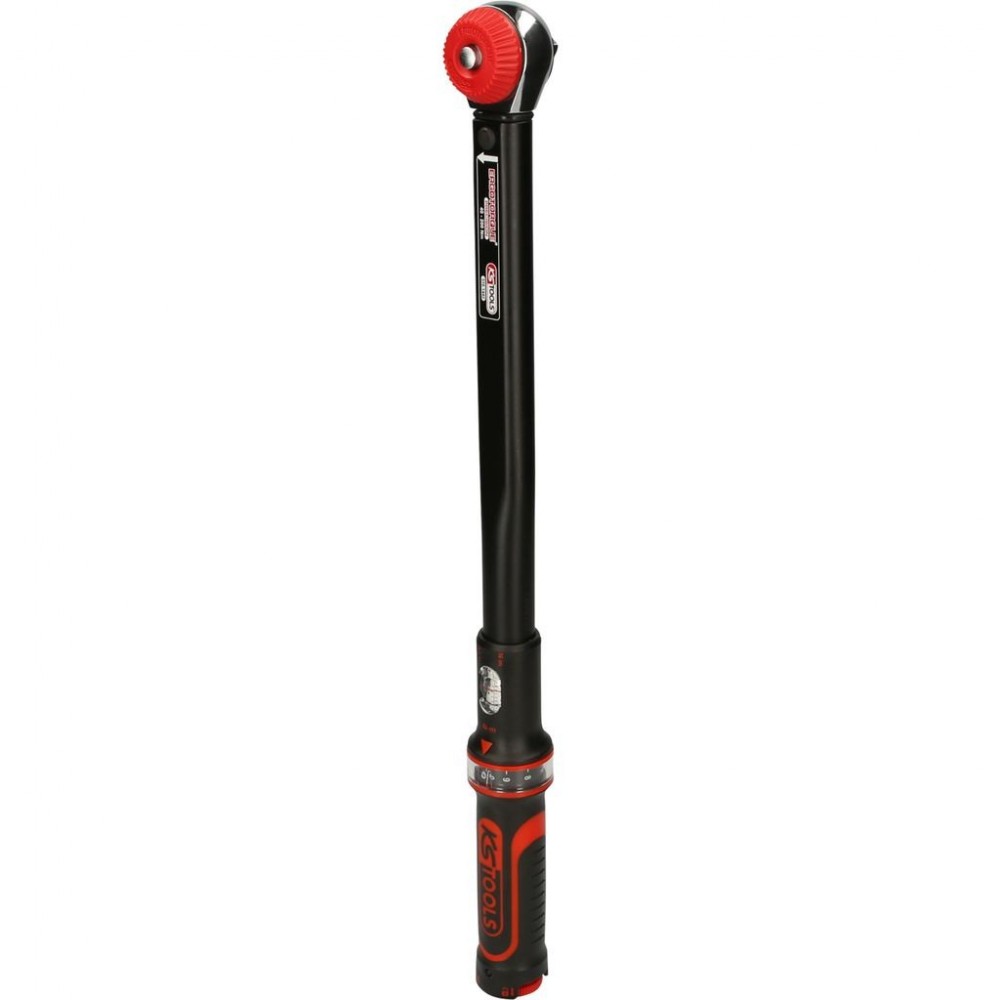

516.1442 1/2" SLIDING SQUARE TORQUE WRENCH 40-200 NM ERGOTORQUE®PRECISION KS TOOLS

Technical Features and Advantages of the KS Tools 516.1442 Torque Wrench

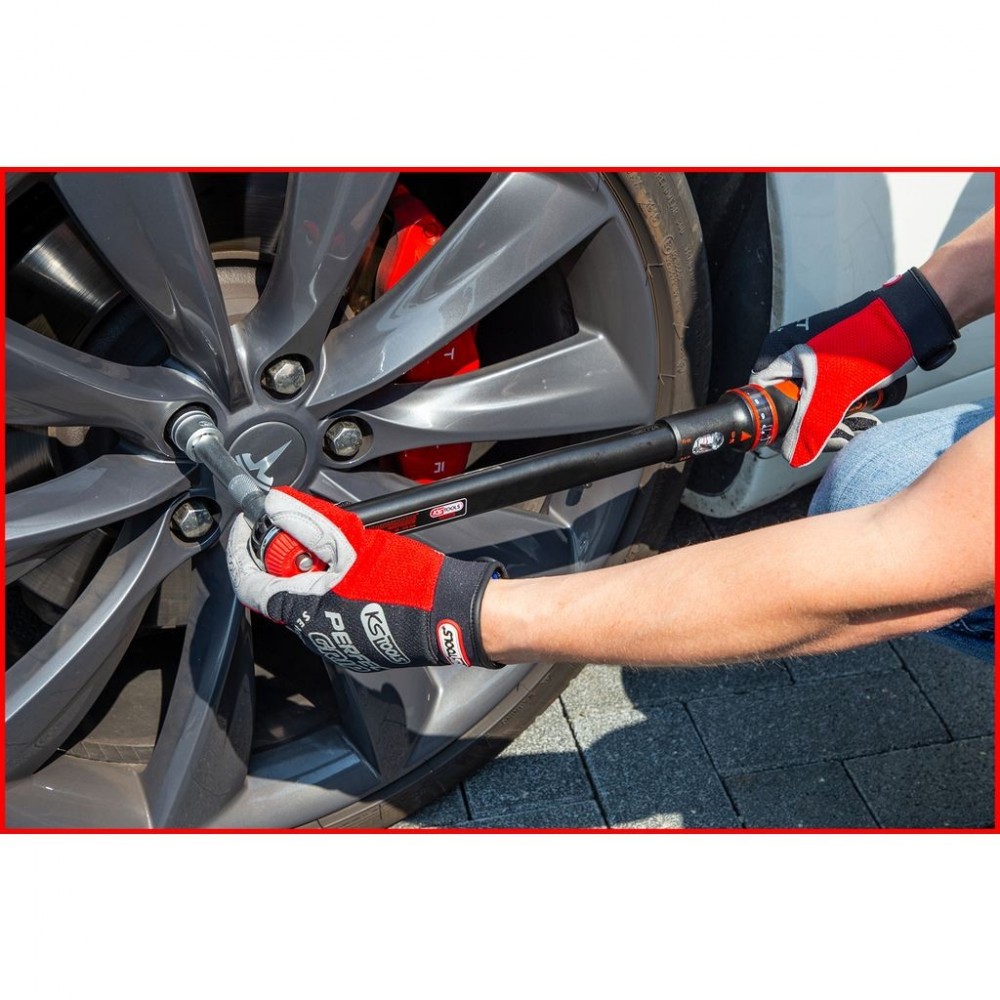

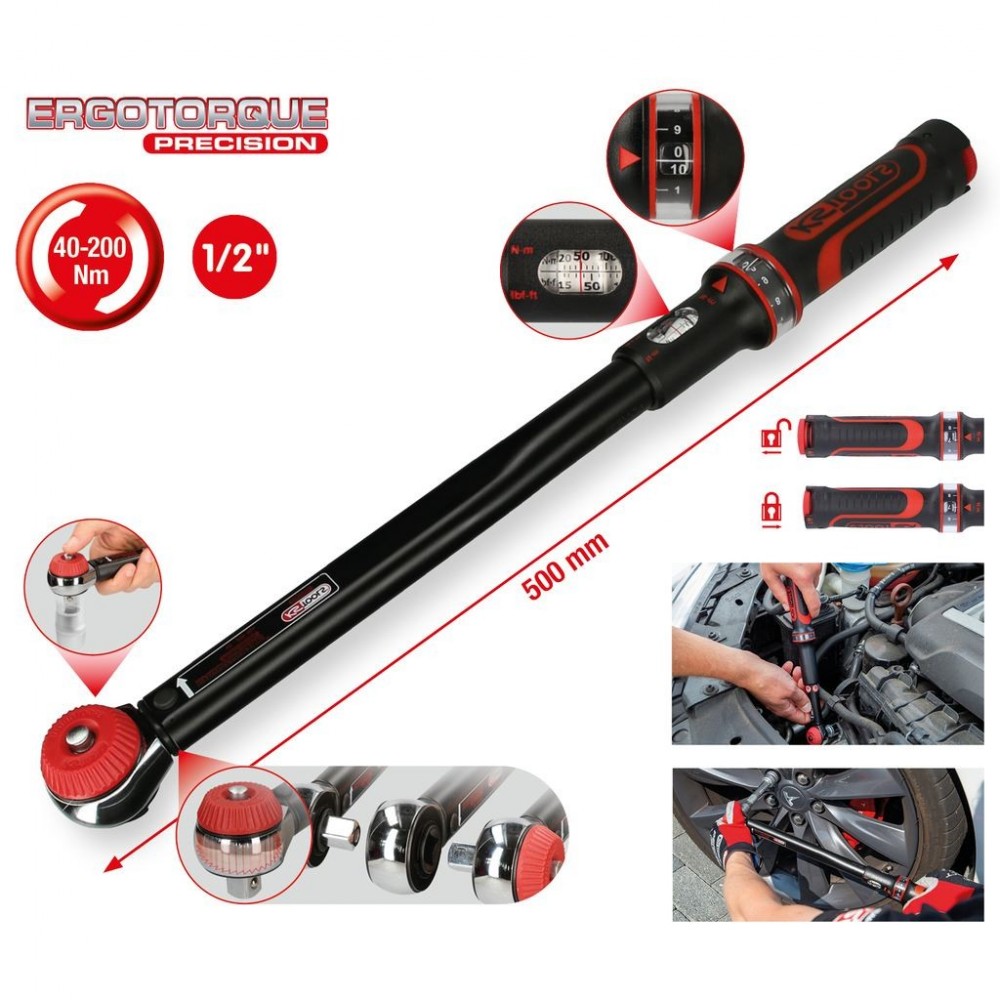

Developed to ensure maximum reliability during controlled tightening operations in mechanical workshops, tire shops, and industrial maintenance, the KS Tools 516.1442 ERGOTORQUE®precision torque wrench combines a robust 500 mm long construction with quick torque adjustment. The ergonomic two-component handle with soft inserts ensures a firm and comfortable grip even during prolonged work sessions.

Intuitive Adjustment and Safe Use

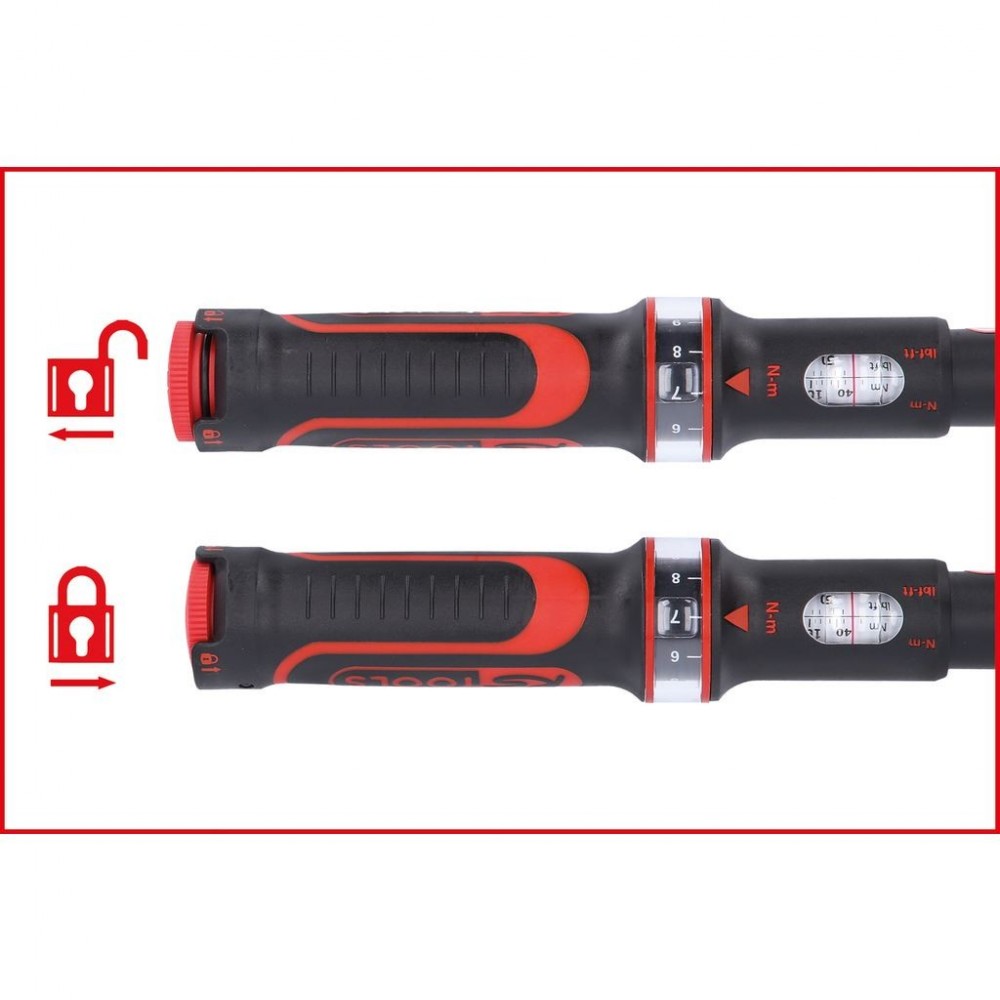

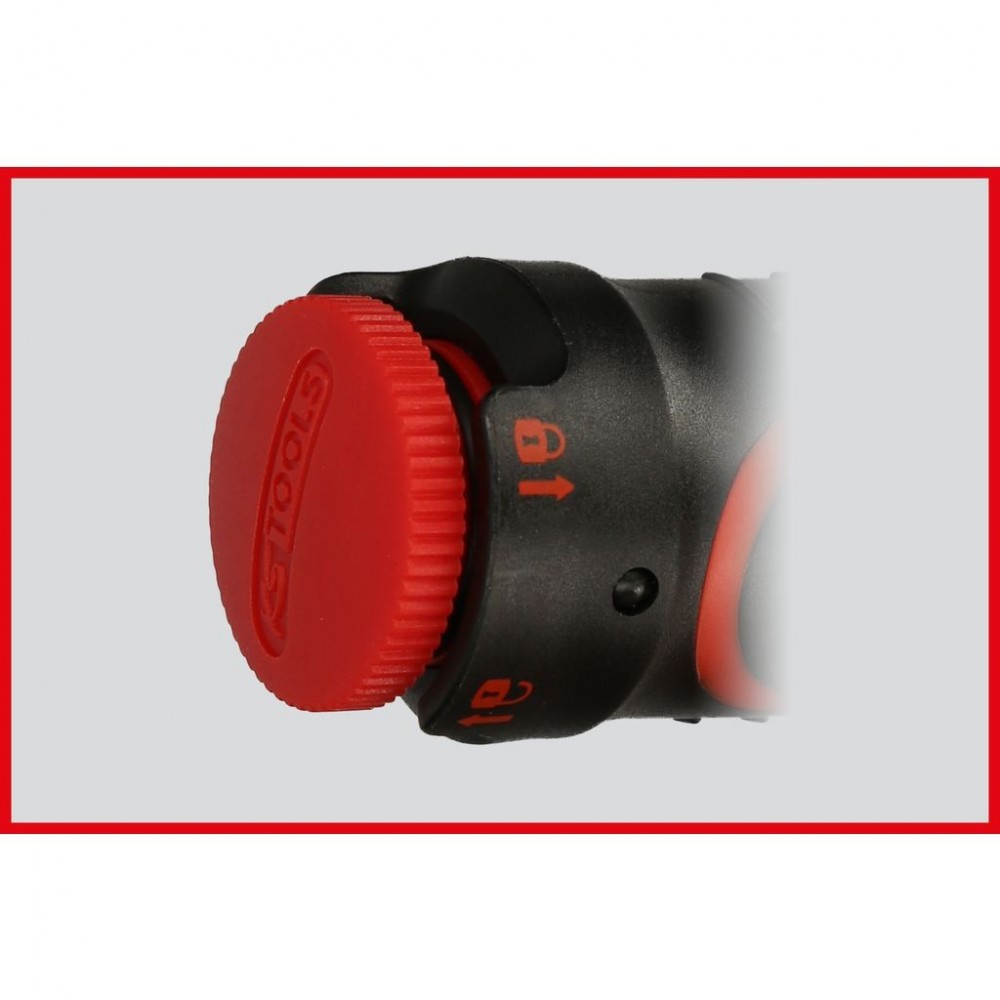

• Torque Adjustment and Locking: The torque can be set quickly and precisely using the wheel cursor integrated into the handle, equipped with a safety lock button.

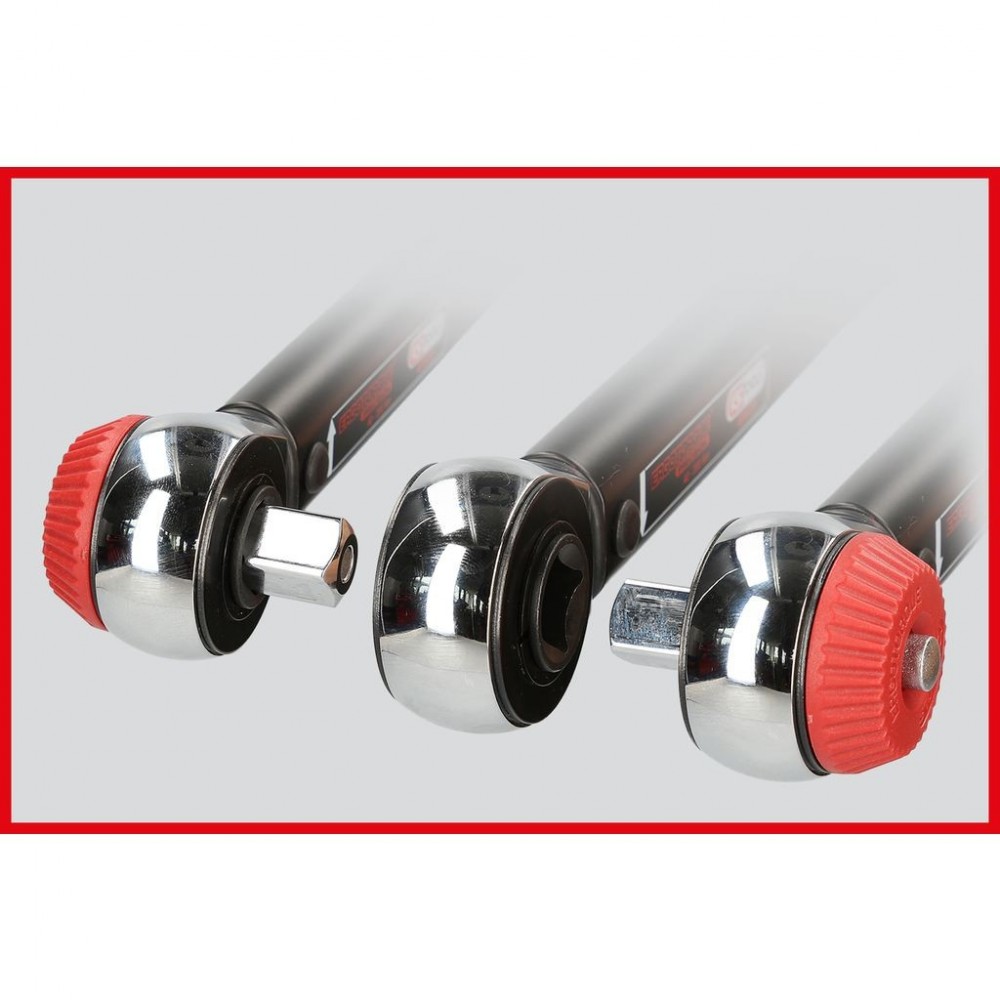

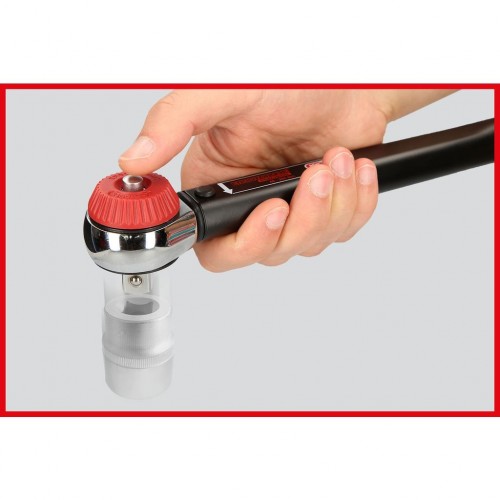

• Sliding Square and Quick Release: The DIN 3120 / ISO 1174 compliant square drive with ball lock allows you to change the direction of rotation by pushing the attachment to the opposite side and is equipped with a quick release button for the socket.
• Certification and Traceability: Each piece is marked with an individual serial number and is accompanied by a certificate of calibration conformity traceable to national standards.

Detailed Technical Data Sheet

• Item Code (SKU): 516.1442
• EAN Code: 4042146180662
• Manufacturer / Brand: KS Tools
• Series: ERGOTORQUE®precision
• Output square drive: 1/2" Sq
• Torque range: 40 - 200 Nm (15 - 150 lbf ft)

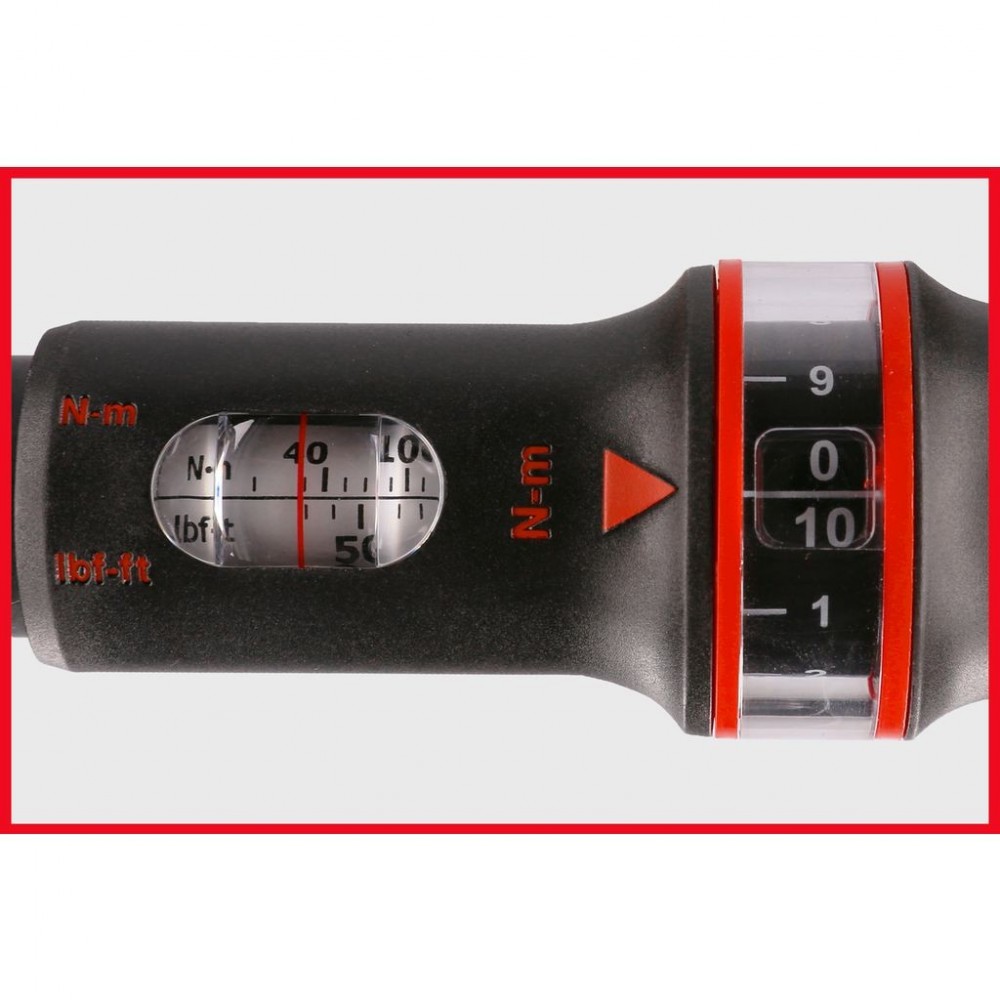

• Scale resolution (Subdivision): 1.0 Nm
• Deviation tolerance: ±3%

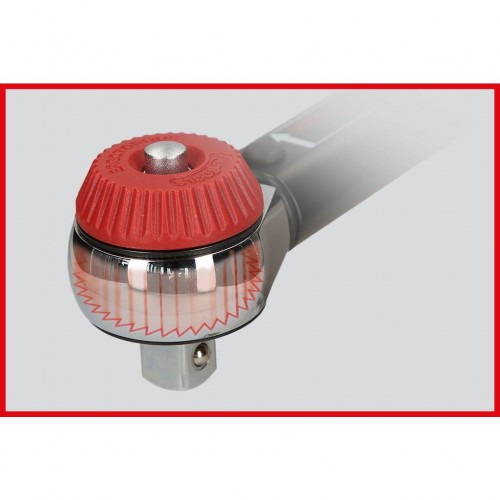

• Ratchet mechanism: 30 teeth
• Head shape: Mushroom head / Rounded ratchet with sliding square
• Handle: Ergonomic two-component

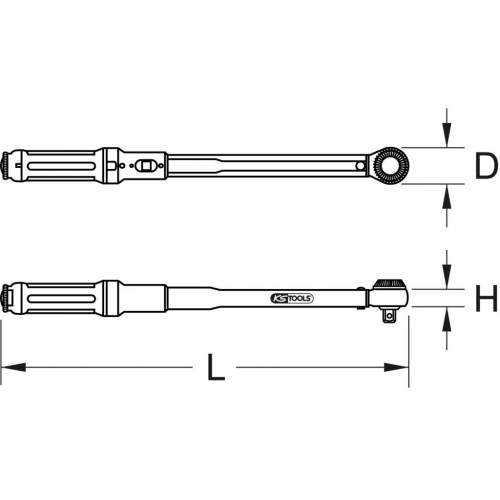

• Total length (L): 500 mm
• Head diameter (D): 45 mm
• Head height (H): 23 mm
• Net weight: 1,300 g (1.3 kg)
• Reference standards: DIN 3120, ISO 1174, DIN EN ISO 6789-1:2017(E)
