• 520 SMERIGLIATRICE ANGOLARE DISCO DA 180 mm Dinamitek 1

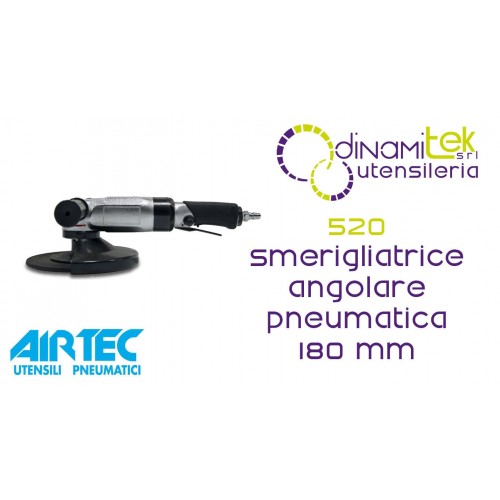

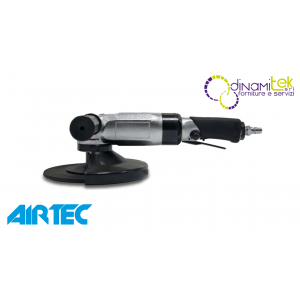

520 180 MM PNEUMATIC ANGLE GRINDER AIRTEC

180mm Heavy Duty Pneumatic Angle Grinder Airtec Model 520 (Code 13018020).

The Airtec Mod. 520 pneumatic angle grinder is the high-power compressed air tool for professional use, engineered by Airtec Srl to carry out heavy-duty grinding, deburring and carpentry cutting operations on large surfaces.

  • 0.75 kW 7,600 RPM Pneumatic Motor: Delivers 0.75 kW of continuous power and a no-load speed of 7,600 RPM at 6.2 bar of pressure for high material removal capacity.
  • Disc Safety Lock and M14 Shaft: machine equipped with disc locking system and safety lock with M14 shaft thread.
  • Disc capacity Ø 180 mm: suitable for depressed center abrasive discs with a diameter of 180 mm (nominal speed ? 7,600 rpm).
  • Ergonomics and Anti-vibration Comfort: supplied as standard with anti-vibration side handle and radially adjustable grinding wheel guard in all positions.
Shipping cost: €15.00 for
491,66 €
Tax included

403,00 € Tax excluded

Quantity
Available product, order it now.

Technical Features and Performance of the Airtec Mod. 520 Grinder

The Airtec Mod. 520 compressed air angle grinder (Code 13018020) represents one of the most powerful solutions in the Airtec range of pneumatic tools, designed to guarantee maximum reliability and consistent performance in heavy metalwork, shipbuilding and foundries. The robust 300 mm long machine body develops a high driving torque while maintaining optimal weight balance (3 kg).

Designed to work with depressed-center blades with an outside diameter of 180 mm, the machine requires a 6.2 bar air supply via a 3/8" BSPT fitting and a 16 mm internal diameter hose, recording an average air consumption of 24 liters per second. Operator safety is ensured by the integrated safety lock for the blade spindle, the swiveling guard and the vibration-reducing side handle.

Detailed Technical Data Sheet

  • Product Code / SKU: Cod. 13018020 / Mod. 520
  • Manufacturer / Brand: Airtec Srl
  • Product Type: 7" (180 mm) pneumatic angle grinder for professional use
  • Power Output: 0.75 kW
  • No-Load Speed: 7,600 rpm
  • Recommended Air Pressure: 6.2 bar
  • Average Air Consumption: 24 l/sec
  • Air Connection: 3/8" BSPT
  • Recommended Air Hose Inner Diameter: 16mm
  • Abrasive Disc Capacity and Specifications:
    • Disc outer diameter: 180 mm (7") or less
    • Grinding wheel type: Depressed center discs (nominal speed ? 7,600 rpm)
    • Disc holder shaft thread: M14 (14 mm)
  • Security Systems and Accessories:
    • Mechanical safety lock for disc locking
    • Anti-vibration auxiliary side handle included
    • Radially orientable grinding wheel protection casing
  • Noise and Vibration Levels:
    • Sound pressure: 89.2 ± 3 dB(A)
    • Sound power: 100.3 ± 3 dB(A)
    • Vibration level: 4 m/s²
  • Dimensions and Weight:
    • Total length: 300 mm
    • Net weight: 3.0 kg
Wide selection of high-performance professional pneumatic grinders

AIRTEC: PROFESSIONAL PNEUMATIC TOOLS FOR WORKSHOPS AND INDUSTRY

Airtec is a brand specialising in professional pneumatic tools, designed to guarantee high performance, operational continuity and maximum reliability in mechanical, industrial and maintenance work. Airtec solutions are designed for intensive use, with robust, ergonomic tools suited to demanding working conditions.

The range mainly comprises professional pneumatic grinders, available in various configurations for cutting, deburring, finishing and material removal. Each tool stands out for its power, precision, smooth rotation, low vibration and long service life.

Airtec is recognised for reliability, build quality and consistent performance, with tools designed to ensure fast, safe and high-quality work. Professionals choose Airtec for efficiency, robustness and precision, essential elements in everyday pneumatic operations.



520
