- As long as stocks last
CLICKTORQUE 6 SET 1 REVERSIBLE RATCHET TORQUE WRENCH 1/4" (6.3 MM) 2.5 - 25 NM WERA
1/4" Wera Click-Torque A 6 Set 1 Torque Wrench Set 2.5 to 25 Nm (20 pieces).
The Wera Click-Torque A 6 Set 1 torque wrench set (Item No. 05130110001 ) is the complete 20-piece professional kit with a measuring range of 2.5 – 25 Nm (2 – 18 lbf ft) and a 1/4" drive, designed to ensure controlled tightening with extremely high precision.
- Accuracy of ±4 % according to DIN EN ISO 6789-1:2017-07: simple and safe torque adjustment, clearly readable on the main and secondary scale.
- Double tactile and audible warning mechanism (Click): engagement click when the scale value is reached and clear signal when the set tightening torque is reached.
- 45-tooth reversible ratchet for right-hand tightening: robust trigger mechanism suitable for daily torque applications.
- Complete 20-piece set: includes 6 Zyklop sockets, 11 bit inserts (Hex-Plus, TORX®, PH), extension with rotating sleeve and adapter.
- Compact Textile Case Compatible with Wera 2go: Soft protective bag with self-adhesive tape (50 x 240 mm) that does not scratch surfaces.
Shipping cost: €5.00
for
Technical Features and Benefits of the Wera Click-Torque A 6 Set 1 (05130110001)
The Wera Click-Torque A 6 Set 1 torque wrench set is the high-end tightening solution developed by Wera Werkzeuge GmbH for professional workshops, precision maintenance, and the mechatronics sector. Featuring the unmistakable Wera ergonomic design, this wrench ensures precise torque application with clearly audible and tactile clicks.
Click-Torque Technology, Hex-Plus Profiles and Manual/Machine Sockets
- Easy Setting and Locking: The selector allows you to set and lock in the desired torque, with tactile and audible feedback at each scale value reached.
- Hex-Plus profile in Hex Bits: reduces the notch in the screw head, protecting the imprint from wear and prolonging its useful life.
- Zyklop "Hand & Machine" (Non-Impact) Sockets: Can be used both by hand and with non-impact electric or pneumatic screwdrivers, eliminating the need for double sets.
- Zyklop Extension with Rotating Sleeve: allows for rapid screwing (rapid spin sleeve) providing stability during rotation.

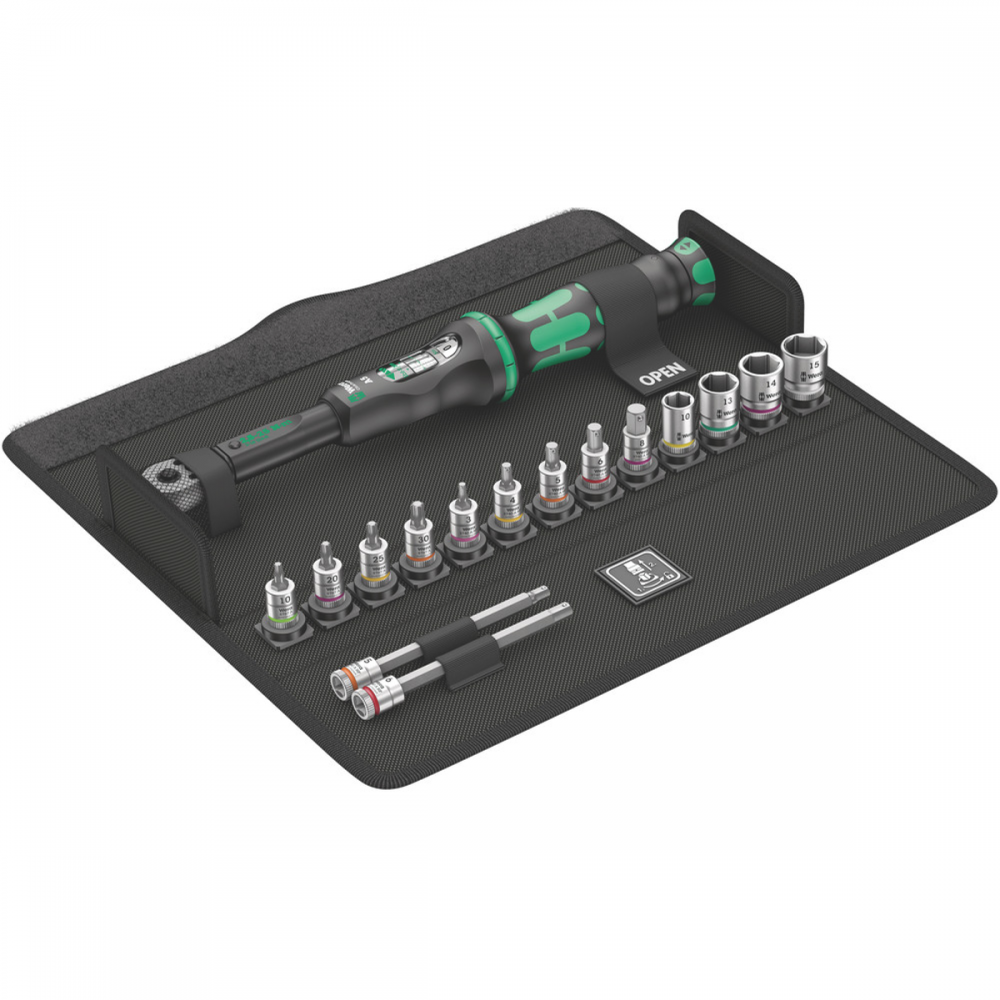

Detailed Compositions of the Set (20 Pieces)

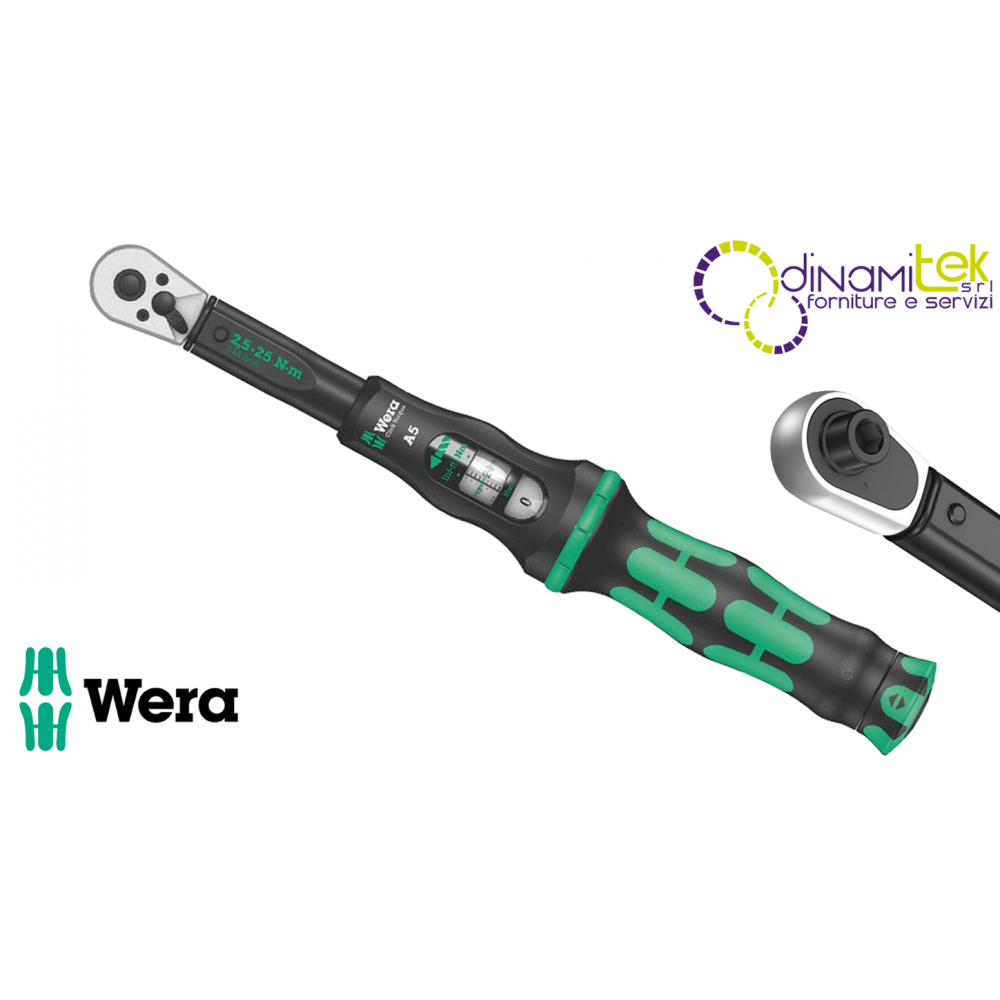

- 1x Click-Torque A 6 1/4" torque wrench (2.5 – 25 Nm) [Code 05075605001] with 45-tooth reversible ratchet
- 6x Zyklop 8790 HMA sockets (1/4" drive, length 23 mm): Sizes 6 mm, 7 mm, 8 mm, 10 mm, 12 mm and 13 mm
- 11x Inserts / Bits (length 50 mm, 1/4" drive):
- 1x PH (851/4 TZ): PH 2 x 50 mm
- 6x TORX® (867/4 Z): TX 15, TX 20, TX 25, TX 27, TX 30 and TX 40 x 50 mm
- 4x Hex-Plus Hex (840/4 Z): 3 mm, 4 mm, 5 mm and 6 mm x 50 mm
- 1x Adapter / Shank 870/1 (1/4" x 25 mm): with ball for locking manual sockets
- 1x Zyklop 8794 SA extension (1/4" x 75 mm): short with quick-release floating sleeve
- 1x Self-adhesive tape 240 (50 x 240 mm) and textile bag: for fixing to modular systems Wera 2go
Detailed Technical Data Sheet
- Item Code (Part No.): 05130110001
- Product Name: Click-Torque A 6 Set 1
- Manufacturer / Brand: Wera Werkzeuge GmbH>
- EAN / GTIN code: 4013288205643
- Country of Origin: Taiwan (TW)
- Customs Tariff Code: 82041100
- Quantity of Pieces in Set: 20 Pcs
- Torque Range: 2.5 ÷ 25 Nm (2 ÷ 18 lbf ft)
- Drive: 1/4" hex / square
- Clamping Accuracy: ± 4 % (according to DIN EN ISO 6789-1:2017-07)
- Ratchet Mechanism: Reversible, 45 teeth (clockwise torque operation)
- Case / Packaging Dimensions (W x D x H): 335 x 110 x 65 mm
- Total Weight: 1126 g (1.126 kg)
- Case Type: Compact textile bag, surface protection, Wera 2go compatible
05130110001
1/4" Wera Click-Torque A 6 Set 1 Torque Wrench Set 2.5 to 25 Nm (20 pieces).
The Wera Click-Torque A 6 Set 1 torque wrench set (Item No. 05130110001 ) is the complete 20-piece professional kit with a measuring range of 2.5 – 25 Nm (2 – 18 lbf ft) and a 1/4" drive, designed to ensure controlled tightening with extremely high precision.
- Accuracy of ±4 % according to DIN EN ISO 6789-1:2017-07: simple and safe torque adjustment, clearly readable on the main and secondary scale.
- Double tactile and audible warning mechanism (Click): engagement click when the scale value is reached and clear signal when the set tightening torque is reached.
- 45-tooth reversible ratchet for right-hand tightening: robust trigger mechanism suitable for daily torque applications.
- Complete 20-piece set: includes 6 Zyklop sockets, 11 bit inserts (Hex-Plus, TORX®, PH), extension with rotating sleeve and adapter.
- Compact Textile Case Compatible with Wera 2go: Soft protective bag with self-adhesive tape (50 x 240 mm) that does not scratch surfaces.
