014C.01 40/50 LITRE DOUBLE GAS CYLINDER HOLDER WITH HANDLE AND BOX CARMECCANICA

The sturdy ART014C.01 Carmeccanica is the professional two-seater cylinder trolley for 40/50 litre cylinders (Ø230).
With a load capacity of 200 kg and large Ø 300 mm solid rubber wheels , it easily tackles asphalt and concrete, even uneven surfaces.
Maximum safety and convenience, thanks to the new ergonomic handle and integrated toolbox . Available in batches of 1 .

Shipping cost: €15.00 for
265,59 €
Tax included

217,70 € Tax excluded

Quantity
Available product, order it now.

ART014C.01 - 40/50 litre double gas cylinder holder with handle and Carmeccanica box

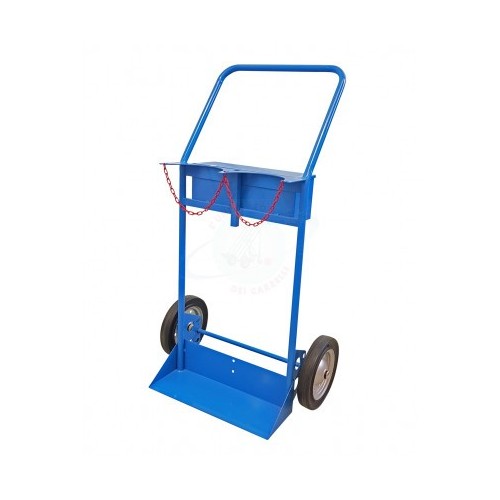

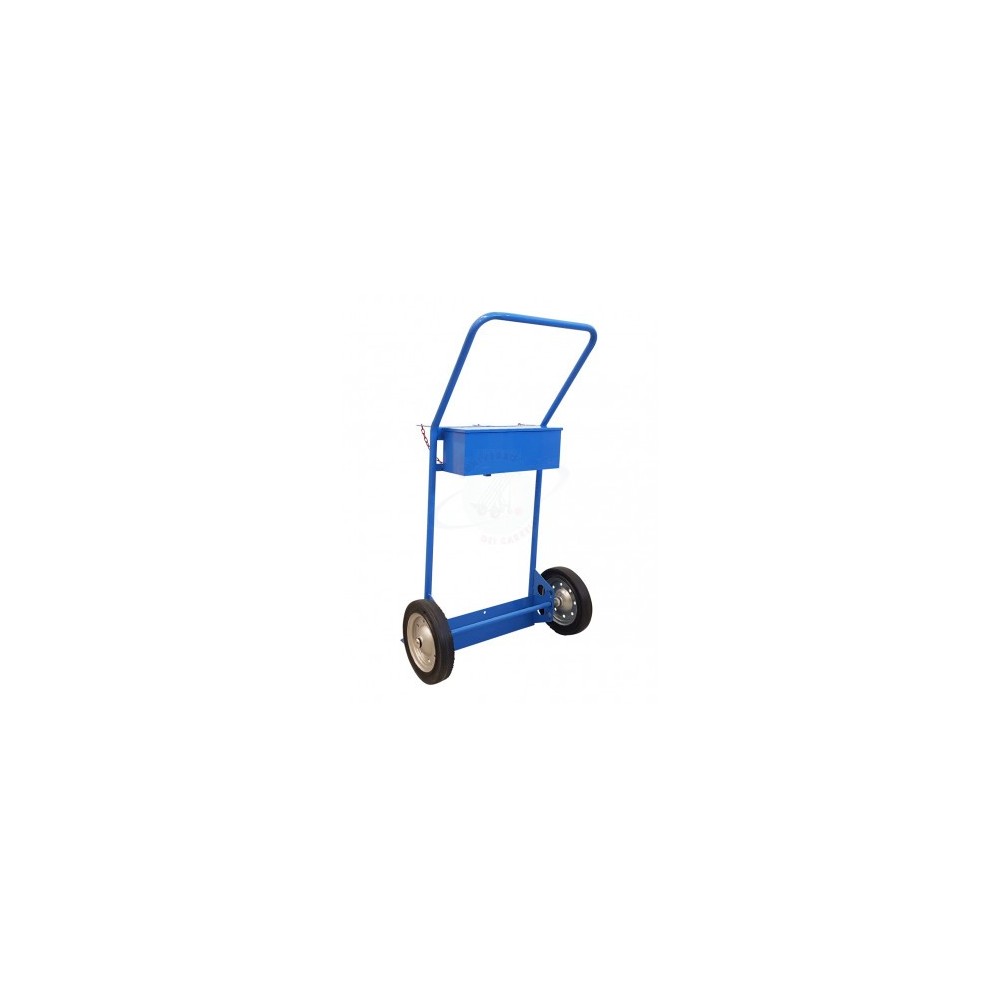

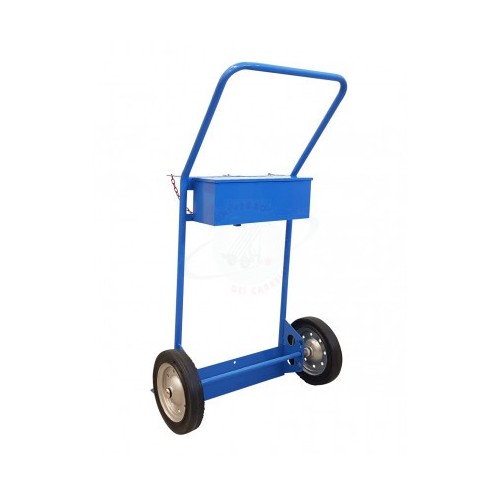

This gas cylinder trolley (Code ART014C.01) is a two-seater Carmeccanica model, specifically designed to transport two compressed gas cylinders with a capacity of 40 or 50 litres. The structure is robust and entirely welded.

Functional and Dimensional Specifications

  • Cylinder Capacity: The trolley is designed for cylinders with a rim circumference of Ø 230 mm.
  • Maximum load: 200 kg.
  • Total dimensions: 780x490x1335h mm.
  • Loading shovel: Size 580x200 mm (570x200 mm is also reported in the additional information).
  • Cylinder rim height: 940 mm.

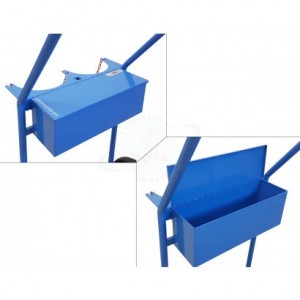

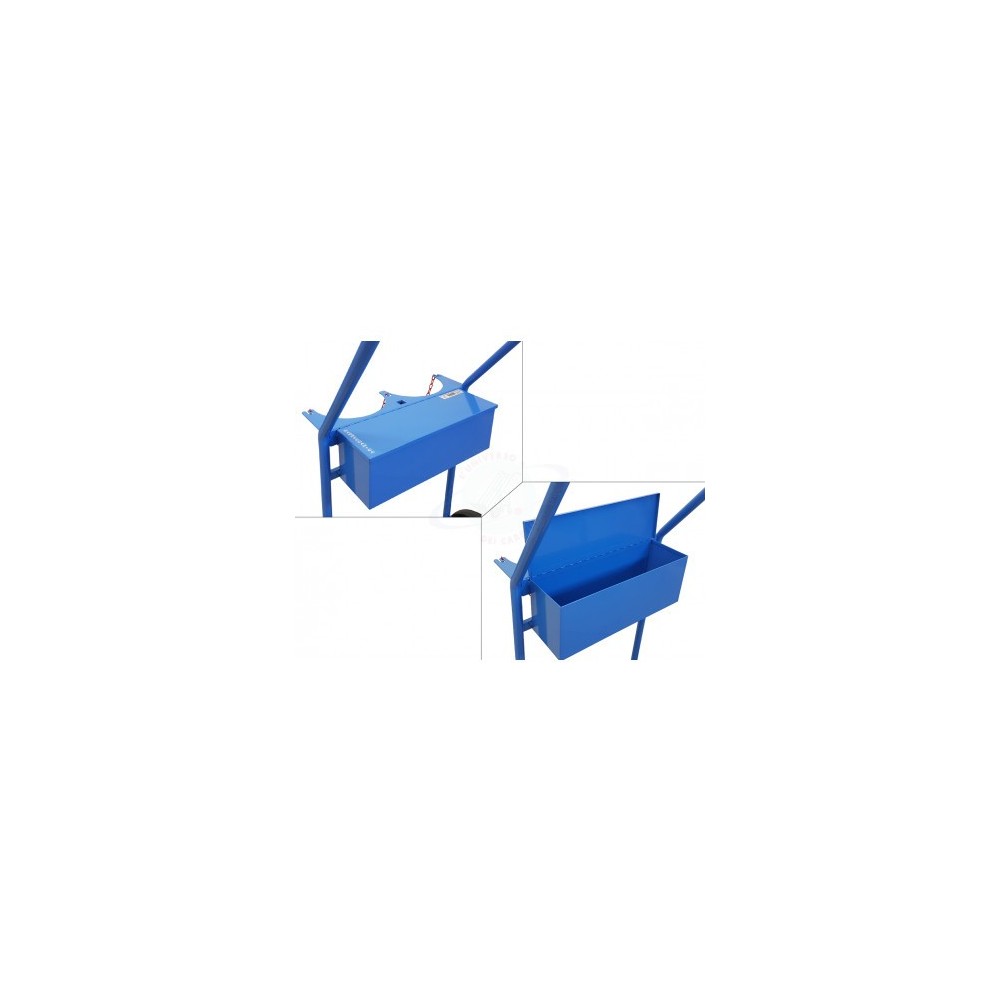

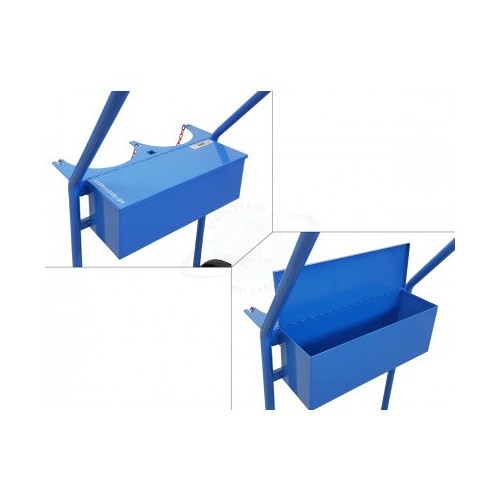

  • Tool Compartment: Includes a tool box with dimensions mm 475x155x170h.
  • Weight: The trolley weighs 21 kg.

Wheels and Handling

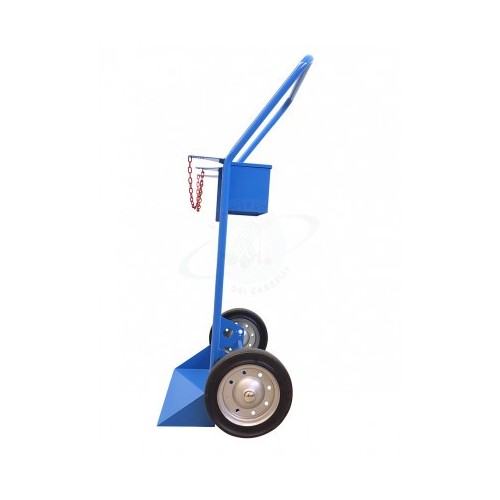

  • Wheel Type: It has 2 Industrial Rubber type wheels, in solid rubber, with a diameter of Ø 300 mm.
  • Wheel Features: The rubber has a hardness of 82±4 Sh.A and the hub is made of zinc-plated and riveted stamped steel sheet.
  • Suitable Surfaces: Ideal for environments with slightly uneven or uneven floors, including asphalt, stoneware, concrete and resin concrete.
  • Operating Speed: The maximum operating speed is 4 km/h; the range decreases slightly if ambient temperatures exceed 30°.

Safety and Materials

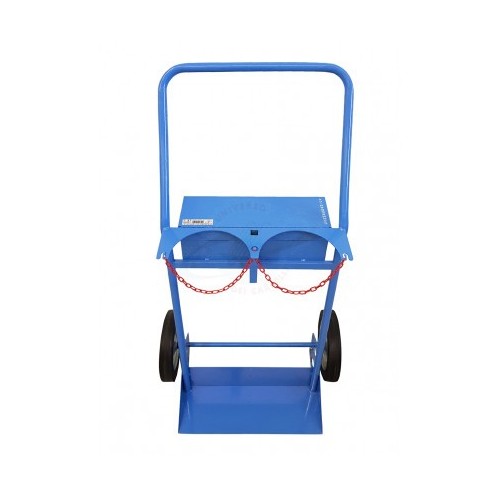

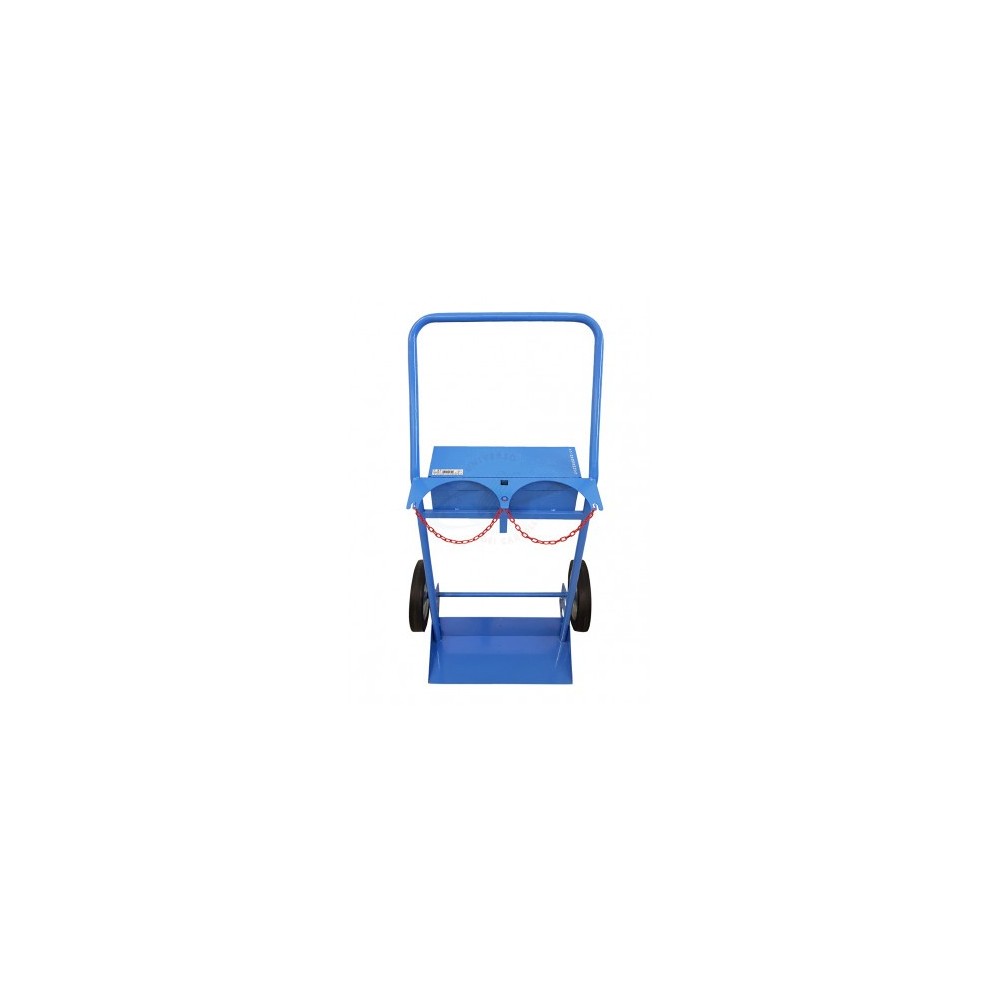

  • Cylinder Containment: The containment system is ensured by a red painted chain for greater visibility. A new safety catch prevents the chain from releasing.
  • Structure: The cylinder holder sheet metal is laser cut with a thickness of 30/10.
  • Ergonomics: Equipped with a new push handle for greater ergonomics and safety when moving.
  • Finish: The paint is oven-dried epoxy powder (ACRYLIC POWDER COATING), in the color Blue RAL5015.
  • Compliance and Warranty: The product COMPLIES with CE STANDARDS and is covered by a 5-Year IT Warranty.
  • Logistics: Supplied assembled - ready to use. Country of manufacture: Italy.

Optional: The 950x200 mm fireproof plate is available. REQUEST VIA EMAIL info@dinamitek.com.
CARMECCANICA: the world of trolleys. Made in Italy production of over 600 professional items. CE/ISO 9001 certified quality. Fast solutions. DISCOVER THE RANGE!
