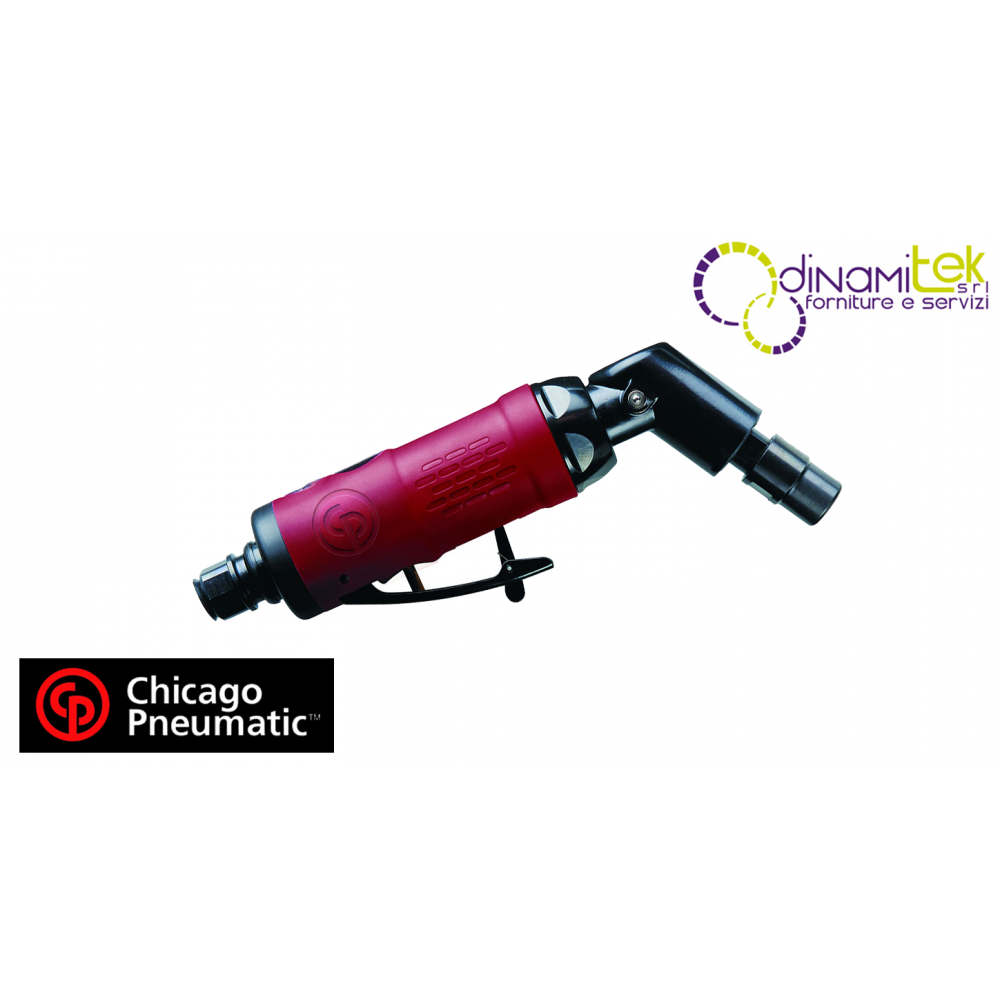

XCP9108QB - 6151 9521 08 - 120° CHICAGO PNEUMATIC GRINDER
General maintenance application
High operator comfort
Power and performance
Ideal for applications in limited spaces
Overmolded rubber grip
Adjustable air inlet
Integrated air regulator
0.32 hp (240 W) motor Free speed
23,000 rpm Low noise level: only 81 dB(A) Rear exhaust Includes 1/4" and 6 mm collets
Characteristics:
General Maintenance Application
High operator comfort
Power and Performance
Ideal for applications in limited spaces
Rubber Overmolded Grip
Adjustable Air Inlet
Integrated Air Regulator
0.32 HP (240 W) Motor Free Speed
23,000 RPM Low Noise Level: Only 81 DB(A) Rear Exhaust Includes 1/4" and 6mm Collets
Specifications:
Actual Air Consumption: 226.42 L/Min (8,692 Cfm)
Air Inlet Thread Size: 1/4"
Average Air Consumption: 113.21 L/Min (4 Cfm)
Collet Size: 6mm (1/4")
Free Speed: 23,000 RPM
Free Speed Air Consumption: 9.1 L/S (19.3 Cfm)
Length: 200mm (7.9")
Minimum Tube Size: 10mm (3/8")
Net Weight: 0.5 Kg (1.1 Lbs)
Power: 240 W (0.32 HP)
Rear Exhaust: Yes
Sound Power: 91 Db(A)
Sound Pressure: 80 Db(A)
Vibration: 5.1 M/S²
ISO Vibration: ISO-28927-12
Vibration Uncertainty (K): 1.6 M/S²
