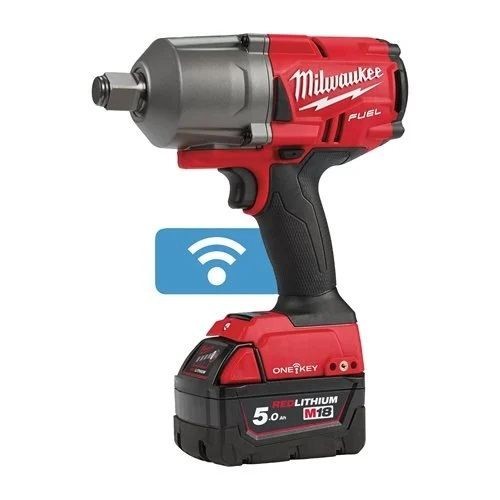

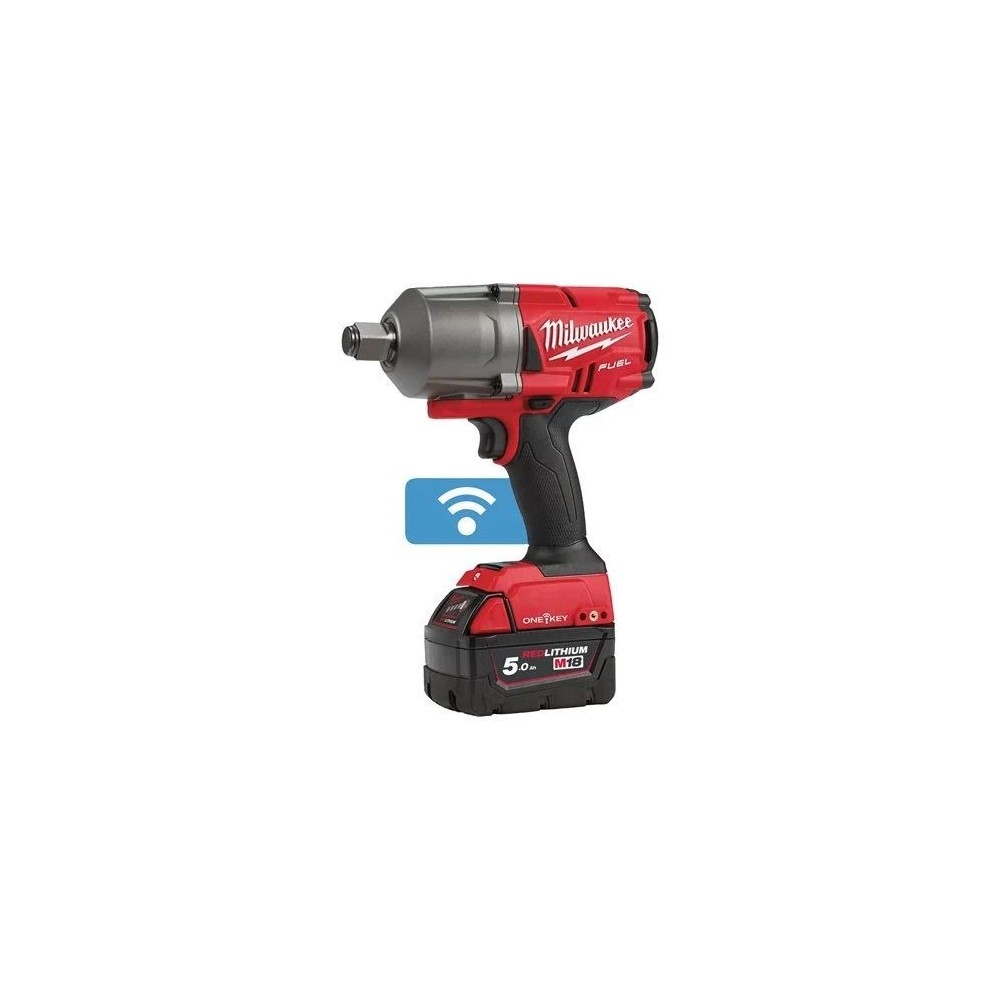

M18 ONEFHIWF34-502X ONE-KEY™ FUEL HIGH TORQUE IMPACT WRENCH 3-4 F DRIVE MILWAUKEE
Colossal Power, Digital Control: The M18 ONE-KEY™ Impact Driver with ¾″ Drive.
Designed for professionals who don’t accept compromise, the ONE-KEY™ FUEL™ High Torque Impact Wrench (Part No. 4933459730) delivers an impressive 1627 Nm of torque.

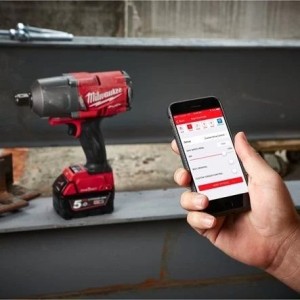

With its compact length of just 213 mm and the integration of ONE-KEY™, you have total control: customize performance, track and lock the tool remotely.
ONE-KEY™ FUEL™ High Torque Impact Wrench ¾″ F Drive
Model M18 ONEFHIWF34-502X (Item Code: 4933459730)

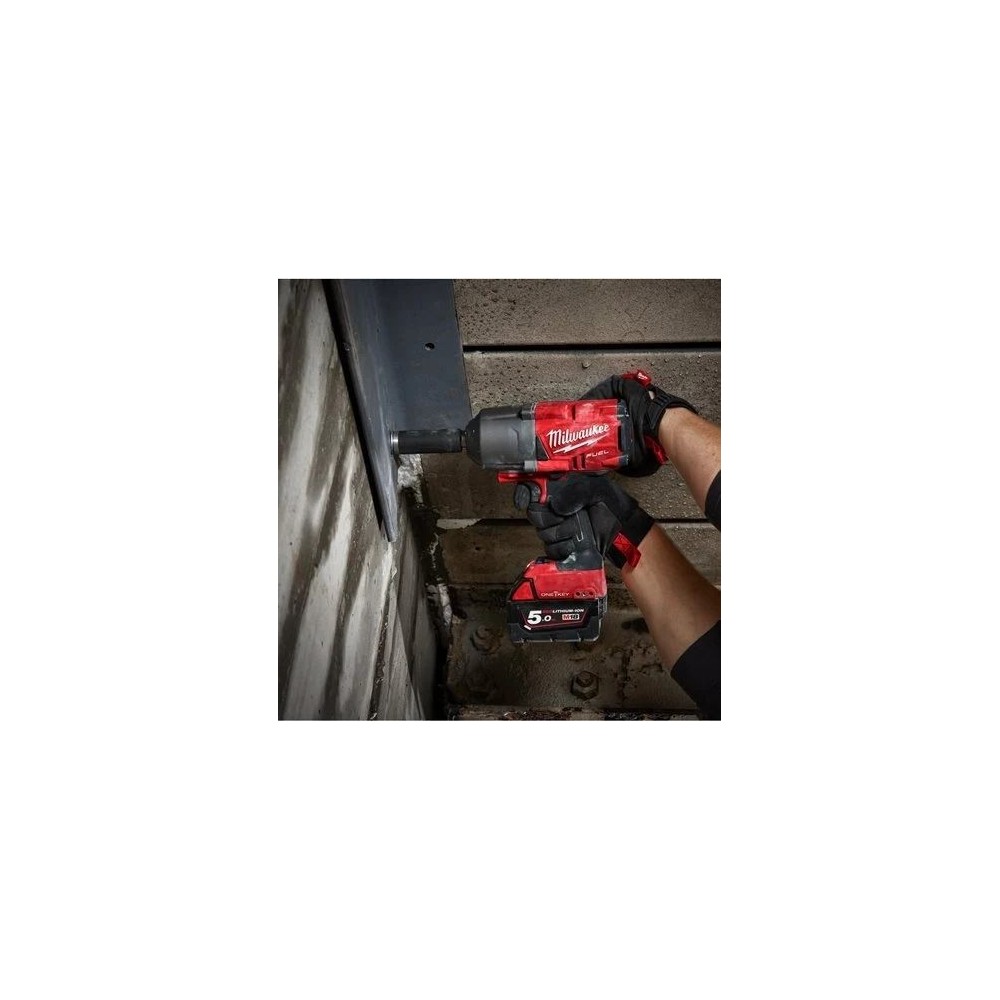

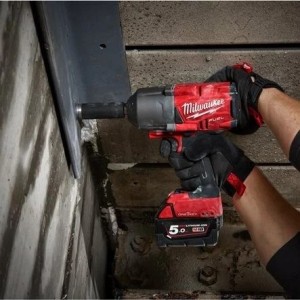

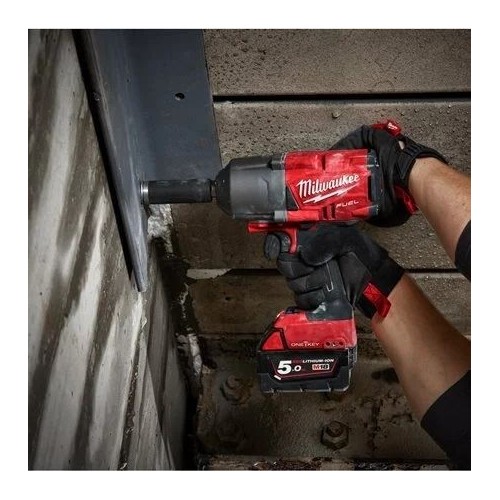

The M18 FUEL™ Impact Wrench with ONE-KEY™ Technology is built for extreme fastening applications, offering a combination of class-leading power and advanced digital control.
Performance and Technical Specifications
Maximum Tightening Torque:1627 Nm .
Maximum Reverse Torque: Provides an exceptional reverse torque of 2034 Nm .
Connection: Equipped with ¾″ square connection with friction ring .
Compact Design: Small size with a length of only 213mm . The complete dimensions are: length 210mm, width 90mm, height 270mm.
Max Bolt Diameter: Can handle a maximum bolt diameter of M33 .
Voltage and Battery: Works with 18V Li-ion batteries. The weight with the M18 B5 battery pack is 3.5 kg .
Operational Details (DRIVE CONTROL Mode)
The tool features a 4-mode DRIVE CONTROL system that allows you to choose between four different speed and torque settings, ensuring maximum flexibility.
Parameter
Speed (rpm)
Stroke Rate (strokes/min)
Tightening Torque (Nm)
Mode 1
0-800
0-850
702
Mode 2
0-1300
0-1850
1,138
Mode 3
0-1800
0-2400
1,627
Mode 4 (Bolt Removal)
0-1800
0-2400
1,627
The fourth mode is specifically designed to provide maximum torque and unmatched control when removing bolts.
FUEL™ and ONE-KEY™ technologies
FUEL™ Technology: Redefines cordless power tools, integrating brushless motor , REDLINK PLUS™ intelligent electronics and REDLITHIUM™ battery pack for superior performance and run time.

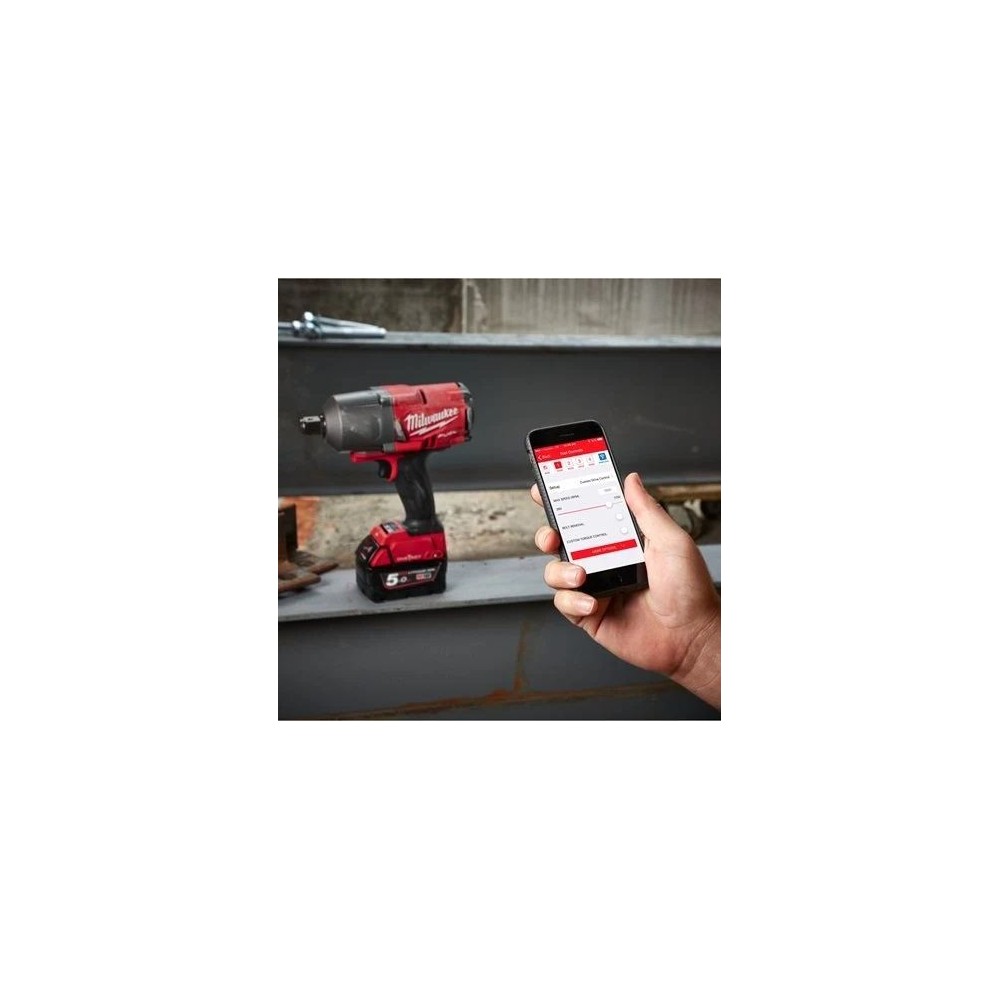

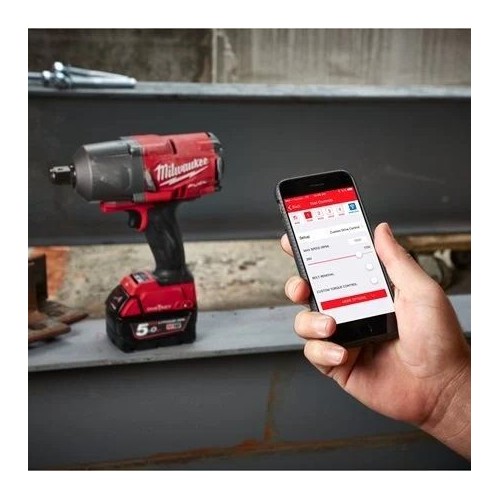

ONE-KEY™ Technology: This advanced system offers:
Tracking & Security: A free cloud-based service for tracking and managing your inventory.
Safety:Remote tool lock functionality].
Customization: Ability to adjust the speed and desired torque range (from 1 to 10) for extreme precision.
The screwdriver works with all M18™ MILWAUKEE® batteries.

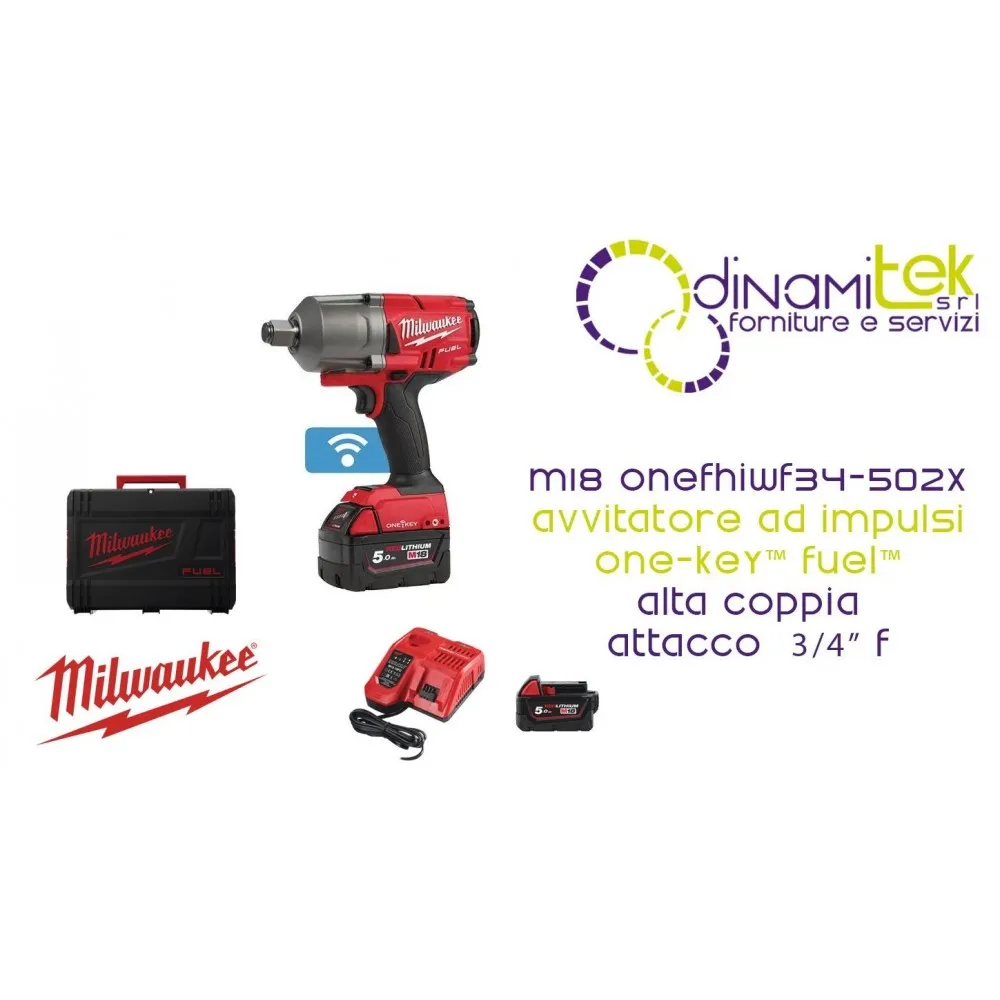

The kit (Product Code 4933459730) is supplied in a Heavy Duty Case and includes:
Product
Specifications
Amount
ONE-KEY™ FUEL™ High Torque Impact Wrench ¾″ F Drive
M18 ONEFHIWF34-502X
1
M18™ 5.0 Ah Battery (Li-ion)
M18 B5 (Battery capacity: 5.0 Ah)
2
M12™ - M14™ - M18™ Quick Charger
M12-18 FC (Reload time: 59 min)
1
Container
Heavy Duty Briefcase
1
