Versatility and Strength for Metal Carpentry

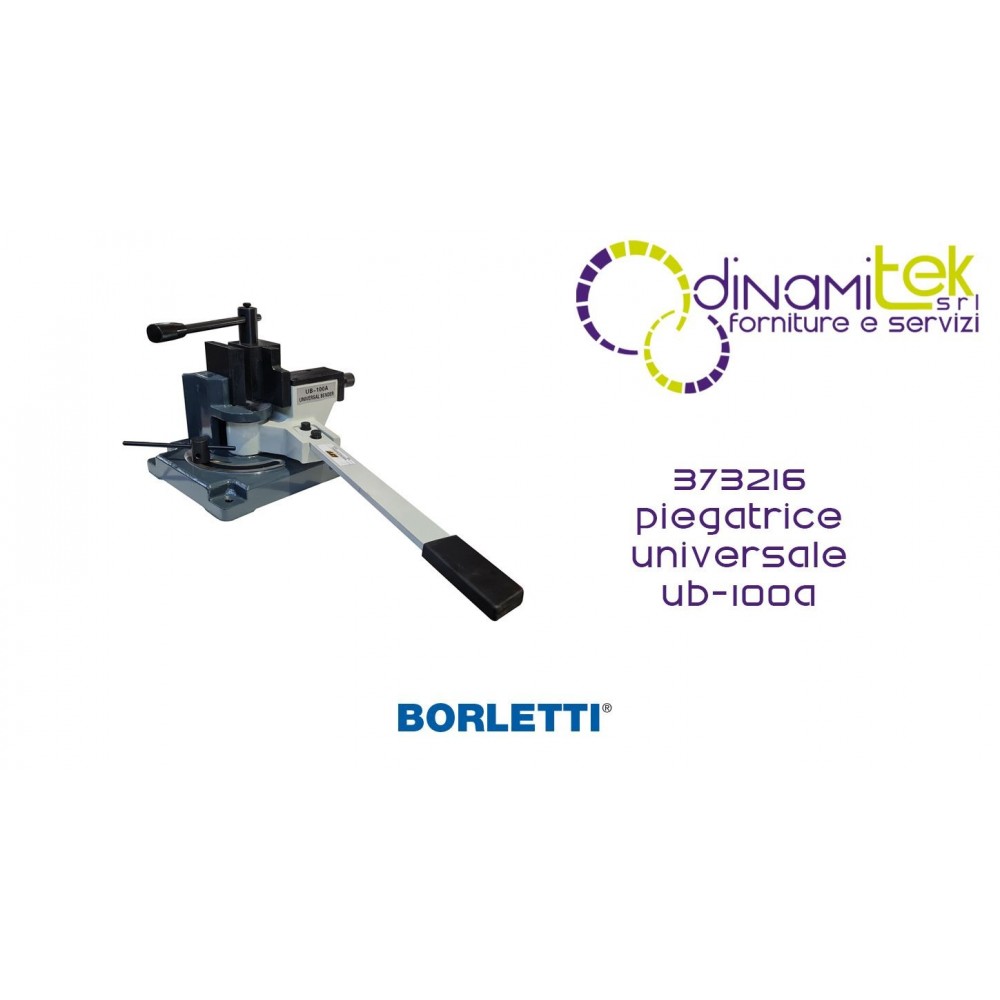

Item 373216 is a universal press brake designed to maximize workshop efficiency. Its robust construction allows for confident bending of steel and other metals, and features a built-in scale to ensure repeatable bending angles on single or batched parts.
Technical Features and Strengths
- Dual Operating Mode: Optimized to ensure high performance in both cold and hot conditions, significantly increasing bending capacity when the metal is preheated.
- Angle Control: The system features an easy-to-read angle gauge that allows for precise adjustments up to 120°+.
- Adaptability: It comes with different interchangeable inserts , designed to adapt to various applications and bending geometries.
- Functional Design: Weighing 36kg and compact in size, it can be easily installed on workbenches, offering maximum stability during manual levering.
Areas of Application
Ideal for making brackets, supports, frames, and shaped components in machine shops, technical schools, and prototyping labs. Its ability to bend flat, round, and square pieces makes it one of the most flexible hand tools in its class.
Technical Reference Data
| Characteristic | COLD working | HOT working |
|---|
| Plate (Capacity) | 100 x 8 mm | 100 x 15 mm |
| Round (Capacity) | 22 mm | 27 mm |
| Square (Capacity) | 20 x 20 mm | 25 x 25 mm |
| Graduated Angle | Up to > 120° |
| Dimensions | 550 x 320 x 240 mm |
| Net Weight | 36 kg |
Equipment Included:
- Set of interchangeable inserts for various applications.
- User manual and CE conformity.
