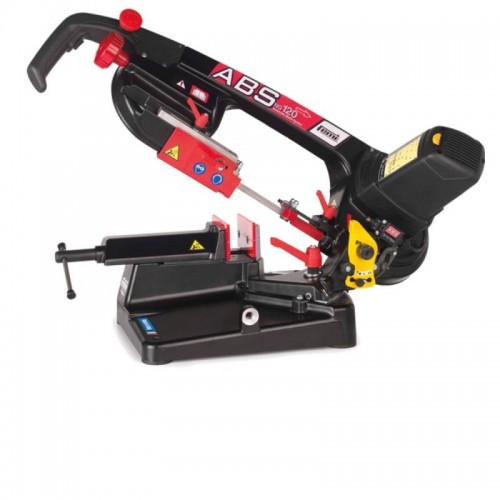

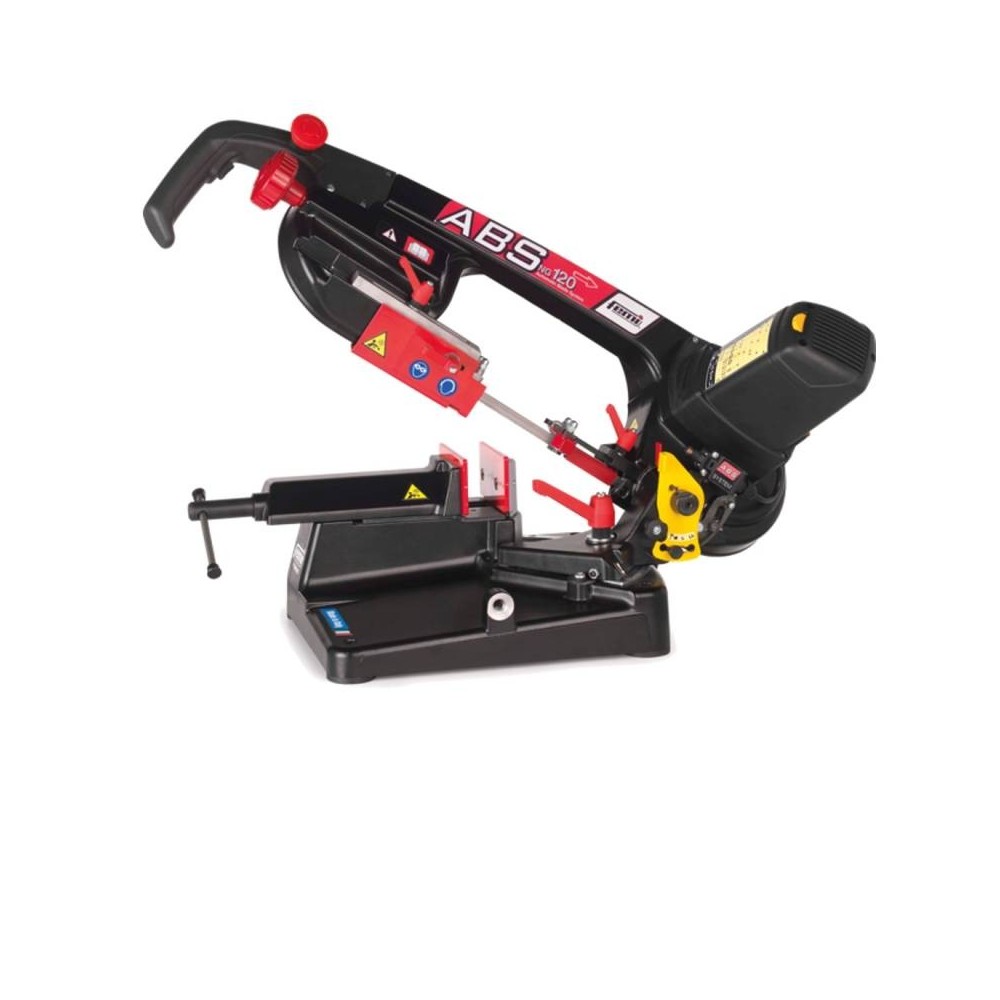

ABS BAND SAW NG120 . Professional band saw by FEMI . Thanks to the exclusive technological innovations, the ABS NG120 sawing machine is a high-performance, efficient, safe and easy to use machine. Ideal for optimizing cutting operations:
PUSH-CLICK system that allows the completely autonomous cutting cycle without the presence of the operator with the possibility of adjusting the feed speed
ABS equipment that takes care of the automatic stop at the end of the cut, making the most of the power of the machine engine
exclusive NG SYSTEM which, thanks to the opposite rotation of the blade, saves half the working time
Cutting capacity:
0 °: 102x102 mm - round section 120 mm / square section 112x112 mm
45 °: 78x78 mm - round section 80 mm / square section 78x78 mm
60 °: 50x43 mm - round section 50 mm / square section 48x48 mm
Technical features:
Cutting width Max 120 mm
Push-click: 4-position cutting speed with mechanical selector
Mechanical arm locking system for easy and safe positioning of the piece
Automatic stop switch at the end of the cut
Safety button for cutting stop
Energy saving: the exclusive ABS system guarantees 100% of the motor efficiency
Maximum cutting versatility on all metallic materials AL Stainless Steel
Saving of blade consumption over 10%
Powerful 1300 Watt motor equipped with digital electronic speed regulator
Technical data :
1300Watt motor
Blade dimensions: 1440x13x0.65 mm
Blade length: 14 mm
Revolutions per minute: 35/80
Dimensions: 900x400x520 mm
Weight: 19 Kg
Standard equipment:
Adjustable bar stop rod for the execution of series cuts (L = 500mm)
Tool for changing the blade
Filter for the abatement of electromagnetic disturbances in compliance with current regulations
