N266XL IRON BAND SAWING MACHINE COD 8488027 FEMI
N266XL IRON BAND SAWING MACHINE COD 8488027 FEMI Dinamitek 1

8488027 N266 XL INDUSTRIAL IRON BAND MITER SAW FEMI

Large industrial band saw, the N266 XL is powerful and performing and is supplied with the equipment suitable for performing series cuts: it does not fear heavy machining

Shipping cost: Gratis for
3716,05 €
Tax included

3.045,94 € Tax excluded

Quantity
Available product, order it now.

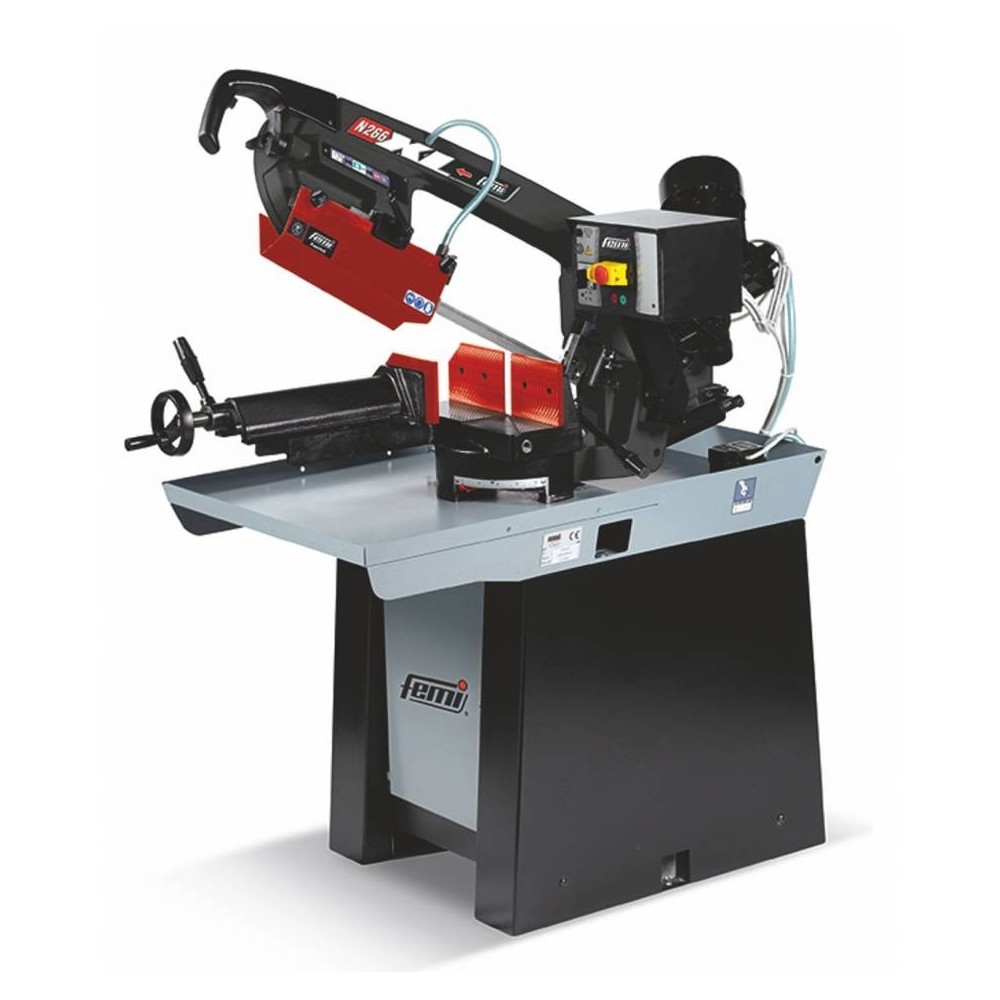

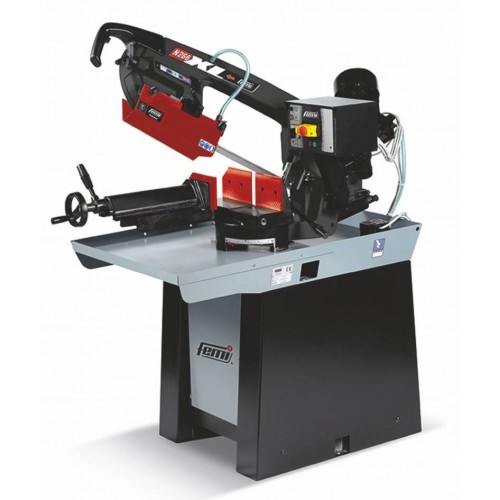

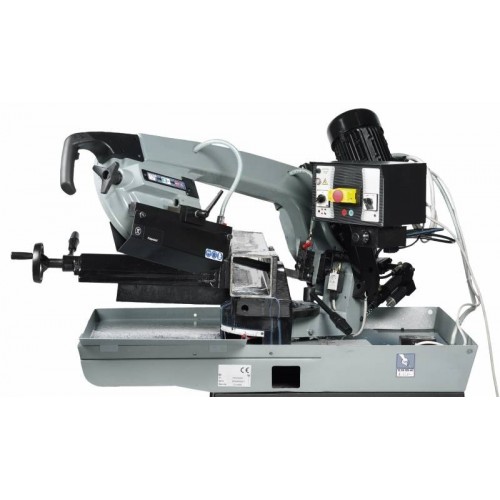

BAND SAW with integrated base, model N266 XL FEMI . Equipped with a 27 mm high blade and a cast iron arm, it is a powerful, robust and performing machine.
MAX CUT 265 mm; MAX section 225 mm


Cutting capacity
0 degrees SCAT. RECTANGULAR 265x200 mm SCAT. ROUND 225 mm SCAT. SQUARE 200x200 mm
45 degrees SCAT. RECTANGULAR 200x160 mm SCAT. ROUND 175 mm SCAT. SQUARE 170x170 mm
60 degrees SCAT. RECTANGULAR 115x100 mm SCAT. ROUND 110 mm SCAT. SQUARE 100x100 mm


Technical features
Vice with quick locking and non-slip knurled jaws
Blade tensioner with light indicator and safety microswitch for correct blade tensioning and integrity
Cutting angle adjustable from 0 degrees to 60 degrees left, with 45 degrees and 60 degrees device with front cutting angle indicator

Technical data
MOTOR POWER Kilowatt 1,0 / 1,3 three-phase motor 400 Volt Hz 50
BLADE 2565x27x0,9
BLADE TOOTHING 8/12 Cobalt bimetallic blade as standard
REVOLUTIONS PER MINUTE 2 Speeds 35/70
MOTOR POWER OF REFRIGERATION PUMP 60 WATT
Dimensions (depth x base x height) 1410mm x 870mm x 1650mm
Weight 311 kg

Standard equipment
Adjustable bar stop rod for series cuts (L = 600mm)
Steel base, with integrated storage compartment
Base in assembly kit

Attrezzature da lavoro professionali per la lavorazione del legno e del metallo


N266 XL FEMI
