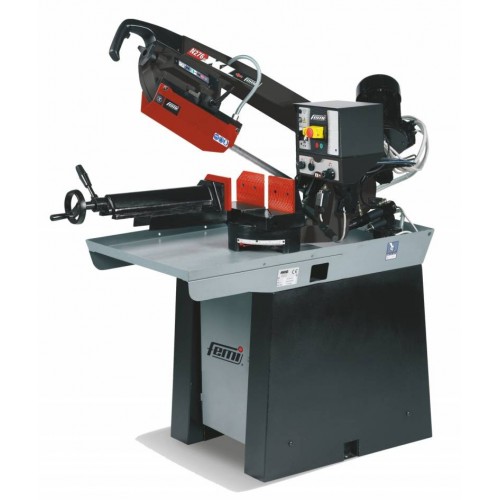

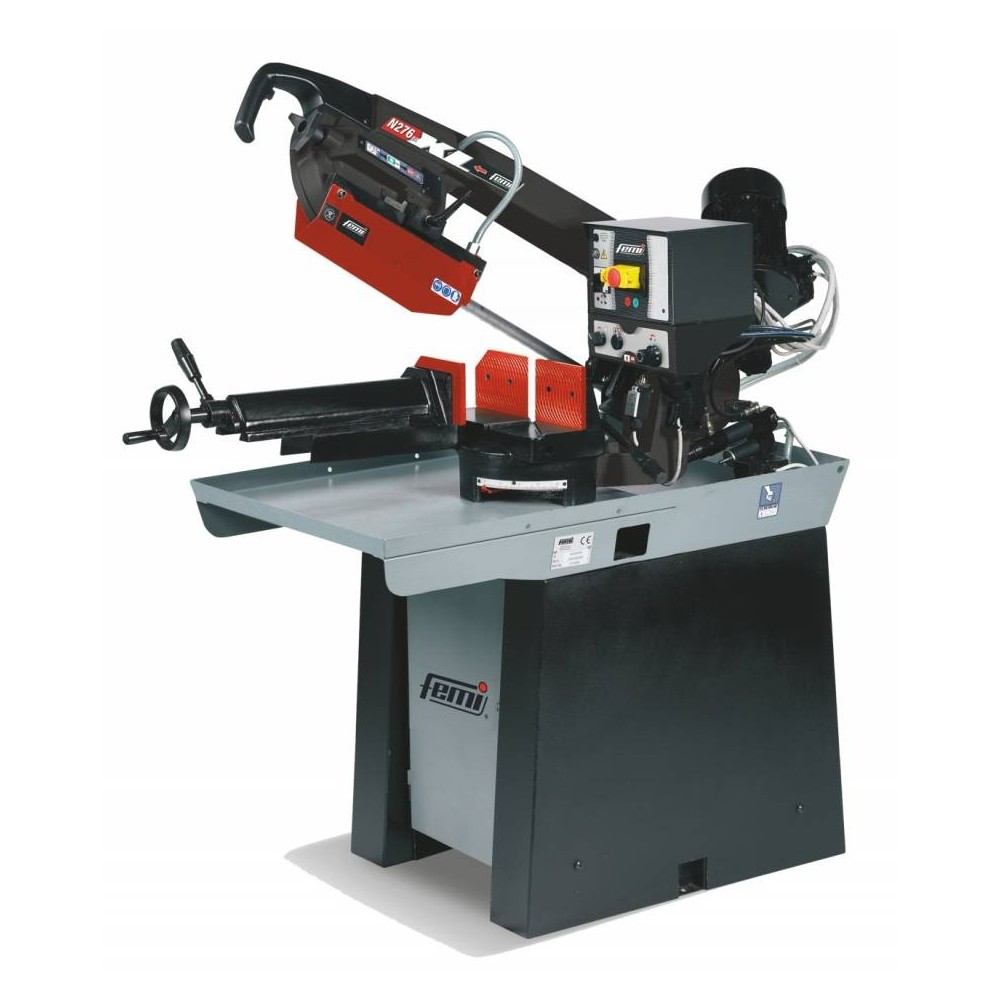

X8488071 N 276 DA XL INDUSTRIAL IRON BAND MITER SAW FEMI
Large and robust industrial band saw. The N 276 DA XL band saw is equipped with all the most technological devices to make your work easy and safe.
Professional FEMI BAND SAW with integrated base. Model N 276 DA XL . Machine with large cutting capacity: maximum cutting 265 mm; max section MAX 225 mm. Equipped with a cooling system through a powerful 60 WATT pump
Cutting capacity

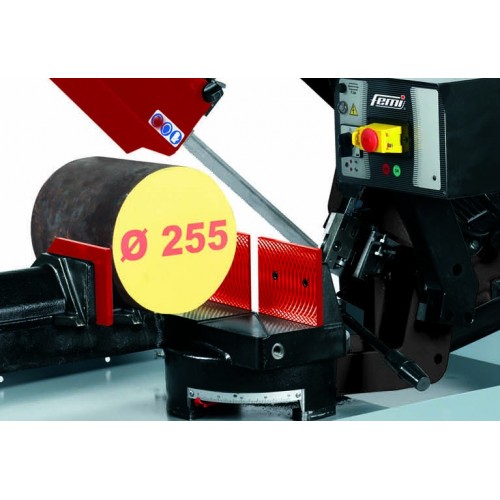

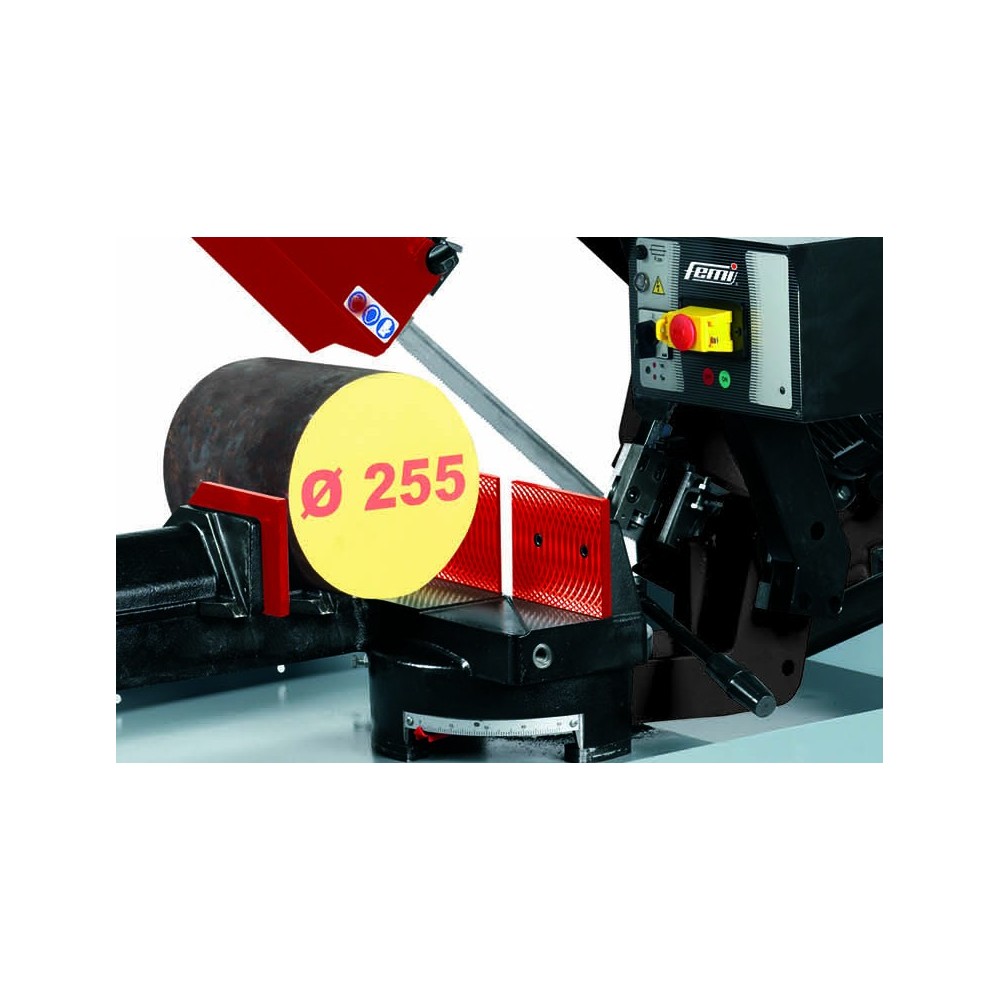

0 degrees SCAT. RECTANGULAR 265x200 mm SCAT. ROUND 225 mm SCAT. SQUARE 200x200 mm
45 degrees SCAT. RECTANGULAR 200x160 mm SCAT. ROUND 175 mm SCAT. SQUARE 170x170 mm
60 degrees SCAT. RECTANGULAR 115x100 mm SCAT. ROUND 110 mm SCAT. SQUARE 100x100 mm
Technical features
Blade height 27 mm
Hydraulic automatic descent control system
Operation with automatic or manual descent
Adjustable cutting angle from 0 degrees to 60 degrees left, with quick stop device in 45 degree and 60 degree positions
Blade tensioning with light indicator and safety microswitch for blade integrity control
TECHNICAL DATA
MOTOR POWER 1.0 / 1.3 Kilowatt, 60Watt
Three-phase motor 400 Volt Hz 50
BLADE 2565x27x0,9
BLADE TOOTHING 8/12 Cobalt bimetallic blade as standard
REVOLUTIONS PER MINUTE 2 Speeds 35/70
Dimensions (depth x base x height) 1410mm x 870mm x 1650mm
Weight 311kg
STANDARD EQUIPMENT
Adjustable bar stop rod for the execution of series cuts (L = 600mm).
Steel base, with integrated storage compartment.
Base in assembly kit
