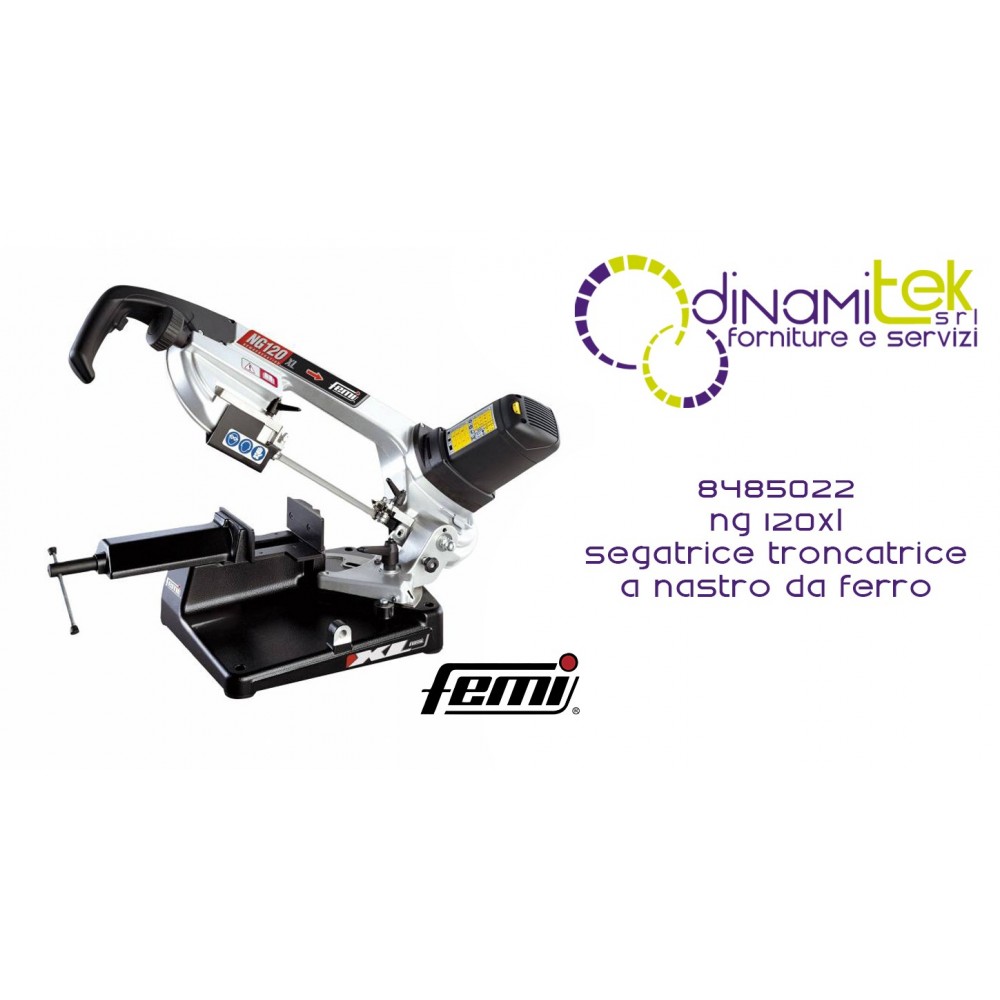

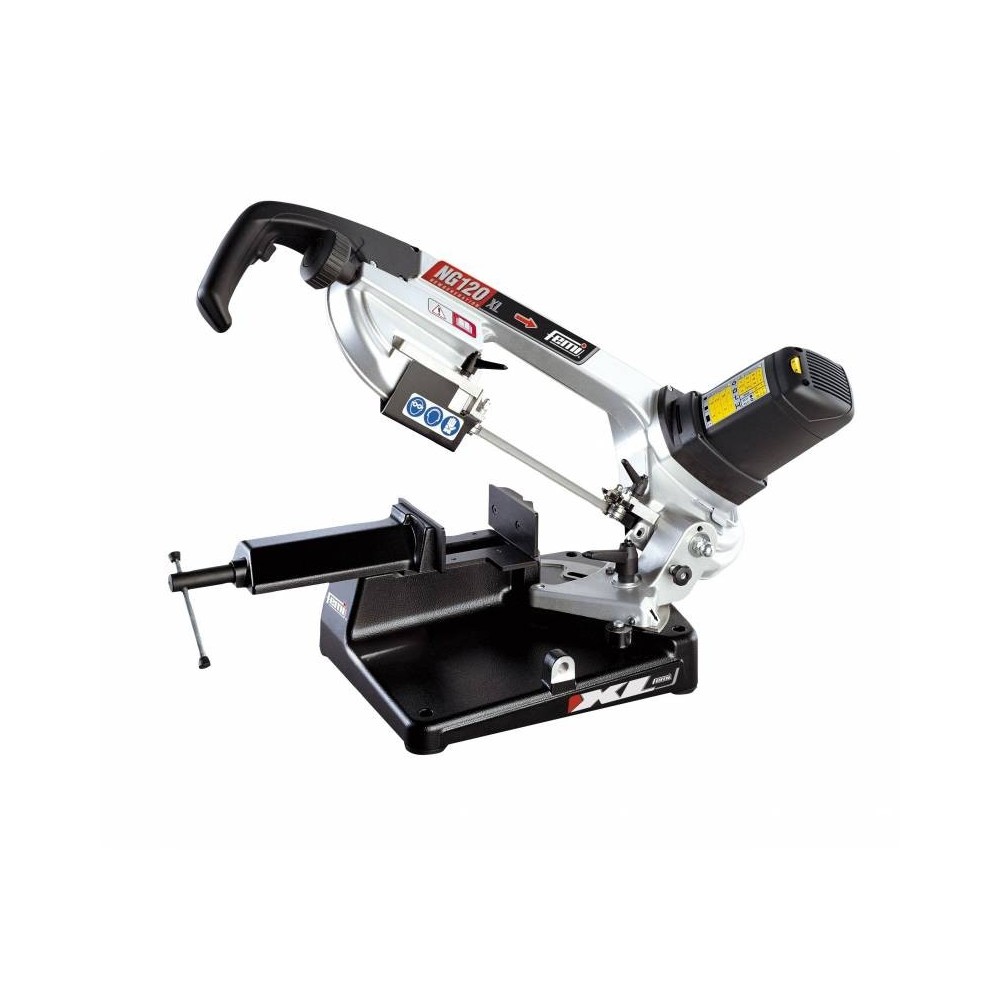

From FEMI the NG120XL BAND SAW : The top of the range. Band saw with a maximum cut of 120 mm, equipped with the exclusive NG SYSTEM patent. It is a blade rotation device, which allows the rotation in the opposite way in order to reduce cutting times by more than half. There is no shortage of innovative features: the innovative friction blade tensioner allows for perfect adjustment of the blade tension. For the operator's convenience, the machine is equipped with an ergonomic handle
Technical data:
MOTOR POWER Watt 1300
Single-phase motor 230 Volt Hz 50
Blade 1440x13x0.65
BLADE TOOTHING 14 Cobalt bimetallic blade as standard
REVOLUTIONS PER MINUTE DOUBLE Speed 35 80
Dimensions (depth x base x height) 900 mm x400 mm x520 mm
Weight 18 kg
Cutting capacity:
0 degrees SCAT. RECTANGULAR 120 X 102 mm SCAT. ROUND 120 mm SCAT. SQUARE 112X 112 mm
45 degrees SCAT. RECTANGULAR 78 X 78 mm SCAT. ROUND 80 mm SCAT. SQUARE 78x78 mm
60 degrees SCAT. RECTANGULAR 50 X 43 mm SCAT. ROUND 50 mm SCAT. SQUARE 48x48 mm
TECHNICAL FEATURES:
Increased cutting capacity: 120 mm, 120 x 102 mm.
Up to 60% reduction in cutting times compared to a traditional saw thanks to the opposite direction of rotation of the blade ("NG SYSTEM")
Innovative friction blade tensioner for checking and adjusting the correct blade tension (patented)
Cutting without lubrication
Adjustable cutting angle from 0 degrees to 60 degrees left with quick lock 45 degrees and 60 degrees
Powerful 1300 Watt motor equipped with "Constant Speed" electronic speed regulator, with amperometric limiter and thermal protection
Safety anti-reset function
Double sliding front and rear blade guides
Transport locking device

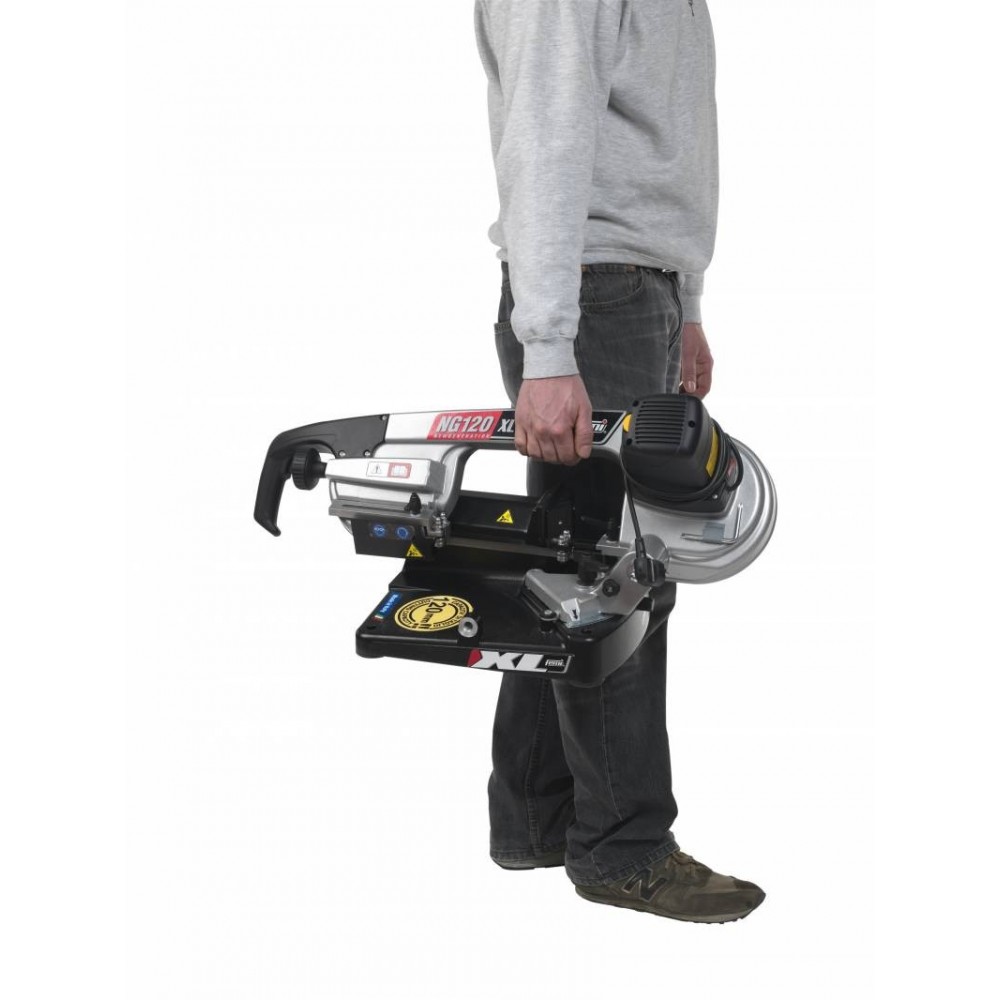

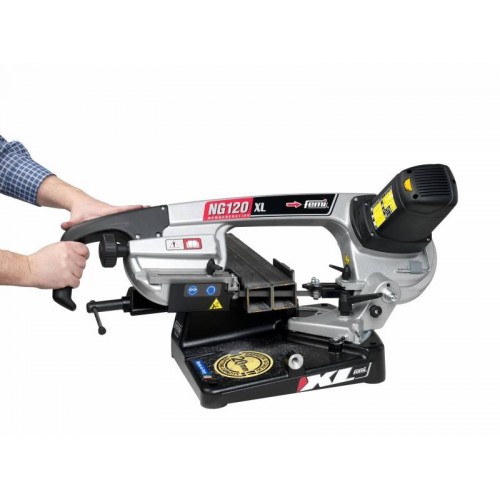

Ergonomic handle
STANDARD EQUIPMENT:
Adjustable bar stop rod for the execution of cuts in series. (L = 500mm)
Tool for changing the blade
Filter for the abatement of electromagnetic disturbances in compliance with current regulations
