180 MM X 22 MM 3M™ VARIOUS GRITS (CF 5 PCS) 769F T27 FLAT FLAP DISC

Superior Efficiency and Versatility: The 3M™ 769F Flap Disc with PSG Technology

The 180mm 3M™ 769F flap disc is the ideal solution for those seeking consistent, high performance in everyday metalworking. Thanks to the 3M™ Precision-Shaped Grain ceramic mineral, this disc cuts faster and lasts significantly longer than traditional zirconia discs. Its durable polyester backing construction provides exceptional conformability, making it perfect for high-pressure applications such as weld removal, chamfering, and deburring . Designed for use on mild steel and stainless steel, the 769F often allows for stock removal and finishing in a single pass, dramatically improving your shop’s productivity.

Purchasing genuine 3M products from Dinamitek guarantees access to cutting-edge abrasive technologies that reduce processing times and total operating costs. To order large quantities, please contact us at info@dinamitek.com

Shipping cost: Free for
31,31 €
Tax included

31,31 € Tax excluded

Choose
Quantity
Available product, order it now.

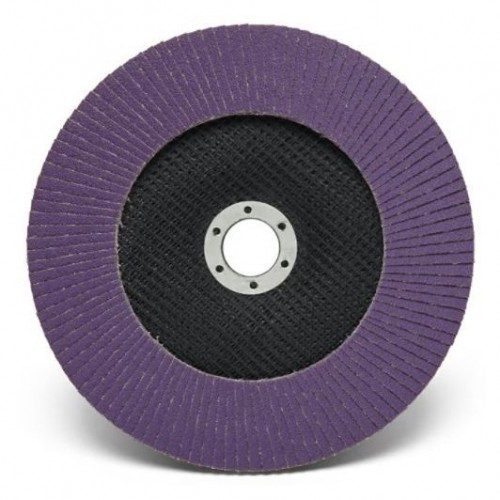

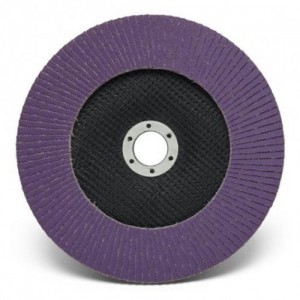

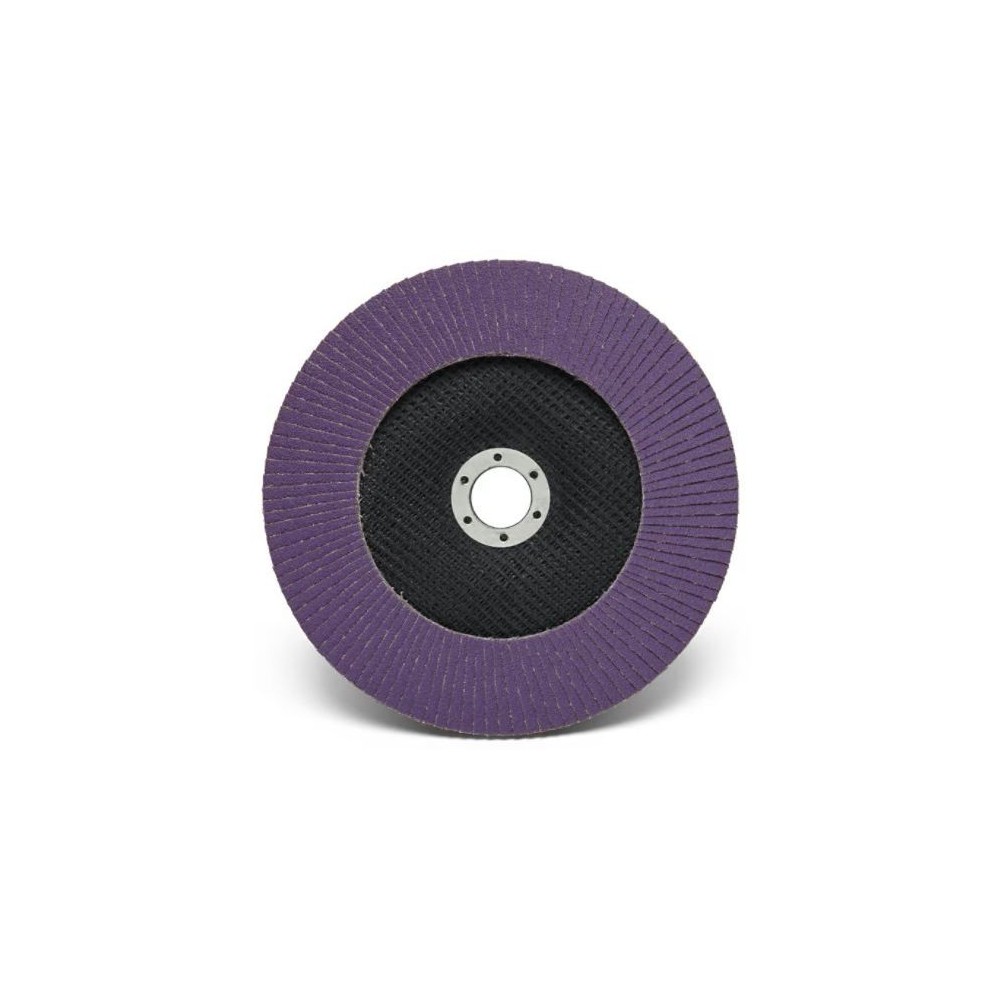

Flap Disc 3M™ 769F – Ø 180 mm x 22.23 mm, Flat (T27)

The 3M™ 769F disc is a versatile abrasive designed to offer an unbeatable balance of performance and affordability. It utilizes micro-replicated 3M™ Precision Shaped Grain ceramic grit, which continuously fractures, exposing consistently sharp points for a clean cut rather than simply scoring the material.

Advantages and Main Features

  • Precision-Shaped Grain Technology: Delivers higher removal rates and extended life compared to conventional ceramic and zirconia abrasives.
  • YF Weight Polyester Backing: Provides the strength needed to handle heavy-duty applications and high loads, while maintaining the flexibility to follow the contours of the workpiece.
  • Premium Finish: Produces a finer finish than a fiber disc of the same grit, often eliminating intermediate sanding steps.
  • Heat Resistance: Ideal for use on heat-sensitive materials, preventing discoloration and burning.
  • Long Life: The blades break down gradually, ensuring high cutting capacity throughout the entire life of the disc (up to 10 years from production).

Technical Specifications

  • Overall Diameter: 180 mm.
  • Center Hole Diameter: 22.23 mm.
  • Disc Profile: Type 27 (Flat).
  • Abrasive Material: Precision Shaped Ceramic (PSG).
  • Maximum Speed: 8,600 rpm.
  • Gluing Type: Resin on polyester backing.

Available Variants and Identification Codes

The 180mm 769F model is available in the following grits to cover every operational need:

  • Grit 40+: For heavy grinding and fast stock removal (3M ID: 7100196538 | UPC: 05902658113420).
  • Grit 60+: For deburring and surface preparation (3M ID: 7100196800 | UPC: 05902658113482).
  • Grit 80+: For finishing and masking imperfections (3M ID: 7100197431 | UPC: 05902658113543).
  • Grit 120+: For fine finishing and paint preparation (3M ID: 7100196792 | UPC: 05902658113604).

Recommended Applications

Ideal for metal fabrication, shipbuilding, railway and heavy industry sectors:

  • Grinding of welds and removal of slag.
  • Chamfering and deburring of edges and corners.
  • Sanding and preparing surfaces for painting.
  • Processing on carbon steel and stainless steel.

Technical Tip: The use of the flat profile (Type 27) is particularly suitable for machining flat surfaces and controlled finishing, where uniform pressure is required over a larger contact area.
