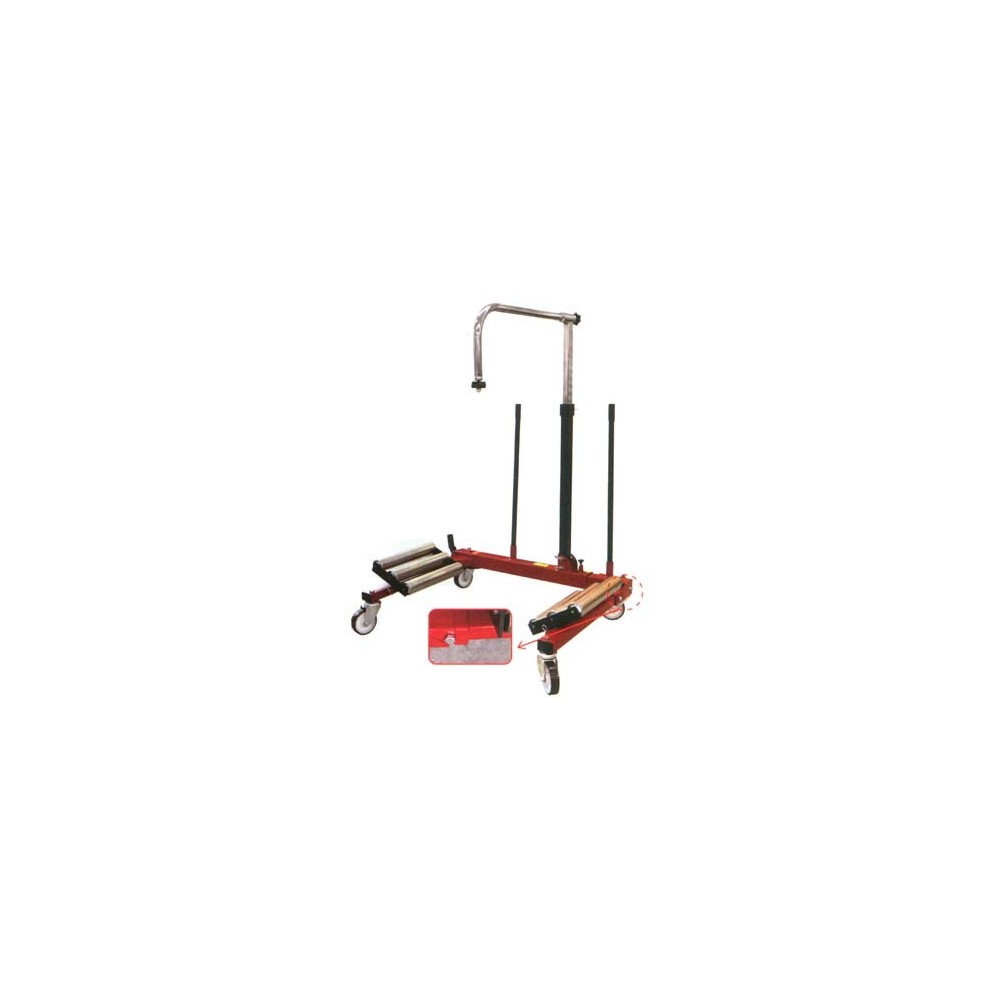

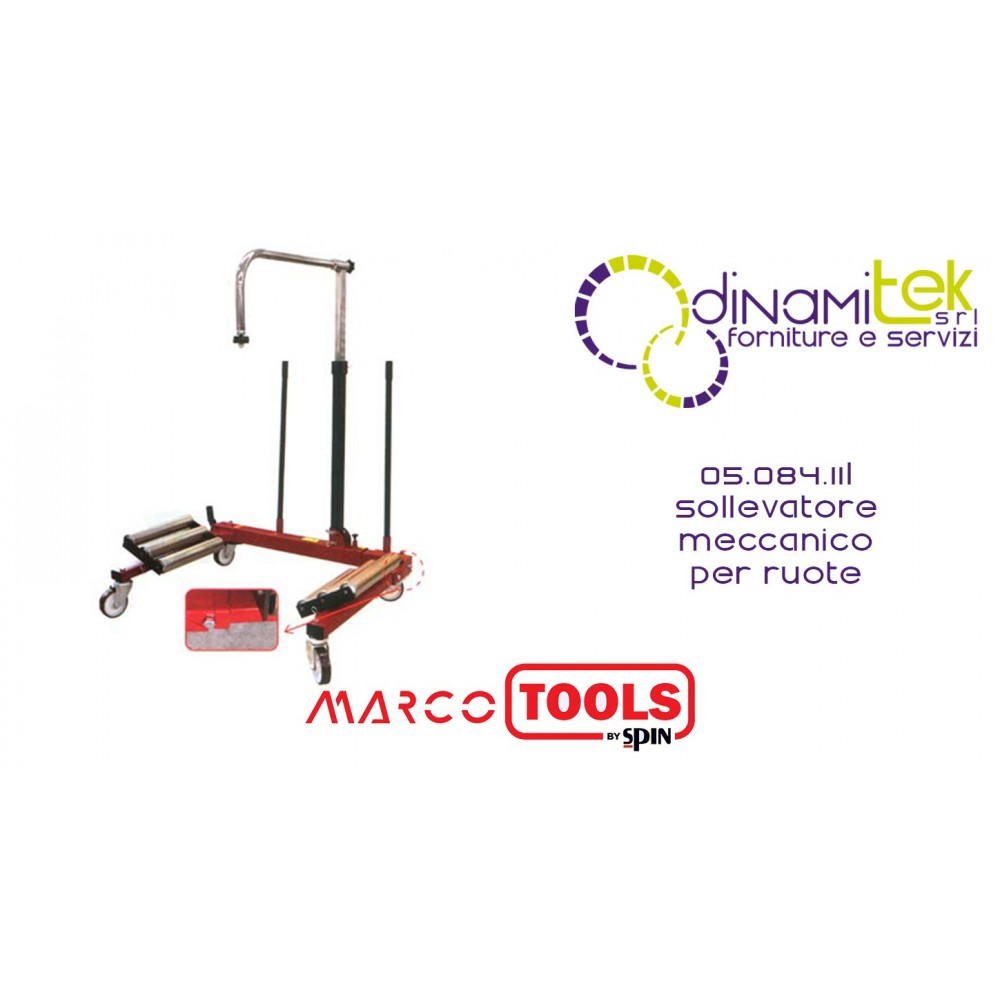

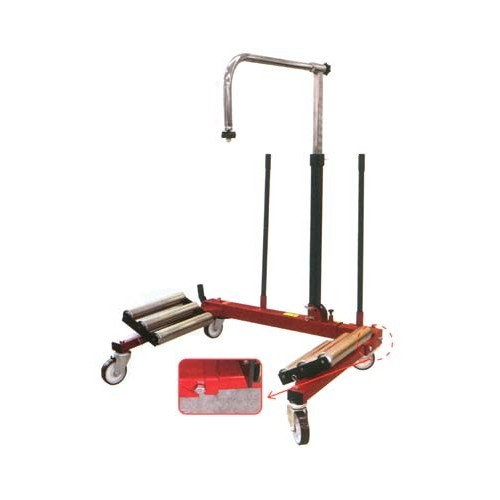

05.084.11L MARCO TOOLS MECHANICAL WHEEL LIFT SPIN
The essential solution for tire service in the heavy-duty sector. The Spin mechanical lift (Code 05.084.11L) is specifically designed for handling and mounting wheels on commercial and industrial vehicles and agricultural machinery . Operated by a sturdy manual crank , it allows you to lift loads of up to 1200 kg with extreme precision, facilitating hub alignment on large tires (up to 1800 mm in diameter) and drastically reducing the physical effort of the operator.
Shipping cost: €50.00
for
Efficiency and Safety for the Truck and Agri Sector
The 05.084.11L lift is part of the Marcotools by Spin specialized line dedicated to heavy vehicles and earthmoving. In contexts where the size and weight of the wheels make manual handling impossible, this tool offers reliable mechanical support, ensuring quick and safe disassembly and reassembly operations.
Operational and Construction Features
- Mechanical Crank Drive: The crank-operated screw lift system ensures pinpoint height control, essential for perfectly centering the rim bolts on the hub without damaging the threads.
- High Load Capacity: With a certified load capacity of 1.2 tons, it is suitable for the heaviest wheels in the agricultural sector (tractors, combine harvesters) and industrial transport.
- Wide Diameter Range: Designed to accommodate tyres with a maximum diameter of 1800 mm, covering almost all standard and special tyres in use.
- Sturdy and Mobile Structure: The frame is made of high-strength steel and is equipped with swivel wheels that allow the lift and wheel to be easily moved within the workshop or yard.
- Detachable Design: The unit can be partially disassembled for easy transportation or to reduce space when not in use, optimizing workshop space.
Areas of Use
- Workshops for industrial vehicles and truck service.
- Service centers for agricultural and forestry machinery.
- Maintenance of earthmoving machinery and port logistics.
Technical Specifications
- Product Code: 05.084.11L
- Brand: Spin (Truck / Agri / Earthmoving Line)
- Load Capacity: 1200 kg
- Max Tire Diameter: 1800 mm
- Lifting Height: 0 - 770 mm
- Assembled Machine Dimensions: 1270 x 990 x 1340 mm
- Net/Gross Weight: 106 kg / 121 kg
- Packaging Dimensions: 1398 x 448 x 368 mm
